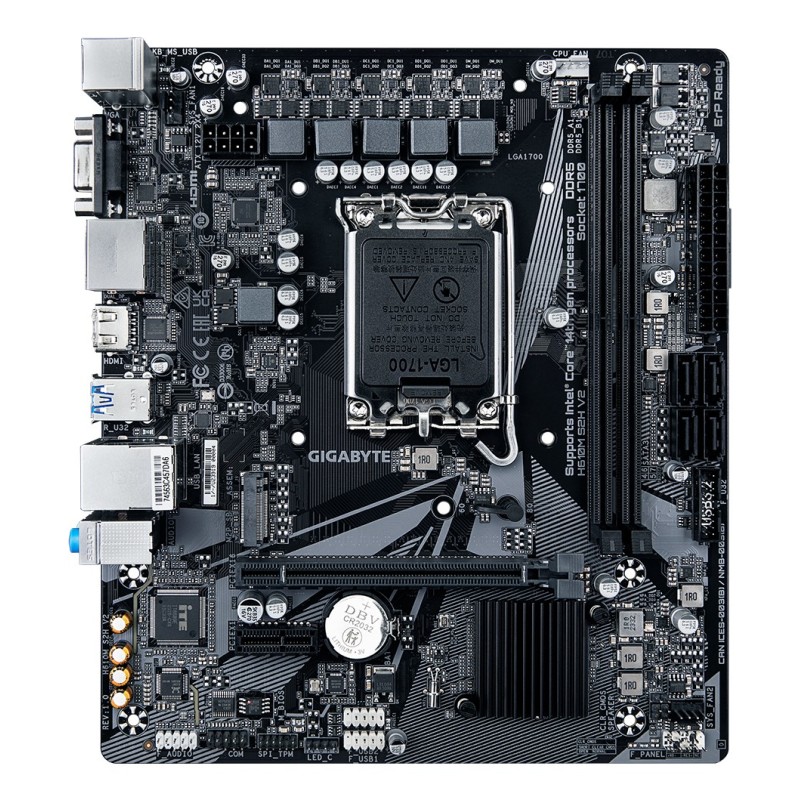

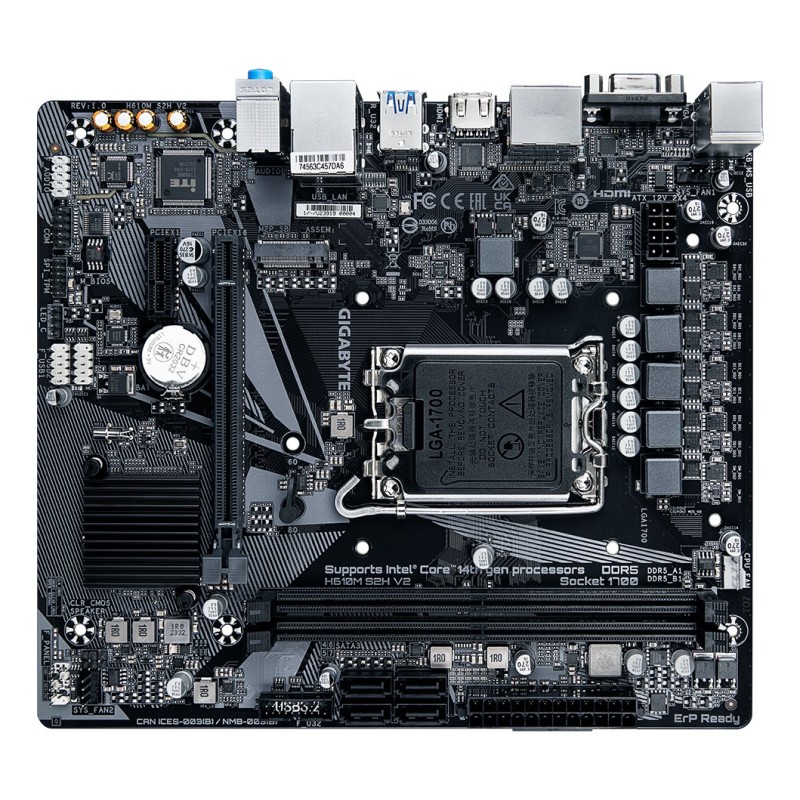

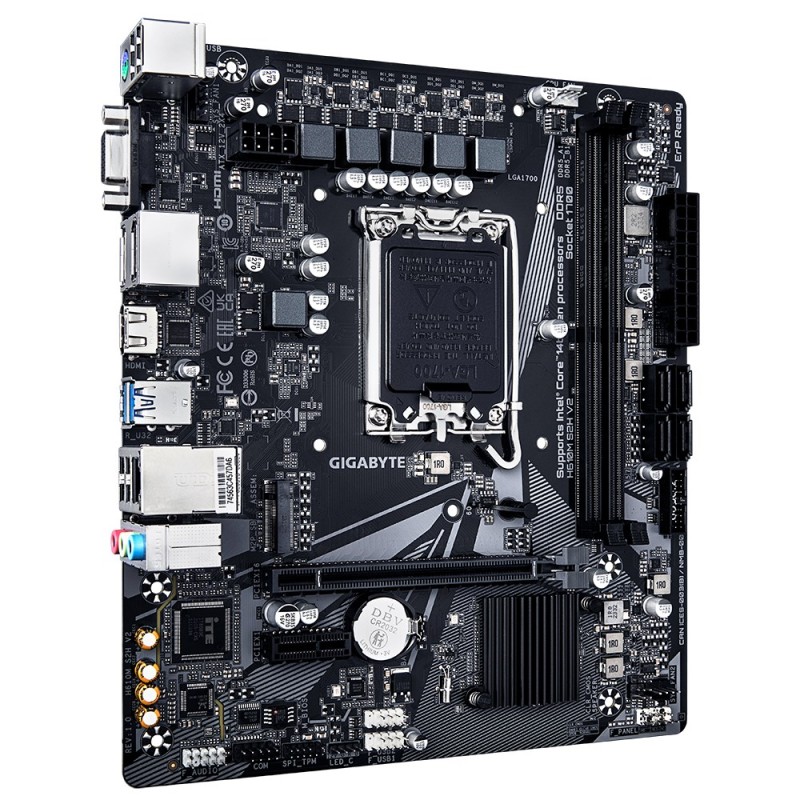

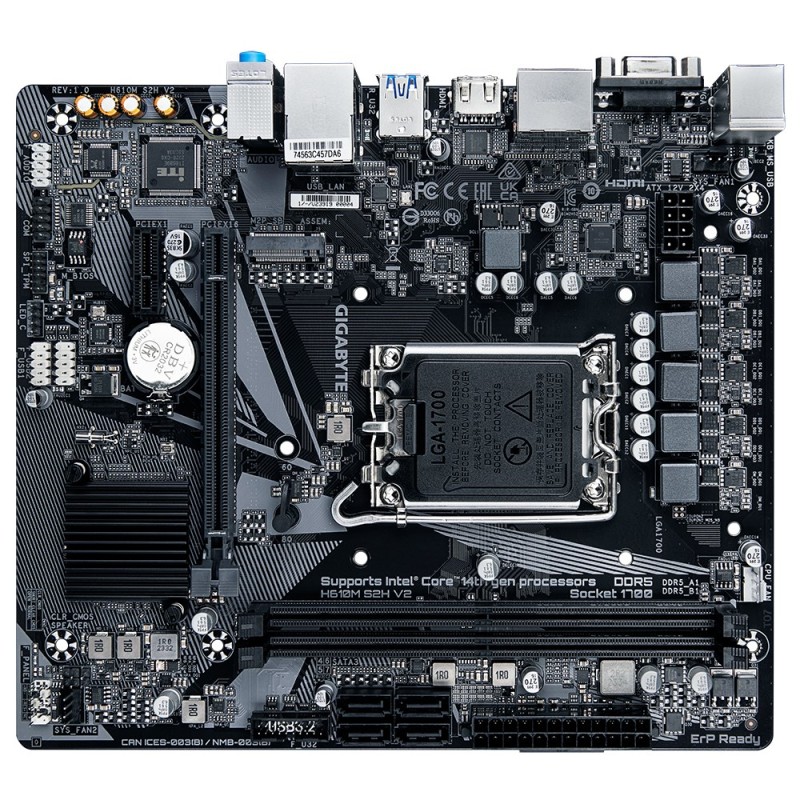

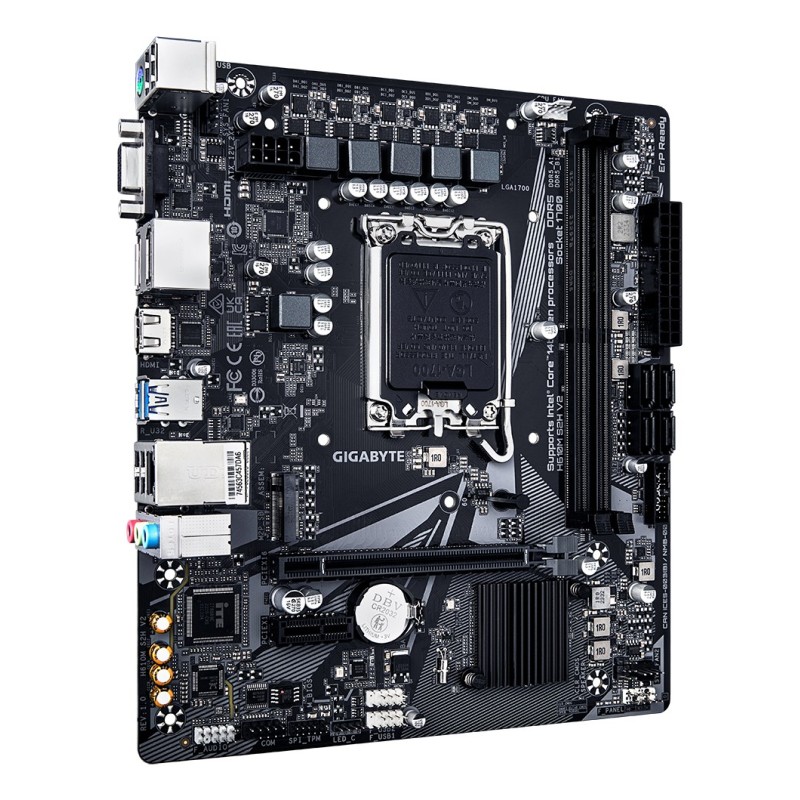

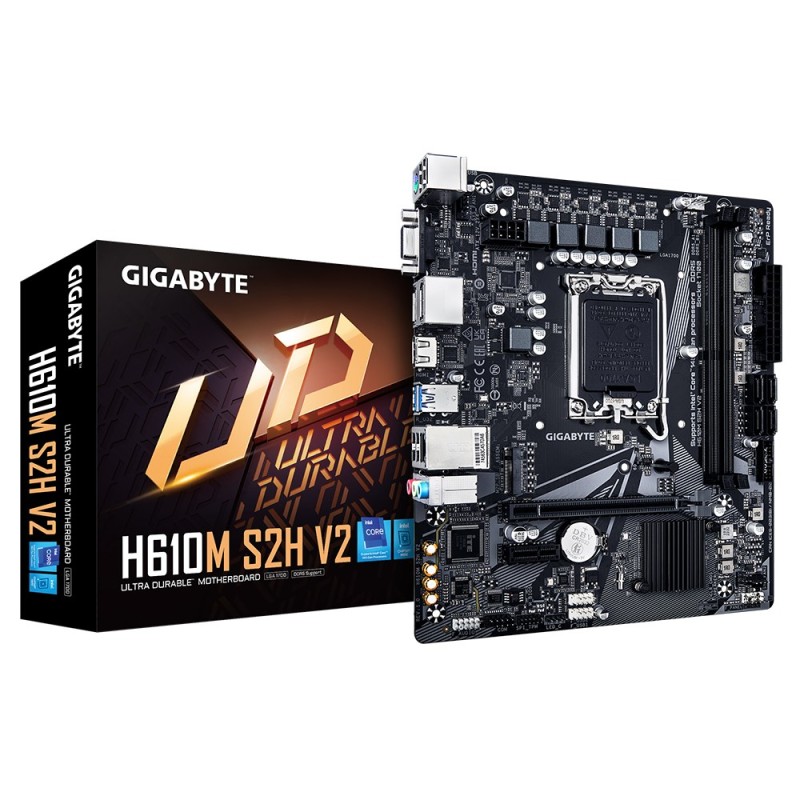

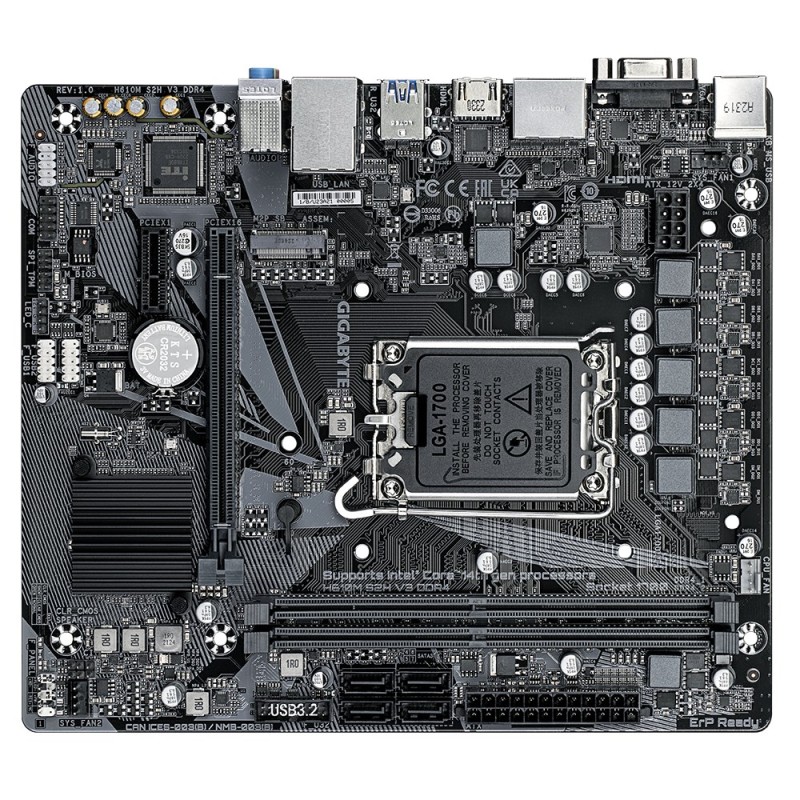

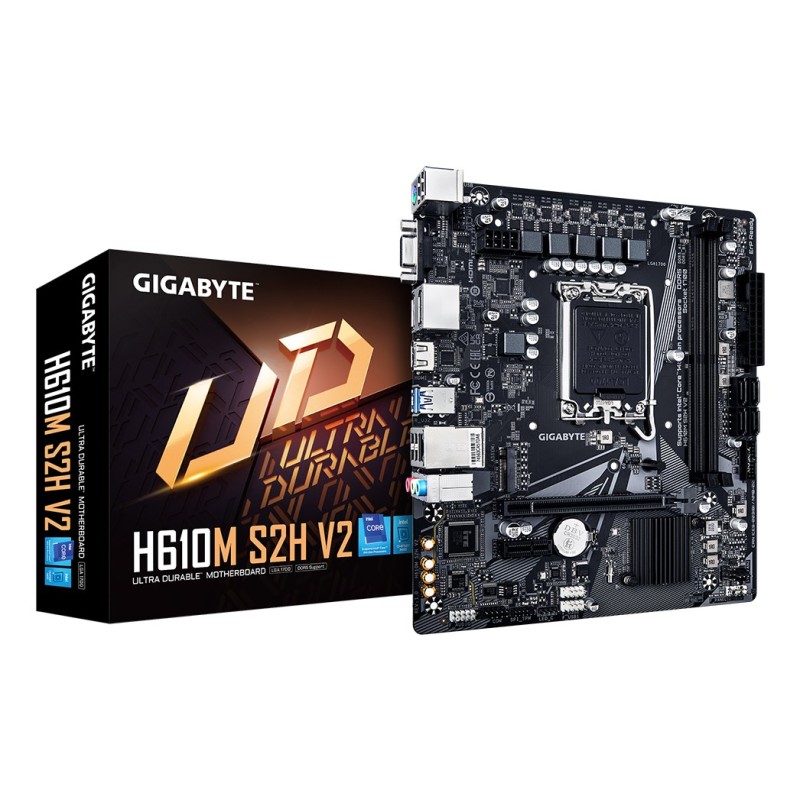

Płyta główna Gigabyte H610M S2H V2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum internal memory supported by processor: 96 GB

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Graphics

Maximum resolution: 4096 x 2304 pixels

On-board graphics card: Yes

On-board graphics card model: Intel® HD Graphics

Graphics card family: Intel

HDCP: Yes

Graphics card: HD Graphics

Features

Cooling type: Active

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

PC health monitoring: Voltage, Water cooling, LED, Temperature, Fan

Power source type: ATX

Audio chip: Realtek ALC897

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Product colour: Black

Motherboard chipset: Intel H610 Express

Memory

Number of memory slots: 2

Memory slots type: DIMM

ECC сompatibility: ECC & Non-ECC

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Supported memory clock speed (max): 5600 MHz

Supported memory module capacities: 12GB, 8GB, 2GB, 4GB, 1GB, 48GB, 32GB

Supported memory clock speeds: 4800, 5200, 4400, 5600 MHz

Unbuffered memory: Yes

Maximum internal memory: 96 GB

Weight & dimensions

Width: 230 mm

Depth: 215 mm

Height: 35 mm

Network

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

Internal I/O

RGB LED pin header: Yes

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Number of SATA III connectors: 4

Serial port headers: 1

ATX Power connector (24-pin): Yes

Front panel connector: Yes

USB 2.0 connectors: 2

TPM connector: Yes

Front panel audio connector: Yes

Number of COM connectors: 1

CPU fan connector: Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS button: Yes

Clear CMOS jumper: Yes

Packaging data

Package width: 265 mm

Package height: 52 mm

Package weight: 690 g

Package depth: 235 mm

Packaging content

Batteries included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA

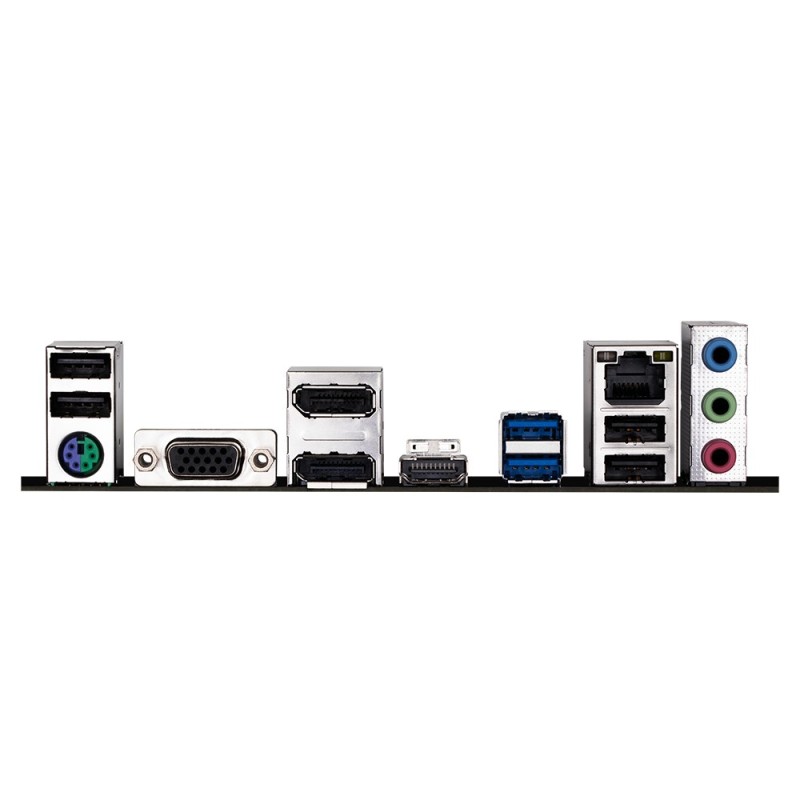

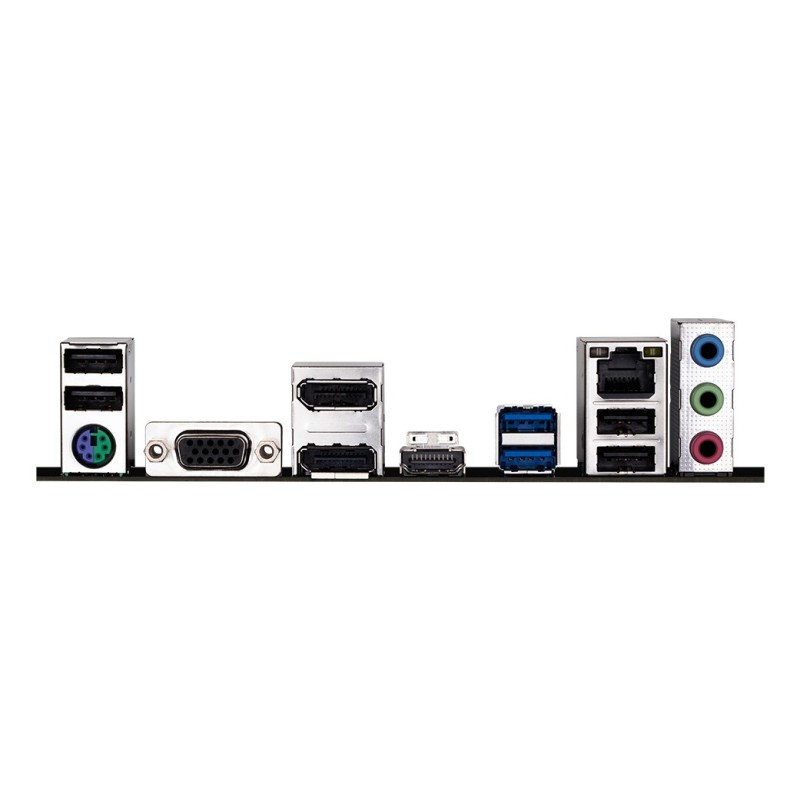

Rear panel I/O ports

DisplayPorts quantity: 1

HDMI ports quantity: 1

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

DVI-D ports quantity: 1

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x1 slots: 1

Number of M.2 (M) slots: 1

PCI Express x16 slots: 1

Battery

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Other features

Supported DIMM module capacities: 16GB, 8GB

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
