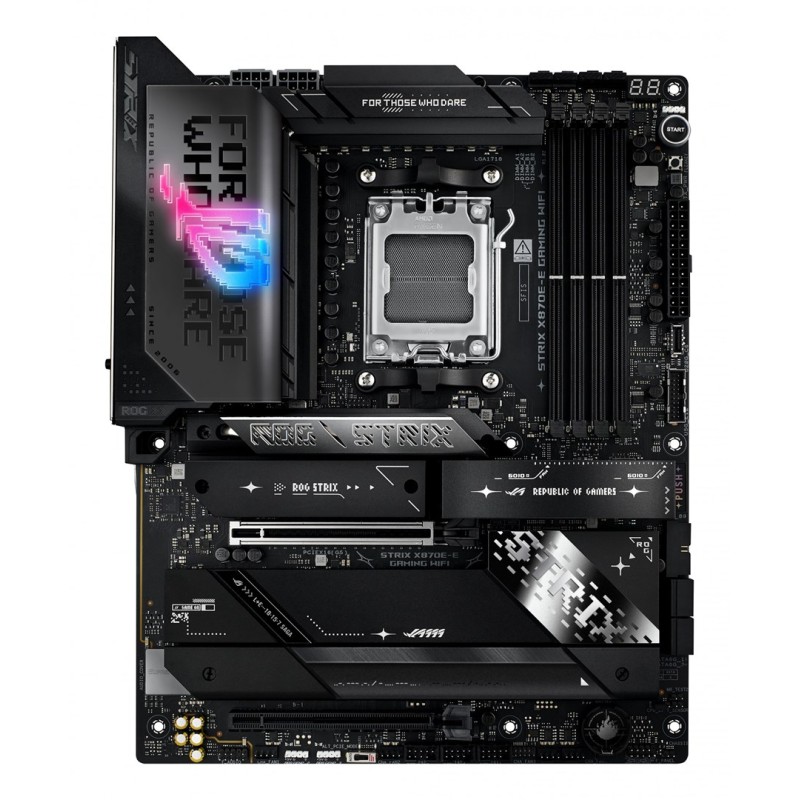

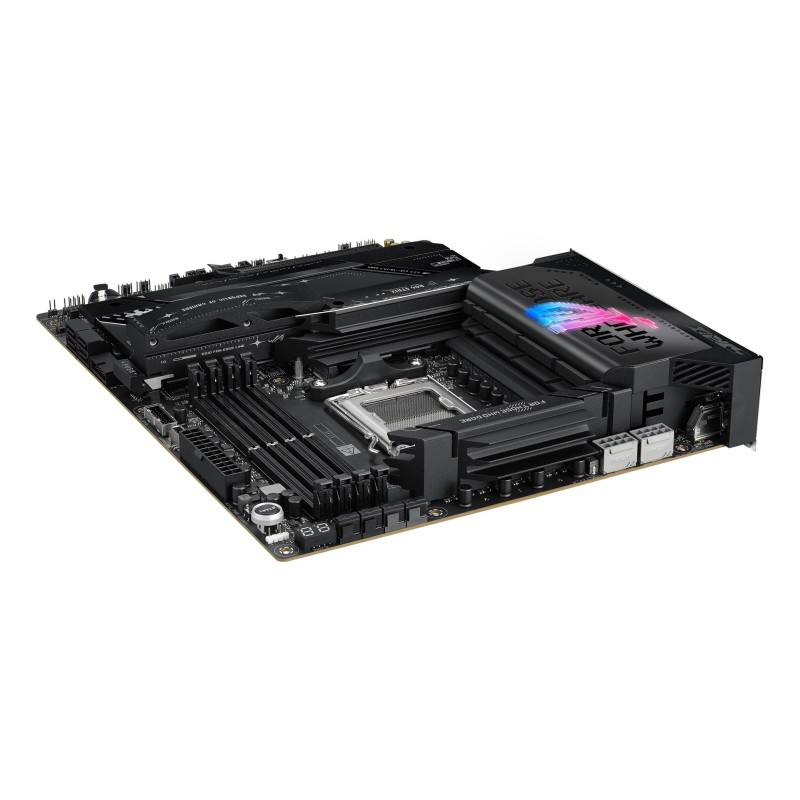

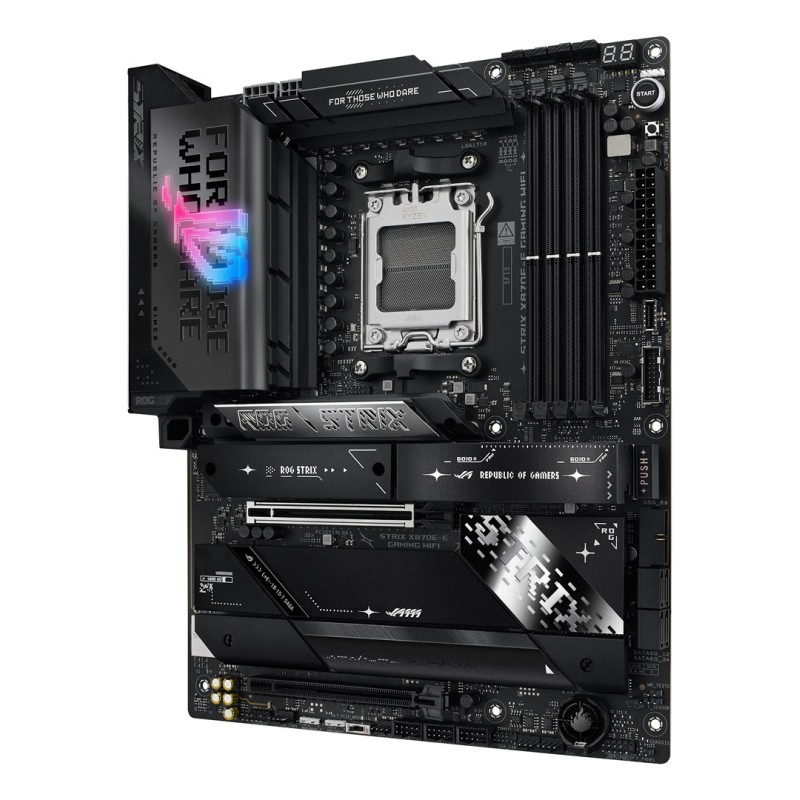

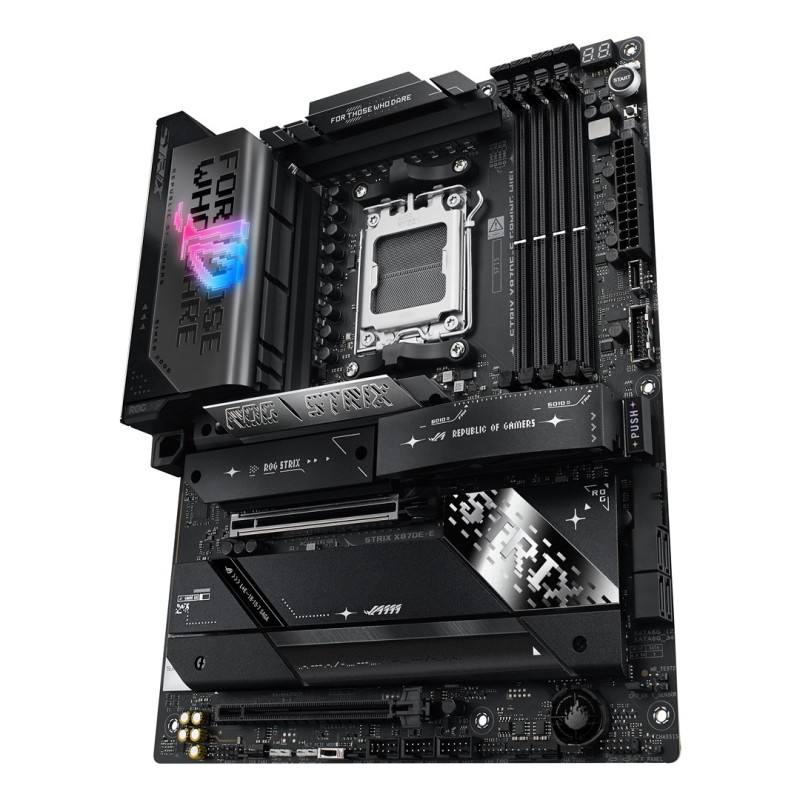

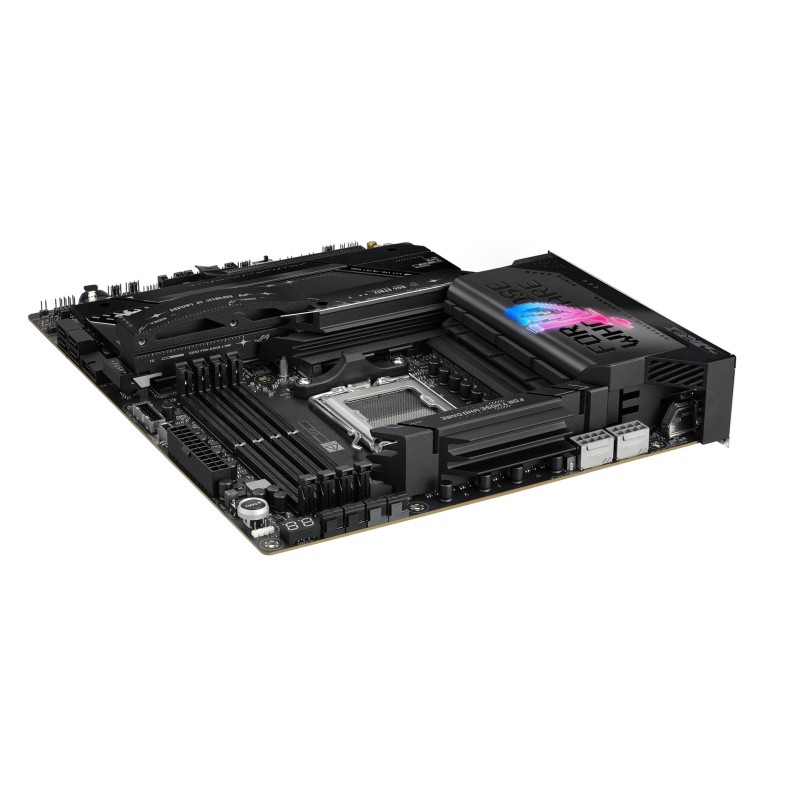

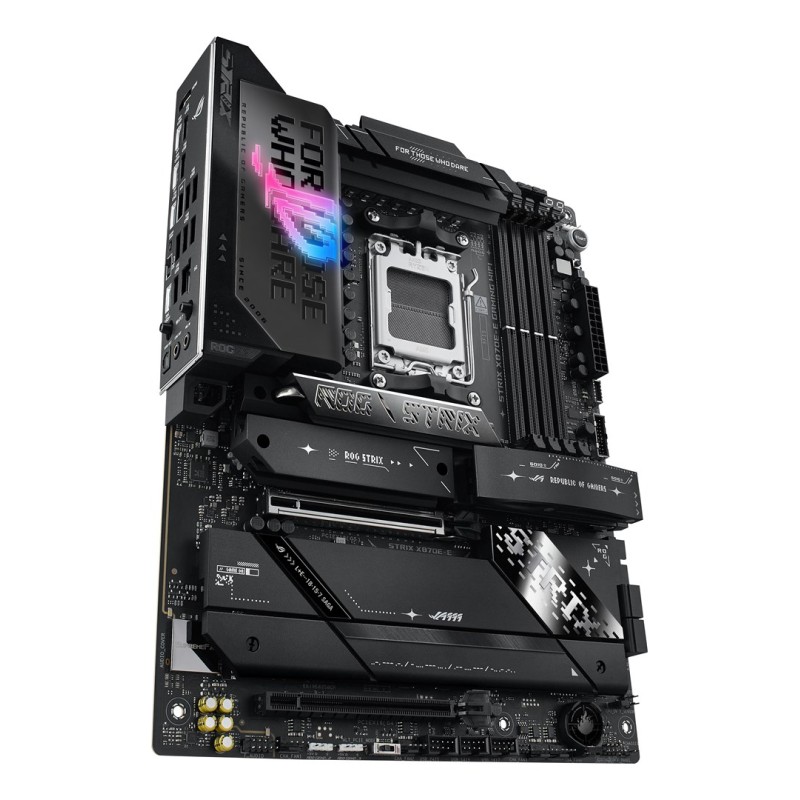

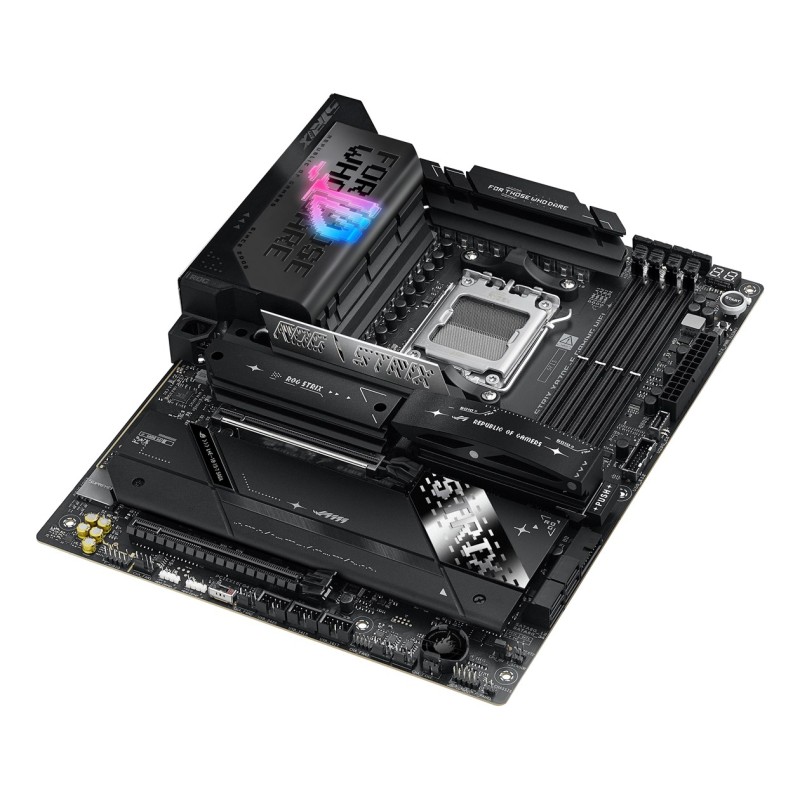

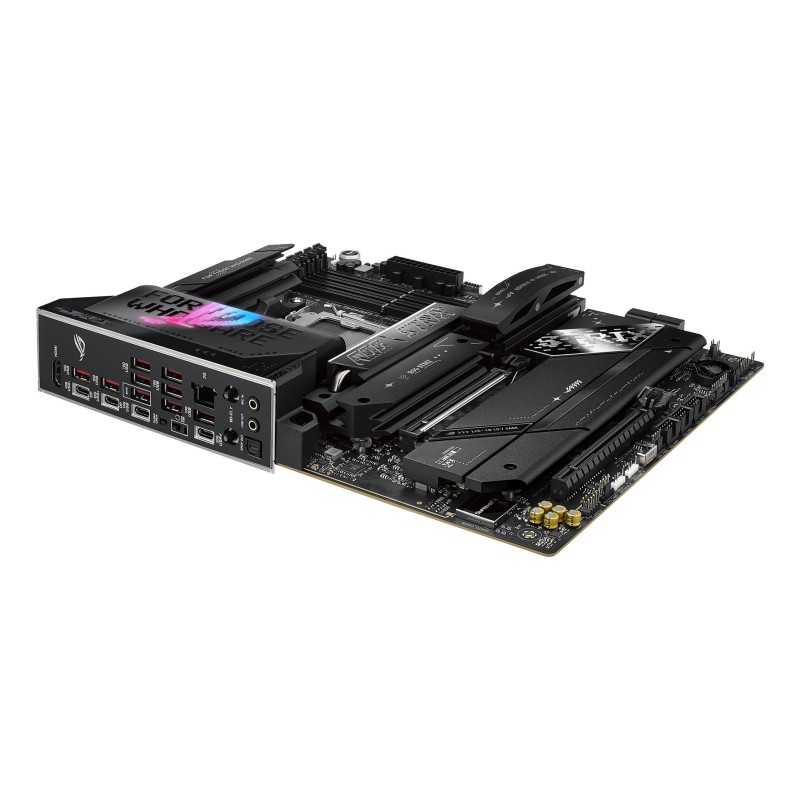

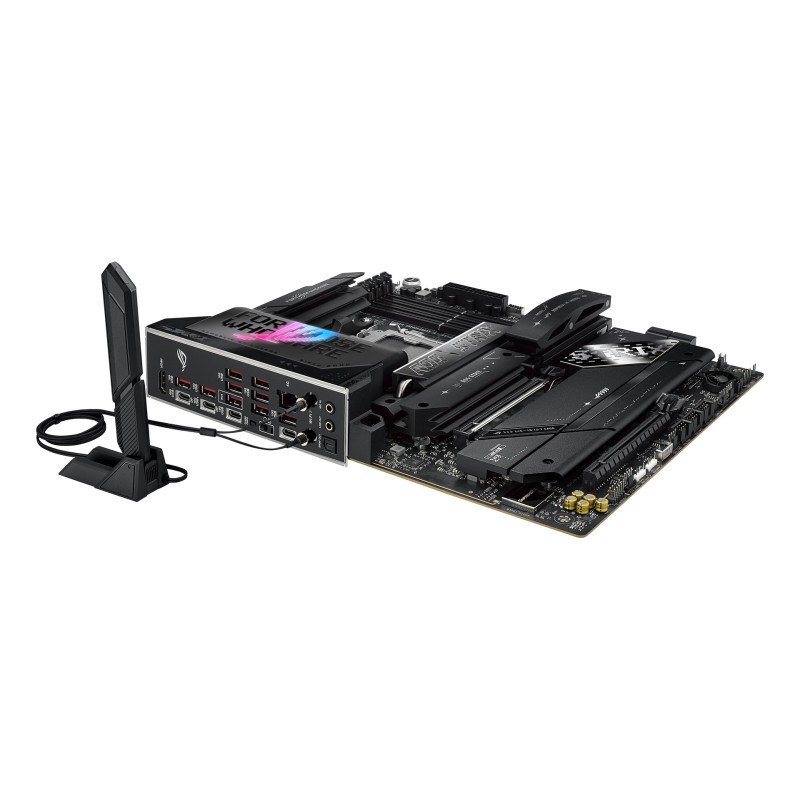

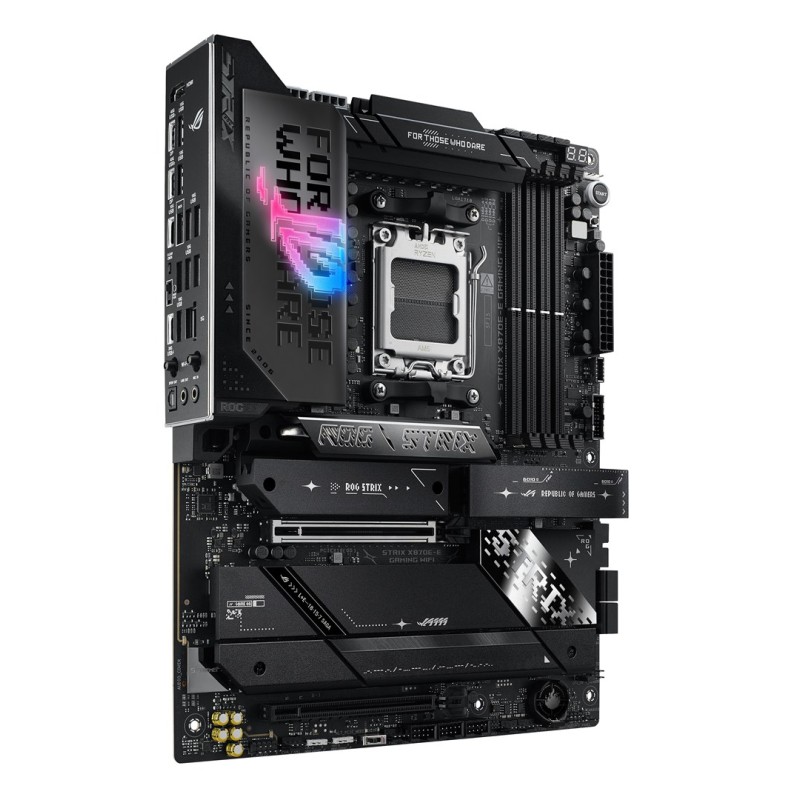

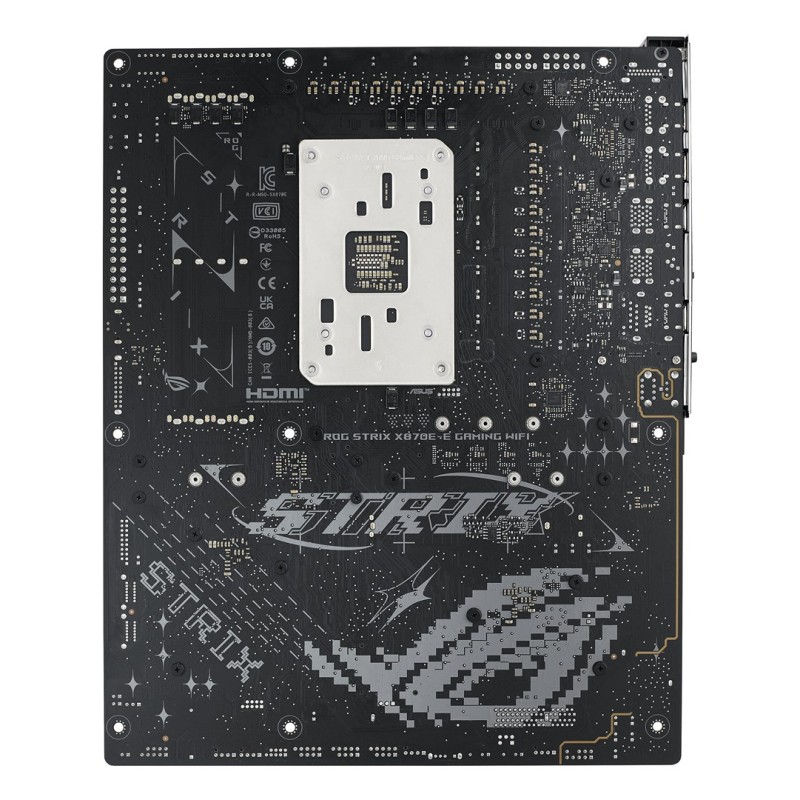

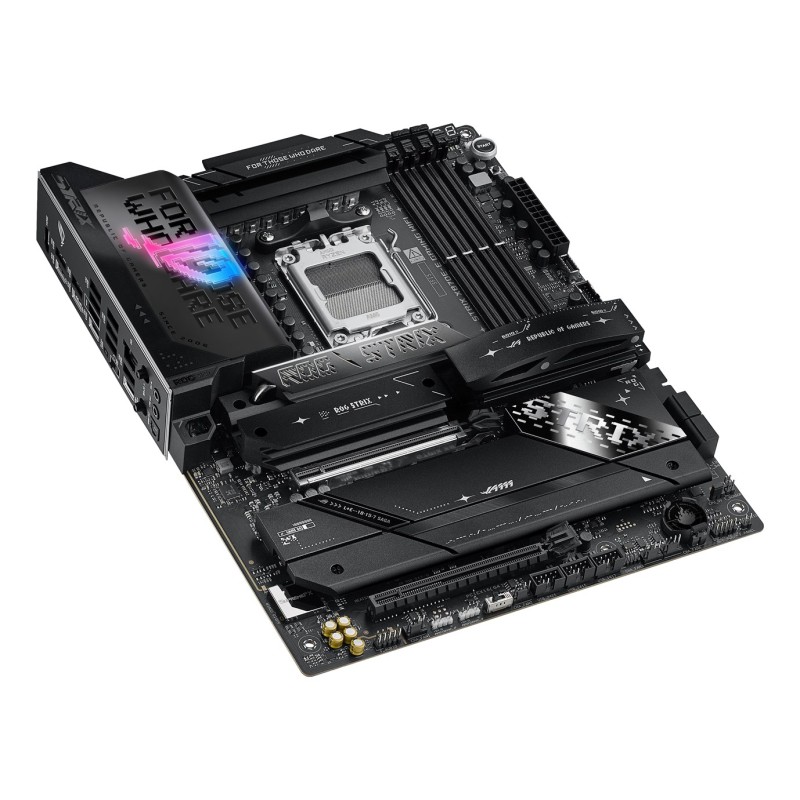

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard form factor: ATX

Audio chip: Realtek ALC4080

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Motherboard chipset family: AMD

Product colour: Black

Motherboard chipset: AMD X870E

Memory

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Weight & dimensions

Depth: 244 mm

Height: 50 mm

Width: 305 mm

Network

Bluetooth version: 5.4

Wi-Fi: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Ethernet interface type: 5 Gigabit Ethernet

Bluetooth: Yes

Internal I/O

12V power connector: Yes

USB 3.2 Gen 2x2 connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

USB 2.0 connectors: 3

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package height: 87 mm

Package weight: 3.02 kg

Package width: 365 mm

Package depth: 281 mm

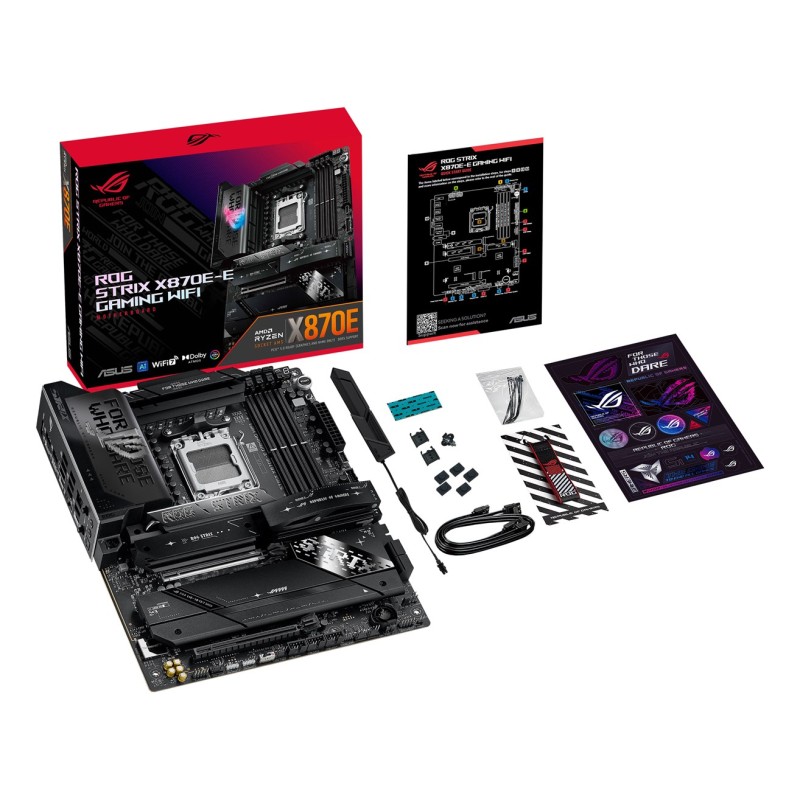

Packaging content

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 9

RAID levels: 1, 10, 5, 0

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

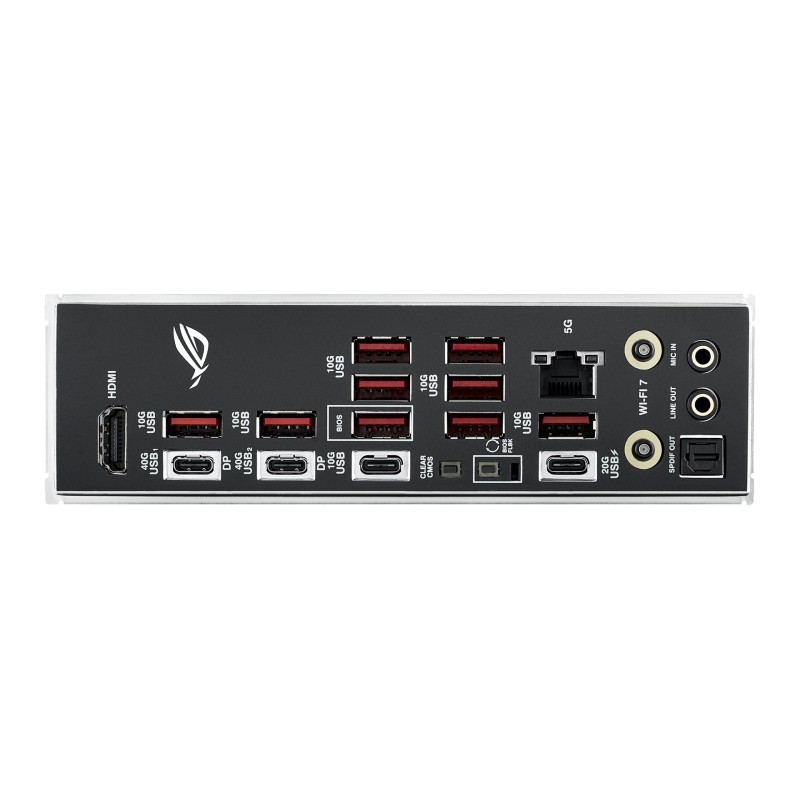

Rear panel I/O ports

WiFi-AP antenna jack: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB4 Gen 2x2 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 9

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 5

Other features

Weight: 2.06 kg

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
