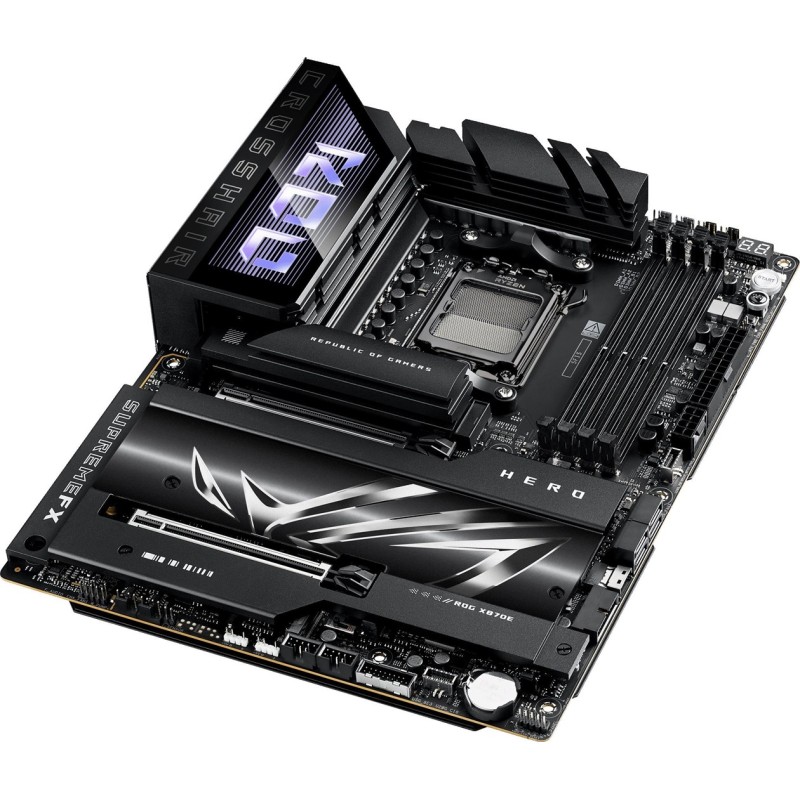

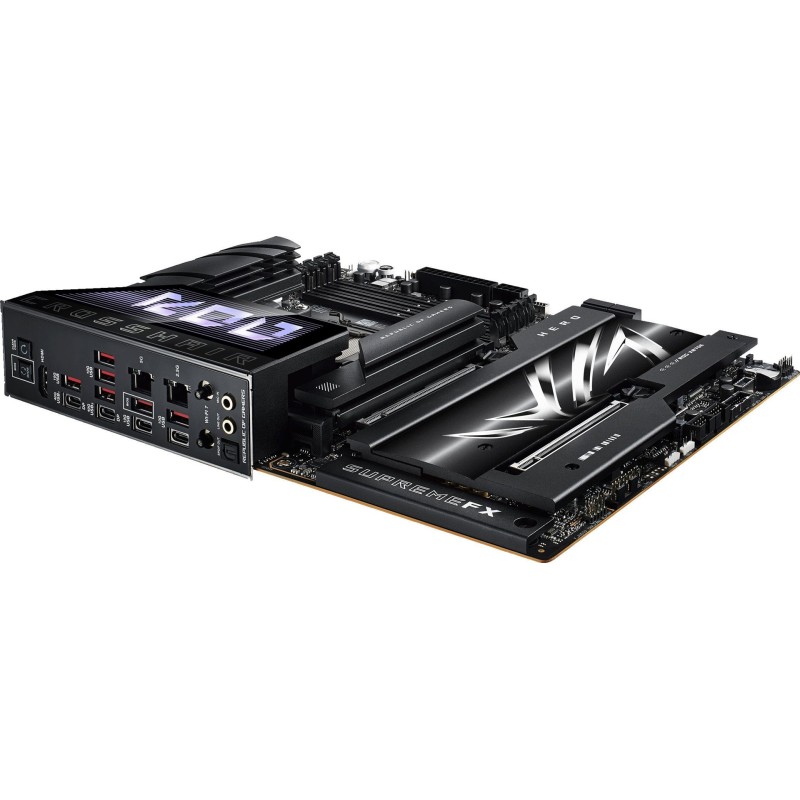

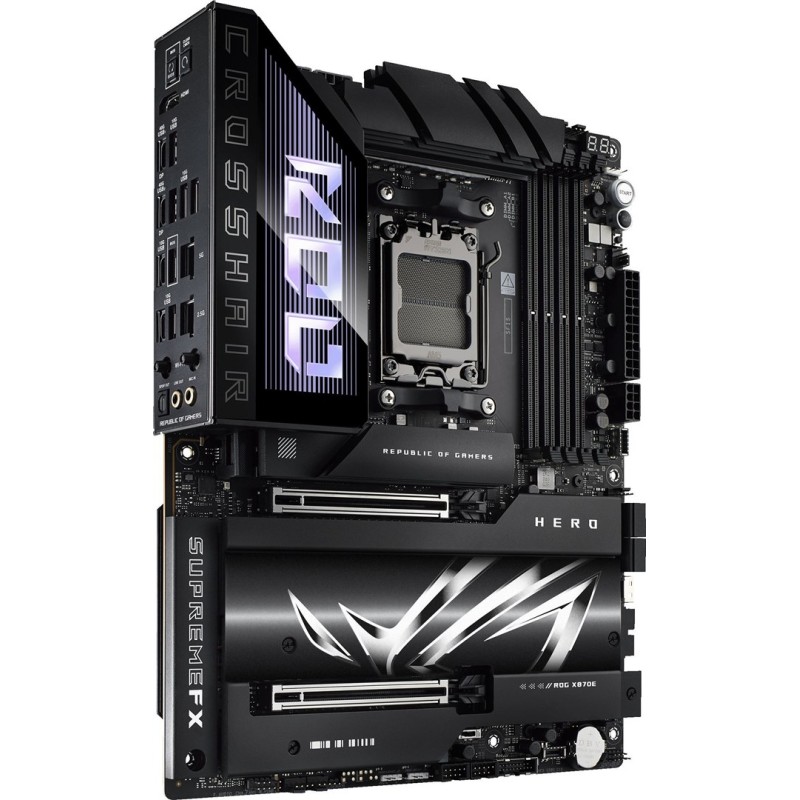

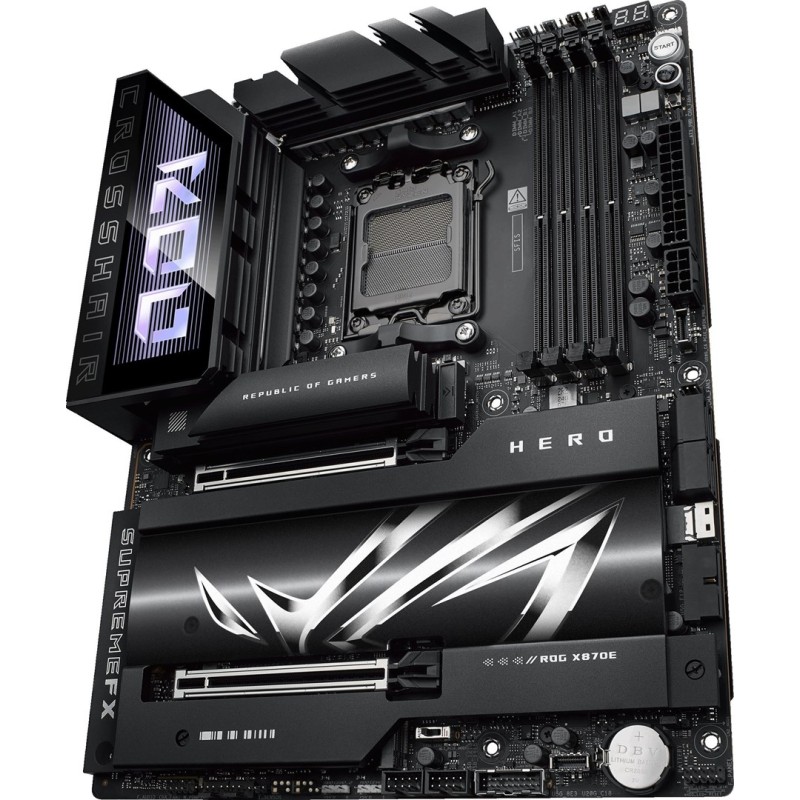

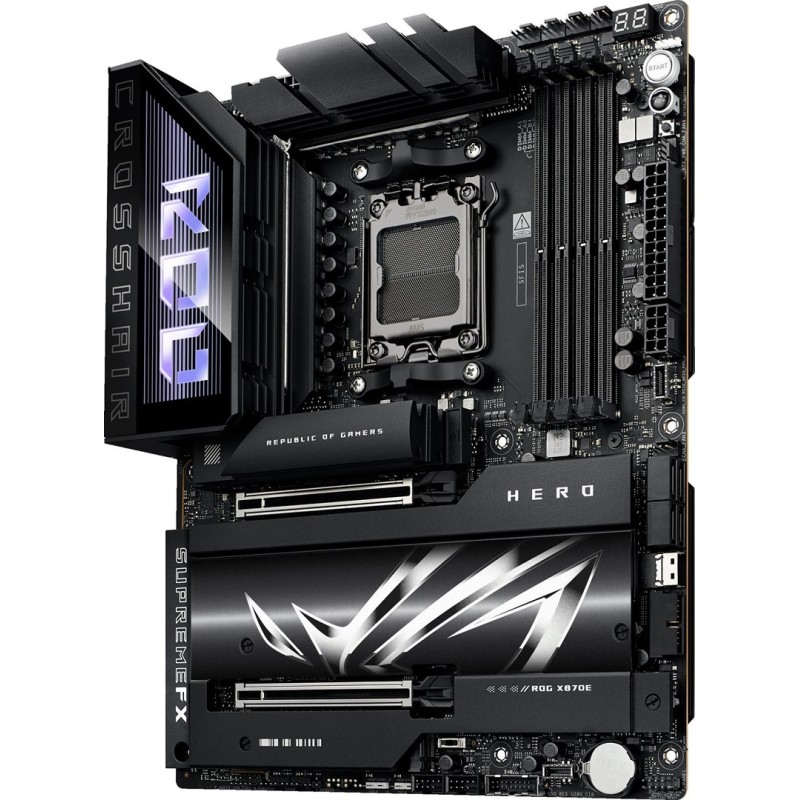

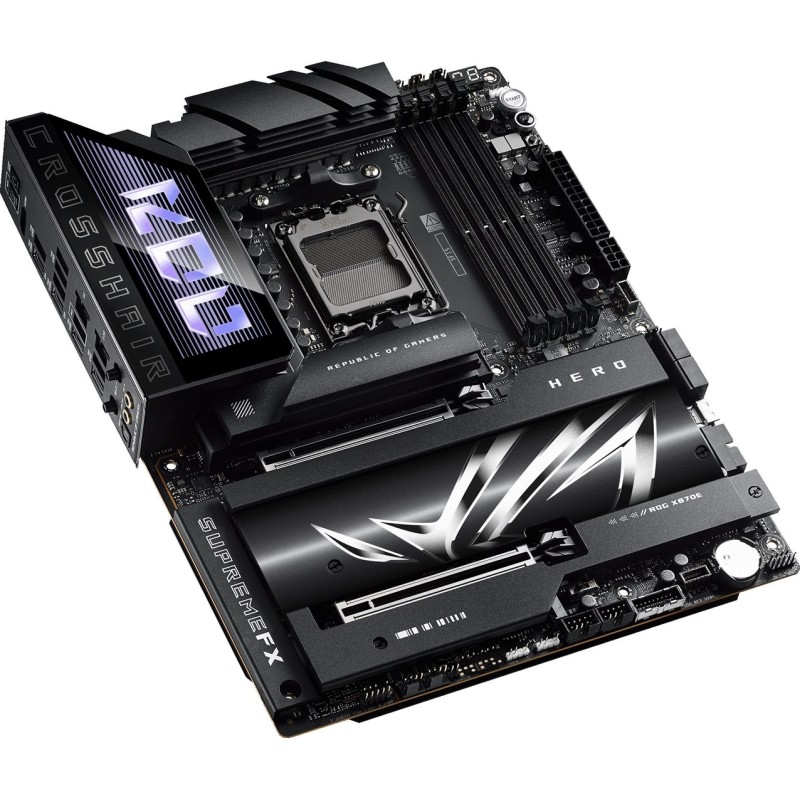

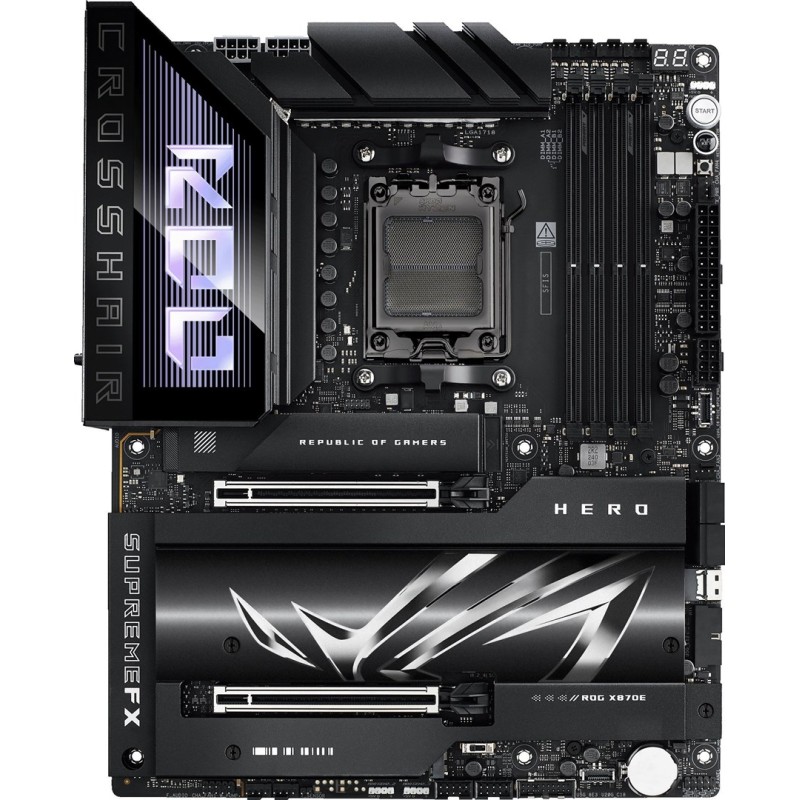

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD X870E

Windows operating systems supported: Windows 11

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset family: AMD

Audio chip: Realtek ALC4082

Memory

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Unbuffered memory: Yes

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Width: 305 mm

Height: 50 mm

Depth: 244 mm

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet

Bluetooth version: 5.4

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O

Front panel audio connector: Yes

Number of chassis fan connectors: 4

Number of SATA III connectors: 4

EPS power connector (8-pin): Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

12V power connector: Yes

USB 3.2 Gen 2x2 connectors: 2

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package height: 108 mm

Package weight: 4.26 kg

Package width: 370 mm

Package depth: 312 mm

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 0, 10, 1, 5

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III, SlimSAS

Number of storage drives supported: 10

Number of HDDs supported: 5

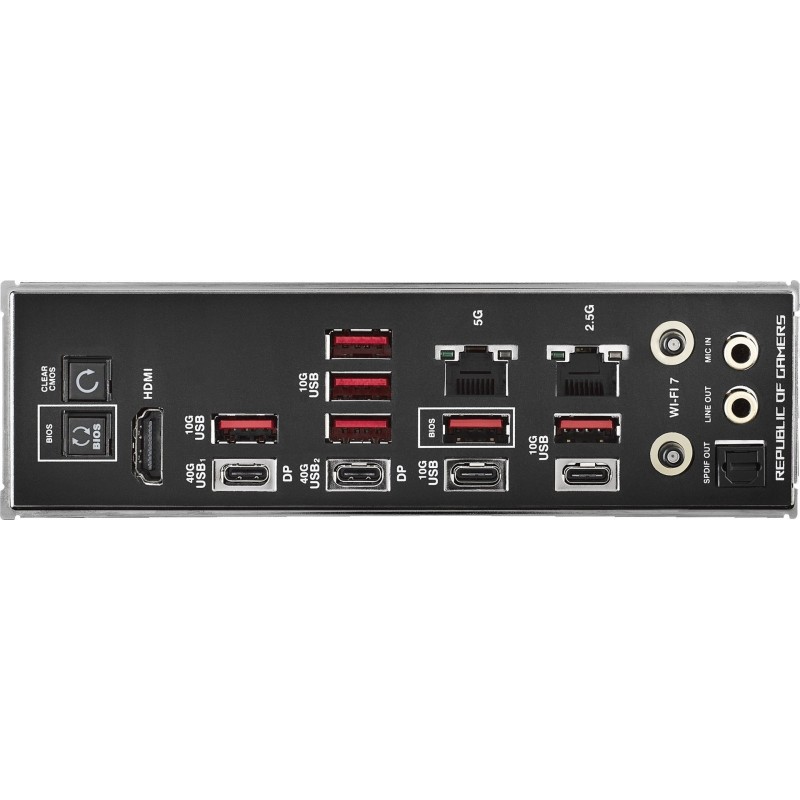

Rear panel I/O ports

USB4 Gen 2x2 ports quantity: 2

S/PDIF out port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6

Ethernet LAN (RJ-45) ports: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

HDMI ports quantity: 1

Headphone outputs: 1

Microphone in: Yes

WiFi-AP antenna jack: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 2

Number of M.2 (M) slots: 5

PCI Express x16 (Gen 4.x) slots: 4

Other features

Weight: 2.55 kg
