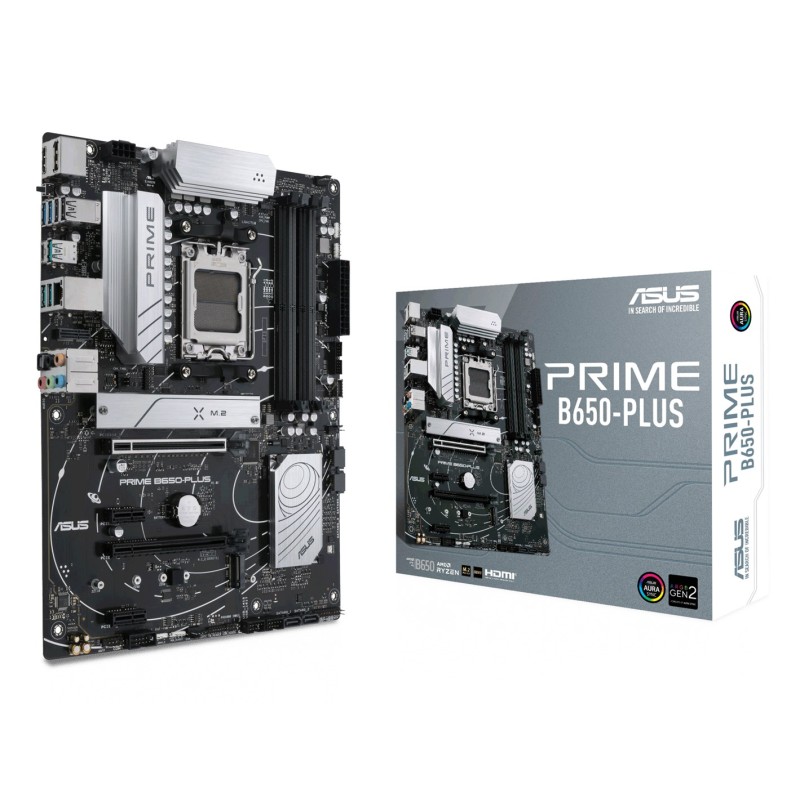

ASUS PRIME B650-PLUS AMD B650 Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Power source type: ATX

Product colour: Multicolour

Motherboard chipset: AMD B650

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11 x64, Windows 10

Memory

Supported memory clock speeds: 5600, 5800, 5400, 6400 MHz, 4800, 6200, 5200, 5000, 6000

Maximum internal memory: 128 GB

ECC сompatibility: ECC & Non-ECC

Unbuffered memory: Yes

Memory channels: Dual-channel

Supported memory clock speed (max): 6400 MHz

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: No

Internal I/O

Front panel audio connector: Yes

Number of chassis fan connectors: 3

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Thunderbolt headers: 1

Number of SATA III connectors: 4

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

TPM connector: Yes

Number of COM connectors: 1

RGB LED pin header: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 1.35 kg

Package width: 338 mm

Package height: 68 mm

Package depth: 373 mm

Packaging content

User guide: Yes

Cables included: SATA

Storage controllers

RAID levels: 1, 0, 10

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

DisplayPorts quantity: 1

DisplayPort version: 1.4

S/PDIF out port: Yes

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Microphone in: Yes

Line-in: Yes

Headphone outputs: 1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x4 (Gen 1.x) slots: 2

Other features

Back-to-BIOS button: Yes

Number of M.2 (E) slots: 1

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

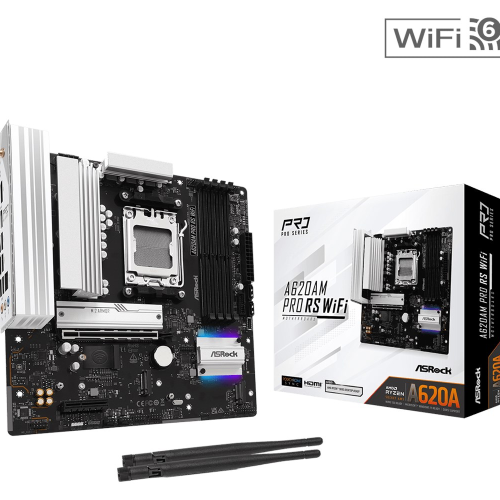

Asrock A620AM PRO RS WIFI motherboard

ProcessorCompatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen™ 8000 SeriesProcessor socket: Socket AM5Processor manufa..

135,20€

Χωρίς ΦΠΑ:109,03€

Asrock A620AM PRO-A motherboard

ProcessorCompatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen™ 8000 SeriesProcessor socket: Socket AM5Processor manufa..

112,42€

Χωρίς ΦΠΑ:90,67€

Asrock A620M-HDV/M.2 AMD A620 Socket AM5 micro ATX

ProcessorCompatible processor series: AMD Ryzen 7000 SeriesMaximum number of SMP processors: 1Processor manufacturer: AMDProcessor socket: Socket AM5G..

89,67€

Χωρίς ΦΠΑ:72,31€

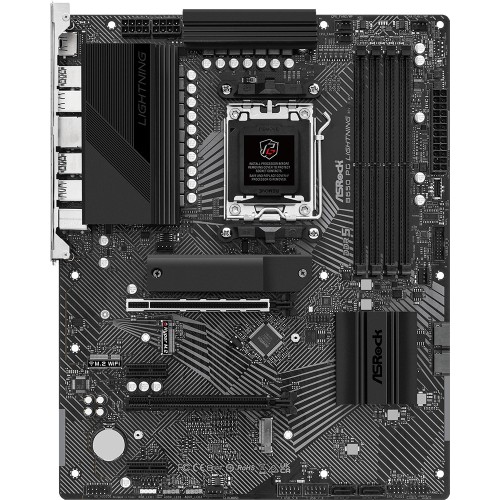

Asrock B650 PG Lightning AMD B650 Socket AM5 ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5GraphicsGraphics card: AMD RDNA 2Graphics card family: AMDOn-board graphics card: YesH..

177,91€

Χωρίς ΦΠΑ:143,47€

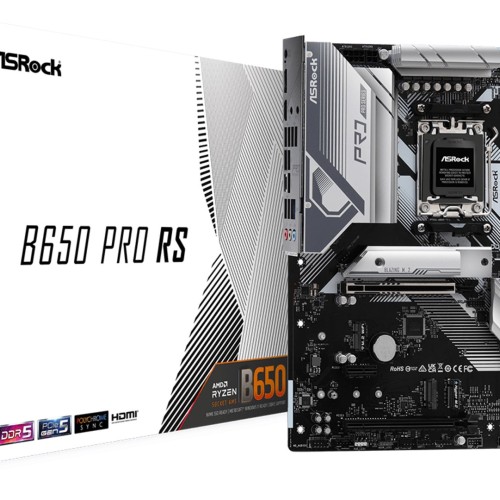

Asrock B650 Pro RS AMD B650 Socket AM5 ATX

ProcessorMaximum number of SMP processors: 1Compatible processor series: AMD Ryzen 7000 SeriesProcessor manufacturer: AMDProcessor socket: Socket AM5F..

190,82€

Χωρίς ΦΠΑ:153,89€

Asrock B650I LIGHTNING WIFI motherboard

ProcessorMaximum number of SMP processors: 1Compatible processor series: AMD Ryzen™ 7000 SeriesProcessor socket: Socket AM5Processor manufacturer: AMD..

189,35€

Χωρίς ΦΠΑ:152,70€

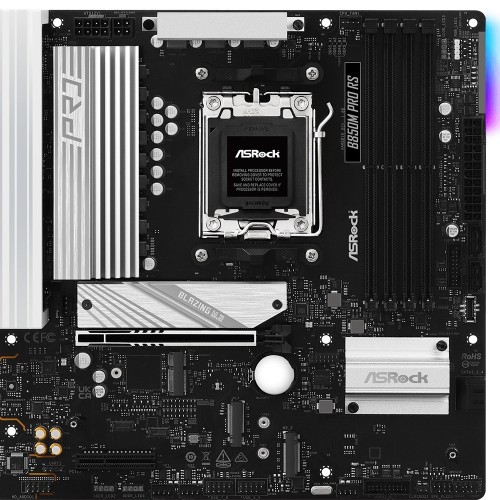

Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX
