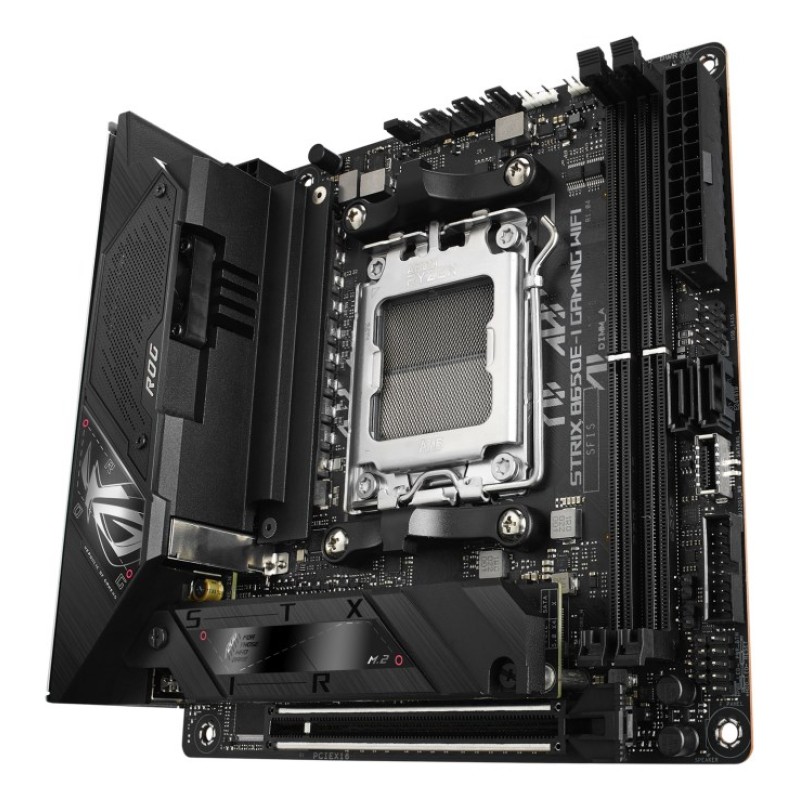

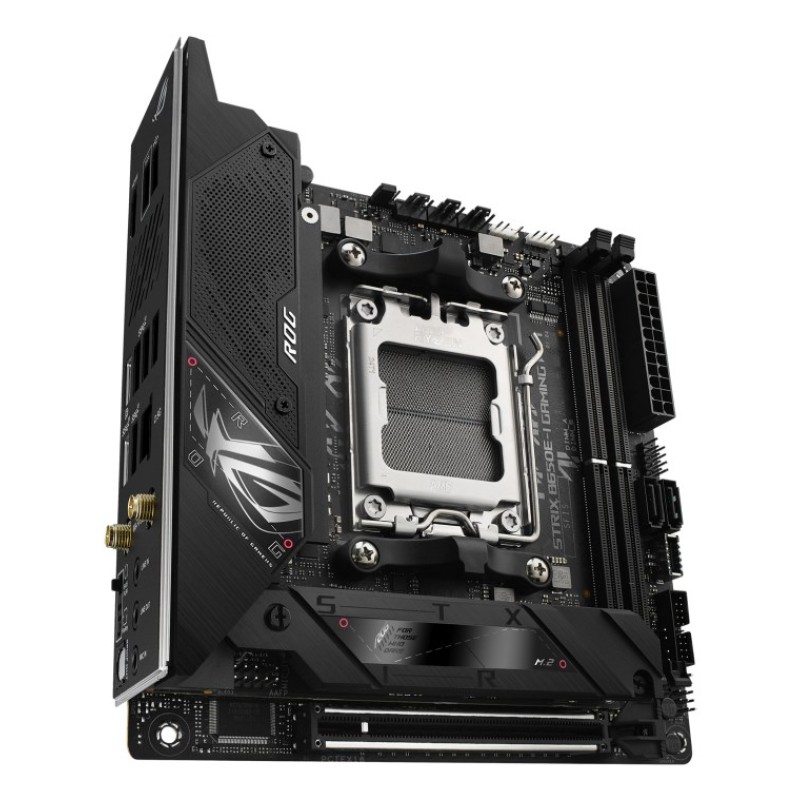

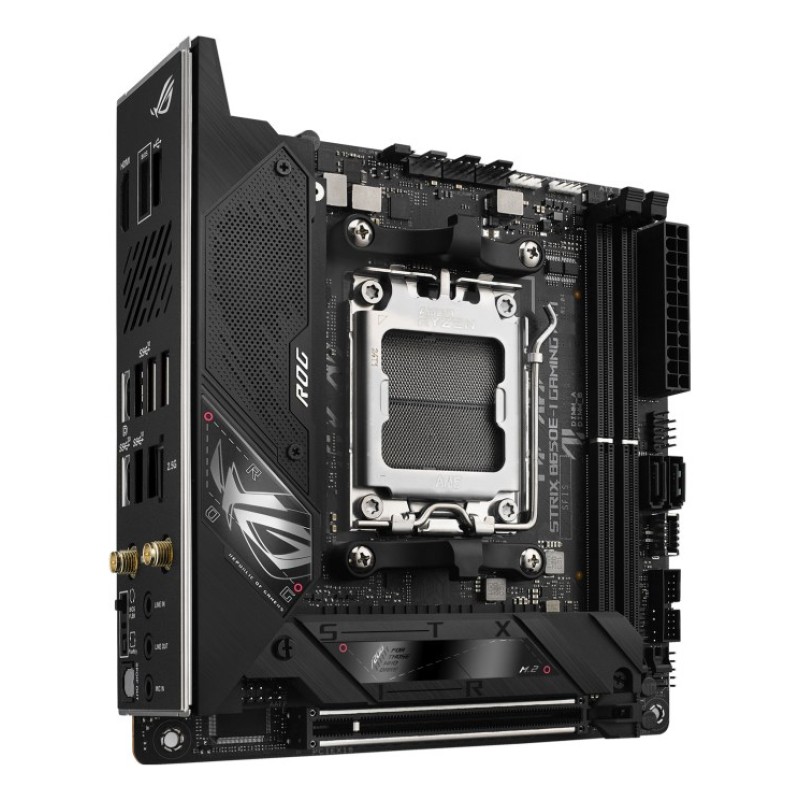

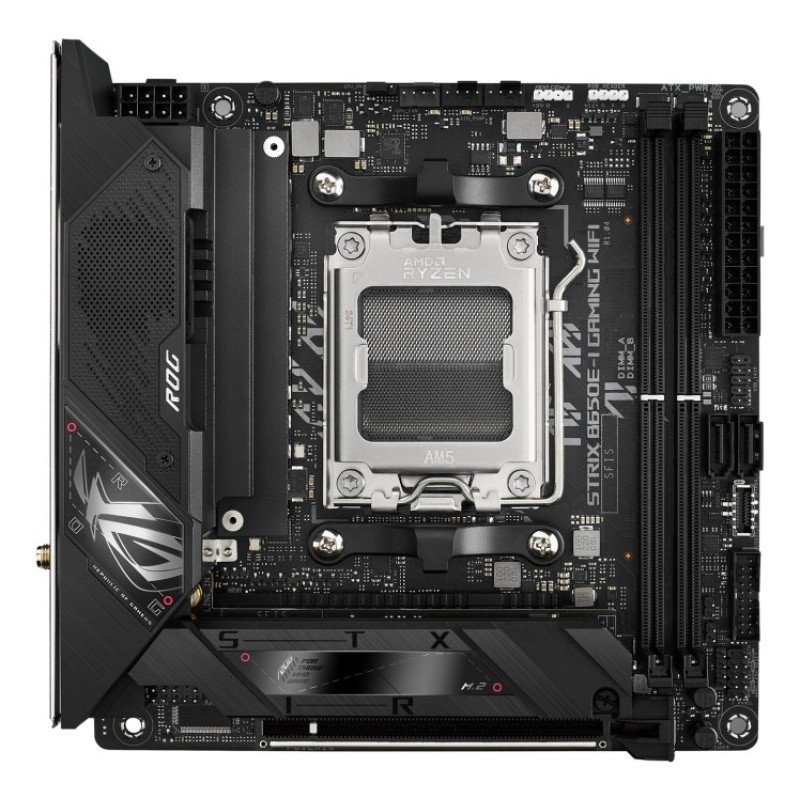

ASUS ROG STRIX B650E-I GAMING WIFI AMD B650 Socket AM5 mini ITX

Περιγραφή

Processor

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen™ 7

Graphics

Parallel processing technology support: Not supported

On-board graphics card: No

Features

Product colour: Black

Motherboard chipset: AMD B650

Motherboard chipset family: AMD

Audio chip: Realtek ALC4080

Motherboard form factor: mini ITX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Memory

Unbuffered memory: Yes

Memory channels: Dual-channel

Supported memory clock speeds: 5800, 5400, 6000, 4800, 5000, 5200, 6200, 5600, 6400 MHz

Number of memory slots: 2

Maximum internal memory: 64 GB

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 170 mm

Width: 170 mm

Network

Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b

Wi-Fi: Yes

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Bluetooth version: 5.2

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of SATA III connectors: 2

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 1

RGB LED pin header: Yes

USB 2.0 connectors: 2

CPU fan connector: Yes

Audio connector: Yes

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package depth: 182 mm

Package width: 222 mm

Package weight: 8.58 kg

Package height: 92 mm

Packaging content

Cables included: SATA, USB

Storage controllers

RAID support: Yes

RAID levels: 0, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

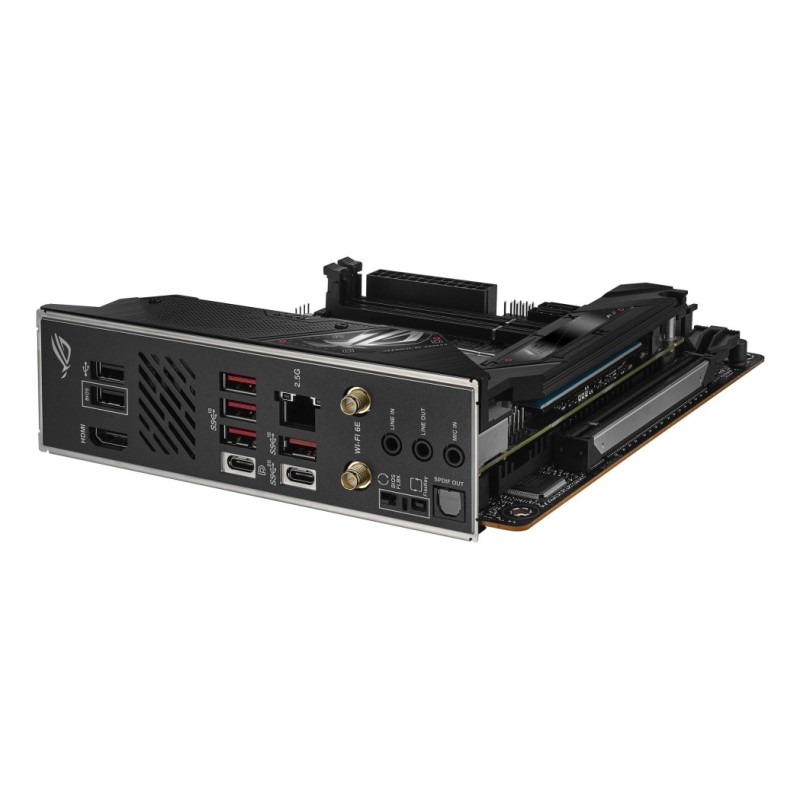

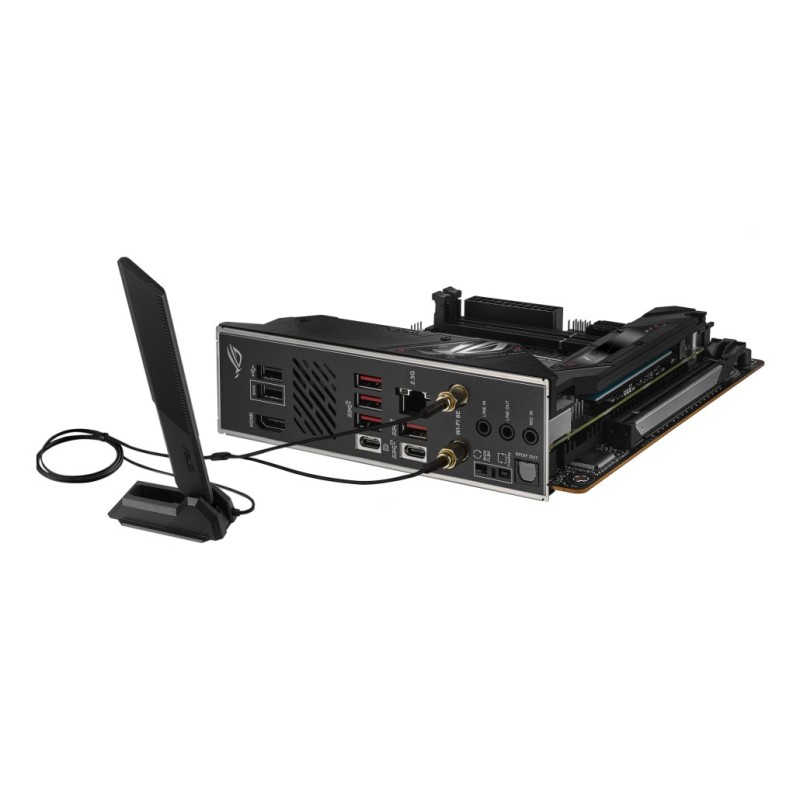

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Line-in: Yes

Headphone outputs: 1

HDMI ports quantity: 1

S/PDIF out port: Yes

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

Microphone in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
