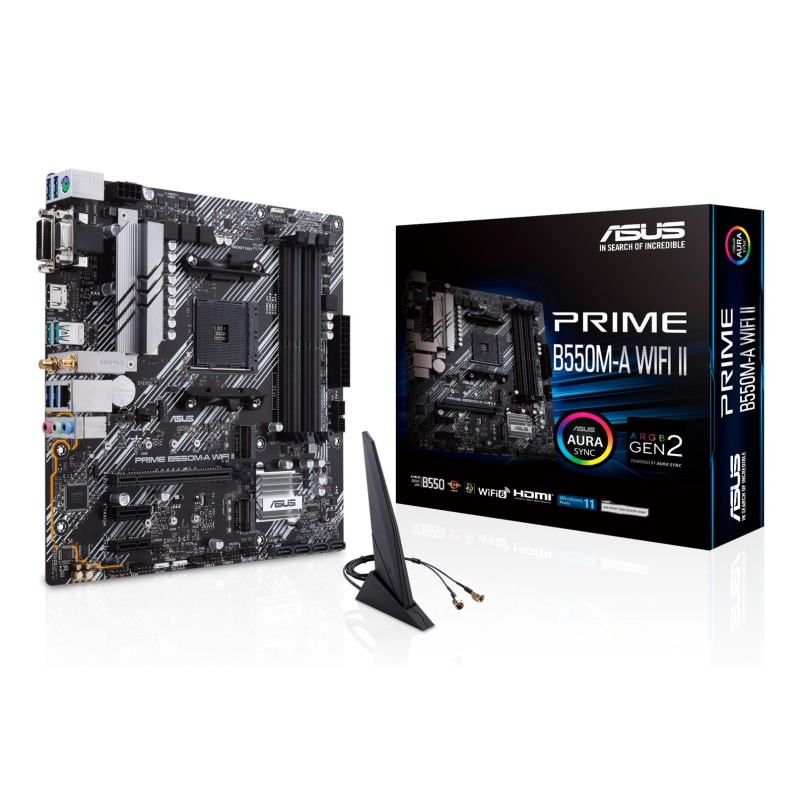

ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series

Supported processor sockets: Socket AM4

Processor manufacturer: AMD

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

Product colour: Multicolour

Motherboard chipset family: AMD

Motherboard chipset: AMD B550

Memory

Supported memory clock speeds: 3200 MHz, 2666, 4266, 4866, 3333, 4466, 3733, 4400, 3466, 3000, 4600, 2400, 2800, 2133, 3600, 3866, 4133, 4000, 4800

Number of memory slots: 4

Memory slots type: DIMM

ECC сompatibility: ECC

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Height: 67 mm

Network

LAN controller: Realtek RTL8111H

Bluetooth: Yes

Ethernet LAN: Yes

Bluetooth version: 5.2

Ethernet interface type: Gigabit Ethernet

Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Wake-on-LAN ready: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

TPM connector: Yes

S/PDIF out connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of EATX power connectors: 1

Number of COM connectors: 1

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Number of storage drives supported: 6

RAID levels: 0, 10, 1

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Rear panel I/O ports

WiFi-AP antenna jack: 1

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

DVI-D ports quantity: 1

Microphone in: Yes

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI version: 2.1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB connector type: USB Type-A

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 2

Other features

Weight: 845 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
