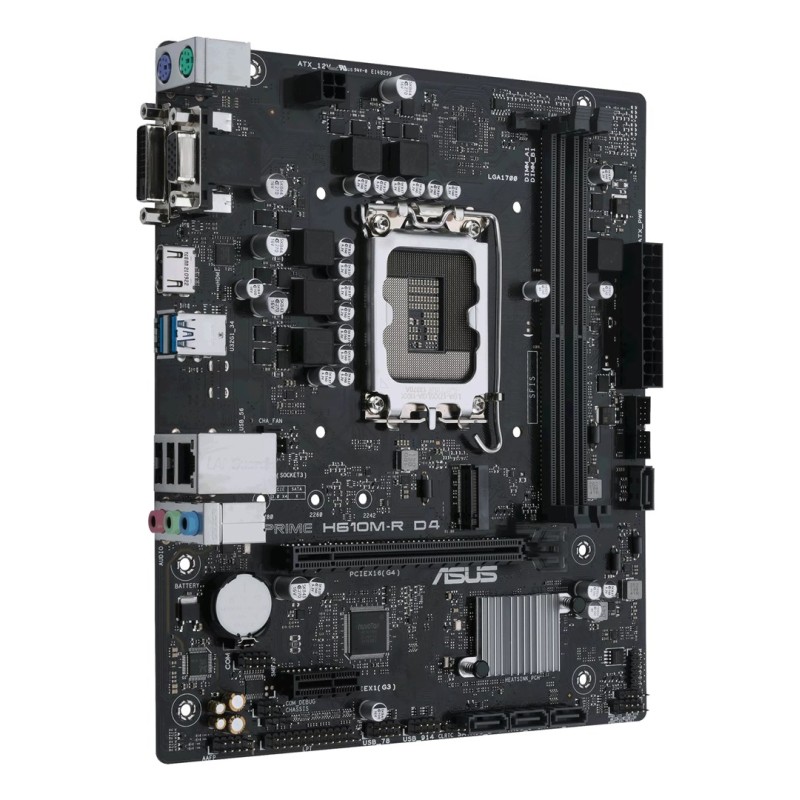

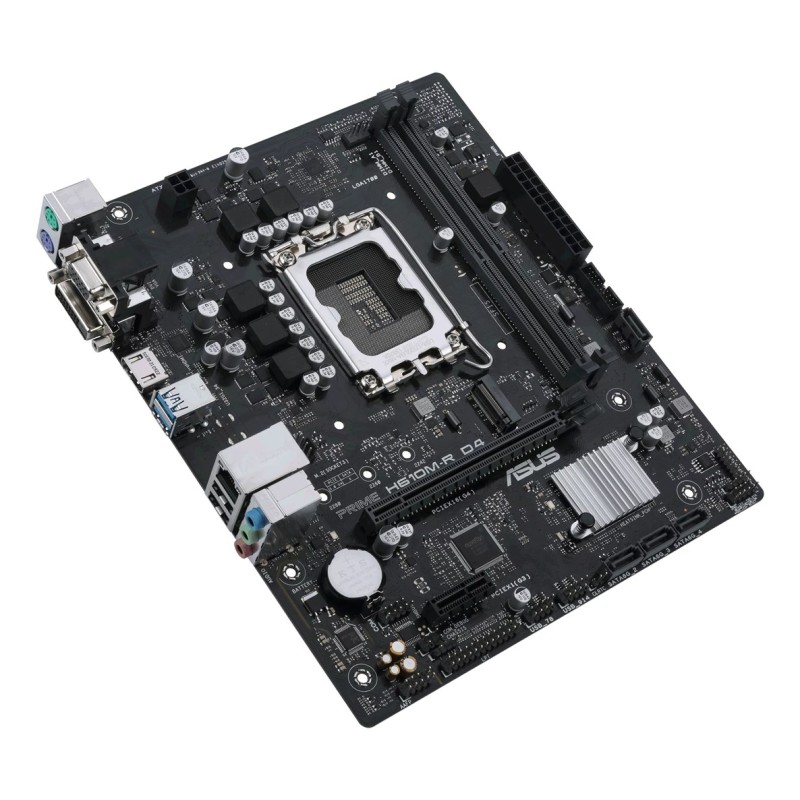

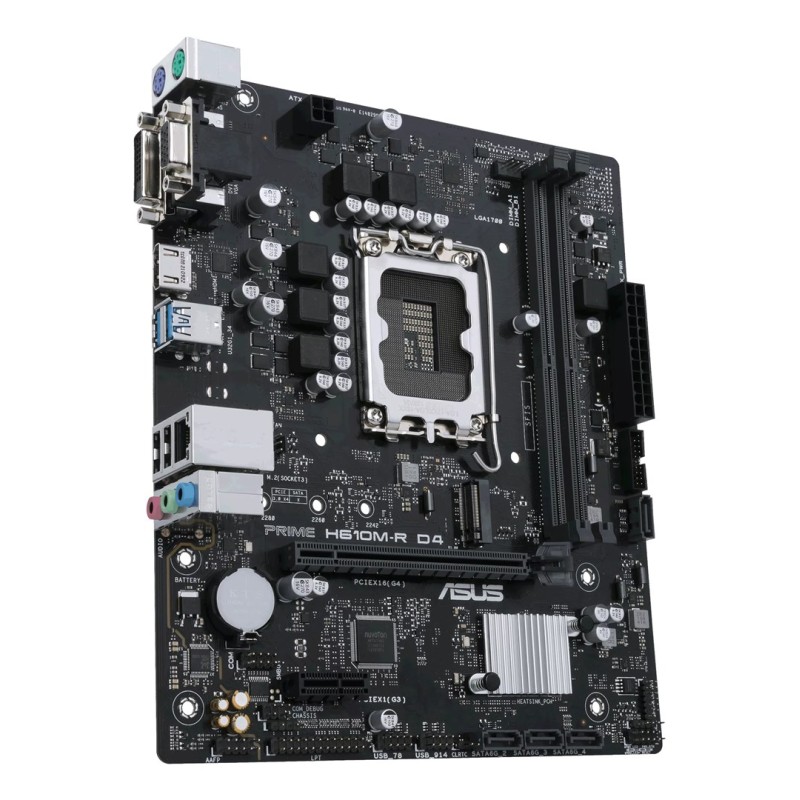

ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i3, Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Graphics

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

Features

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Motherboard chipset: Intel H610

Memory

Number of memory slots: 2

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Supported memory clock speeds: 2933, 3200 MHz, 2666, 3000, 2133, 2400, 2800

Maximum internal memory: 64 GB

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Weight & dimensions

Height: 51 mm

Depth: 193 mm

Width: 226 mm

Network

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Wake-on-LAN ready: Yes

Internal I/O

Number of SATA III connectors: 4

Chassis intrusion connector: Yes

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

Front panel audio connector: Yes

TPM connector: Yes

USB 2.0 connectors: 2

Number of COM connectors: 1

Number of chassis fan connectors: 1

Audio connector: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging content

Cables included: SATA

Drivers included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 5

Supported storage drive types: HDD & SSD

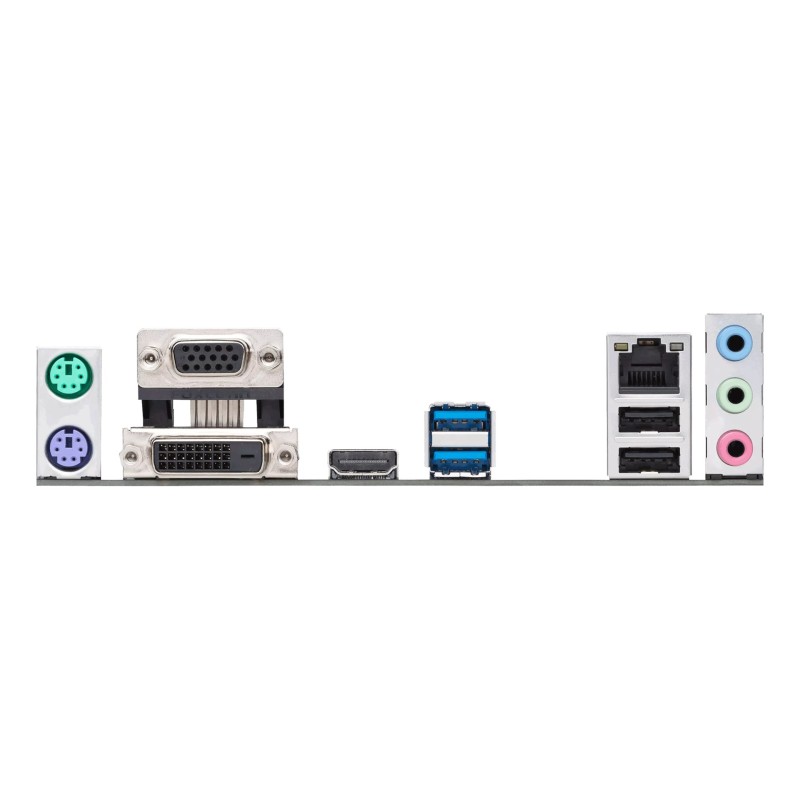

Rear panel I/O ports

HDMI version: 2.1

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

VGA (D-Sub) ports quantity: 1

PS/2 ports quantity: 2

USB connector type: USB Type-A

Microphone in: Yes

DVI-D ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Headphone outputs: 3

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

Other features

Weight: 842 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
