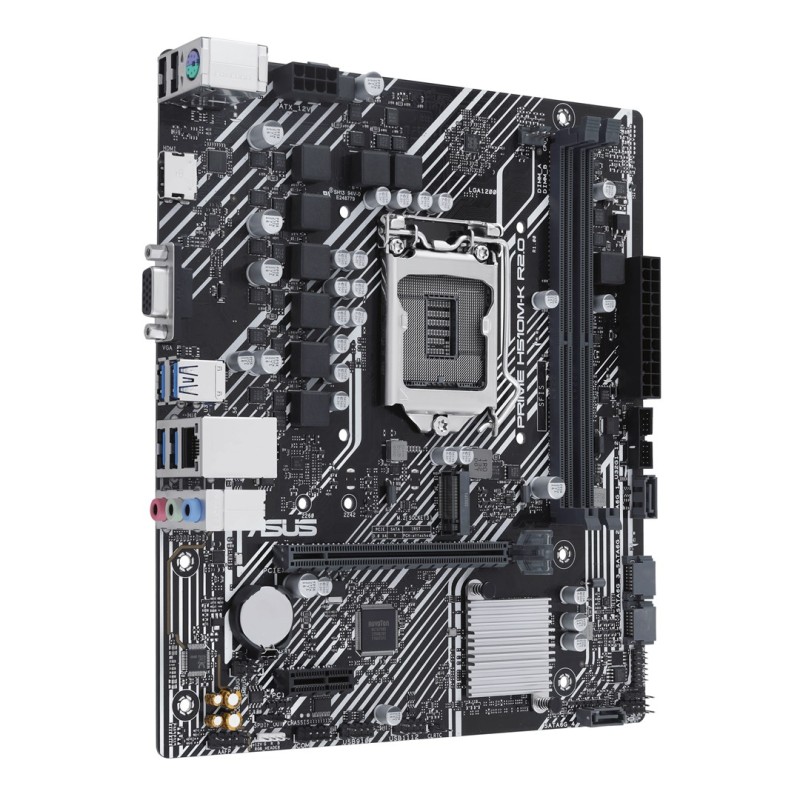

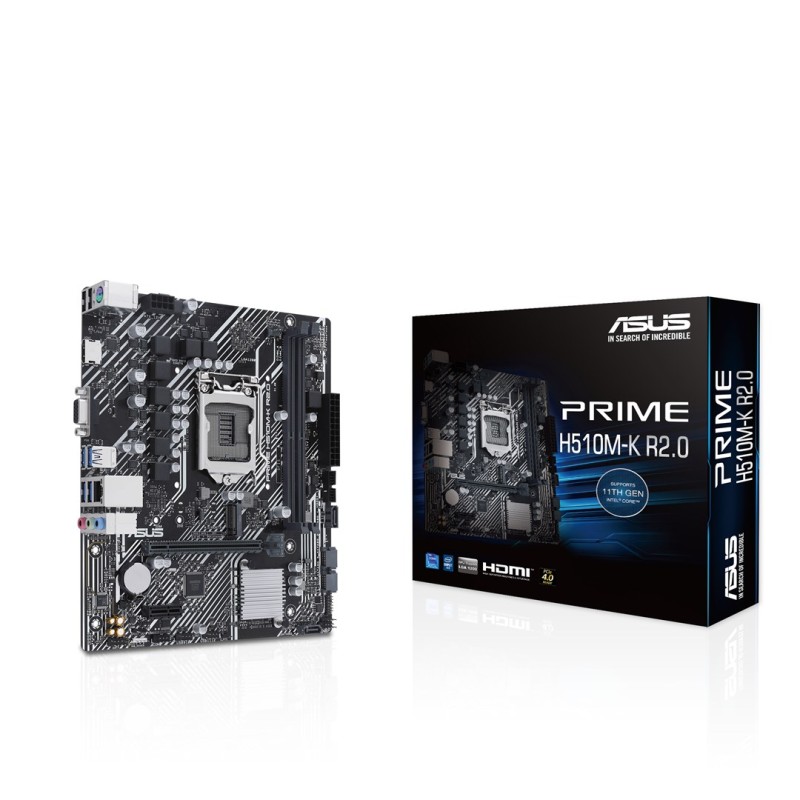

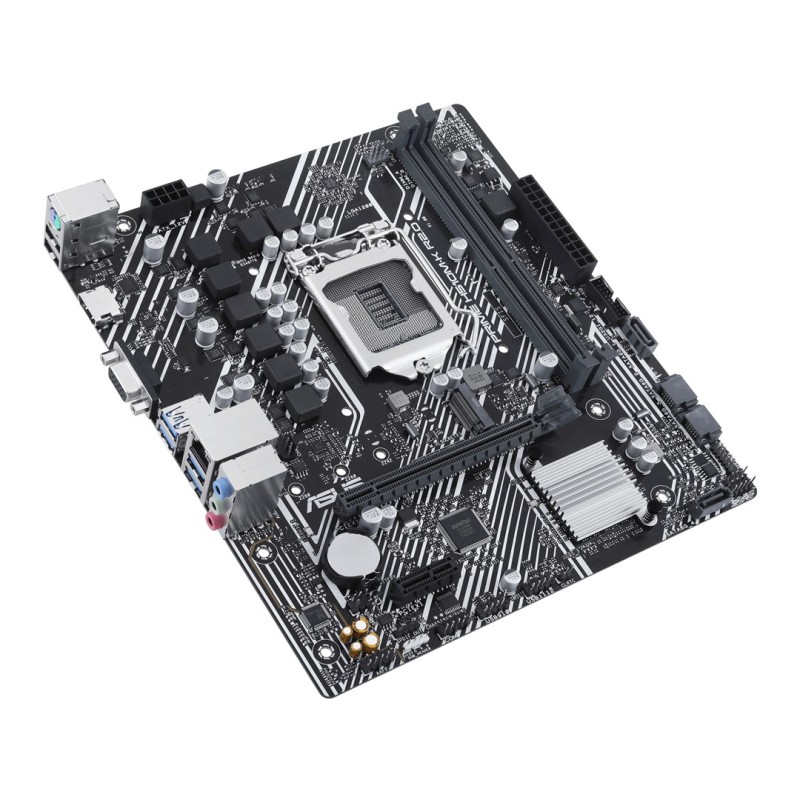

ASUS PRIME H510M-K R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®

Processor socket: LGA 1200 (Socket H5)

Processor manufacturer: Intel

Features

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset: Intel H510

Motherboard chipset family: Intel

Windows operating systems supported: Windows 10 x64

Memory

Supported memory clock speeds: 3200, 2666, 2400, 2800, 2133, 3000, 2933

Maximum internal memory: 64 GB

ECC сompatibility: Non-ECC

Memory channels: Dual-channel

Number of memory slots: 2

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Weight & dimensions

Width: 226 mm

Depth: 203 mm

Network

Ethernet LAN: Yes

Ethernet interface type: Fast Ethernet, Gigabit Ethernet

Wi-Fi: No

Internal I/O

Number of SATA III connectors: 4

TPM connector: Yes

CPU fan connector: Yes

S/PDIF out connector: Yes

EPS power connector (8-pin): Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 1

BIOS

BIOS type: EFI AMI

Storage controllers

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 5

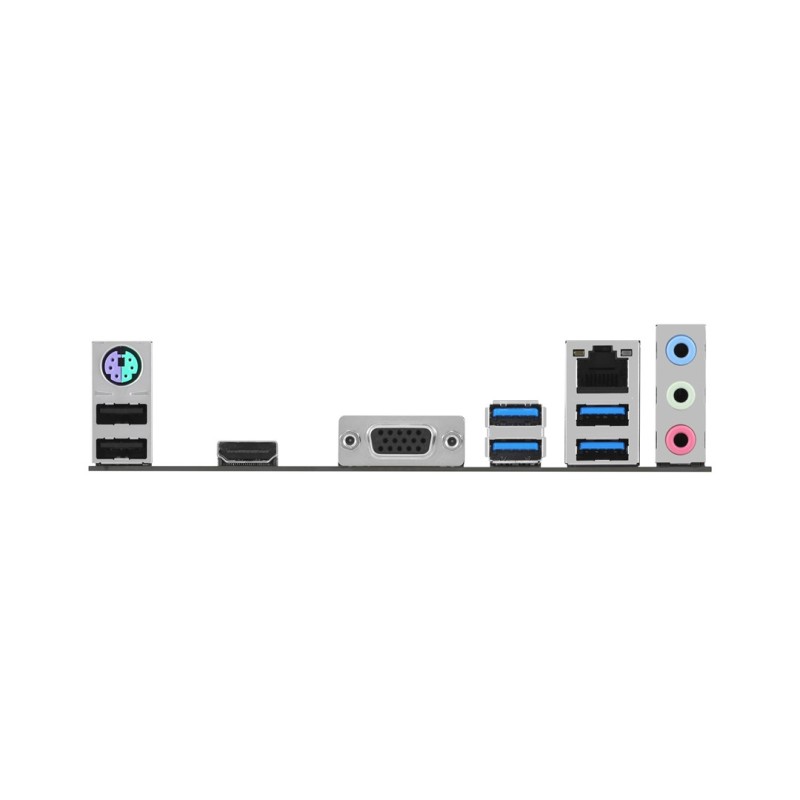

Rear panel I/O ports

COM ports quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 2

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

Safety warning

Warnings: Do not make changes or modifications to the appliance, which may void the warranty or cause damage., Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge., Avoid contact with liquids to prevent damage to electronic components.
