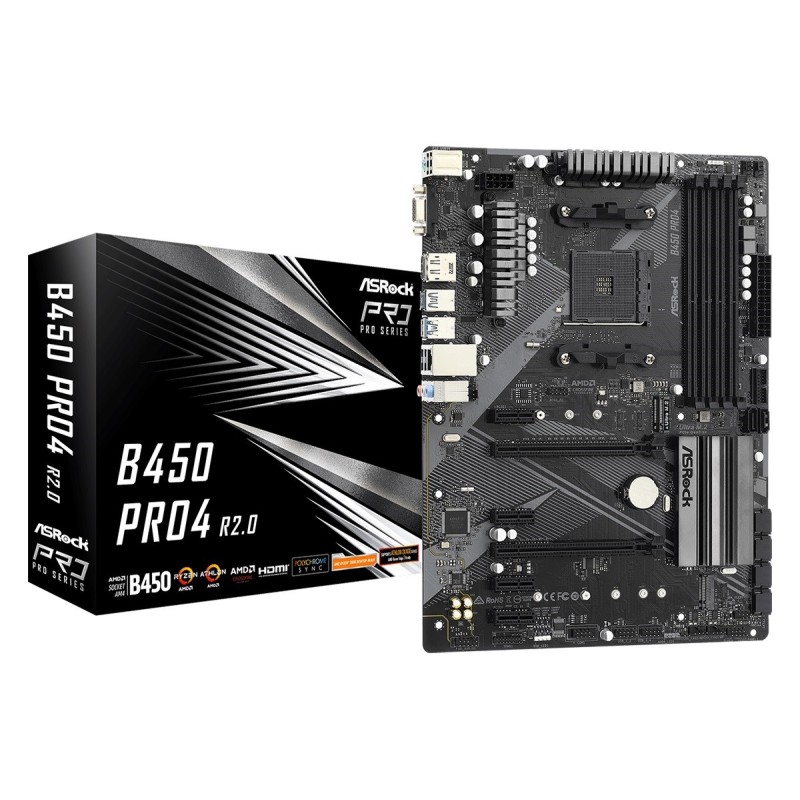

Asrock B450 Pro4 R2.0 Socket AM4 ATX AMD B450

Περιγραφή

Processor

Processor manufacturer: AMD

Processor thermal power (max): 105 W

Compatible processor series: AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Athlon, AMD Ryzen™ 5

Processor socket: Socket AM4

Graphics

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

Number of displays supported: 3

Graphics card family: AMD

Features

Motherboard chipset family: AMD

Motherboard chipset: AMD B450

Audio chip: Realtek ALC892 / Realtek ALC897

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 2667, 2933, 2133, 2400 MHz

Maximum internal memory: 64 GB

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Memory slots type: DIMM

Weight & dimensions

Depth: 224 mm

Width: 305 mm

Network

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wake-on-LAN ready: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

USB 2.0 connectors: 2

Number of COM connectors: 1

12V power connector: Yes

TPM connector: Yes

Front panel audio connector: Yes

Number of SATA III connectors: 6

BIOS

BIOS type: UEFI AMI

Plug and Play: Yes

Packaging content

Drivers included: Yes

Cables included: SATA

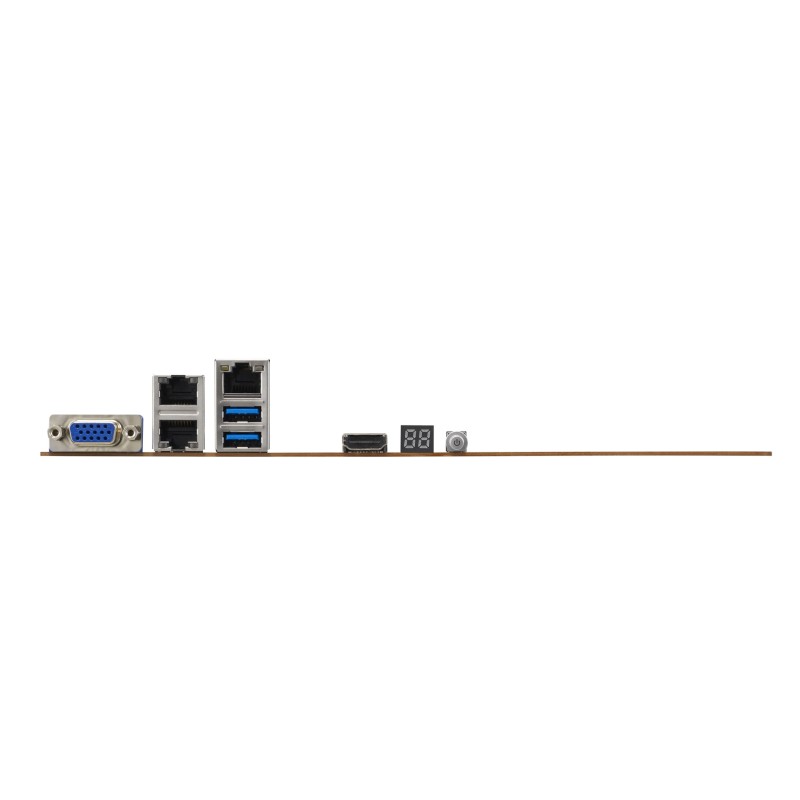

Rear panel I/O ports

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x1 (Gen 2.x) slots: 4

Other features

Quick installation guide: Yes
