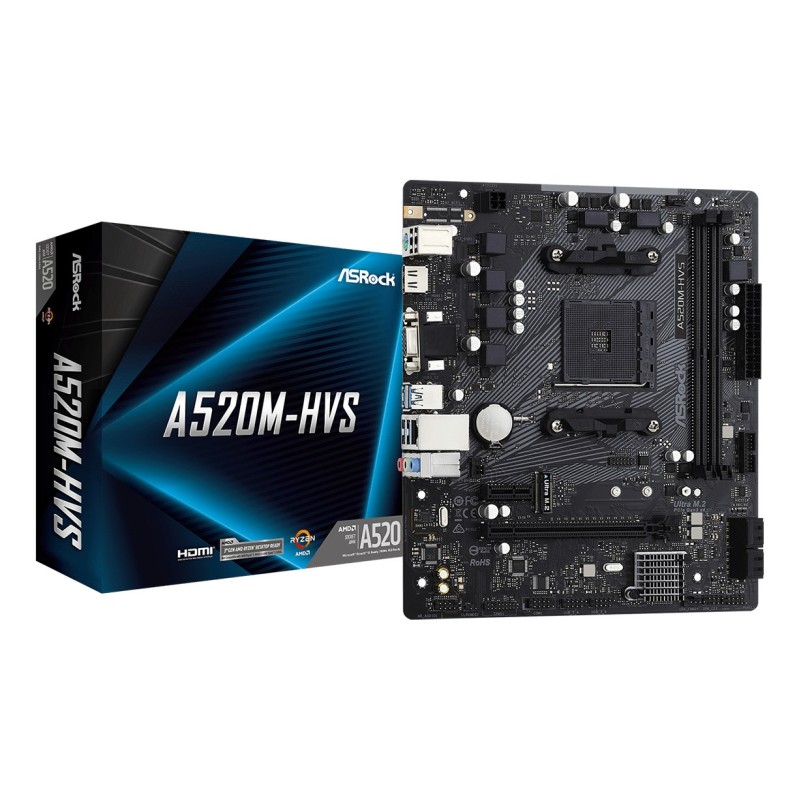

Asrock A520M-HVS AMD A520 Socket AM4 micro ATX

Περιγραφή

Processor

Processor socket: Socket AM4

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series

Graphics

Graphics card family: AMD

Graphics card: Radeon Vega

Features

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset: AMD A520

Motherboard chipset family: AMD

Memory

Number of memory slots: 2

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Supported memory clock speeds: 2933, 3600, 4500, 2400, 3466, 3866, 3200 MHz, 2666, 4266, 2133, 4200, 3733, 4400, 4333, 4133, 4000, 4533, 3800, 4466

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 201 mm

Width: 230 mm

Network

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wake-on-LAN ready: Yes

LAN controller: Realtek RTL8111H

Internal I/O

ATX Power connector (24-pin): Yes

Number of COM connectors: 1

Number of chassis fan connectors: 2

Front panel audio connector: Yes

CPU fan connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 5

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

USB 2.0 ports quantity: 2

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A520M Pro4 Socket AM4 micro ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, ..

79,21€

Χωρίς ΦΠΑ:63,88€

Asrock A520M-HDV Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

53,91€

Χωρίς ΦΠΑ:43,48€

Asrock A520M-ITX/ac Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ ..

105,22€

Χωρίς ΦΠΑ:84,85€

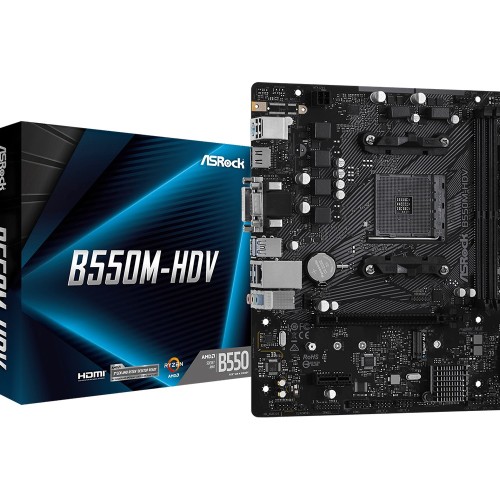

Asrock B550M-HDV Socket AM4 micro ATX AMD B550
