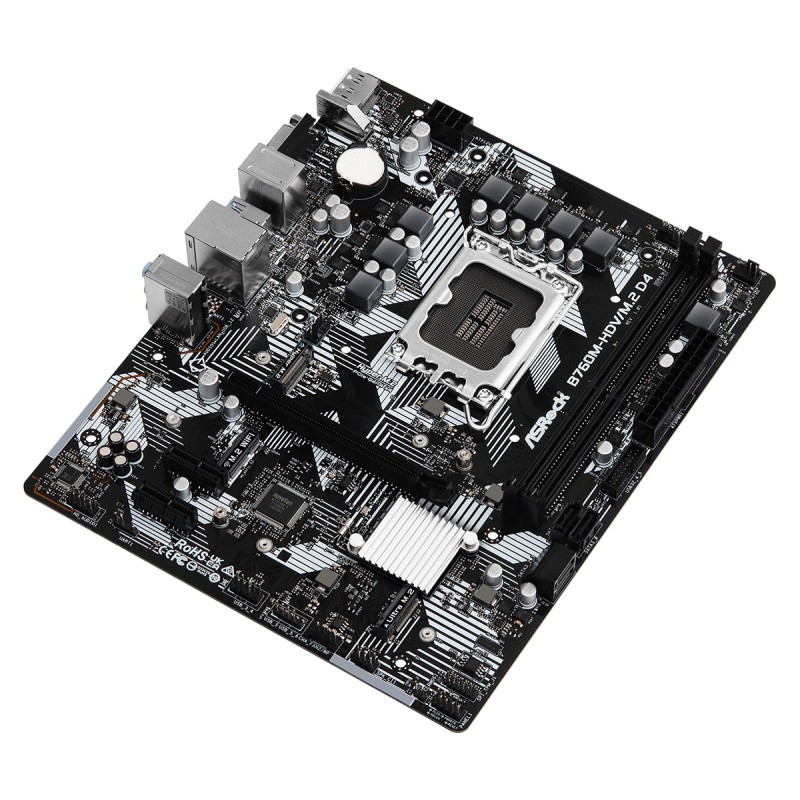

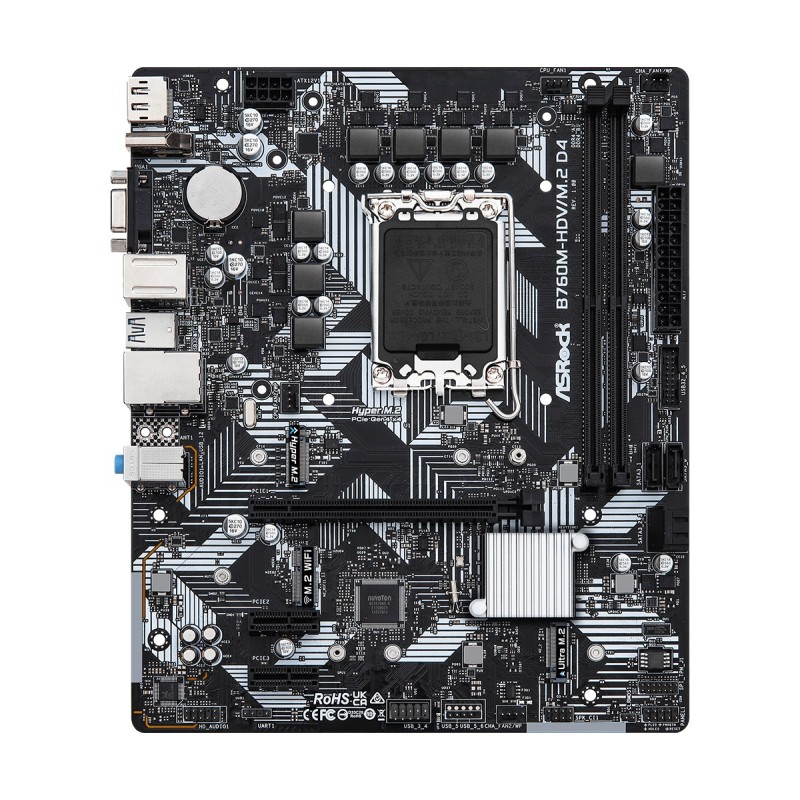

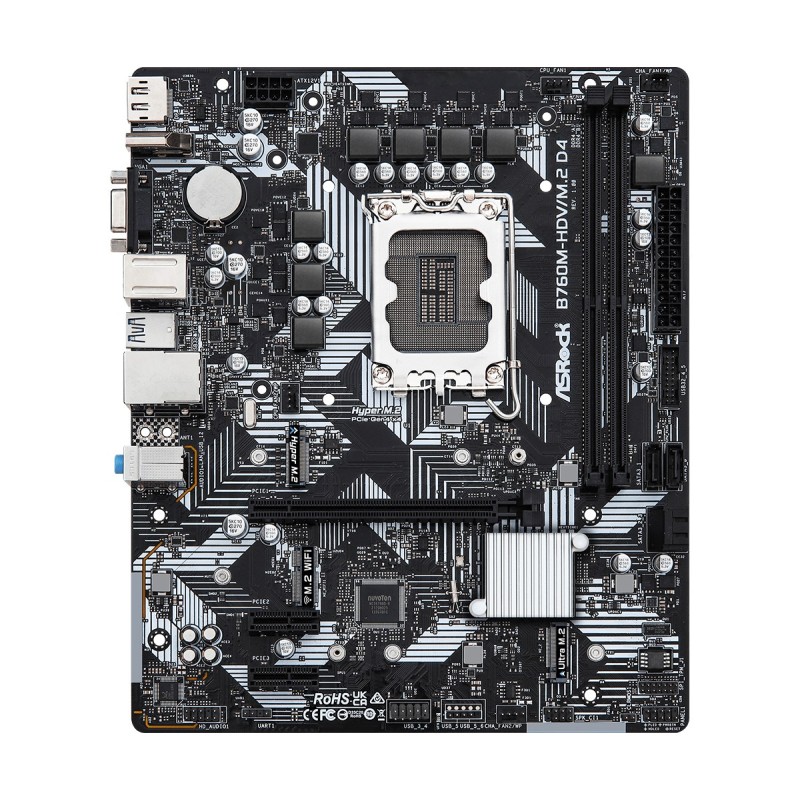

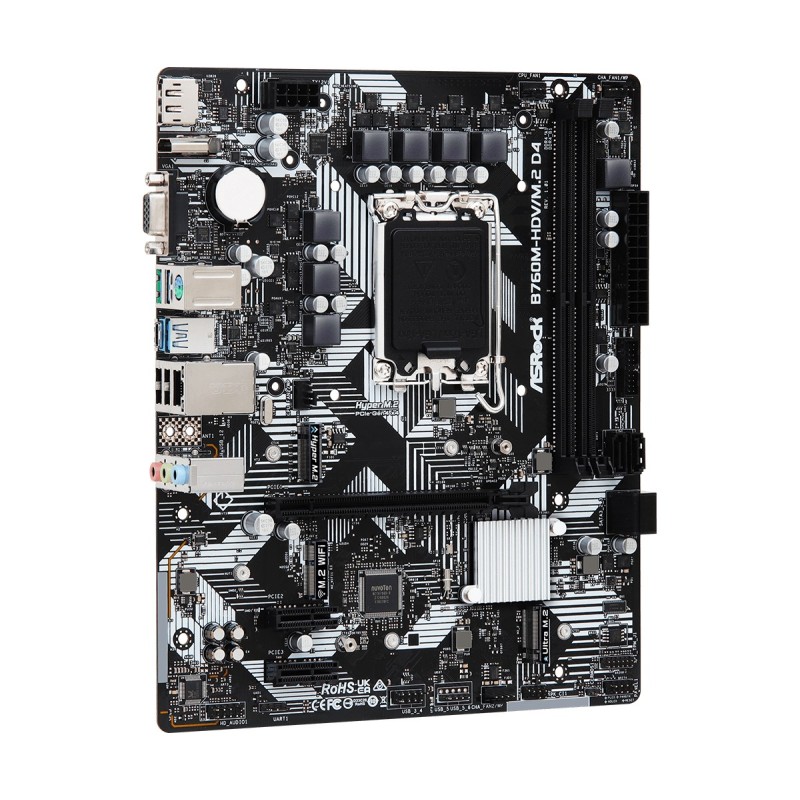

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Core™ i5, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel B760

Audio chip: Realtek ALC897

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 Education x64, Windows 11 x64

Motherboard chipset family: Intel

Memory

Supported memory clock speeds: 3200 MHz, 5333 MHz, 4400

ECC сompatibility: Non-ECC

Maximum internal memory: 64 GB

Unbuffered memory: Yes

Number of memory slots: 2

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Weight & dimensions

Width: 244 mm

Depth: 201 mm

Network

LAN controller: Realtek RTL8111H

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

Chassis intrusion connector: Yes

CPU fan connector: Yes

ATX Power connector (24-pin): Yes

TPM connector: Yes

Number of SATA III connectors: 4

EPS power connector (8-pin): Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 3

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 0, 5, 1, 10

Supported storage drive interfaces: M.2, SATA III

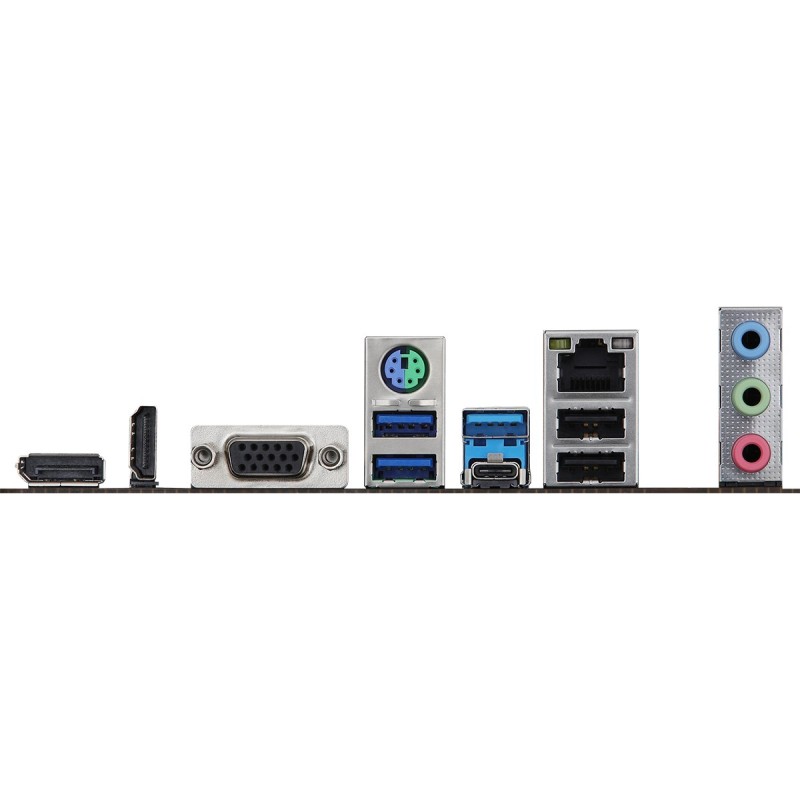

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

DisplayPort version: 1.4

USB 2.0 ports quantity: 2

PS/2 ports quantity: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

VGA (D-Sub) ports quantity: 1

Microphone in: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
