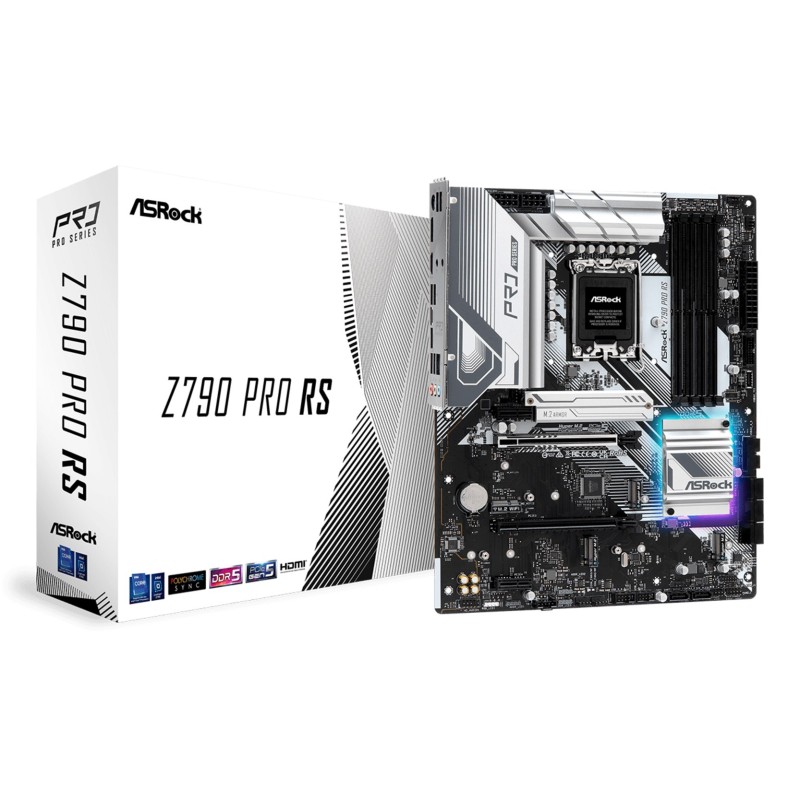

Asrock Z790 Pro RS Intel Z790 LGA 1700 ATX

Περιγραφή

Processor

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Processor manufacturer: Intel

Features

Motherboard chipset family: Intel

Motherboard form factor: ATX

Motherboard chipset: Intel Z790

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory

Maximum internal memory: 128 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Number of memory slots: 4

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 8

Front panel audio connector: Yes

Thunderbolt headers: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

RGB LED pin header: Yes

TPM connector: Yes

CPU fan connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

RAID levels: 1, 5, 0, 10

Supported storage drive types: HDD & SSD

RAID support: Yes

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

DisplayPorts quantity: 1

DisplayPort version: 1.4

Headphone outputs: 1

PS/2 ports quantity: 1

Line-in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
