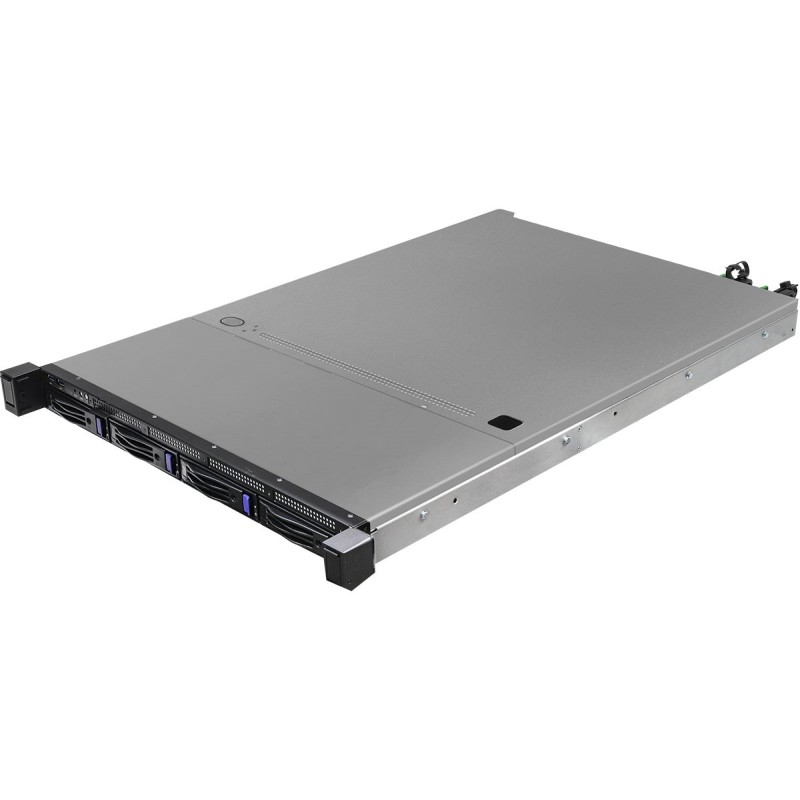

Platforma ASRock Rack (1U) AMD Epyc 9004 (4xLFF, 4XSFF, 2x10GbE, Red. PSU, IPMI)

Περιγραφή

Processor

Compatible processor series: AMD EPYC 9005, AMD EPYC 9004

Number of processors supported: 1

Motherboard chipset: AMD SoC

Processor socket: LGA 6096

Graphics

On-board graphics card model: Aspeed AST2600

Features

PC health monitoring: Voltage, Fan, Temperature

Memory

Memory form factor: 288-pin DIMM

Number of DIMM slots: 8

Supported memory types: DDR5 RDIMM/3DS RDIMM

Supported RDIMM clock speeds: 4800 MHz

Design

LED indicators: System

Number of fans: 6 fan(s)

Reset button: Yes

Chassis type: Rack (1U)

Cooling type: Active

Product colour: Grey, Black

On/off switch: Yes

Power

80 PLUS certification: 80 PLUS Platinum

Number of main power supplies: 2

Power supply: 750 W

Operational conditions

Operating temperature (T-T): 10 - 35 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Depth: 438 mm

Height: 43.4 mm

Width: 676.5 mm

Network

Ethernet LAN: Yes

LAN controller: Intel® X550-AT2

Ethernet interface type: 10 Gigabit Ethernet

BIOS

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

System Management BIOS (SMBIOS) version: 3.5

Plug and Play: Yes

ACPI version: 6.4

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

Storage

Supported storage drive interfaces: M.2, SATA III

Number of 2.5" bays: 4

Number of M.2 (M) slots: 2

Supported storage drive types: HDD & SSD

Number of 3.5" bays: 4

Number of storage drives supported: 10

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 2

IPMI LAN (RJ-45) port: Yes

Safety warning

Warnings: Do not disassemble the unit yourself., Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling.
