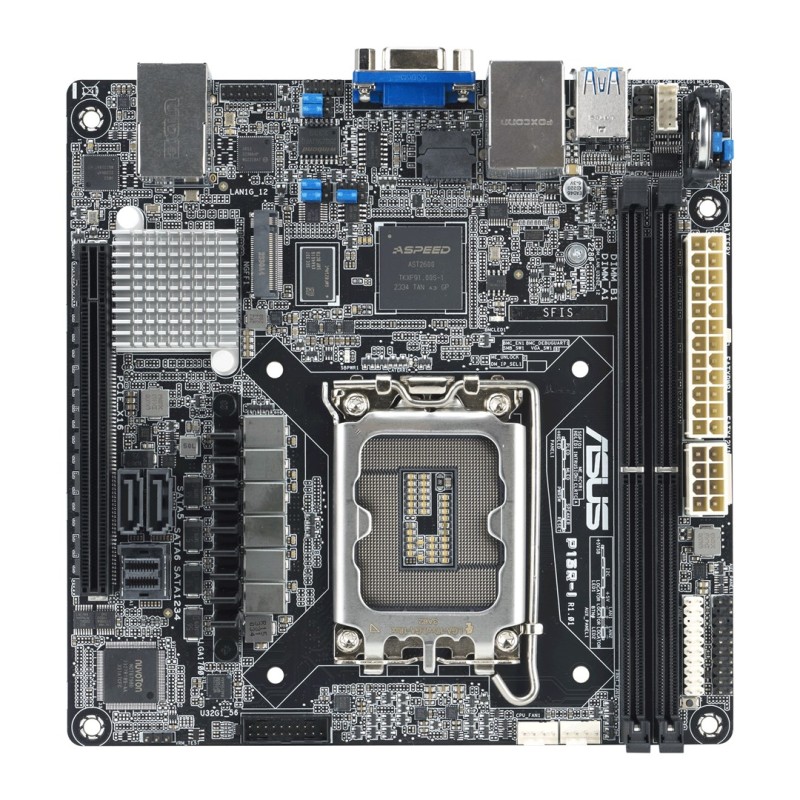

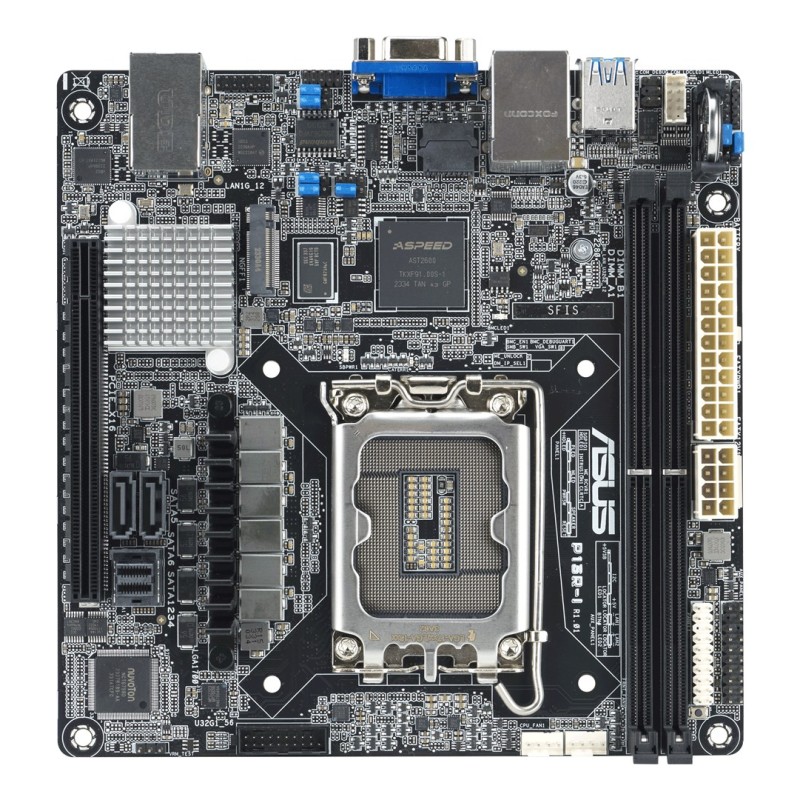

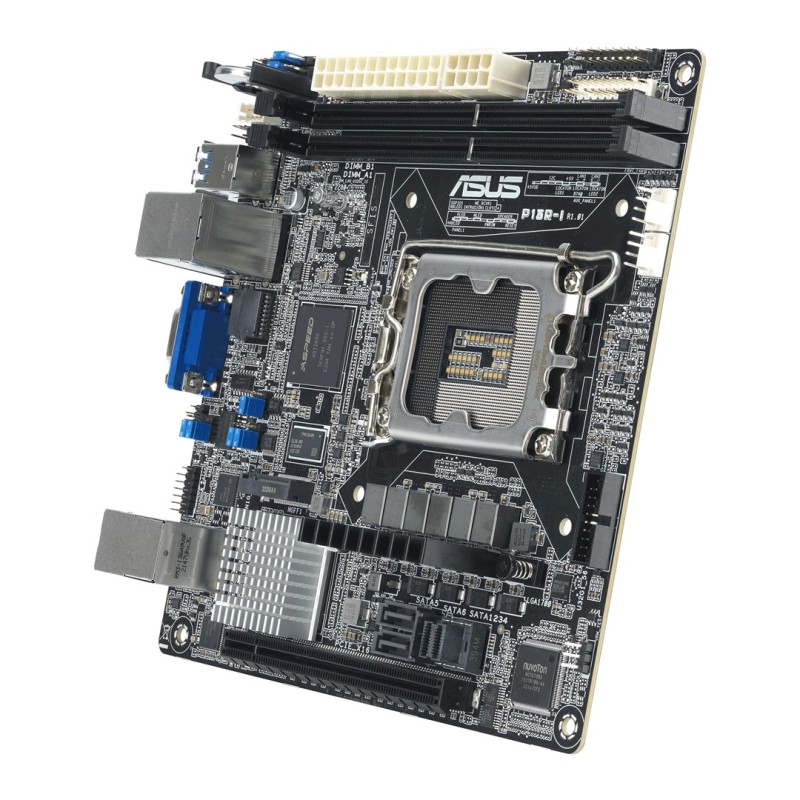

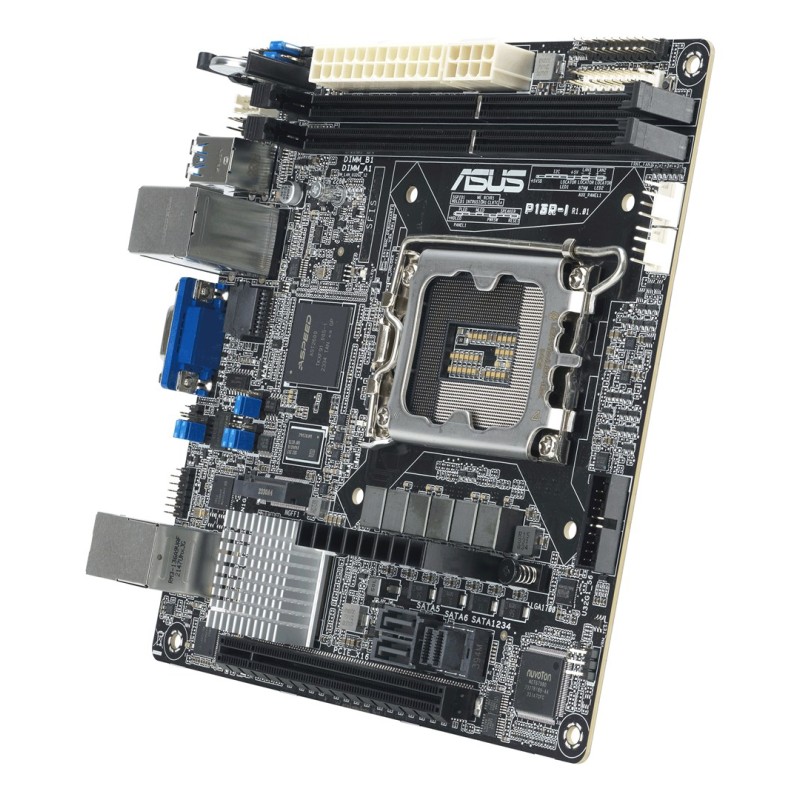

Płyta główna Asus P13R-I 1x LGA1700 Intel Xeon E-24XX C262 (2xDIMM, 6x SATA, 1xM.2, 2x1GbE, ASMB11-iKVM, miniITX)

Περιγραφή

Processor

Compatible processor series: Intel® Pentium®, Intel Xeon E, Intel® Xeon®

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

Graphics card: AST2600

On-board graphics card memory: 64 MB

Parallel processing technology support: Not supported

Features

Motherboard form factor: mini ITX

Product colour: Black

Motherboard chipset: Intel C262

Component for: Server

Motherboard chipset family: Intel

Cooling type: Passive

Memory

ECC сompatibility: ECC

Supported memory clock speed (max): 4800 MHz

Supported memory clock speeds: 4000, 4800, 4400, 3600

Maximum internal memory: 64 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Operational conditions

Operating temperature (T-T): 10 - 50 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Depth: 170 mm

Width: 170 mm

Network

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of CPU fan connectors: 1

Chassis intrusion connector: Yes

CPU fan connector: Yes

Number of SATA III connectors: 6

Front panel connector: Yes

TPM connector: Yes

Number of chassis fan connectors: 2

Number of COM connectors: 1

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: PCI Express 4.0, SATA III

Number of storage drives supported: 7

Number of HDDs supported: 6

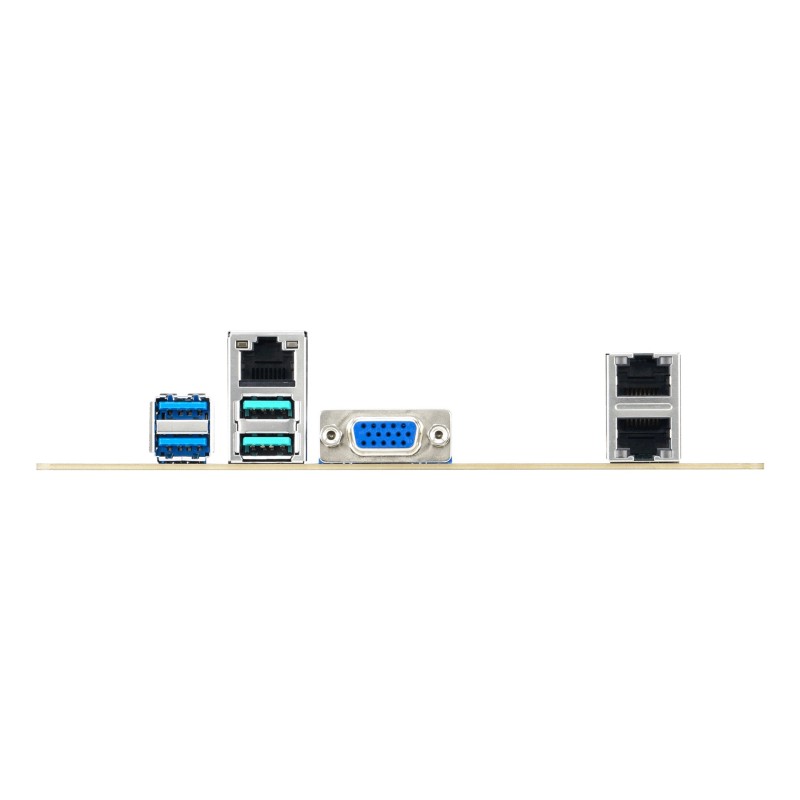

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 1

Safety warning

Warnings: The product contains electrical components - take care during installation to avoid injury., Adjust adequate ventilation to avoid overheating and potential damage., Avoid contact with liquids and moisture to prevent damage to equipment.
