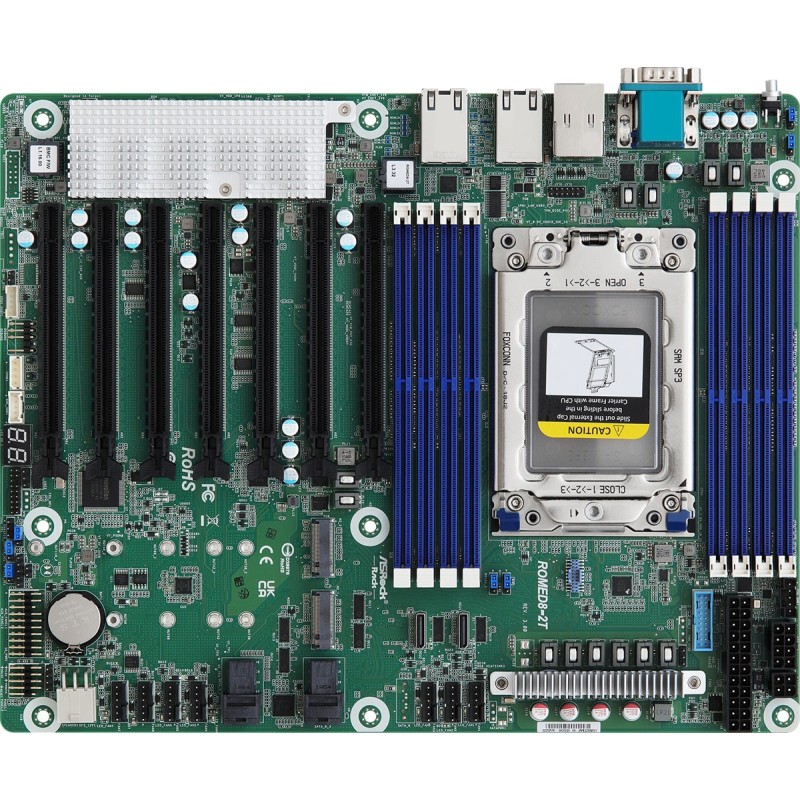

Asrock ROMED8-2T/BCM motherboard Socket SP3 ATX

Περιγραφή

Processor

Compatible processor series: AMD EPYC 7003

Maximum number of SMP processors: 1

Processor socket: Socket SP3

Processor manufacturer: AMD

Graphics

On-board graphics card model: Aspeed AST2500

On-board graphics card memory: 512 MB

Features

Motherboard chipset family: AMD

Motherboard form factor: ATX

Component for: Server

Memory

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Maximum RDIMM memory: 256 GB

Number of memory slots: 8

Memory voltage: 1.2 V

Operational conditions

Operating relative humidity (H-H): 20 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 10 - 35 °C

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

TPM connector: Yes

EPS power connector (8-pin): Yes

Number of SATA III connectors: 10

BIOS

System Management BIOS (SMBIOS) version: 3.3.0

BIOS type: UEFI AMI

BIOS memory size: 32 Mbit

ACPI version: 6.3

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports

IPMI LAN (RJ-45) port: Yes

VGA (D-Sub) ports quantity: 1

Serial ports quantity: 1

Ethernet LAN (RJ-45) ports: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 7
