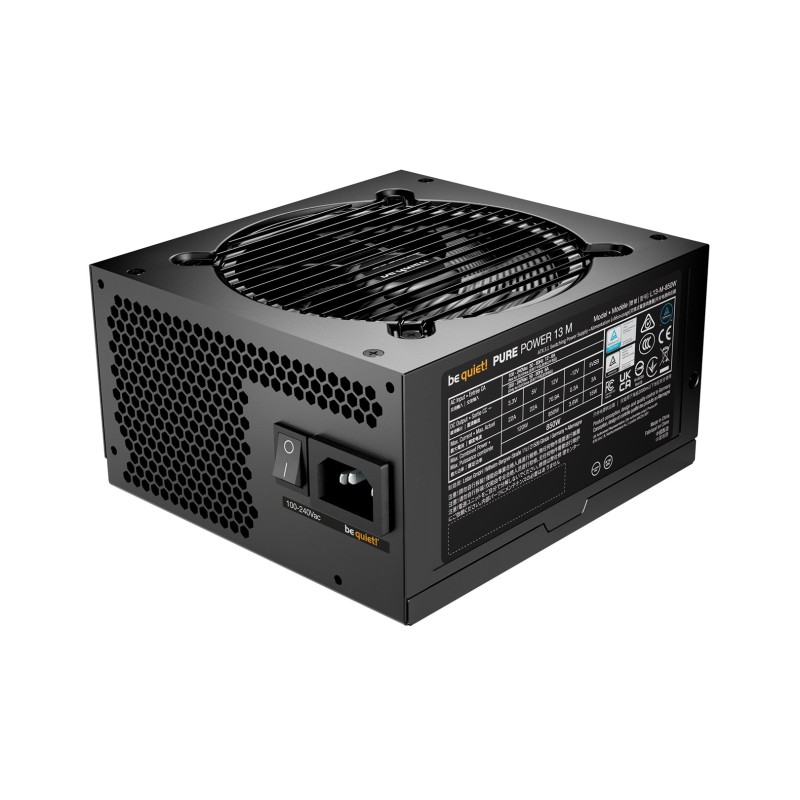

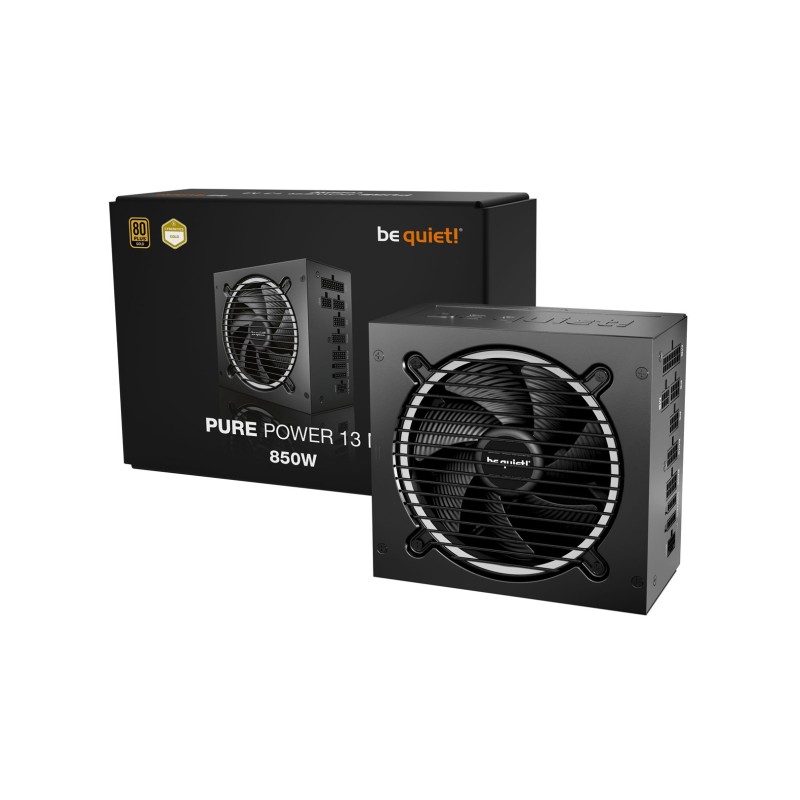

be quiet! Pure Power 13 M | 850W power supply unit 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: ENERGY STAR, ErP

Design

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan speed: 0 - 2000 RPM

Cooling type: Active

Product colour: Black

On/off switch: Yes

Power

Power protection features: Overheating, Short circuit, Over voltage, Under voltage, Over current, Surge & inrush protection (SIP), Over power

Combined power (-12V): 3.6 W

Maximum input current (@110V): 12 A

Hold time: 25.09 ms

Total power: 850 W

Max output current (-12V): 0.3 A

Maximum input current (@220V): 6 A

Max output current (+5V): 22 A

Power factor: 0.98

Efficiency: 92.8%

Max output current (+5Vsb): 3 A

Peak power: 900 W

Max output current (+12V1): 70.9 A

Combined power (+5Vsb): 15 W

Combined power (+12V): 850 W

Combined power (+5V): 120 W

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 120 W

Max output current (+3.3V): 22 A

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Number of +12V rail(s): 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 150 mm

Height: 86 mm

Depth: 160 mm

Weight: 2.62 kg

Performance

Power supply unit (PSU) form factor: ATX

Bearing technology: Rifle

ATX version: 3.1

Purpose: PC

EPS version: 2.92

Mean time between failures (MTBF): 100000 h

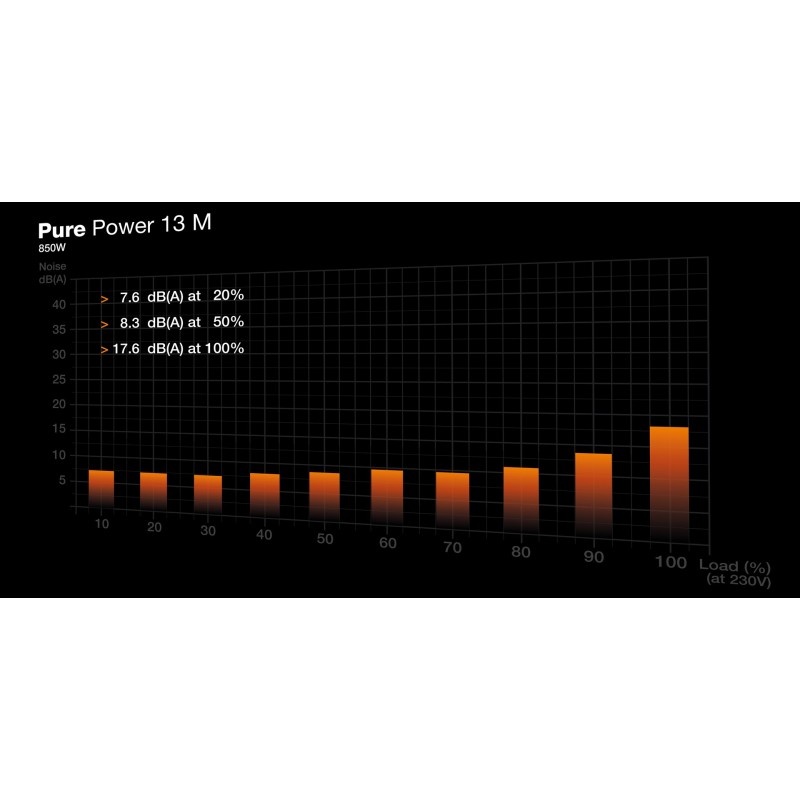

Noise level: 30.2 dB

80 PLUS certification: 80 PLUS Gold

Packaging data

Package height: 133 mm

Package width: 210 mm

Package depth: 320 mm

Package weight: 3.4 kg

Packaging content

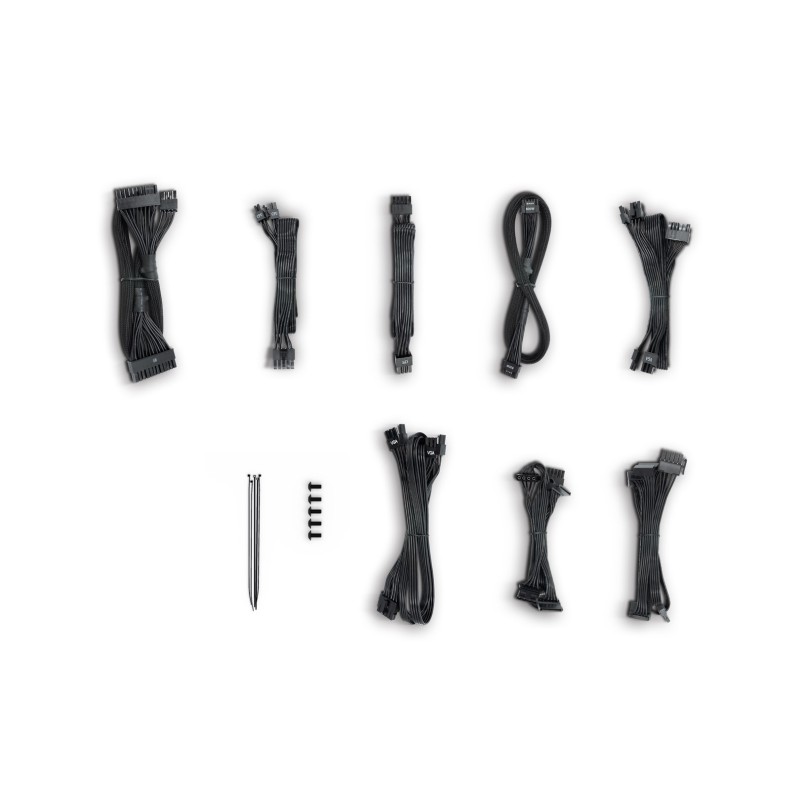

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates: TÜV mark, CB, Federal Communications Commission (FCC), cTUVus, BSMI, UKCA, WEEE, RCM, CCC, RoHS, CE, IRAM

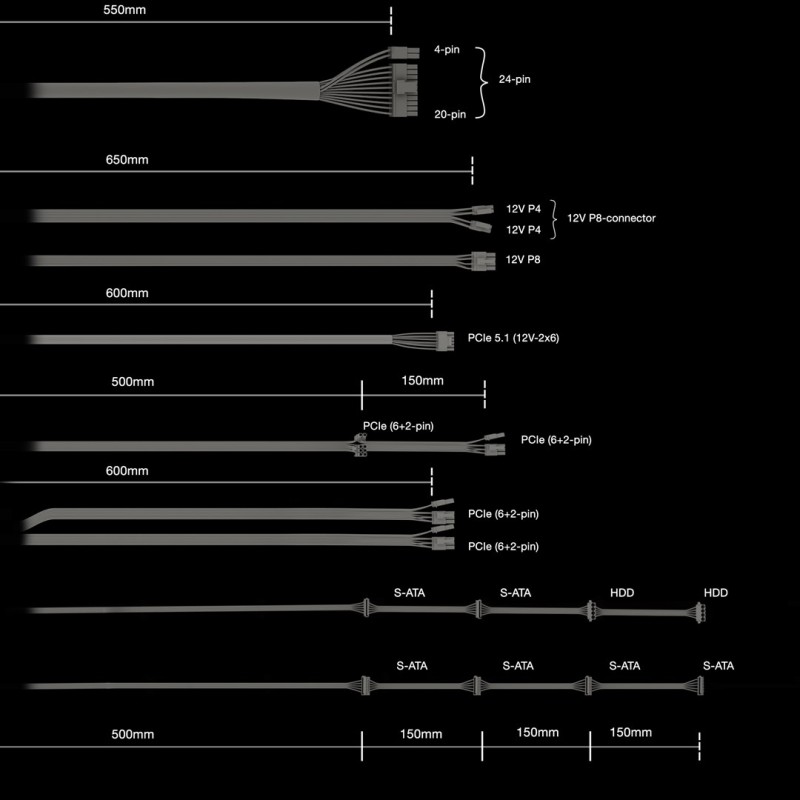

Ports & interfaces

CPU power connector (4+4 pin): Yes

SATA power cable length: 500 mm, 800, 650 mm, 950 mm

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power cable length: 800, 950 mm

PCI Express power connectors (6+2 pin): 4

Number of SATA power connectors: 6

CPU power cable length: 65 cm

Motherboard power cable length: 55 cm

Cabling type: Fully-Modular

CPU P4 connector (4-pin): 2

PCI Express power connectors (12-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

EPS power connector (8-pin): Yes

Other features

Screws included: Yes

Cable ties included: Yes

Logistics data

Shipping (inner) case length: 58 cm

Products per shipping (inner) case: 6 pc(s)

Shipping (inner) case width: 32.5 cm

Shipping (inner) case gross weight: 22.7 kg

Shipping (inner) case height: 23.3 cm
