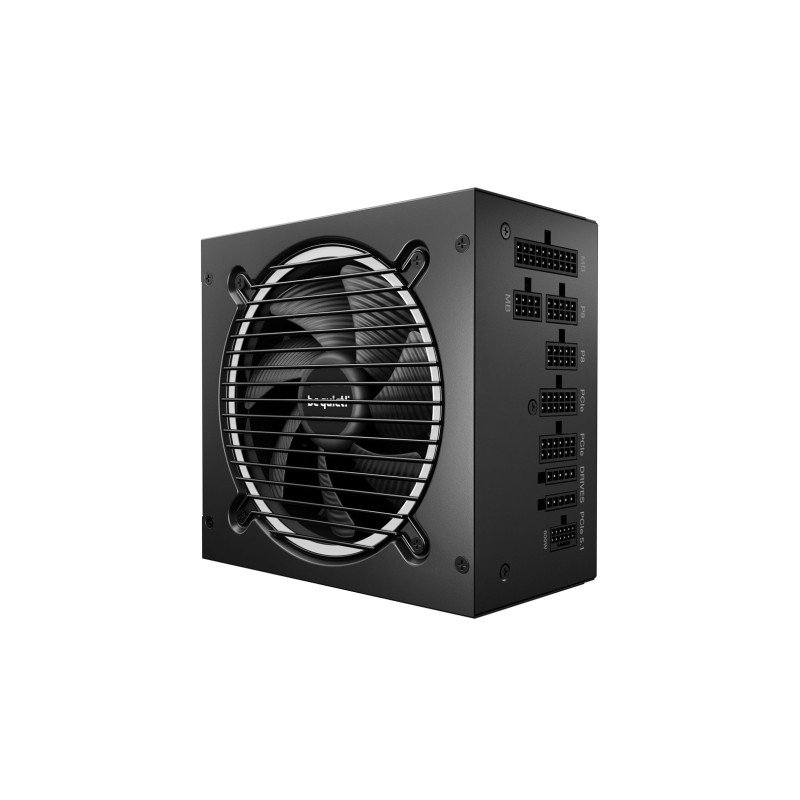

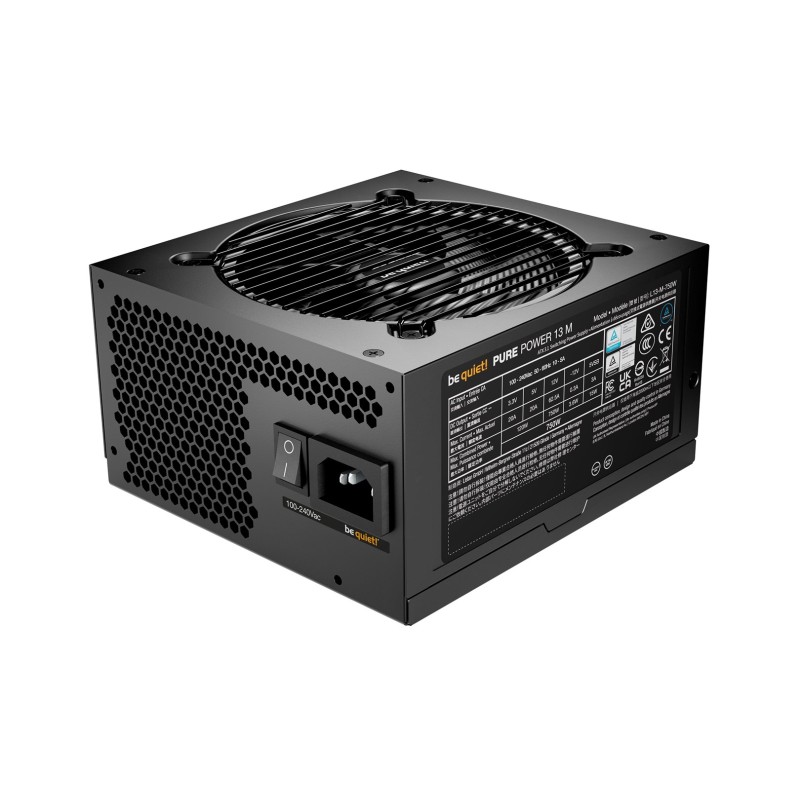

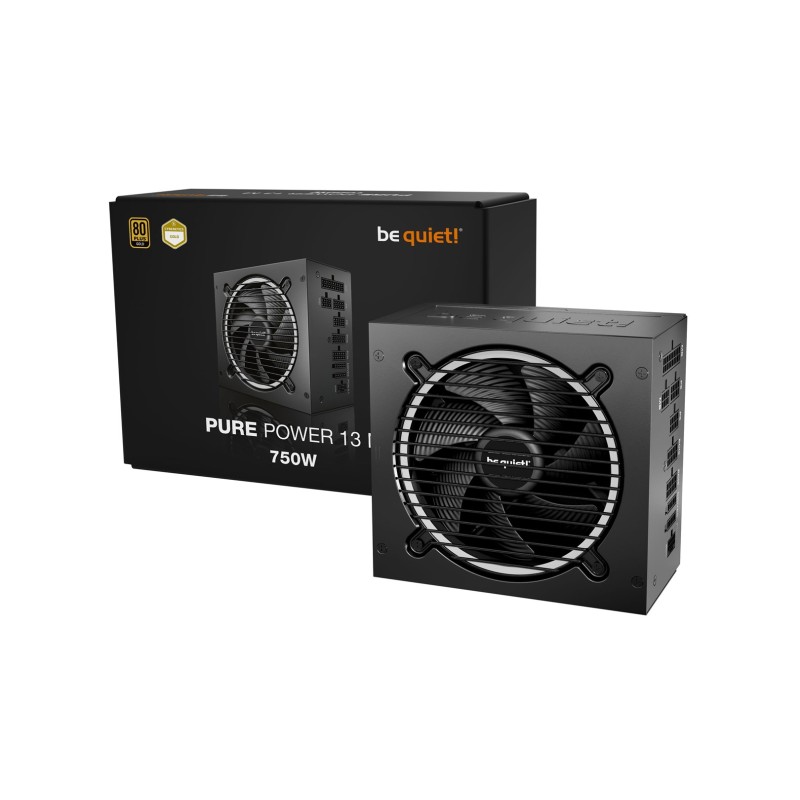

be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: ENERGY STAR, ErP

Design

Fan diameter: 12 cm

Fan speed: 0 - 1800 RPM

Number of fans: 1 fan(s)

Product colour: Black

Cooling type: Active

On/off switch: Yes

Power

Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current, Surge & inrush protection (SIP)

Maximum input current (@110V): 10 A

Maximum input current (@220V): 5 A

Power factor: 0.98

Efficiency: 92.6%

Combined power (-12V): 3.6 W

Max output current (+12V1): 62.5 A

Combined power (+5V): 120 W

Total power: 750 W

Combined power (+12V): 750 W

Combined power (+5Vsb): 15 W

Peak power: 820 W

Combined power (+3.3V): 120 W

Power Factor Correction (PFC) type: Active

Max output current (+5V): 20 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 3 A

Max output current (+3.3V): 20 A

Hold time: 28.62 ms

Number of +12V rail(s): 1

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Depth: 160 mm

Weight: 2.46 kg

Height: 86 mm

Width: 150 mm

Performance

Purpose: PC

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

80 PLUS certification: 80 PLUS Gold

Mean time between failures (MTBF): 100000 h

Bearing technology: Rifle

EPS version: 2.92

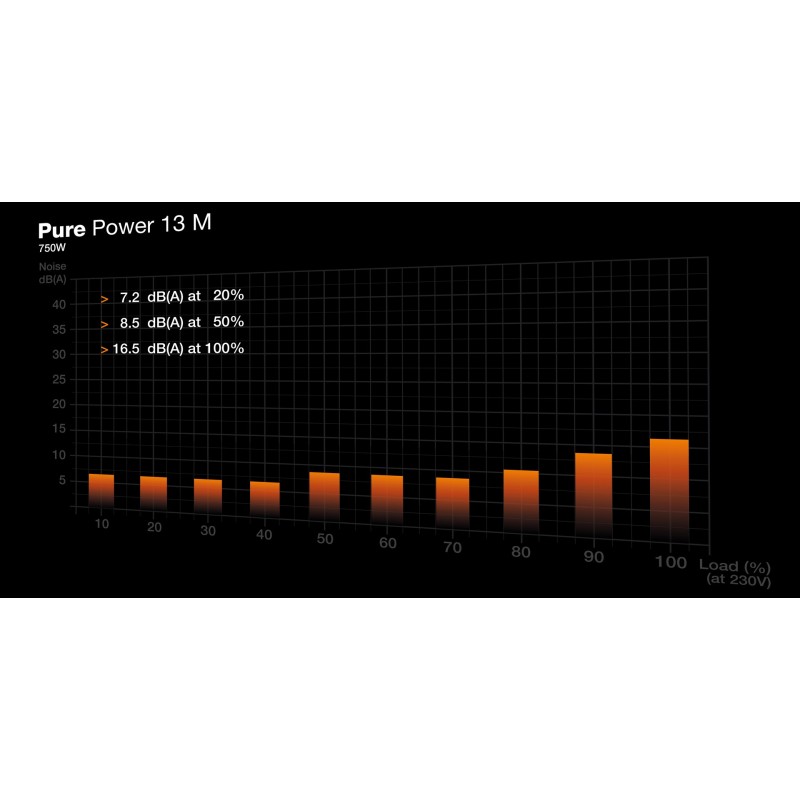

Noise level: 20.8 dB

Packaging data

Package depth: 320 mm

Package height: 133 mm

Package weight: 3.2 kg

Package width: 210 mm

Packaging content

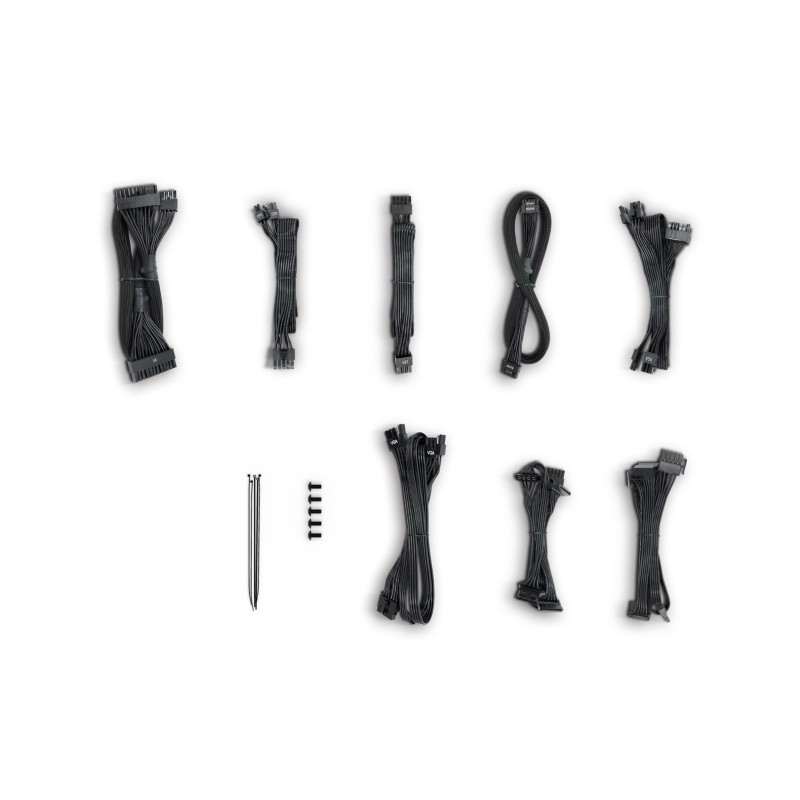

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates: CB, cTUVus, RoHS, CE, BSMI, CCC, Federal Communications Commission (FCC), WEEE, RCM, TÜV mark, UKCA, IRAM

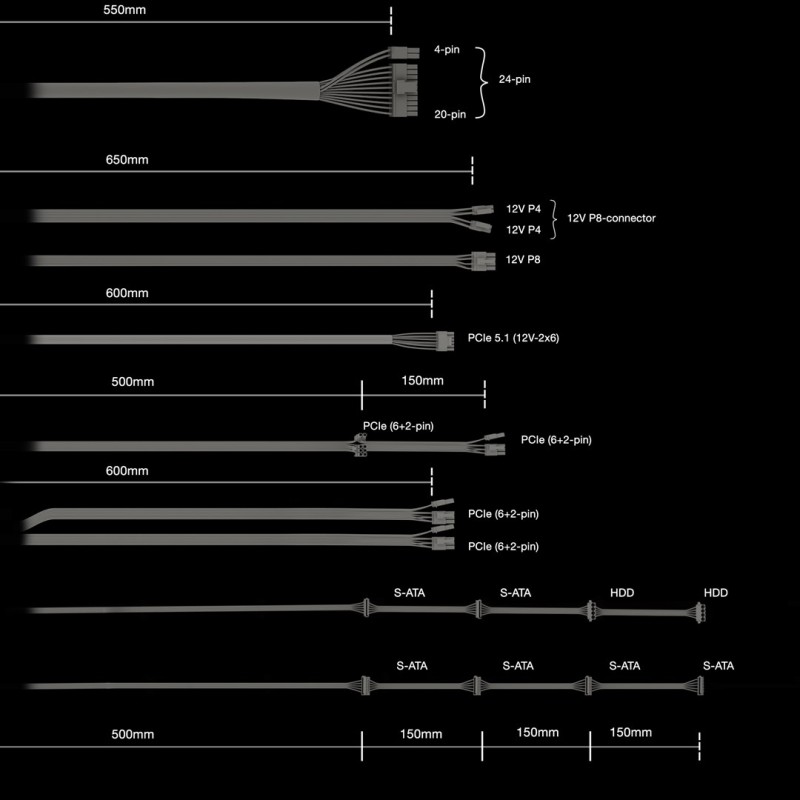

Ports & interfaces

Peripheral (Molex) power cable length: 950 mm, 800

CPU power connector (4+4 pin): Yes

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 4

Number of SATA power connectors: 6

Motherboard power connector: 20+4 pin ATX

SATA power cable length: 500 mm, 650 mm, 950 mm, 800

CPU P4 connector (4-pin): 2

CPU power cable length: 65 cm

Motherboard power cable length: 55 cm

PCI Express power connectors (12-pin): 1

EPS power connector (8-pin): Yes

Peripheral (Molex) power connectors (4-pin): 2

Other features

Screws included: Yes

Cable ties included: Yes

Logistics data

Shipping (inner) case width: 32.5 cm

Shipping (inner) case length: 58 cm

Products per shipping (inner) case: 6 pc(s)

Shipping (inner) case gross weight: 21.5 kg

Shipping (inner) case height: 23.3 cm
