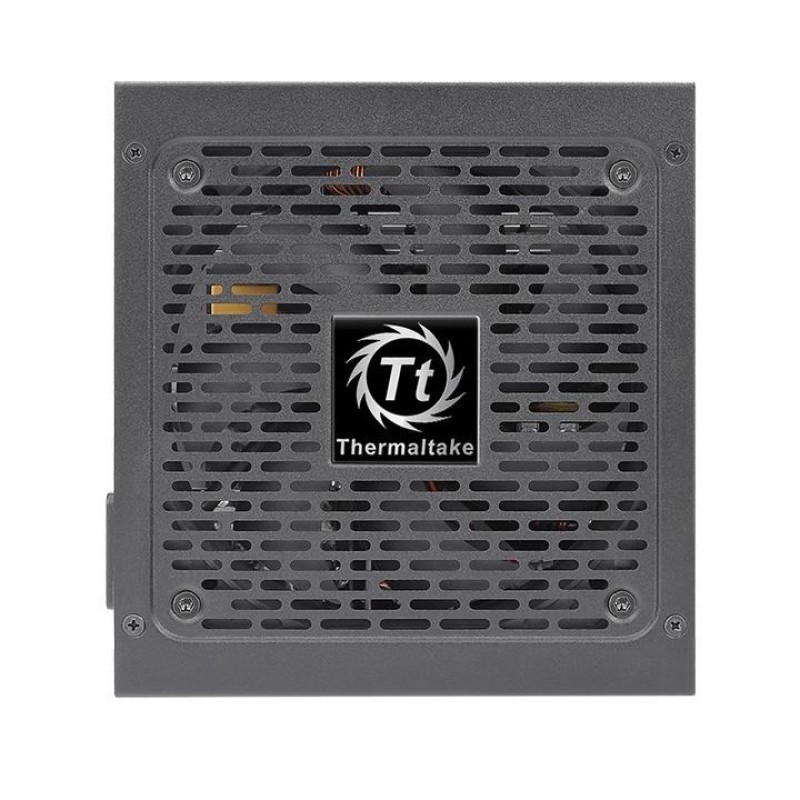

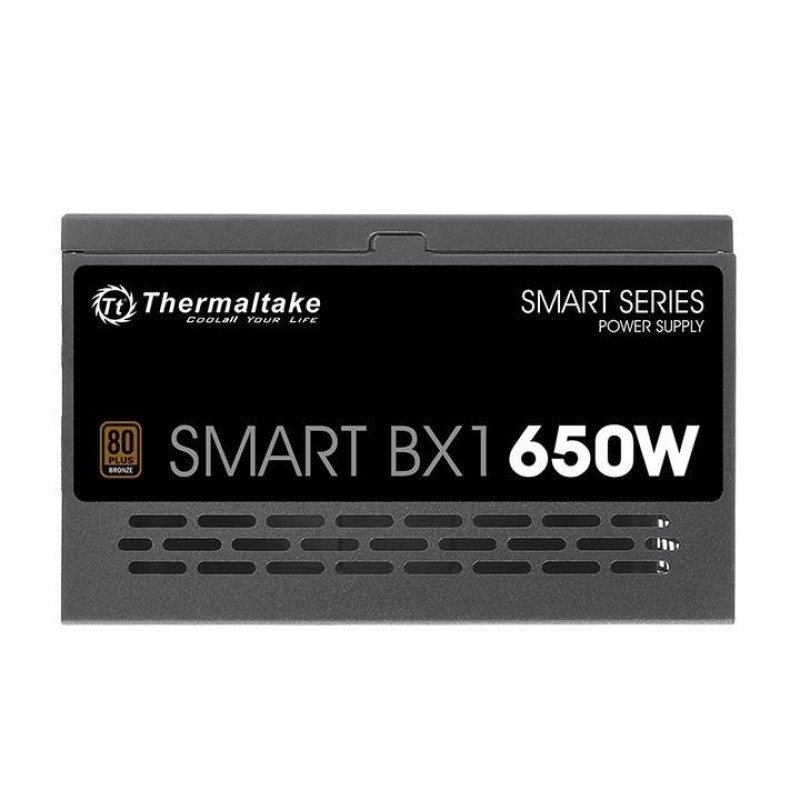

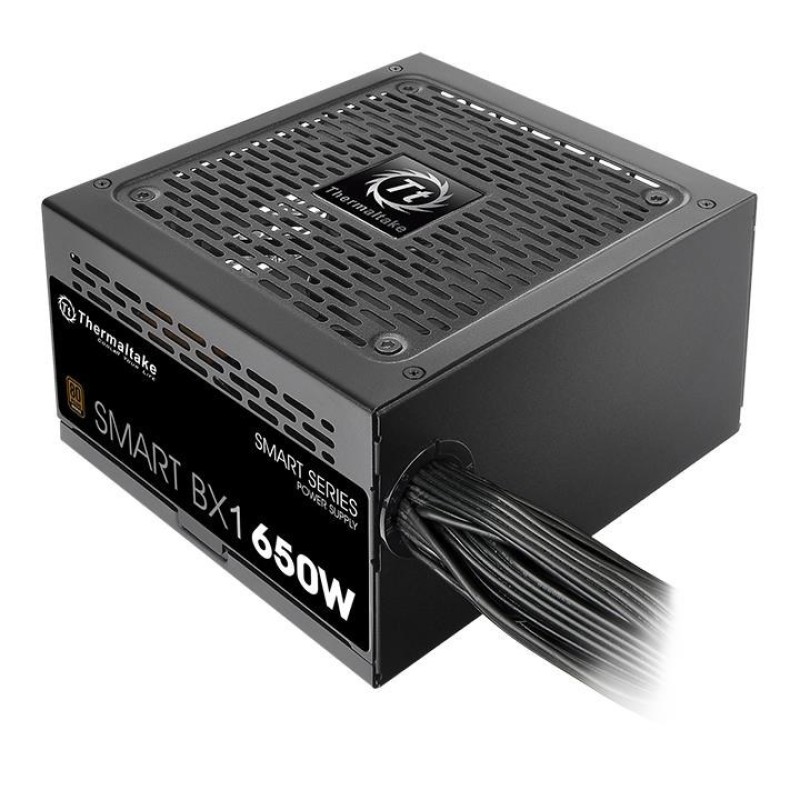

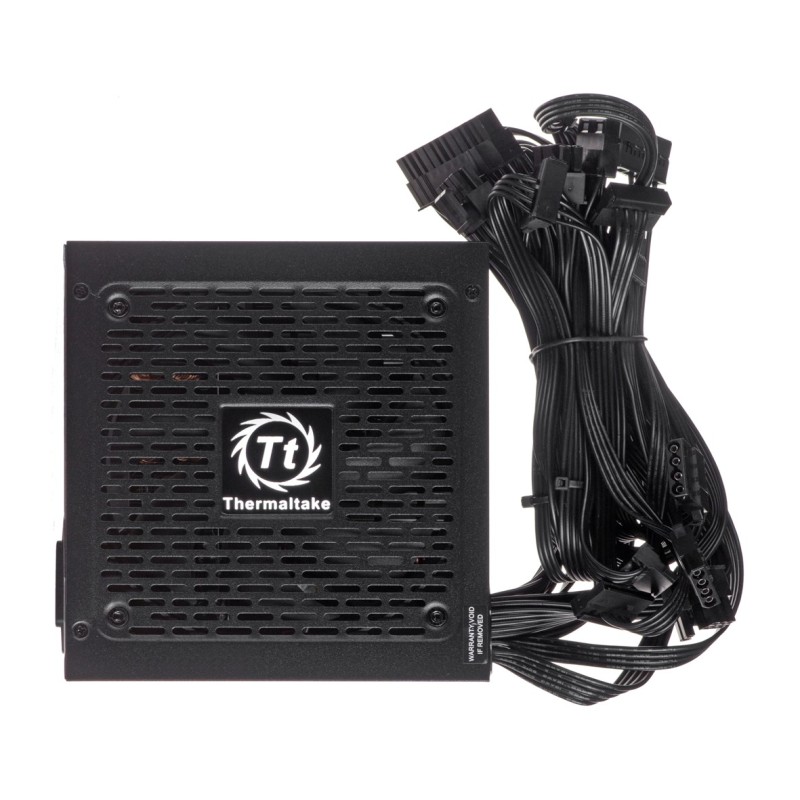

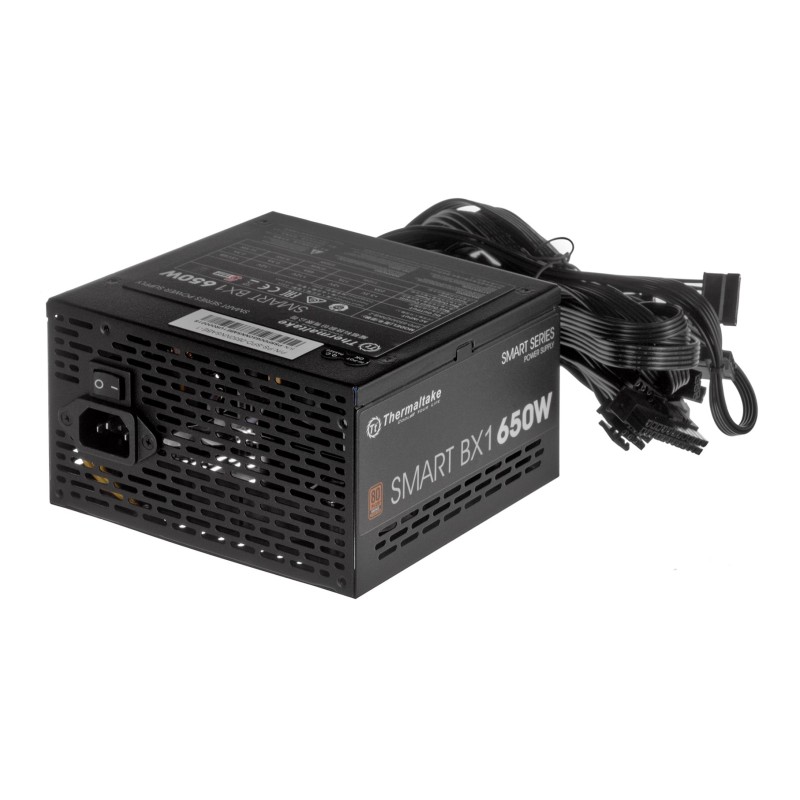

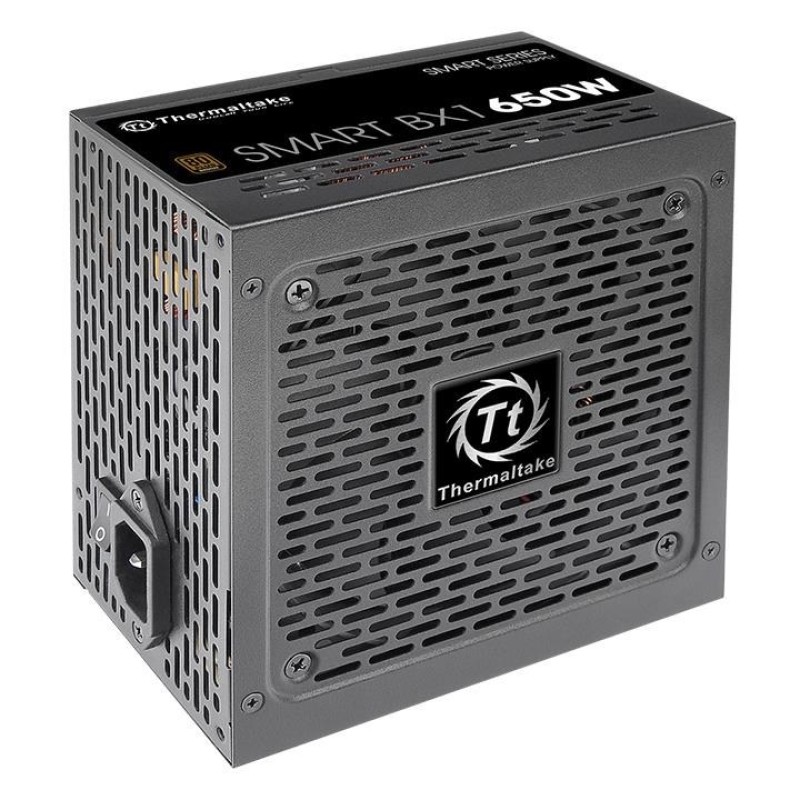

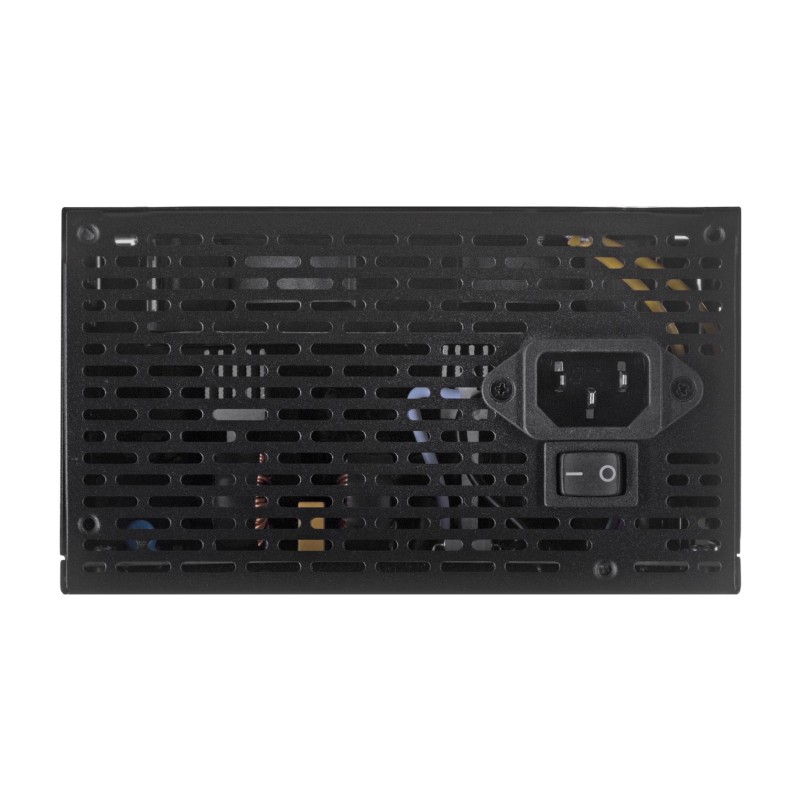

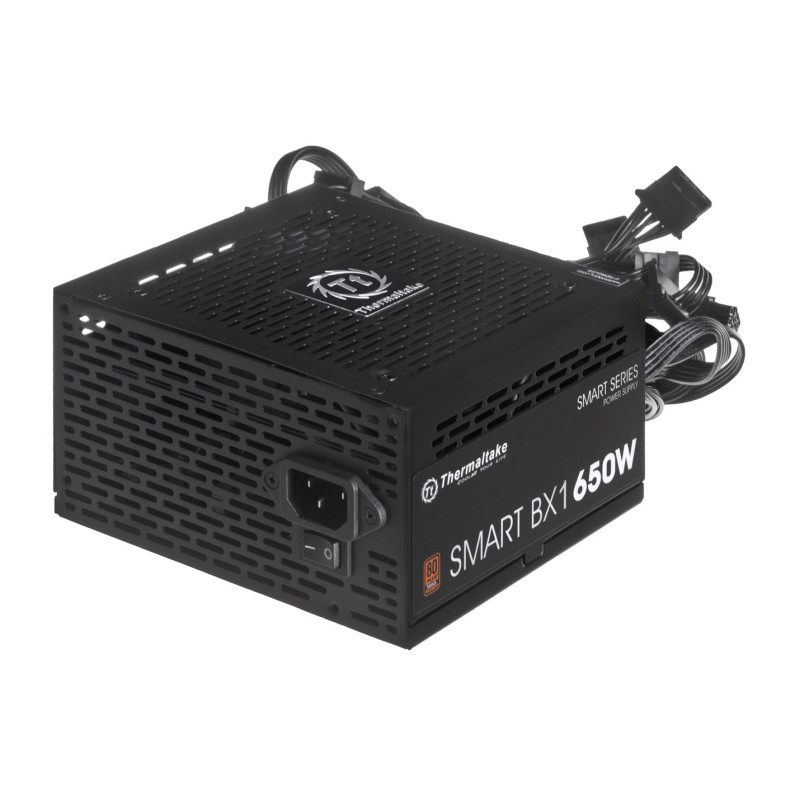

Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black

Περιγραφή

Design

Product colour: Black

Fan diameter: 12 cm

Cooling type: Active

On/off switch: Yes

Number of fans: 1 fan(s)

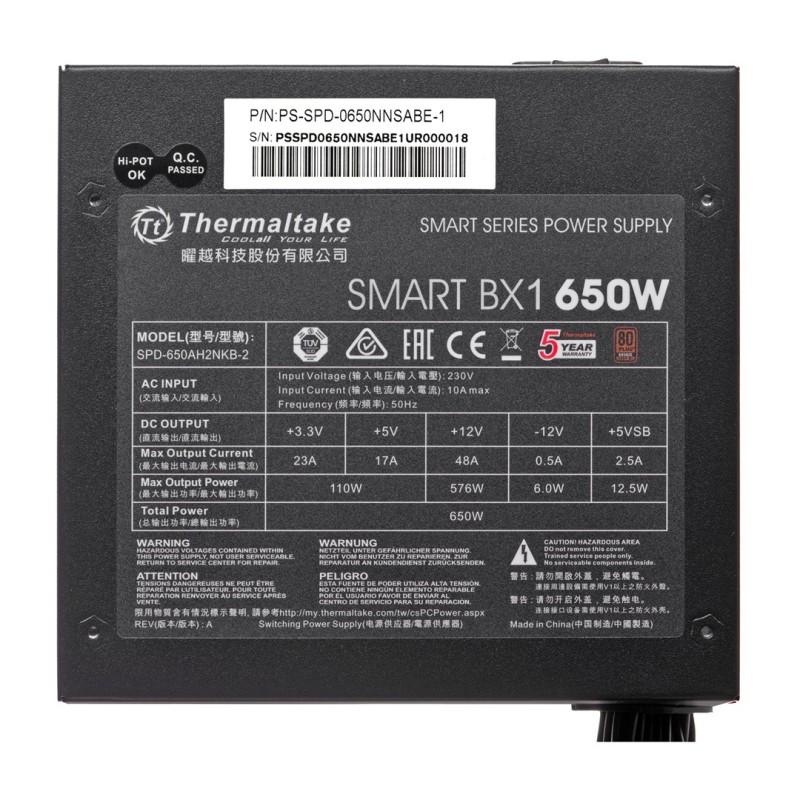

Power

AC input frequency: 50 - 60 Hz

Max output current (+3.3V): 23 A

Combined power (+3.3V): 110 W

Peak power: 80 W

Combined power (-12V): 6 W

Combined power (+5V): 110 W

Total power: 650 W

Max output current (+5Vsb): 2.5 A

Combined power (+5Vsb): 12.5 W

AC input voltage: 100 - 240 V

Max output current (+5V): 17 A

Combined power (+12V): 576 W

Power Factor Correction (PFC) type: Active

Max output current (+12V): 48 A

Input current: 12 A

Max output current (-12V): 0.5 A

Operational conditions

Storage temperature (T-T): -40 - 55 °C

Operating temperature (T-T): 5 - 40 °C

Storage relative humidity (H-H): 10 - 95%

Operating relative humidity (H-H): 20 - 85%

Weight & dimensions

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Performance

80 PLUS certification: 80 PLUS Bronze

Mean time between failures (MTBF): 100000 h

EPS version: 2.92

Power supply unit (PSU) form factor: ATX

Purpose: PC

ATX version: 2.3

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Ports & interfaces

CPU power connector (4+4 pin): Yes

PCI Express connector: Yes

SATA power cable length: 500 mm, 150

Peripheral (Molex) power cable length: 150, 500 mm

PCI Express power connectors (6+2 pin): 2

Cabling type: Non-Modular

Peripheral (Molex) power connectors (4-pin): 4

Number of SATA power connectors: 6

CPU power cable length: 1 mm

Motherboard power connector: 24-pin ATX

PCI Express power cable length: 50 cm

Motherboard power cable length: 60 cm
