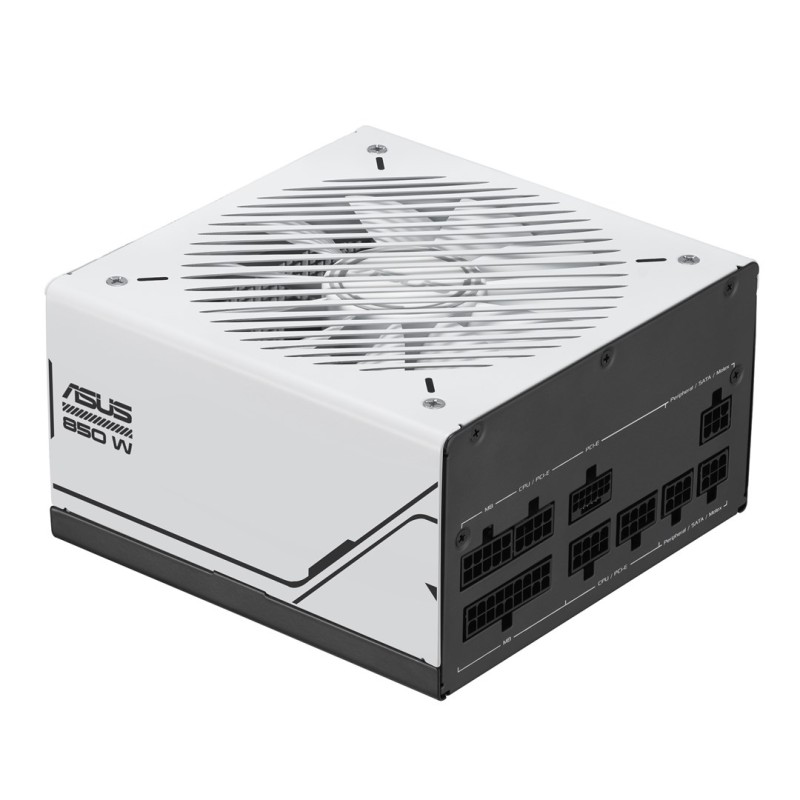

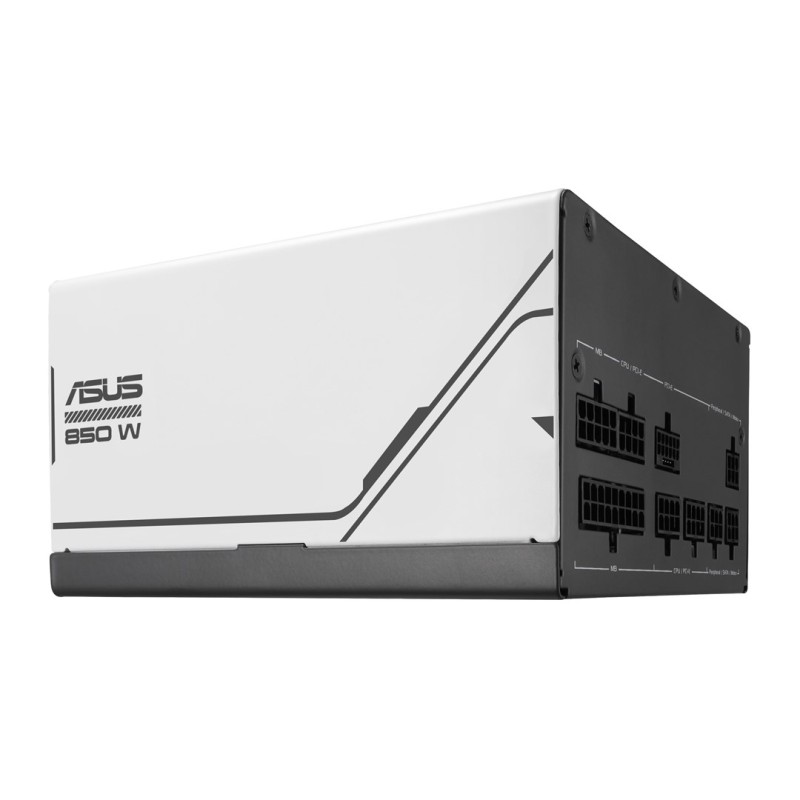

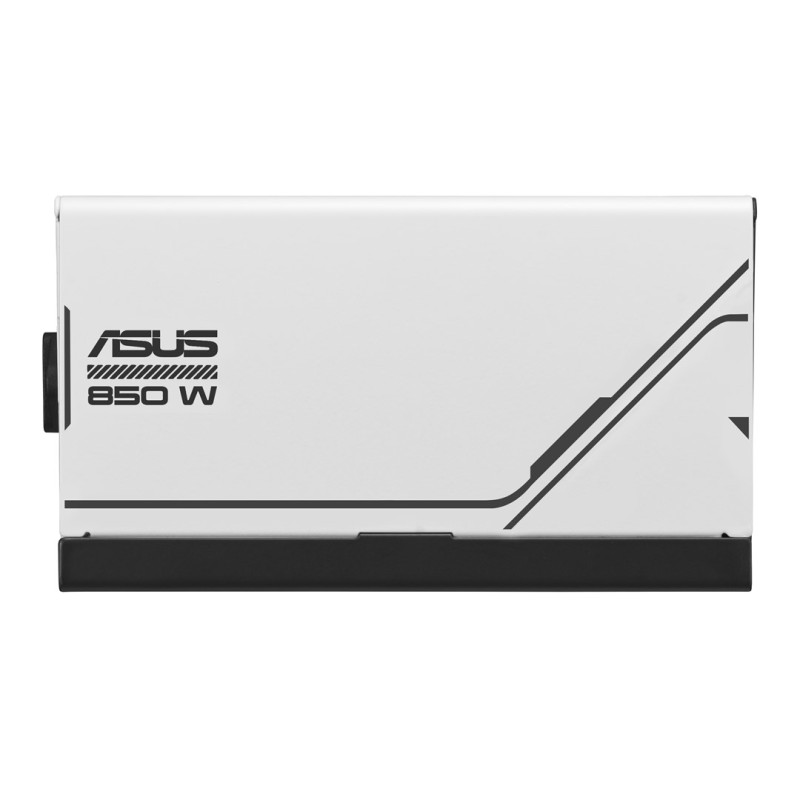

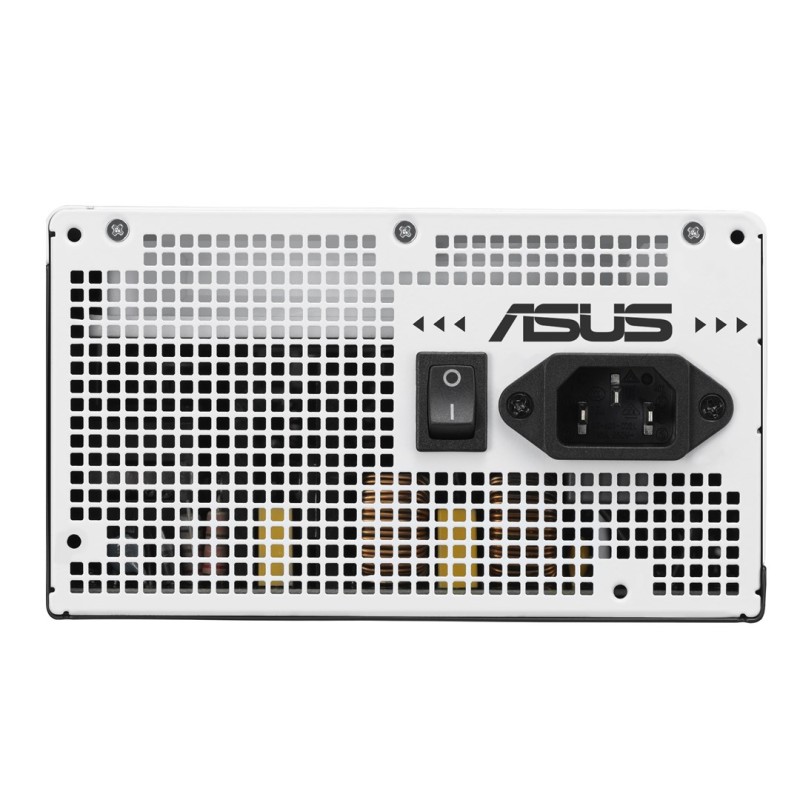

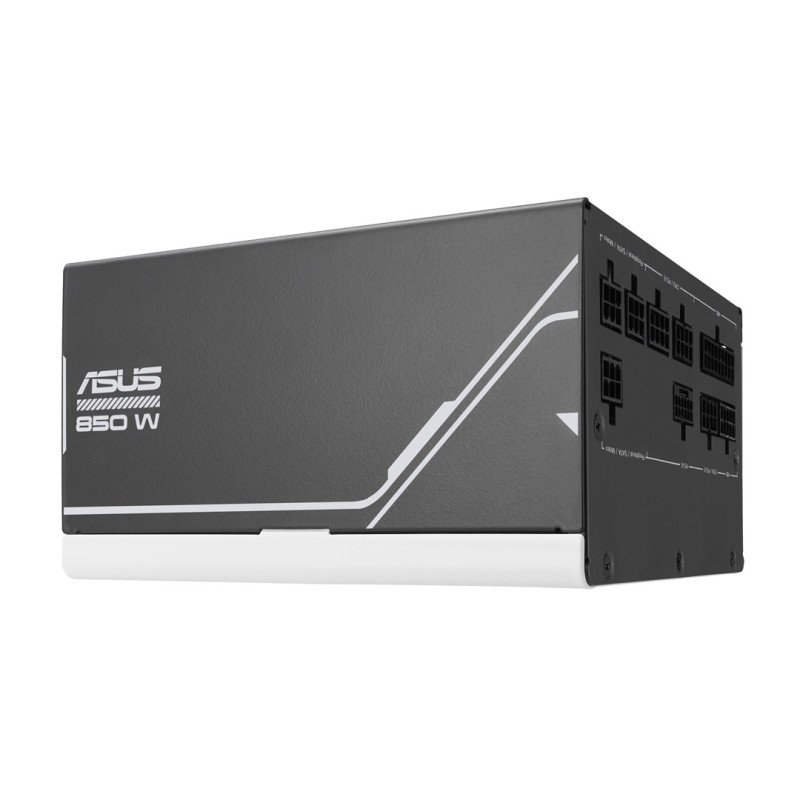

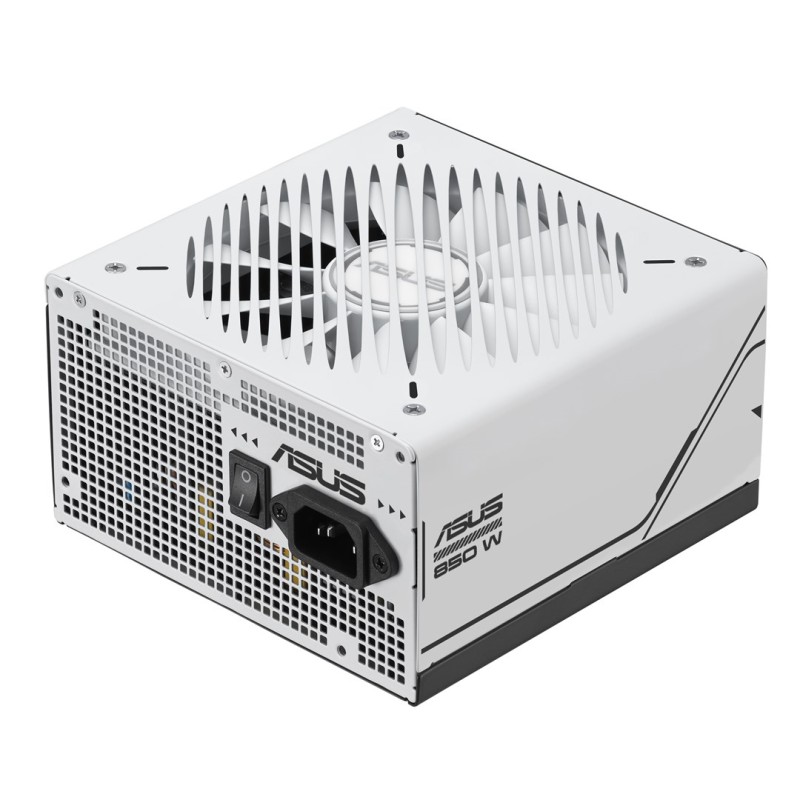

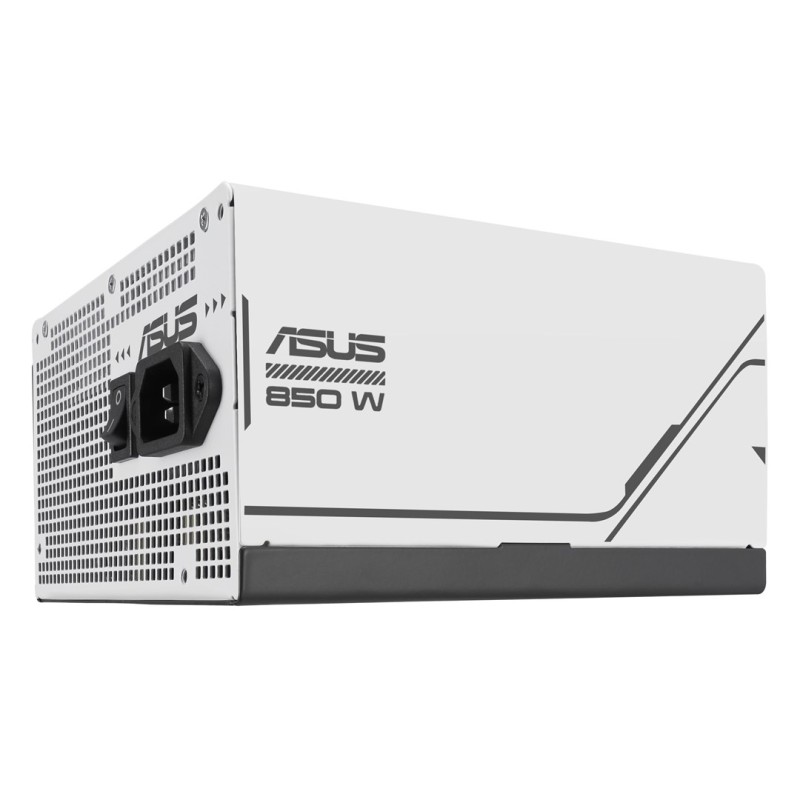

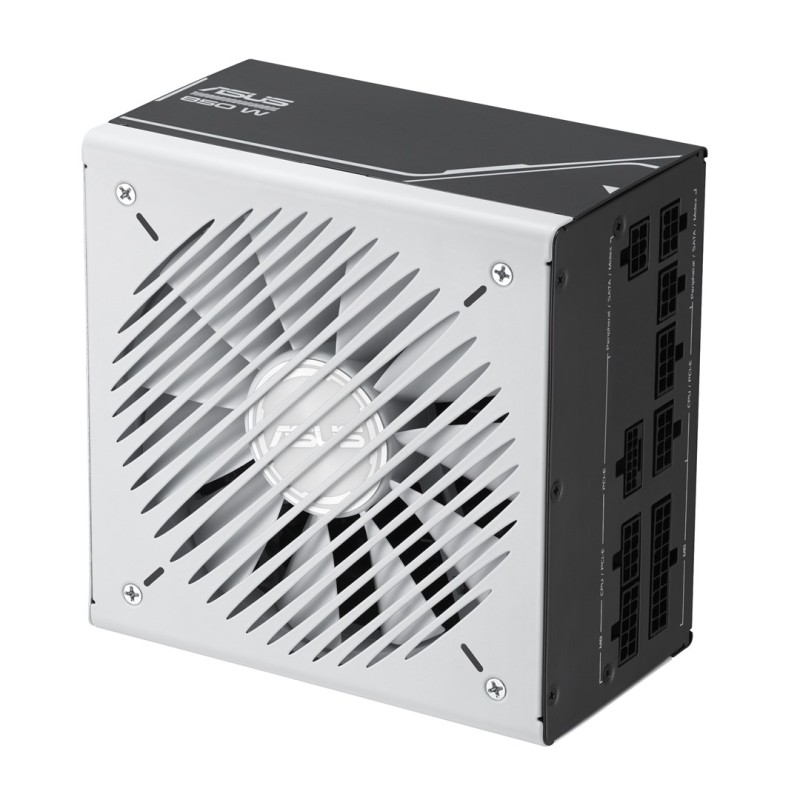

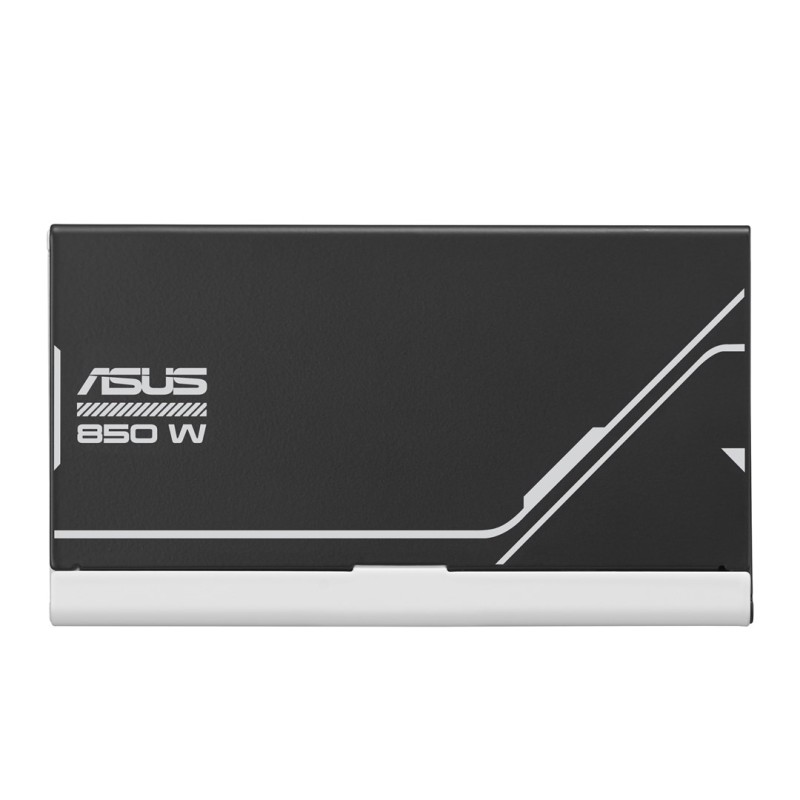

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

Περιγραφή

Design

Product colour: Black, White

Cooling type: Active

Illumination: Yes

Fan location: Top

Number of fans: 1 fan(s)

Power

AC input voltage: 100 - 240 V

Max output current (+5Vsb): 2.5 A

Power protection features: Under voltage, Over current, Over power, Overheating, Short circuit, Over voltage

Combined power (+3.3V): 110 W

Combined power (+5V): 110 W

Combined power (+12V): 846 W

Combined power (+5Vsb): 12.5 W

Total power: 850 W

Max output current (+12V): 70.5 A

Max output current (+3.3V): 20 A

Max output current (-12V): 0.3 A

Power Factor Correction (PFC) type: Active

Combined power (-12V): 3.6 W

Max output current (+5V): 20 A

Weight & dimensions

Weight: 1.5 kg

Depth: 150 mm

Width: 150 mm

Height: 86 mm

Performance

Power supply unit (PSU) form factor: ATX

80 PLUS certification: 80 PLUS Gold

Mean time between failures (MTBF): 120000 h

ATX version: 3.0

Purpose: PC

Packaging data

Package height: 144 mm

Package width: 346 mm

Package type: Box

Package weight: 2.92 kg

Package depth: 208 mm

Packaging content

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates

Compliance certificates: RoHS

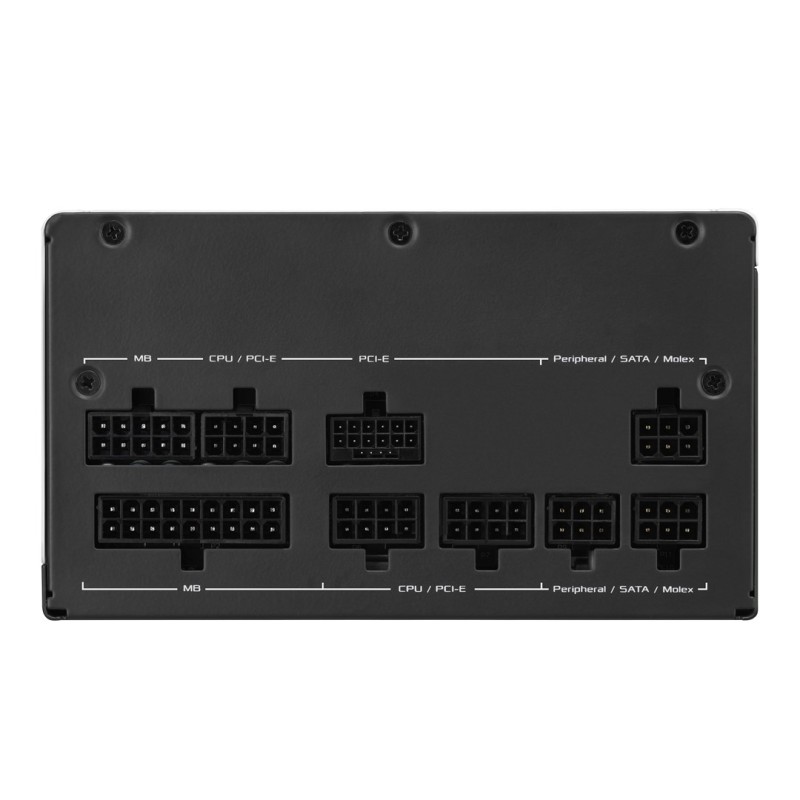

Ports & interfaces

Peripheral (Molex) power connectors (4-pin): 3

Motherboard power cable length: 61 cm

Peripheral (Molex) power cable length: 400 mm, 150

SATA power cable length: 400 mm, 120

Cabling type: Fully-Modular

Motherboard power connector: 20+4 pin ATX

PCI Express power connectors (16-pin): 1

PCI Express power cable length: 67.5 cm

CPU power cable length: 65 cm

Number of SATA power connectors: 5

PCI Express power connectors (8-pin): 3

CPU power connector (4+4 pin): Yes
