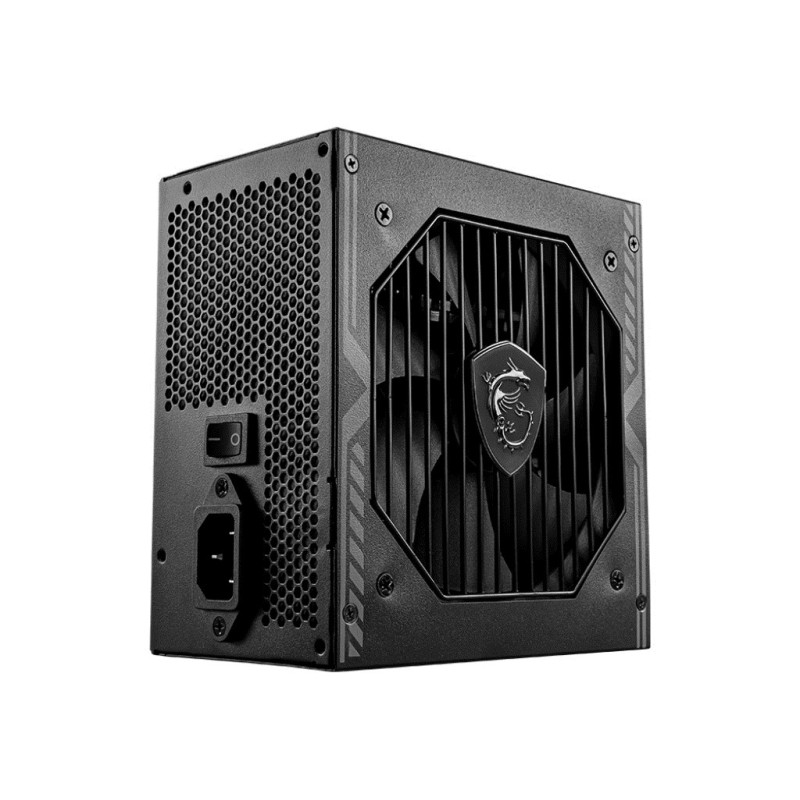

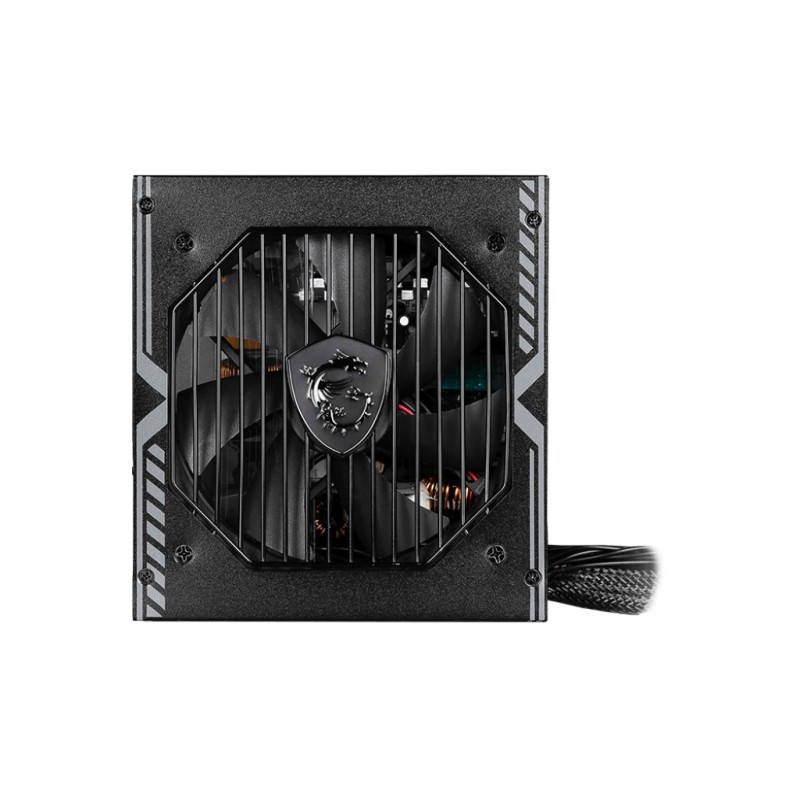

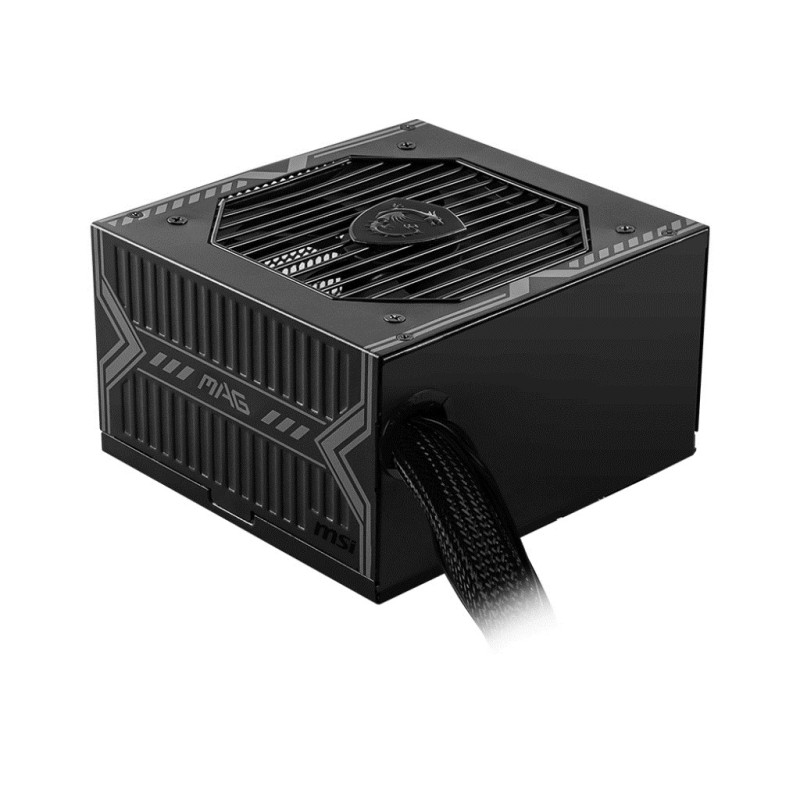

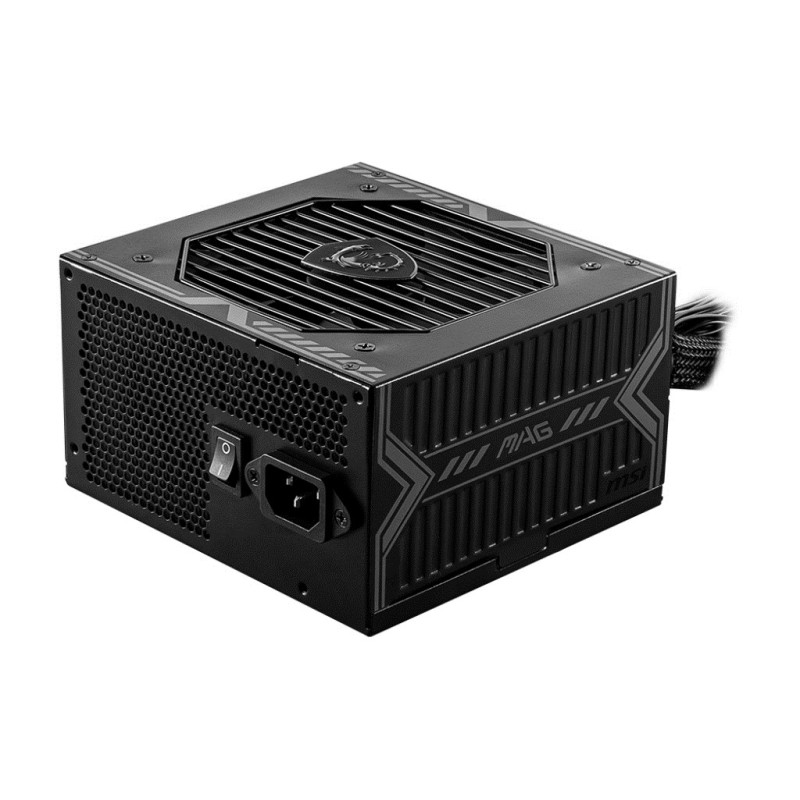

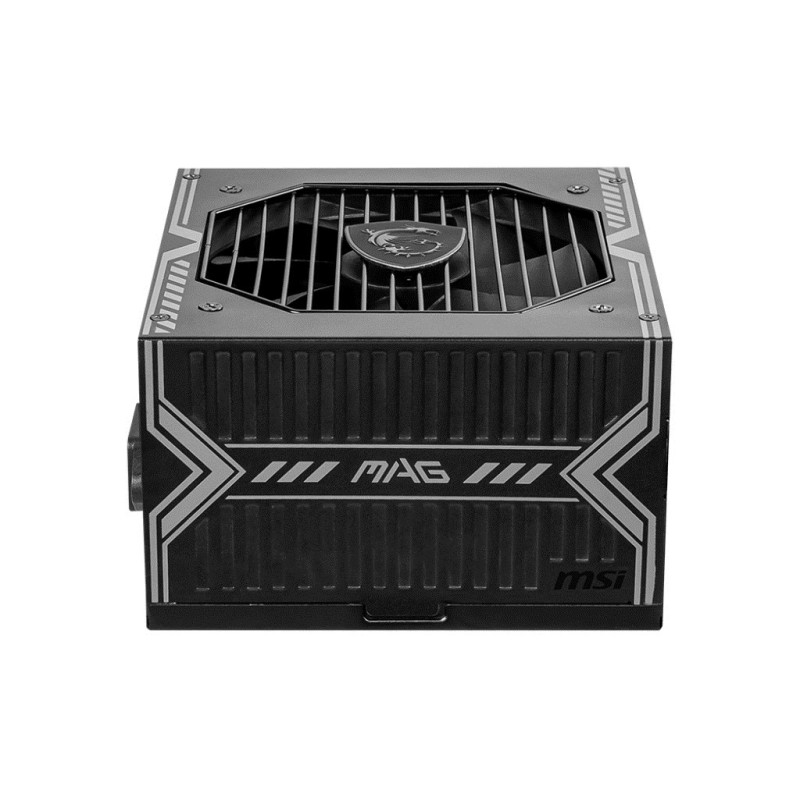

MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black

Περιγραφή

Design

Product colour: Black

Cooling type: Active

Illumination: No

Fan diameter: 12 cm

On/off switch: Yes

Number of fans: 1 fan(s)

Power

Max output current (+12V): 62.5 A

Maximum input current (@110V): 10 A

Combined power (+5Vsb): 12.5 W

Maximum input current (@220V): 5 A

Max output current (+3.3V): 20 A

Max output current (-12V): 0.3 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 2.5 A

Power protection features: Over power, Short circuit, Over voltage, Over current

Efficiency: 85%

Total power: 750 W

Combined power (-12V): 3.6 W

Power Factor Correction (PFC) type: Active

Combined power (+12V): 750 W

Combined power (+5V): 120 W

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+3.3V): 120 W

Performance

Purpose: PC

Power supply unit (PSU) form factor: ATX

80 PLUS certification: 80 PLUS Bronze

Packaging data

Package depth: 140 mm

Package width: 150 mm

Package height: 86 mm

Ports & interfaces

EPS power connector (4+4 pin): Yes

Floppy drive power connector: 1

Motherboard power connector: 24-pin ATX

Number of SATA power connectors: 5

PCI Express power connectors (16-pin): 1

ATX Power connector (24-pin): Yes

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 2

Cabling type: Non-Modular

Safety warning

Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
