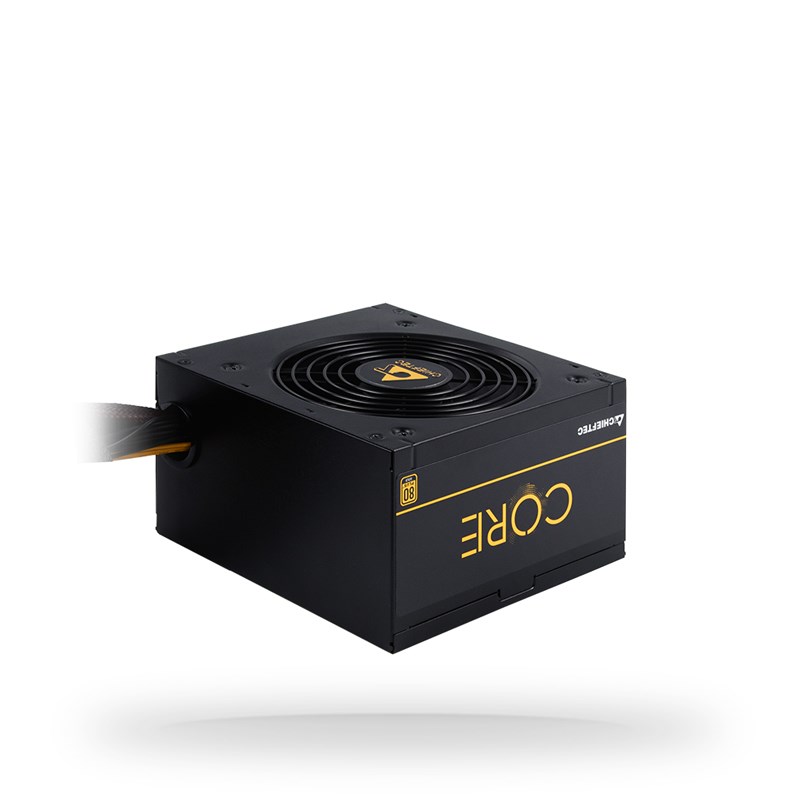

Chieftec Core BBS-600S power supply unit 600 W 24-pin ATX PS/2 Black

Περιγραφή

Design

Cooling type: Active

Fan diameter: 12 cm

Number of fans: 1 fan(s)

Product colour: Black

Power

Total power: 600 W

Power protection features: Short circuit, Over voltage, Overload

AC input frequency: 47 - 63 Hz

AC input voltage: 100 - 240 V

Input current: 9 A

Max output current (+12V1): 49 A

Max output current (+3.3V): 20 A

Combined power (-12V): 3.6 W

Max output current (+5V): 20 A

Max output current (-12V): 0.3 A

Combined power (+5Vsb): 12.5 W

Power Factor Correction (PFC) type: Active

Max output current (+5Vsb): 2.5 A

Weight & dimensions

Depth: 150 mm

Width: 140 mm

Height: 86 mm

Weight: 1.67 kg

Performance

Purpose: PC

80 PLUS certification: 80 PLUS Gold

Power supply unit (PSU) form factor: PS/2

Packaging data

Package weight: 2.08 kg

Ports & interfaces

Floppy drive power connector: 1

Peripheral (Molex) power connectors (4-pin): 3

Motherboard power connector: 24-pin ATX

PCI Express power connectors (6+2 pin): 2

SATA power cable length: 150, 500 mm

CPU power connector (4+4 pin): Yes

CPU power cable length: 65 cm

Number of SATA power connectors: 6

PCI Express power cable length: 50 cm

Cabling type: Non-Modular

Peripheral (Molex) power cable length: 500 mm, 150

Motherboard power cable length: 65 cm

Logistics data

Harmonized System (HS) code: 84733020
