Akyga AK-B1-500E power supply unit 500 W 20+4 pin ATX ATX Grey

Περιγραφή

Technical details

Sustainability certificates: RoHS

Design

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: Grey

Fan diameter: 12 cm

Power

Combined power (+5V): 250 W

Combined power (+3.3V): 250 W

Max output current (+12V): 21 A

Max output current (+3.3V): 30 A

AC input voltage: 220 V

Input current: 5 A

Total power: 500 W

Combined power (+12V): 252 W

Power Factor Correction (PFC) type: Passive

Max output current (+5V): 34 A

Operational conditions

Operating temperature (T-T): 5 - 50 °C

Weight & dimensions

Height: 85 mm

Width: 150 mm

Depth: 140 mm

Weight: 1.01 kg

Performance

Mean time between failures (MTBF): 100000 h

ATX version: 2.31

Supported motherboard form factors: ATX

Purpose: PC

Power supply unit (PSU) form factor: ATX

Packaging data

Package type: Box

Package height: 95 mm

Package depth: 220 mm

Package width: 160 mm

Manual: Yes

Package weight: 1.09 kg

Packaging content

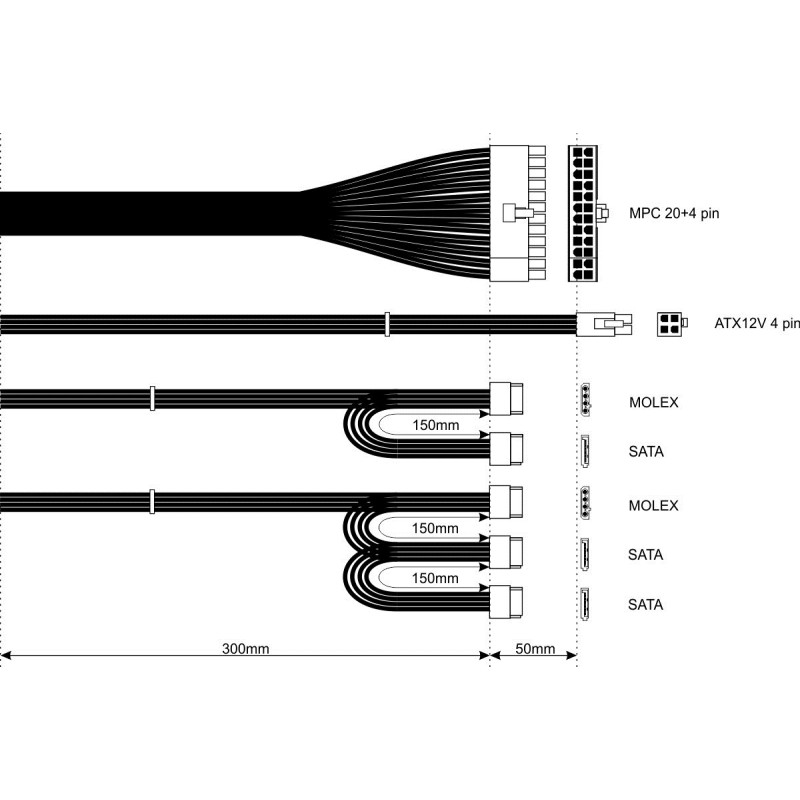

Cables included: Peripheral (Molex) to SATA 3.3, SATA

Ports & interfaces

PCI Express power connectors (6-pin): 1

SATA power cable length: 300 mm

Peripheral (Molex) power cable length: 300 mm

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power connectors (4-pin): 2

EPS power connector (8-pin): No

Number of SATA power connectors: 3

PCI Express power connectors (6+2 pin): 1

Other features

Fan controller: Yes

Number of cables: 4

Warranty card: Yes

Voltage tolerance: 70%
