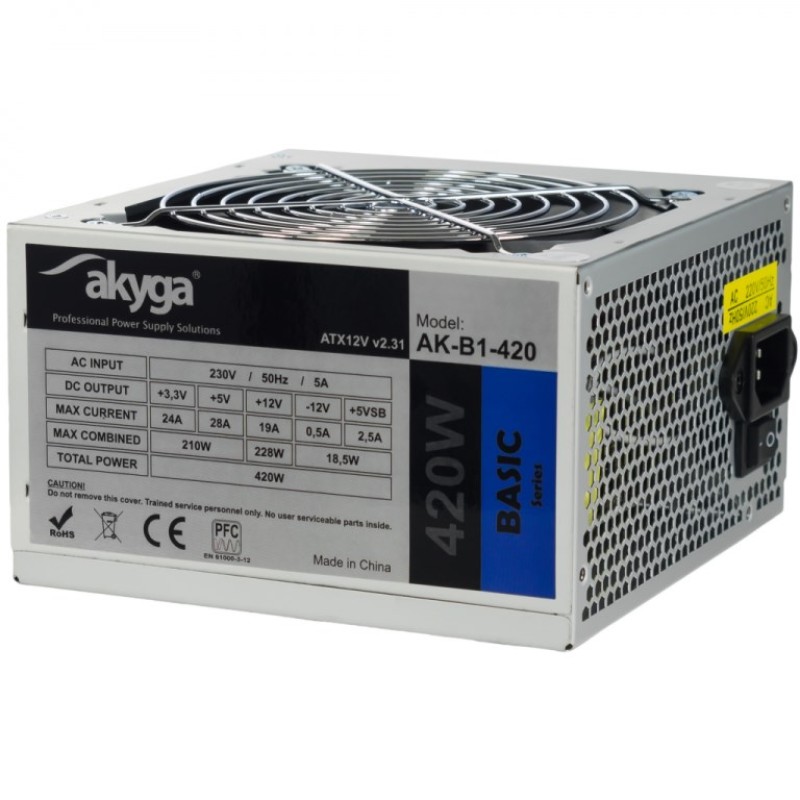

Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey

Περιγραφή

Technical details

Sustainability certificates: RoHS

Design

Product colour: Grey

Power

AC input frequency: 50 Hz

Combined power (-12V): 18.5 W

Combined power (+5Vsb): 18.5 W

Max output current (+5Vsb): 2.5 A

Max output current (-12V): 0.5 A

AC input voltage: 230 V

Efficiency: 70%

Power protection features: Over power, Under voltage, Over current, Short circuit, Over voltage

Max output current (+3.3V): 24 A

Combined power (+5V): 210 W

Combined power (+3.3V): 210 W

Total power: 420 W

Max output current (+12V): 19 A

Input current: 5 A

Max output current (+5V): 28 A

Combined power (+12V): 228 W

Operational conditions

Operating temperature (T-T): 5 - 50 °C

Weight & dimensions

Weight: 1.04 kg

Depth: 140 mm

Height: 85 mm

Width: 150 mm

Performance

Power supply unit (PSU) form factor: ATX

Purpose: PC

ATX version: 2.31

Mean time between failures (MTBF): 100000 h

Packaging data

Package height: 86 mm

Package type: Box

Package weight: 1.05 kg

Package width: 151 mm

Package depth: 196 mm

Ports & interfaces

CPU P4 connector (4-pin): 1

ATX Power connector (20-pin): Y

Peripheral (Molex) power connectors (4-pin): 2

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 3
