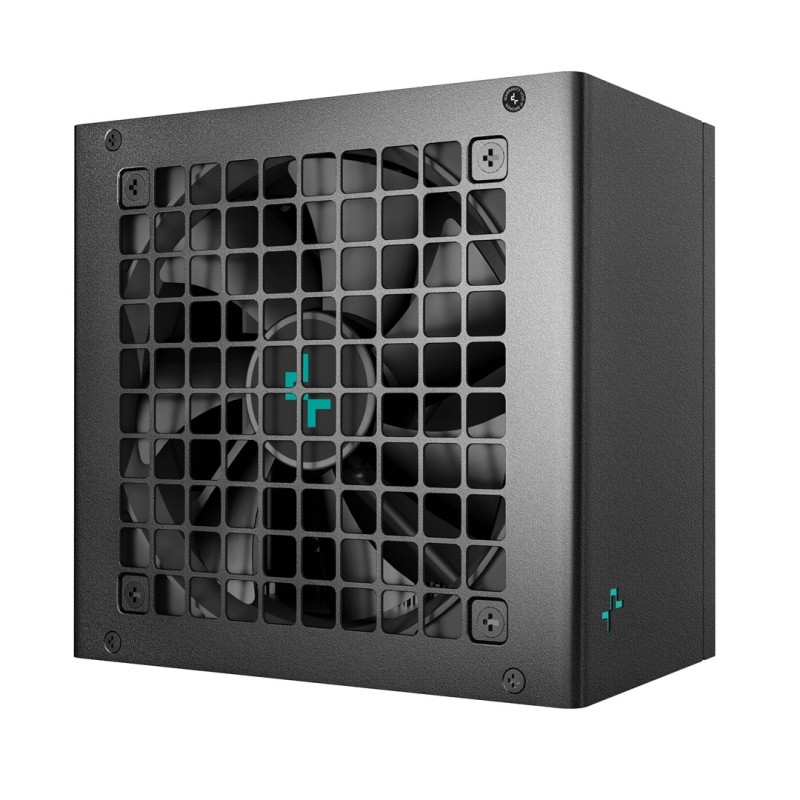

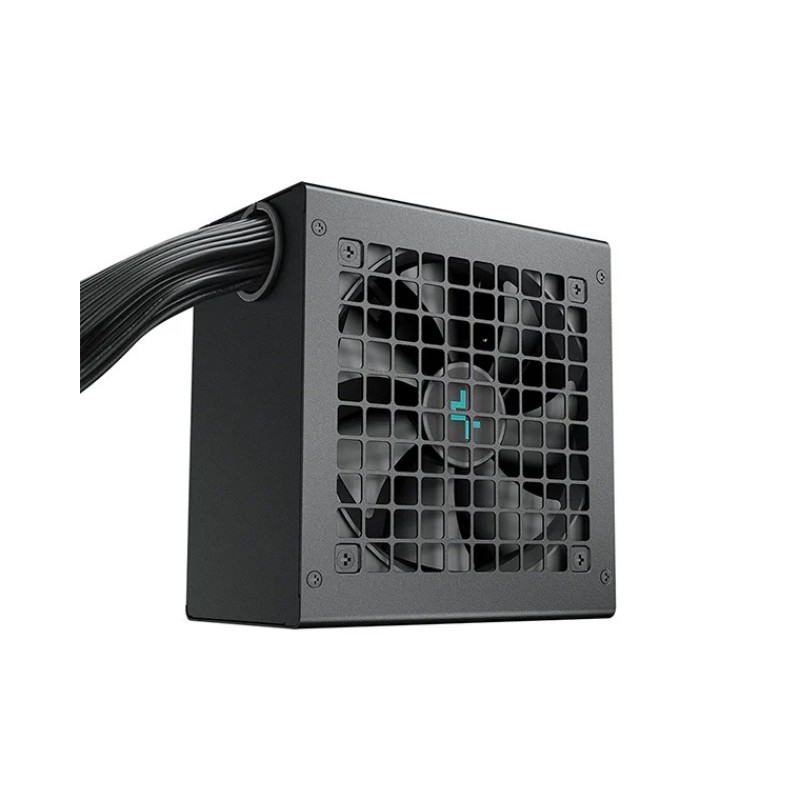

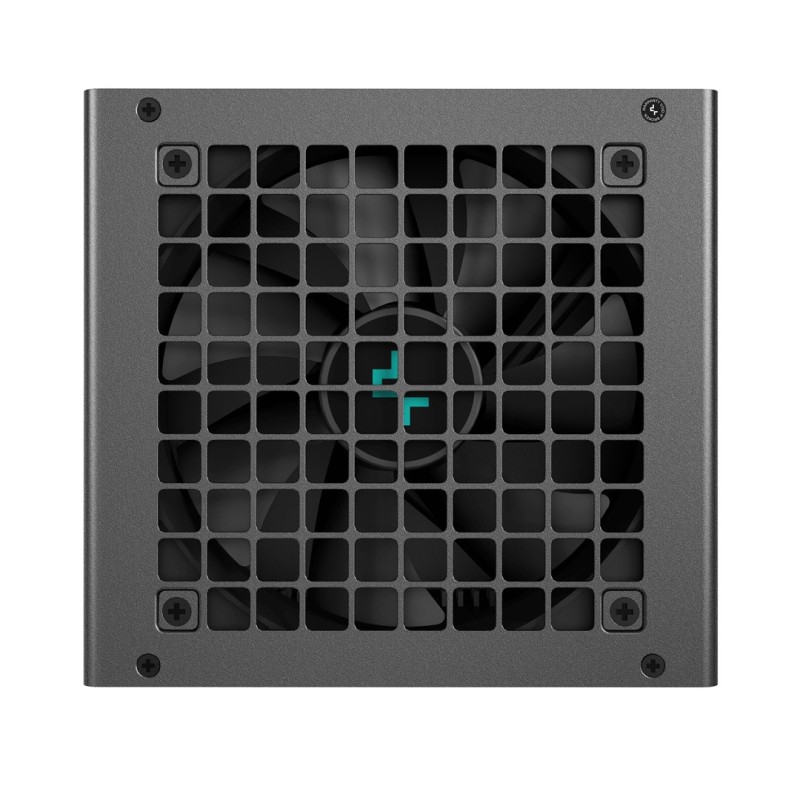

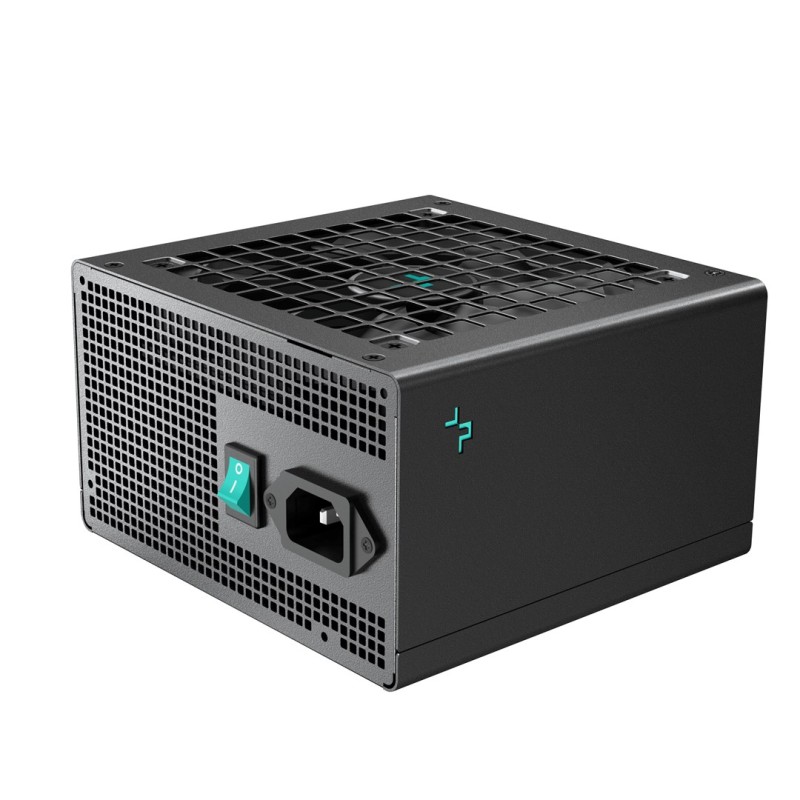

DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Compliance certificates: CCC, WEEE, RCM, RoHS, CE, EAC, Federal Communications Commission (FCC)

Warranty period: 10 year(s)

Sustainability certificates: Triman, ErP

Design

On/off switch: Yes

Product colour: Black

Cooling type: Active

Number of fans: 1 fan(s)

Fan location: Top

Fan diameter: 12 cm

Power

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Input current: 10 - 5 A

Power protection features: Over power, Overheating, Surge protection, No load operation, Short circuit, Over voltage, Under voltage, Surge & inrush protection (SIP)

Max output current (+5Vsb): 3 A

Combined power (+5Vsb): 15 W

Combined power (+5V): 110 W

Power Factor Correction (PFC) type: Active

Combined power (+12V): 750 W

Combined power (-12V): 3.6 W

Max output current (+3.3V): 20 A

Max output current (-12V): 0.3 A

Efficiency: 90%

Combined power (+3.3V): 110 W

Max output current (+12V): 62.5 A

Total power: 750 W

Max output current (+5V): 20 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 150 mm

Depth: 140 mm

Height: 86 mm

Performance

ATX version: 3.1

Power supply unit (PSU) form factor: ATX

Bearing technology: FDB

Mean time between failures (MTBF): 100000 h

Purpose: PC

80 PLUS certification: 80 PLUS Gold

Packaging data

Package type: Box

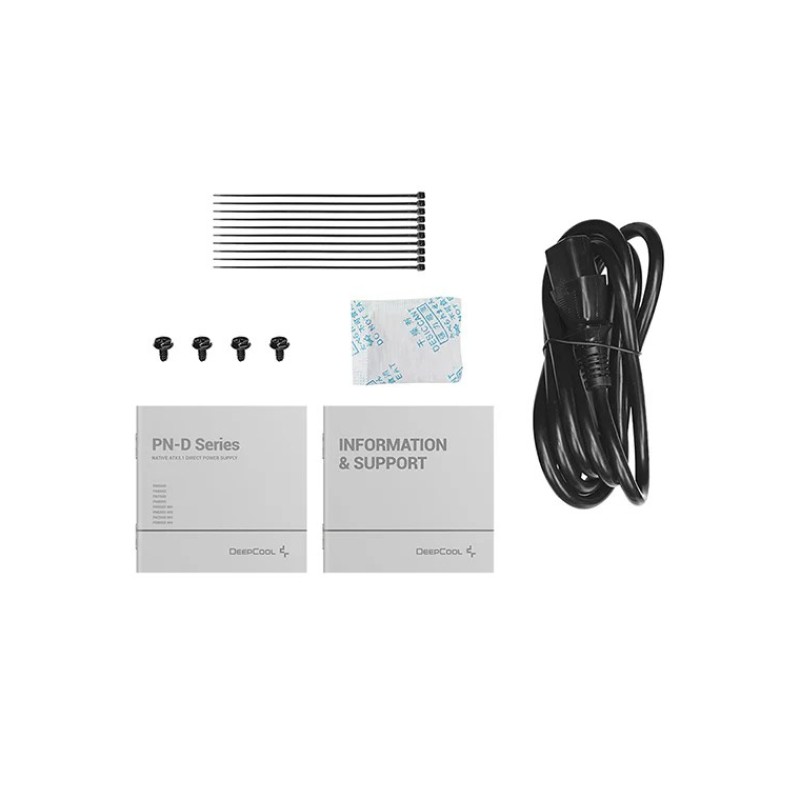

Packaging content

Cables included: AC

Cable tie(s) included: Yes

Ports & interfaces

Peripheral (Molex) power connectors (4-pin): 2

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 8

CPU power connector (4+4 pin): Yes

Cabling type: Non-Modular

ATX power connector (20+4 pin): Yes

SATA power cable length: 450, 750, 650 mm, 550

PCI Express power connectors (6+2 pin): 3

Motherboard power cable length: 55 cm

CPU power cable length: 70 cm

Peripheral (Molex) power cable length: 450 mm

PCI Express power connectors (16-pin): 1

Safety warning

Warnings: Do not open the case - risk of electric shock.
