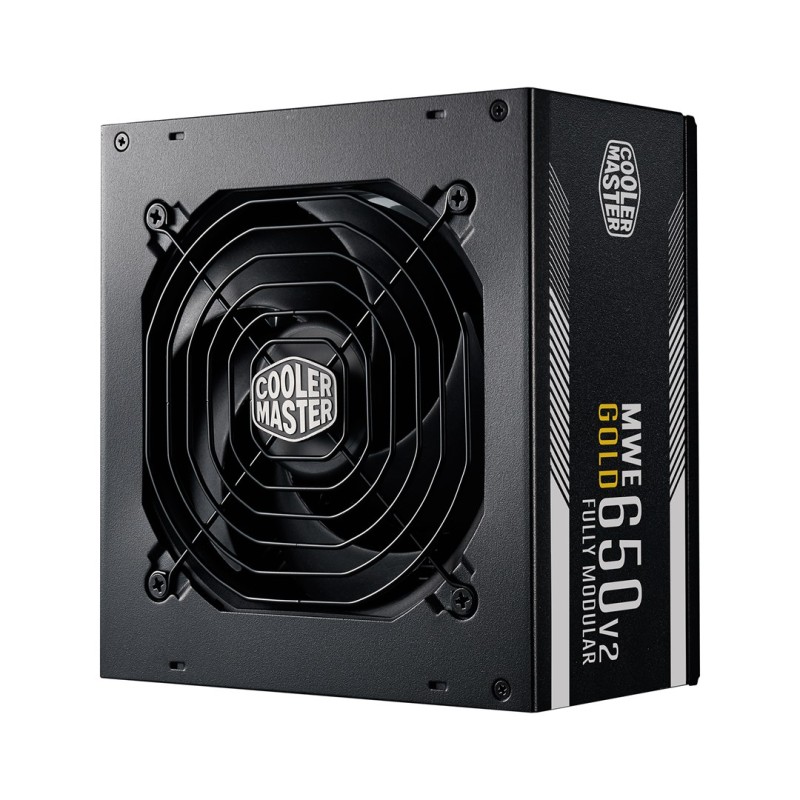

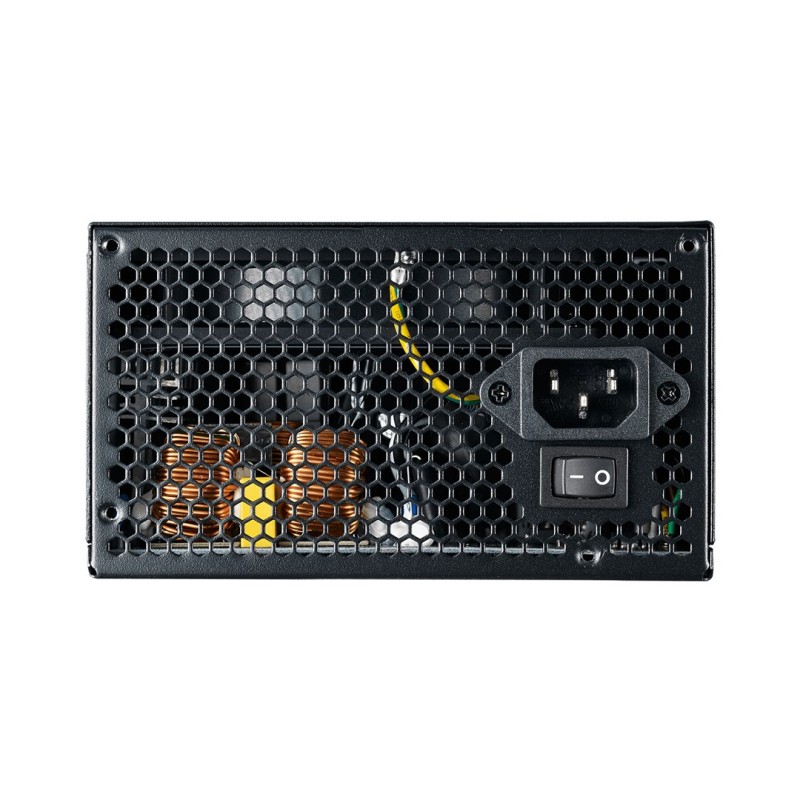

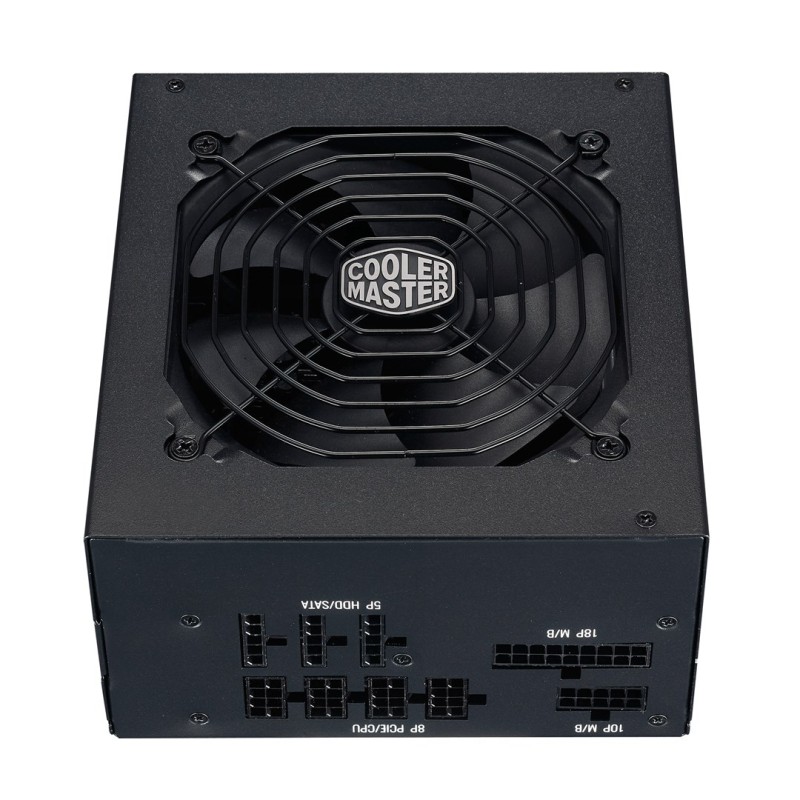

Cooler Master MWE Gold 650 - V2 Full Modular power supply unit 650 W 24-pin ATX ATX Black

Περιγραφή

Design

Cooling type: Active

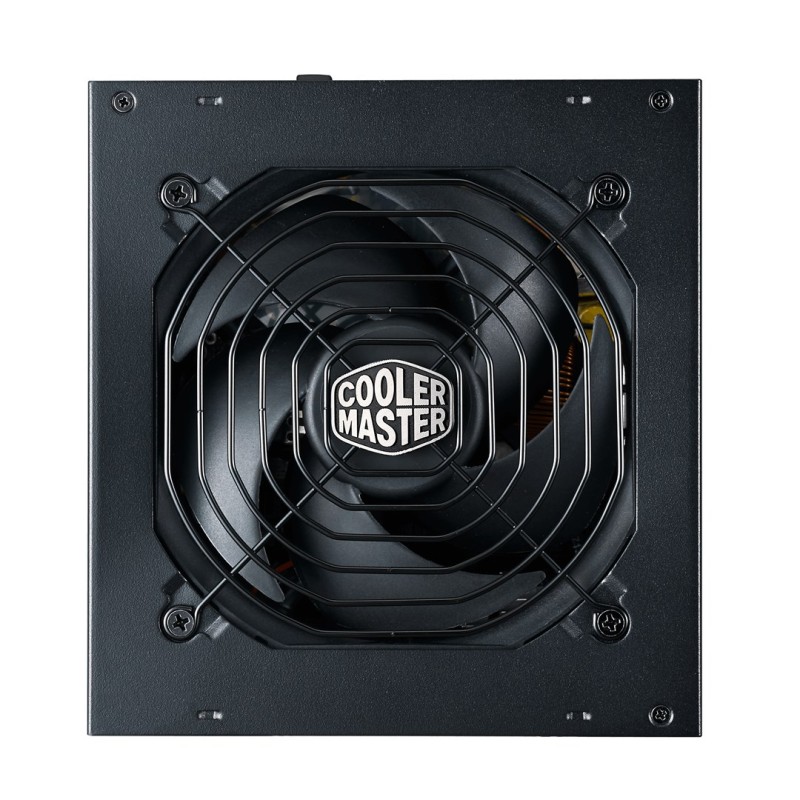

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Product colour: Black

Fan speed: 0 - 1500 RPM

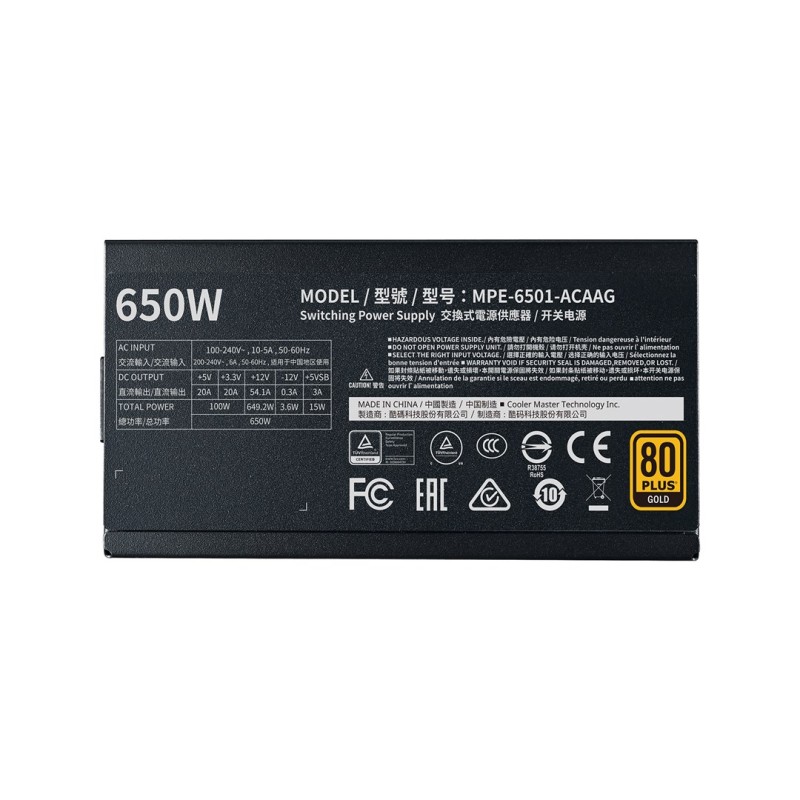

Power

Power protection features: Under voltage, Over current, Over power, Overheating, Short circuit, Over voltage

AC input frequency: 47 - 63 Hz

Total power: 650 W

Input current: 4 - 8 A

Efficiency: 90%

AC input voltage: 90 - 264 V

Combined power (+5V): 100 W

Max output current (-12V): 0.3 A

Combined power (+3.3V): 100 W

Combined power (+12V): 649.2 W

Max output current (+3.3V): 20 A

Combined power (-12V): 3.6 W

Hold time: 16 ms

Max output current (+5Vsb): 3 A

Combined power (+5Vsb): 15 W

Max output current (+12V): 54.1 A

Power Factor Correction (PFC) type: Active

Power Good signal delay range: 100 - 500 ms

Max output current (+5V): 20 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Weight: 2.17 kg

Depth: 160 mm

Height: 86 mm

Width: 150 mm

Performance

Noise level: 23.4 dB

Mean time between failures (MTBF): 100000 h

Purpose: PC/Server

80 PLUS certification: 80 PLUS Gold

Bearing technology: HDB

Power supply unit (PSU) form factor: ATX

ATX version: 2.41

Packaging data

Package width: 194 mm

Package depth: 310 mm

Package height: 120 mm

Package weight: 2.57 kg

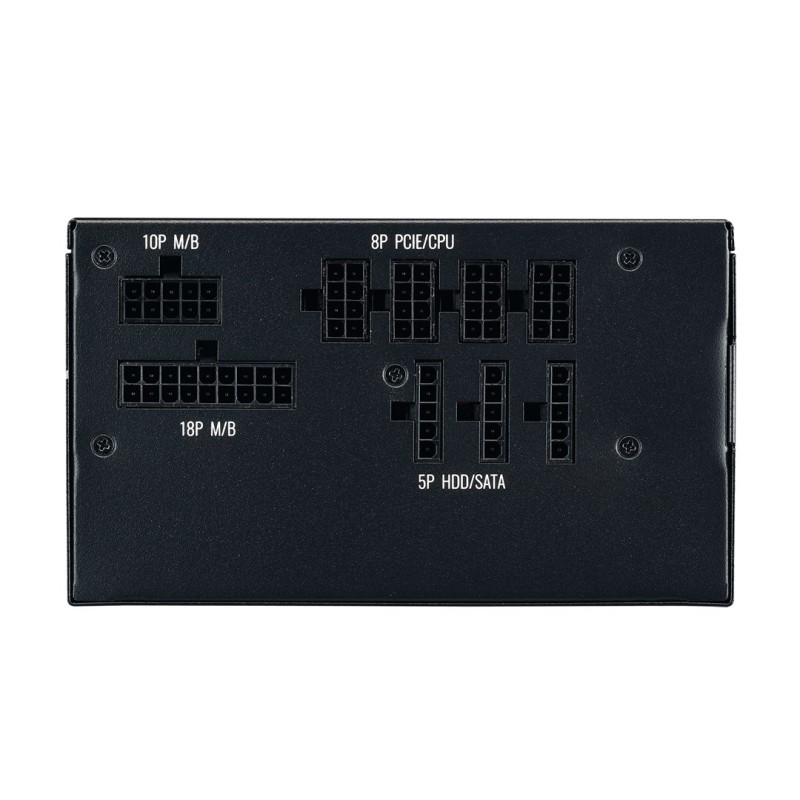

Ports & interfaces

Peripheral (Molex) power connectors (4-pin): 4

EPS power connector (8-pin): Yes

PCI Express power cable length: 67 cm

SATA power cable length: 500 mm, 860, 740, 620

EPS power connector (4+4 pin): Yes

Peripheral (Molex) power cable length: 740 mm, 500 mm, 860 mm, 620

Motherboard power connector: 24-pin ATX

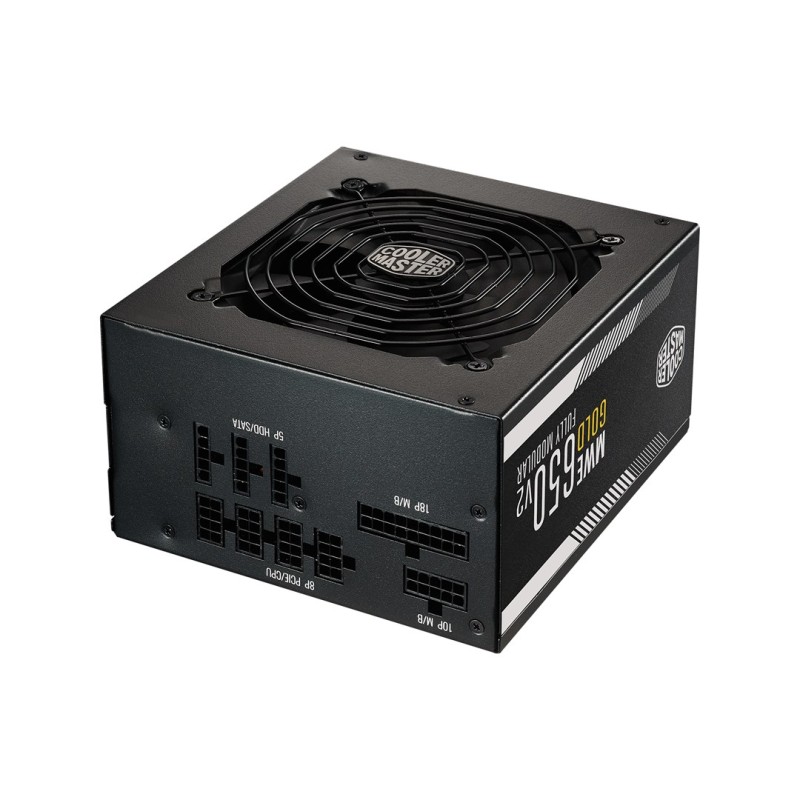

Cabling type: Fully-Modular

Motherboard power cable length: 61 cm

Number of SATA power connectors: 8

PCI Express power connectors (6+2 pin): 4

Logistics data

Products per master (outer) case: 5 pc(s)

Harmonized System (HS) code: 84733020

Products per pallet: 16 pc(s)

Master (outer) case length: 620 mm

Master (outer) case width: 325 mm

Master (outer) case height: 220 mm
