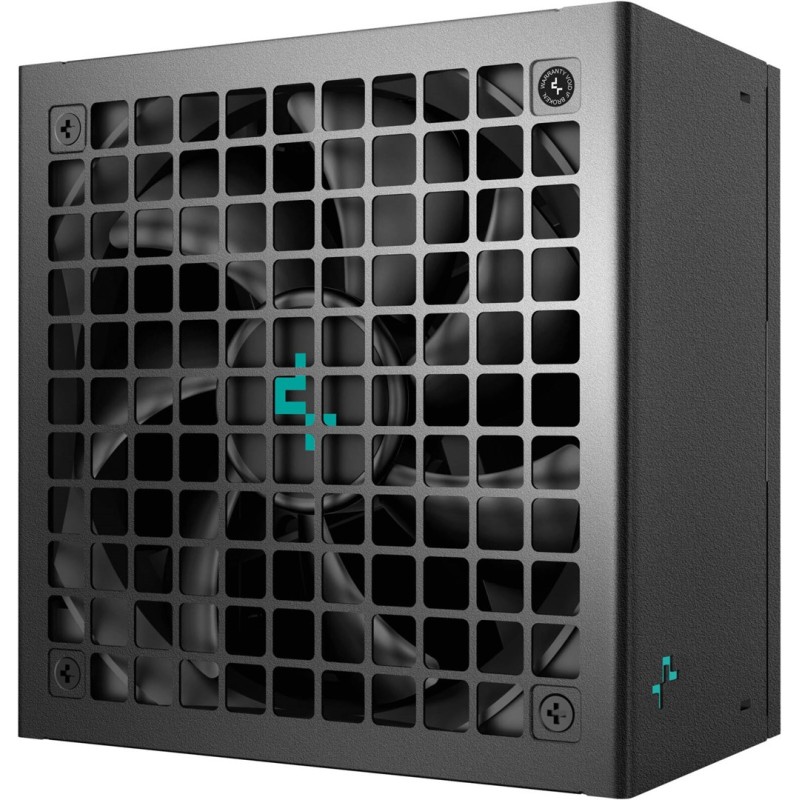

DeepCool PN1000-D power supply unit (R-PNA00D-FC0B-JGEU-V2)

Περιγραφή

Design

Fan location: Top

Fan diameter: 12 cm

Product colour: Black

Cooling type: Active

On/off switch: Yes

Number of fans: 1 fan(s)

Power

AC input frequency: 50/60 Hz

Power protection features: Over voltage, Over power, No load operation, Under voltage, Over current, Surge & inrush protection (SIP), Overheating, Surge protection

Efficiency: 90%

Total power: 1000 W

AC input voltage: 100 - 240 V

Combined power (+3.3V): 120 W

Max output current (+5Vsb): 3 A

Combined power (+5V): 120 W

Hold time: 16 ms

Max output current (+3.3V): 22 A

Combined power (+12V): 999.6 W

Combined power (-12V): 3.6 W

Power Factor Correction (PFC) type: Active

Max output current (+5V): 22 A

Max output current (+12V): 83.3 A

Max output current (-12V): 0.3 A

Power Good signal delay range: 100 - 150 ms

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Depth: 150 mm

Height: 85 mm

Width: 150 mm

Performance

Bearing technology: FDB

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

Mean time between failures (MTBF): 100000 h

Purpose: PC

80 PLUS certification: 80 PLUS Gold

Packaging data

Package type: Box

Certificates

Compliance certificates: WEEE, RoHS

Ports & interfaces

Cabling type: Modular

Motherboard power cable length: 54 cm

Motherboard power connector: 24-pin ATX
