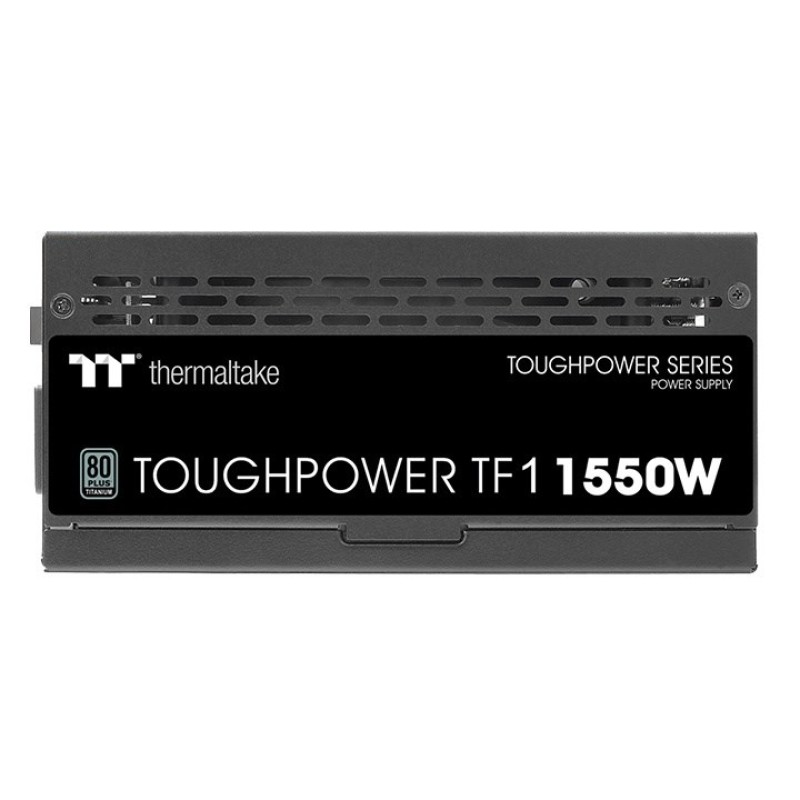

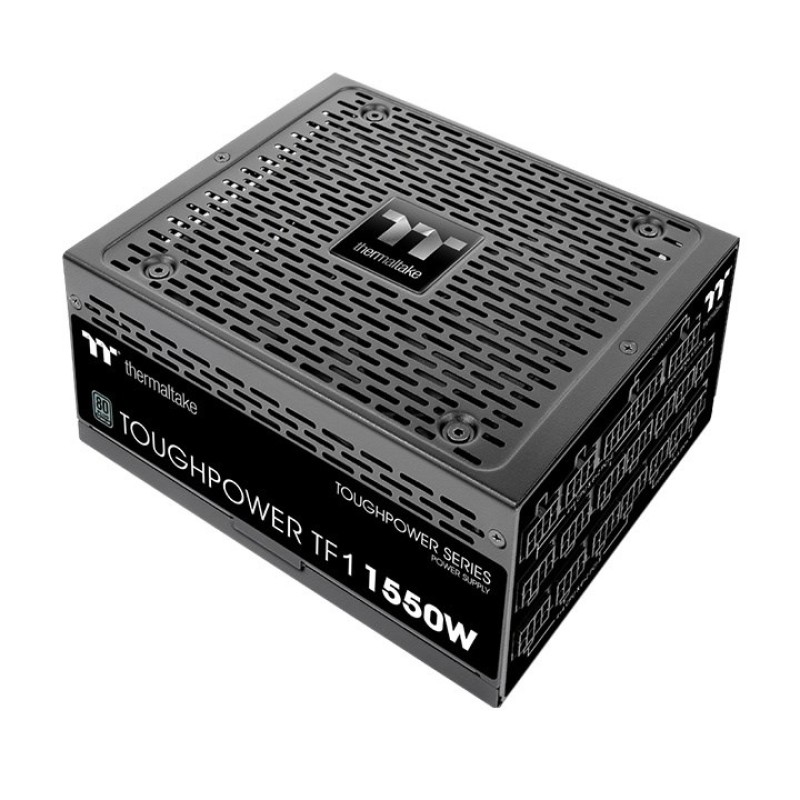

Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black

Περιγραφή

Design

Number of fans: 1 fan(s)

Product colour: Black

On/off switch: Yes

Fan location: Top

Fan diameter: 14 cm

Power

Combined power (-12V): 6 W

Max output current (+3.3V): 22 A

Max output current (+12V): 129.16 A

Hold time: 16 ms

Max output current (-12V): 0.5 A

Total power: 1550 W

AC input frequency: 47 - 63 Hz

Peak power: 1860 W

Combined power (+3.3V): 120 W

Combined power (+12V): 1549.92 W

Combined power (+5V): 120 W

Input current: 18 A

Max output current (+5Vsb): 3 A

Max output current (+5V): 22 A

AC input voltage: 100 - 240 V

Combined power (+5Vsb): 15 W

Power Factor Correction (PFC) type: Active

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Operating relative humidity (H-H): 20 - 90%

Storage temperature (T-T): -20 - 70 °C

Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Depth: 180 mm

Height: 86 mm

Width: 150 mm

Weight: 2.4 kg

Performance

Supported motherboard form factors: ATX

Power supply unit (PSU) form factor: ATX

Purpose: PC

Mean time between failures (MTBF): 120000 h

80 PLUS certification: 80 PLUS Platinum

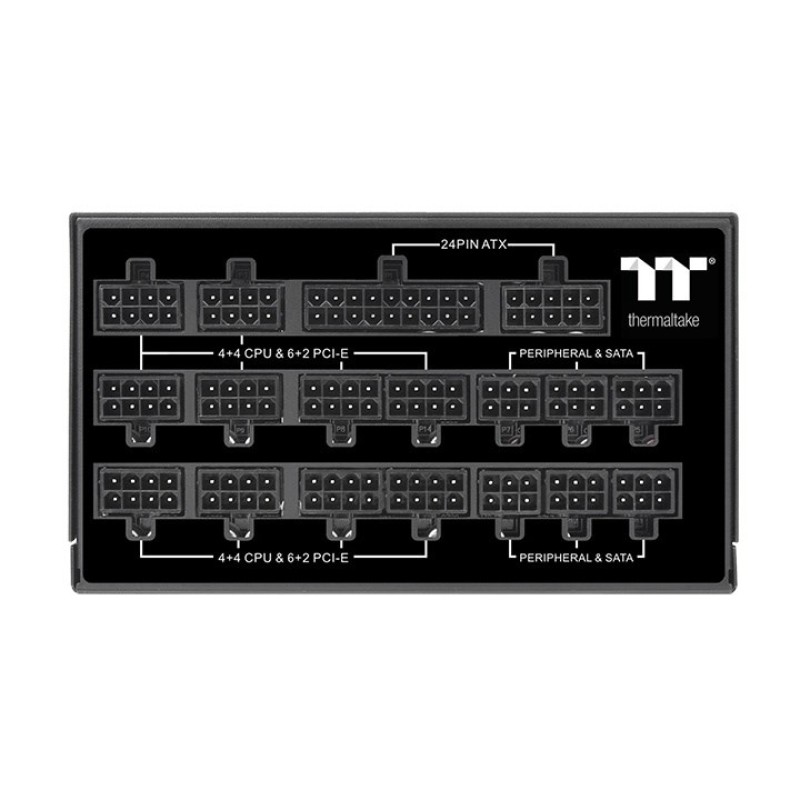

Ports & interfaces

CPU power cable length: 7 m

Peripheral (Molex) power connectors (4-pin): 2

PCI Express power connectors (6+2 pin): 4

SATA power cable length: 500 mm, 150

Floppy disk drive cable length: 15 cm

CPU power connector (4+4 pin): Yes

Motherboard power cable length: 60 cm

Cabling type: Fully-Modular

Number of SATA power connectors: 4

PCI Express power connectors (8-pin): 4

PCI Express power cable length: 50 cm

Peripheral (Molex) power cable length: 150, 500 mm

Floppy disk drive connector: Yes

Motherboard power connector: 24-pin ATX

Logistics data

Harmonized System (HS) code: 84733020
