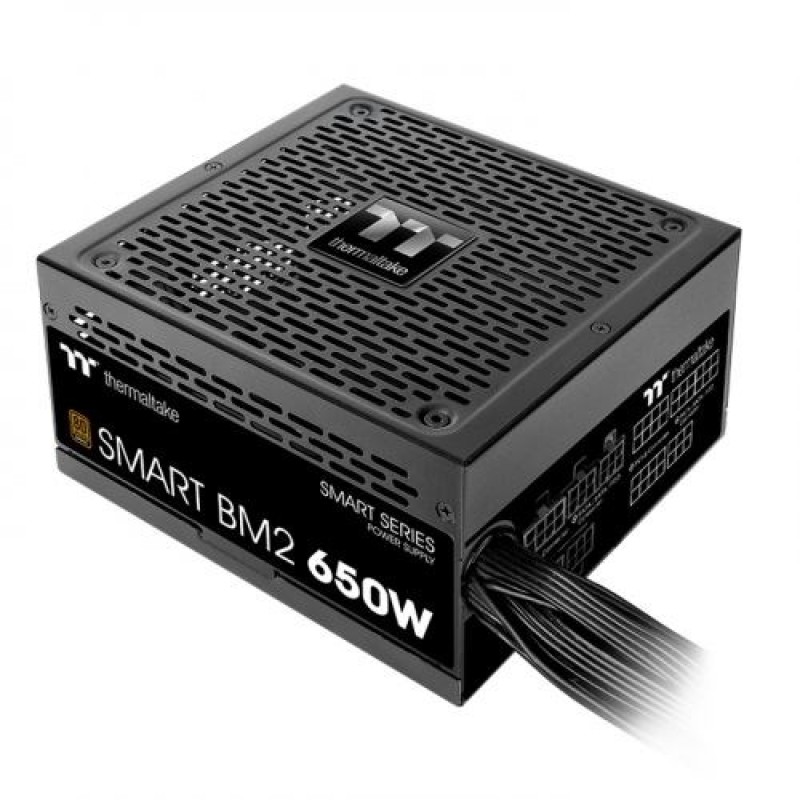

Thermaltake Smart BM2 650W - TT Premium Edition

Περιγραφή

Design

Fan diameter: 14 cm

On/off switch: Yes

Cooling type: Active

Fan location: Top

Product colour: Black

Number of fans: 1 fan(s)

Fan speed: 0 - 2300 RPM

Power

Max output current (+3.3V): 20 A

Combined power (+3.3V): 110 W

Power Factor Correction (PFC) type: Active

Power protection features: Over current, Over voltage

AC input voltage: 100 - 240 V

Combined power (-12V): 3.6 W

Combined power (+12V): 648 W

Input current: 10 A

Combined power (+5Vsb): 12.5 W

Hold time: 12 ms

Total power: 650 W

Combined power (+5V): 110 W

AC input frequency: 47 - 63 Hz

Max output current (+5V): 20 A

Max output current (+12V): 54 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 2.5 A

Operational conditions

Operating relative humidity (H-H): 20 - 90%

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 95%

Storage temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 150 mm

Depth: 160 mm

Height: 86 mm

Performance

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Packaging content

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces

SATA power cable length: 150, 500 mm

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 1

Cabling type: Semi-Modular

Motherboard power cable length: 60 cm

CPU power cable length: 60 cm

Floppy drive power connector: 1

Floppy disk drive cable length: 15 cm

PCI Express power cable length: 50 cm

CPU power connector (4+4 pin): Yes

Number of SATA power connectors: 3

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power cable length: 500 mm, 150
