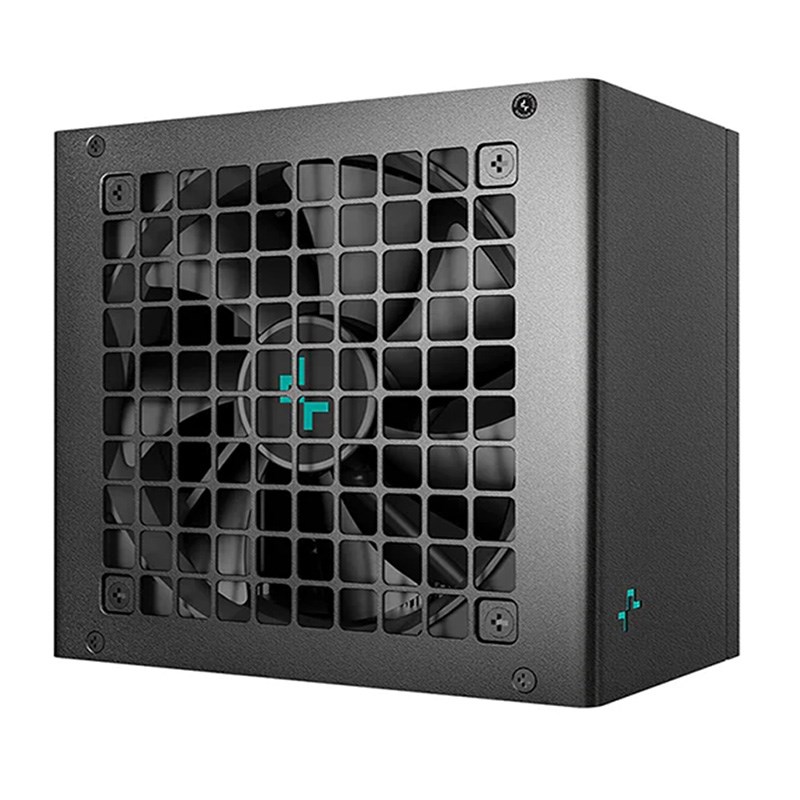

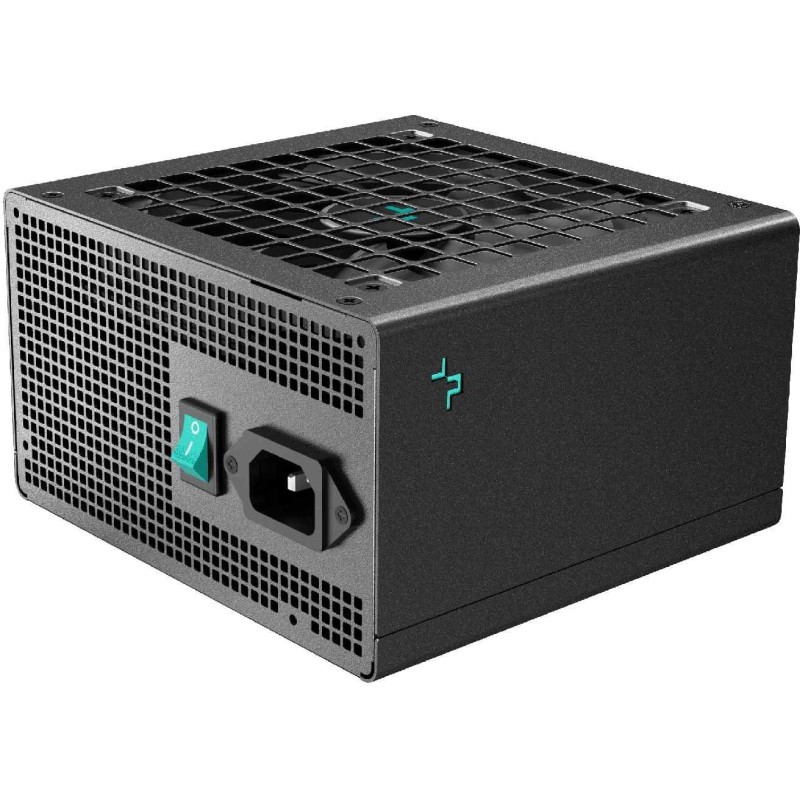

Deepcool PN750D 750w Gold Direct PSU

Περιγραφή

Design

Number of fans: 1 fan(s)

Product colour: Black

On/off switch: Yes

Fan diameter: 12 cm

Cooling type: Active

Fan location: Top

Power

Power protection features: Overheating, Surge protection, Over power, Under voltage, Over current, Over voltage, No load operation, Surge & inrush protection (SIP)

Efficiency: 80%

Total power: 750 W

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+3.3V): 110 W

Max output current (+12V): 62.5 A

Power Good signal delay range: 100 - 150 ms

Max output current (-12V): 0.3 A

Hold time: 16 ms

Combined power (-12V): 3.6 W

Power Factor Correction (PFC) type: Active

Combined power (+5V): 110 W

Max output current (+5V): 20 A

Max output current (+3.3V): 20 A

Combined power (+12V): 750 W

Max output current (+5Vsb): 3 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Performance

Purpose: PC

Mean time between failures (MTBF): 100000 h

80 PLUS certification: 80 PLUS Gold

Bearing technology: HDB

ATX version: 3.1

Power supply unit (PSU) form factor: ATX

Packaging data

Package type: Box

Certificates

Compliance certificates: RoHS, WEEE

Ports & interfaces

Cabling type: Non-Modular

Motherboard power connector: 24-pin ATX

Motherboard power cable length: 54 cm
