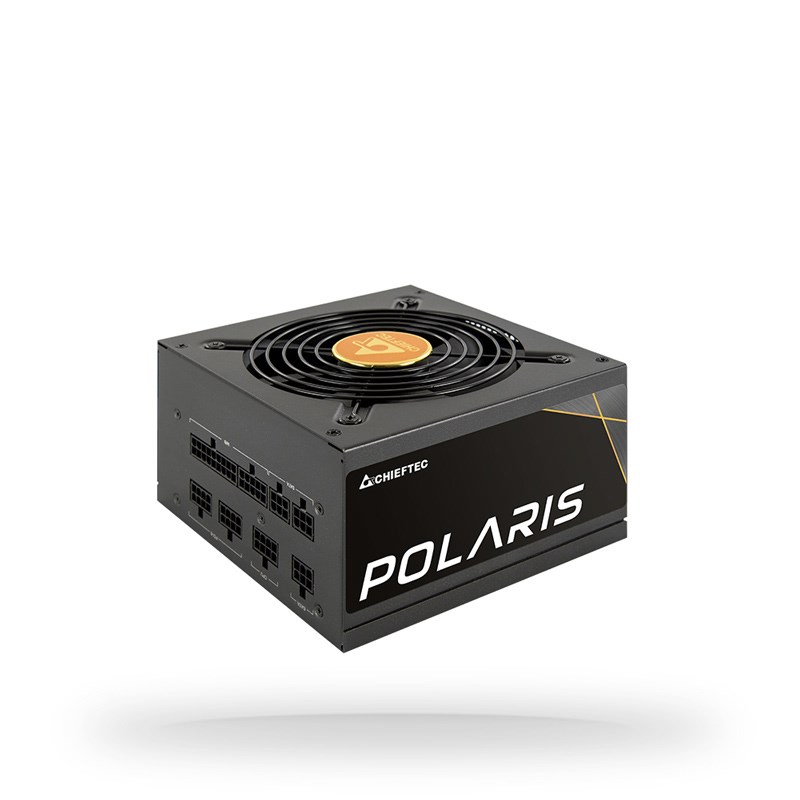

Chieftec Polaris power supply unit 550 W 20+4 pin ATX PS/2 Black

Περιγραφή

Design

Fan diameter: 12 cm

Cooling type: Active

Fan location: Top

Product colour: Black

Number of fans: 1 fan(s)

Power

Power protection features: Overheating, Overload, Under voltage, Short circuit, Over voltage, Over current

Total power: 550 W

Combined power (-12V): 3.6 W

Input current: 8 A

Max output current (+5V): 20 A

Combined power (+5Vsb): 15 W

AC input frequency: 50 - 60 Hz

Combined power (+12V): 550 W

AC input voltage: 100 - 240 V

Max output current (-12V): 0.3 A

Combined power (+3.3V): 105 W

Max output current (+12V): 45.8 A

Combined power (+5V): 105 W

Power Factor Correction (PFC) type: Active

Max output current (+5Vsb): 3 A

Max output current (+3.3V): 20 A

Weight & dimensions

Depth: 140 mm

Width: 150 mm

Height: 87 mm

Weight: 2.02 kg

Performance

80 PLUS certification: 80 PLUS Gold

Purpose: PC

Power supply unit (PSU) form factor: PS/2

ATX version: 2.4

Packaging data

Package type: Box

Package weight: 2.33 kg

Certificates

Compliance certificates: RoHS

Ports & interfaces

Peripheral (Molex) power connectors (4-pin): 3

PCI Express power connectors (6+2 pin): 2

Motherboard power cable length: 65 cm

Peripheral (Molex) power cable length: 450 mm, 150

SATA power cable length: 450, 150

Cabling type: Fully-Modular

Number of SATA power connectors: 6

PCI Express power cable length: 50 cm

Floppy disk drive connector: Yes

Floppy drive power connector: 1

CPU power connector (4+4 pin): Yes

Motherboard power connector: 20+4 pin ATX

CPU power cable length: 65 cm

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
