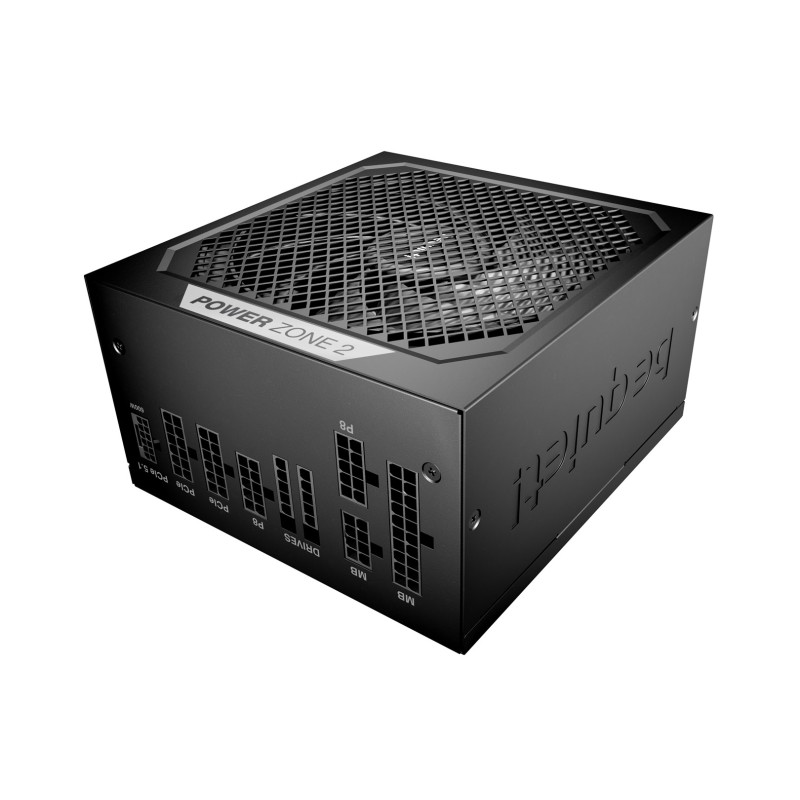

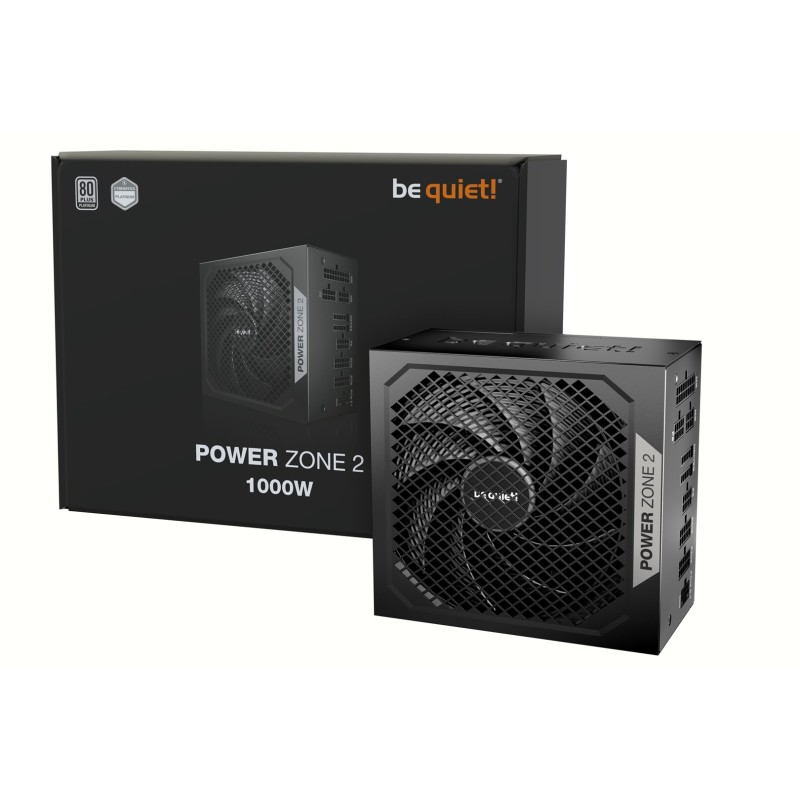

be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: Triman, ENERGY STAR, ErP

Design

On/off switch: Yes

Fan diameter: 14 cm

Cooling type: Active

Product colour: Black

Number of fans: 1 fan(s)

Power

Combined power (+3.3V): 120 W

Combined power (-12V): 6 W

Max output current (+3.3V): 20 A

Combined power (+5V): 120 W

Hold time: 22.7 ms

Combined power (+12V): 999.6 W

Combined power (+5Vsb): 15 W

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Power protection features: Under voltage, Over current, Short circuit, Over voltage, Overheating, Over power, Surge & inrush

Total power: 1000 W

Max output current (+5Vsb): 3 A

Peak power: 1070 W

Max output current (-12V): 0.5 A

Maximum input current (@110V): 13 A

Max output current (+12V): 83.3 A

Max output current (+5V): 20 A

Maximum input current (@220V): 6.5 A

Power factor: 0.98

Efficiency: 92.6%

Number of +12V rail(s): 1

Operational conditions

Operating relative humidity (H-H): 0 - 85%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Depth: 160 mm

Width: 150 mm

Weight: 2.82 kg

Height: 86 mm

Performance

ATX version: 3.1

Bearing technology: Rifle

EPS version: 2.92

80 PLUS certification: 80 PLUS Platinum

Purpose: PC

Noise level: 27.2 dB

Power supply unit (PSU) form factor: ATX

Mean time between failures (MTBF): 100000 h

Packaging data

Manual languages: Polish, Spanish, Ukrainian, German, English, French, Russian

Manual: Yes

Package weight: 3.28 kg

Package type: Box

Package depth: 328 mm

Package width: 248 mm

Package height: 102 mm

Certificates

Compliance certificates: BSMI, RoHS, CE, CB, UKCA, Federal Communications Commission (FCC), TÜV mark, CCC, WEEE, RCM

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes

Ports & interfaces

PCI Express power connectors (16-pin): 1

Peripheral (Molex) power connectors (4-pin): 1

EPS power connector (8-pin): Yes

Number of SATA power connectors: 7

CPU power connector (4+4 pin): Yes

SATA power cable length: 850, 700, 1000 mm, 550 mm

PCI Express power cable length: 60 cm

CPU P4 connector (4-pin): 1

CPU power cable length: 70 cm

Motherboard power connector: 20+4 pin ATX

Cabling type: Fully-Modular

Peripheral (Molex) power cable length: 1000 mm

Motherboard power cable length: 60 cm

PCI Express power connectors (6+2 pin): 3

Other features

Cable ties included: Yes

Screws included: Yes

Logistics data

Shipping (inner) case length: 65.1 cm

Products per shipping (inner) case: 6 pc(s)

Shipping (inner) case height: 34.6 cm

Shipping (inner) case gross weight: 19.6 kg

Shipping (inner) case width: 28.2 cm
