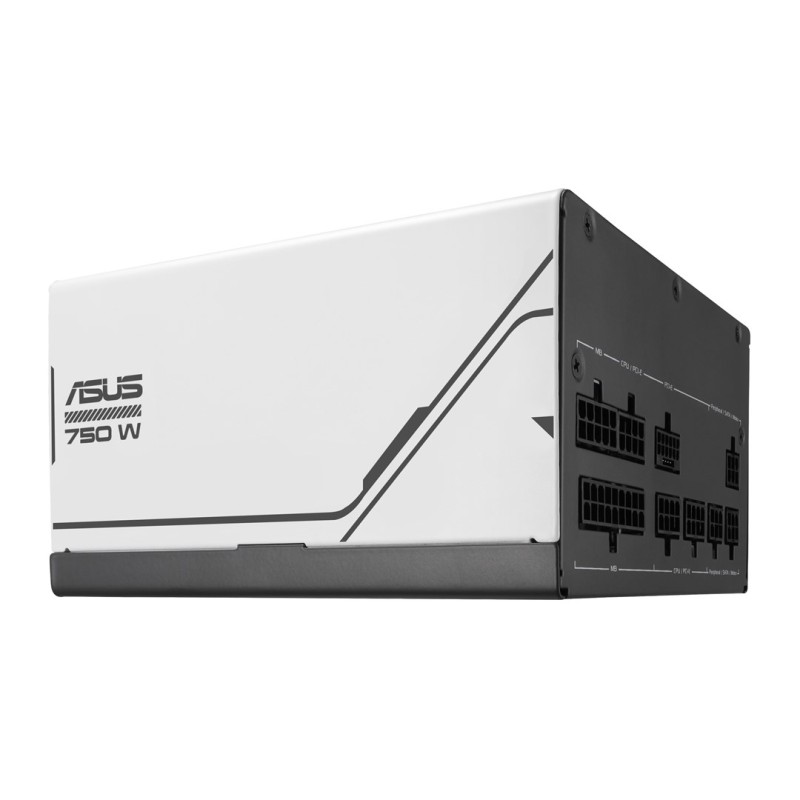

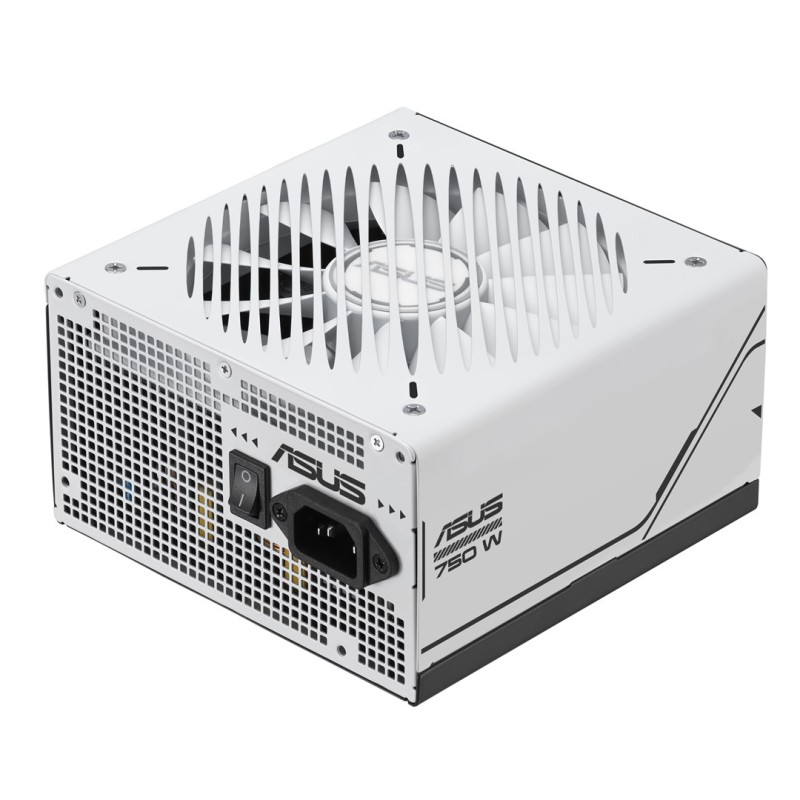

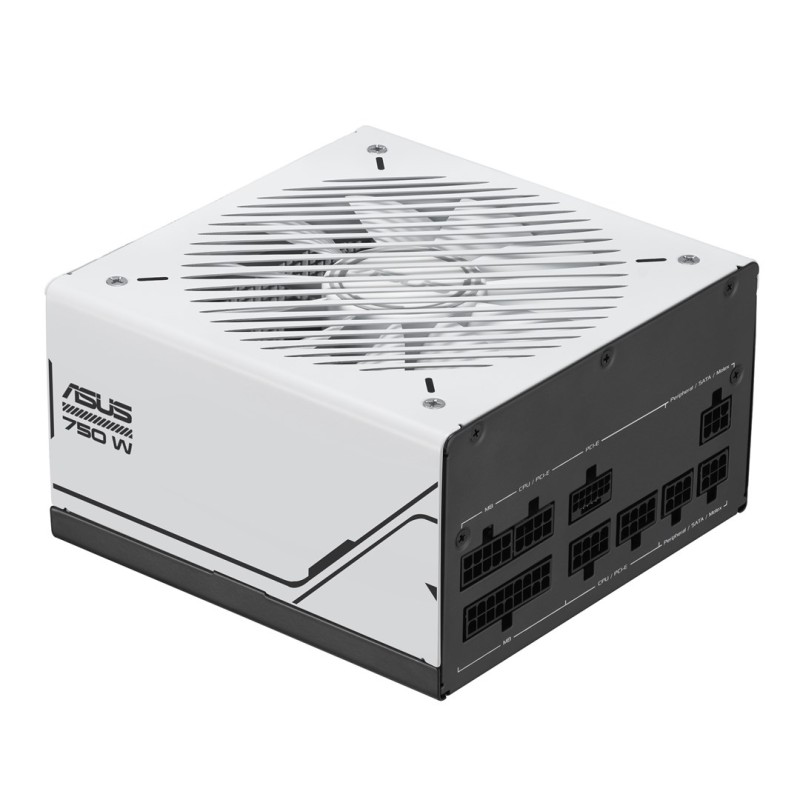

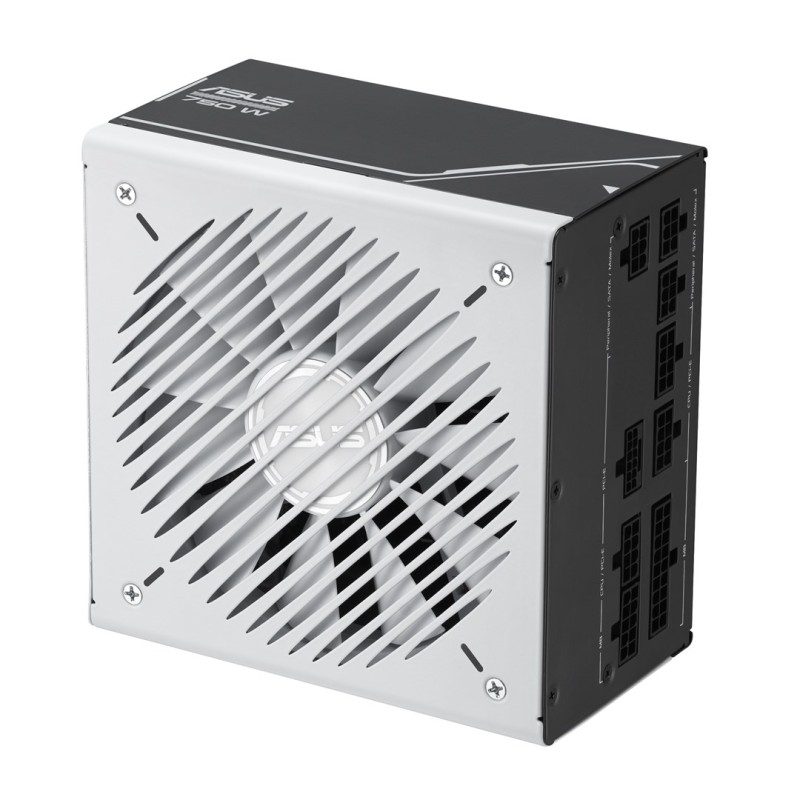

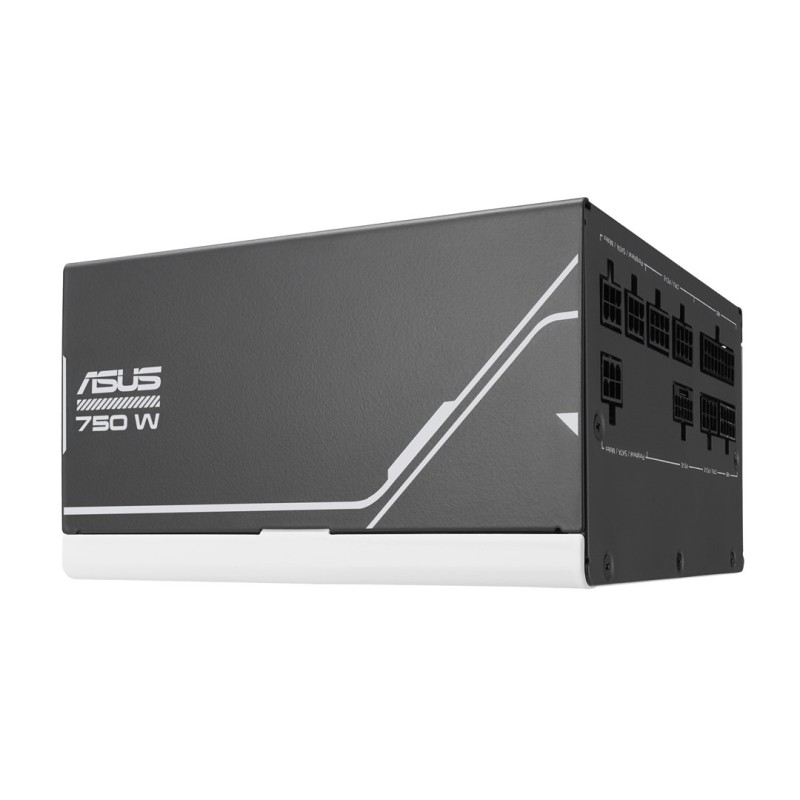

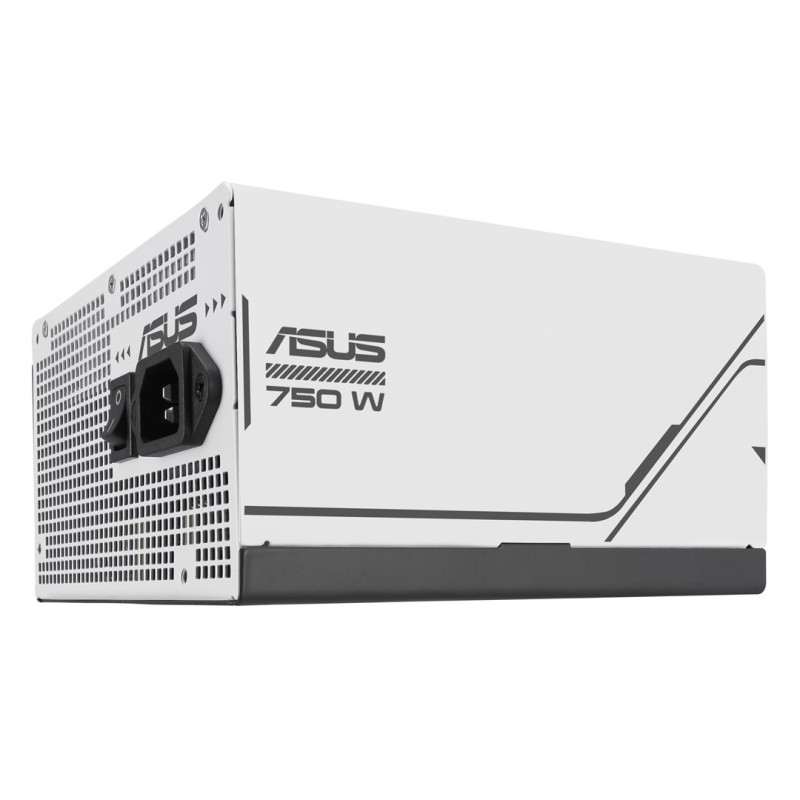

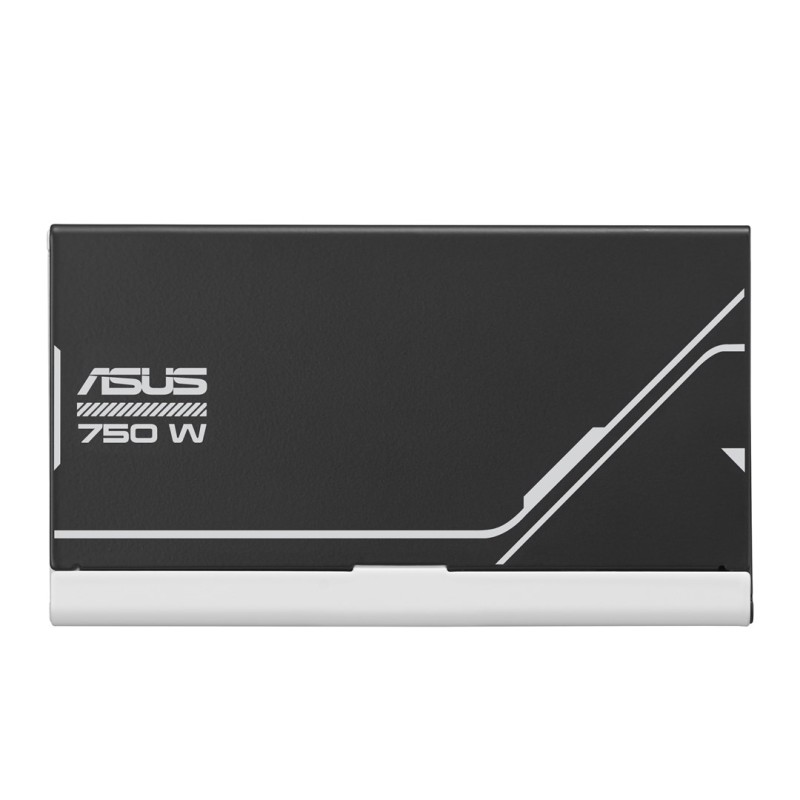

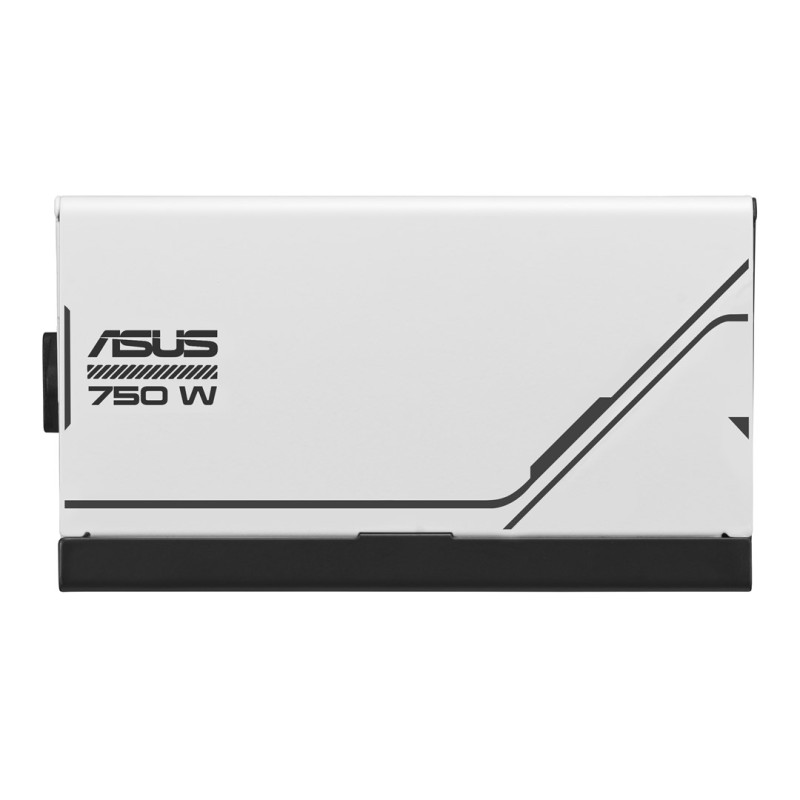

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

Περιγραφή

Design

Cooling type: Active

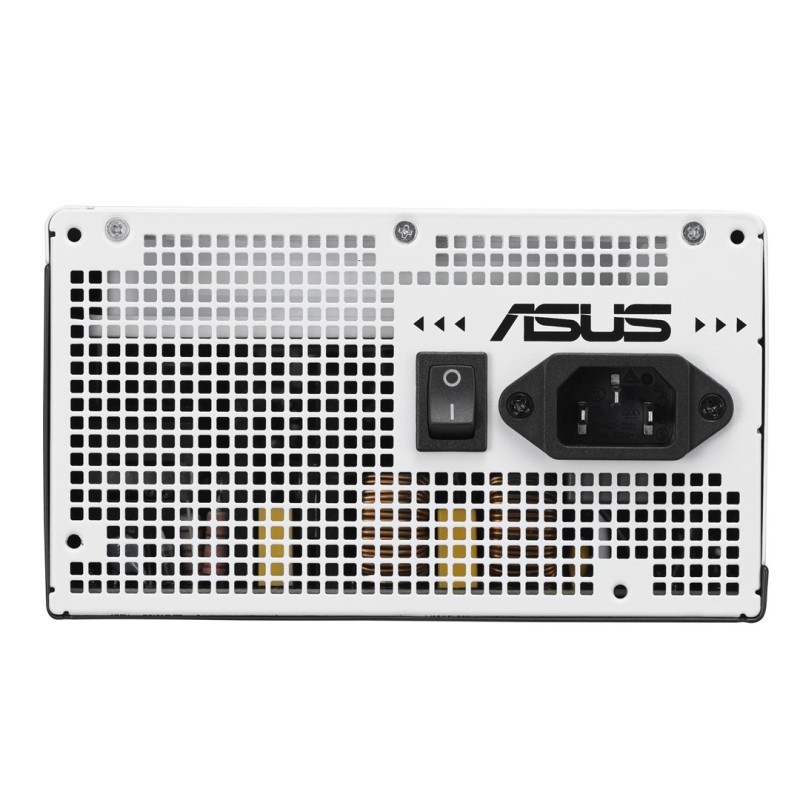

On/off switch: Yes

Product colour: White, Black

Power

Combined power (+5Vsb): 12.5 W

Combined power (+12V): 744 W

Combined power (-12V): 3.6 W

Max output current (-12V): 0.3 A

Combined power (+5V): 110 W

Max output current (+5Vsb): 2.5 A

Max output current (+5V): 20 A

Total power: 750 W

AC input voltage: 100 - 240 V

Max output current (+12V): 62 A

Max output current (+3.3V): 20 A

Power protection features: Under voltage, Overheating, Overcharge, Over power, Short circuit, Over voltage

Efficiency: 92%

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 110 W

Weight & dimensions

Weight: 1.47 kg

Width: 150 mm

Depth: 150 mm

Height: 86 mm

Performance

Mean time between failures (MTBF): 120000 h

80 PLUS certification: 80 PLUS Gold

ATX version: 3.0

Purpose: PC

Power supply unit (PSU) form factor: ATX

Bearing technology: Ball bearing

Packaging data

Package width: 346 mm

Package depth: 208 mm

Package height: 144 mm

Package type: Box

Package weight: 2.88 kg

Packaging content

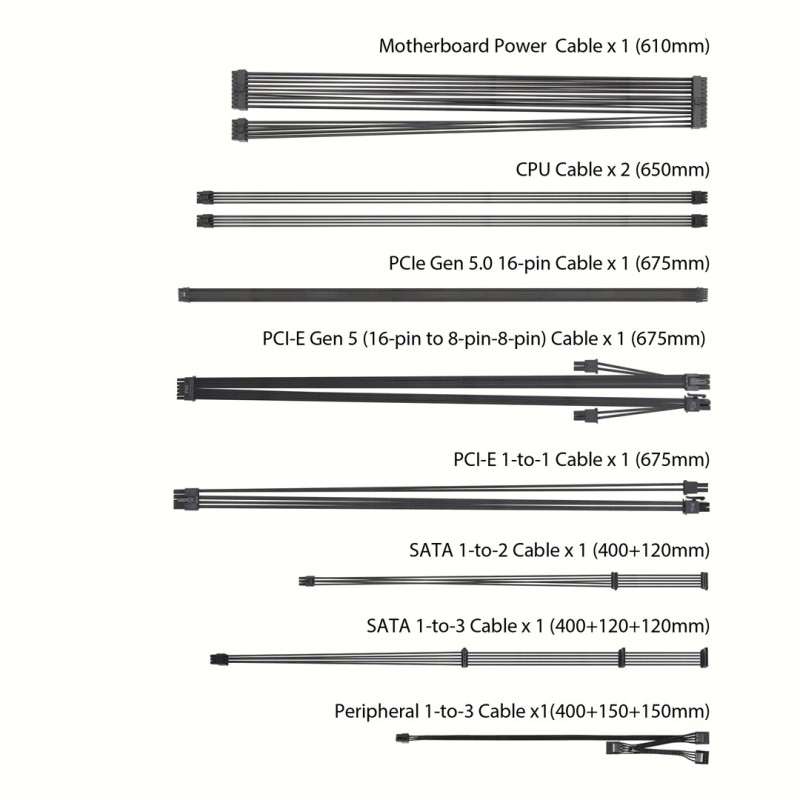

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

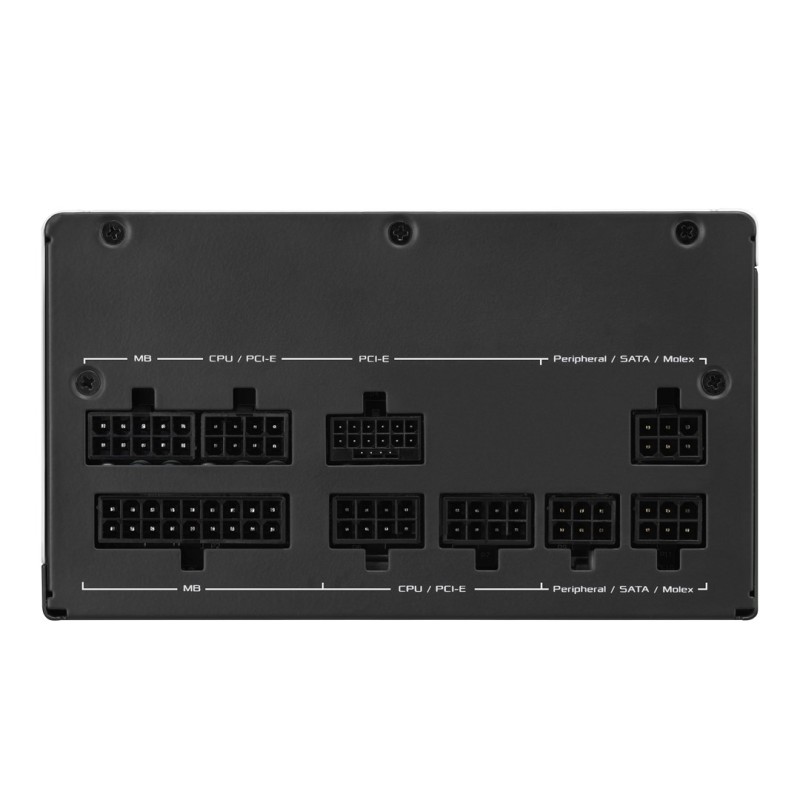

Ports & interfaces

PCI Express power connectors (16-pin): 1

PCI Express power connectors (8-pin): 3

Motherboard power cable length: 61 cm

Peripheral (Molex) power cable length: 400 mm, 150

Cabling type: Fully-Modular

Peripheral (Molex) power connectors (4-pin): 3

Number of SATA power connectors: 5

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

CPU power cable length: 65 cm

ATX power connector (20+4 pin): Yes

SATA power cable length: 400, 120 mm

CPU P4 connector (4-pin): 2
