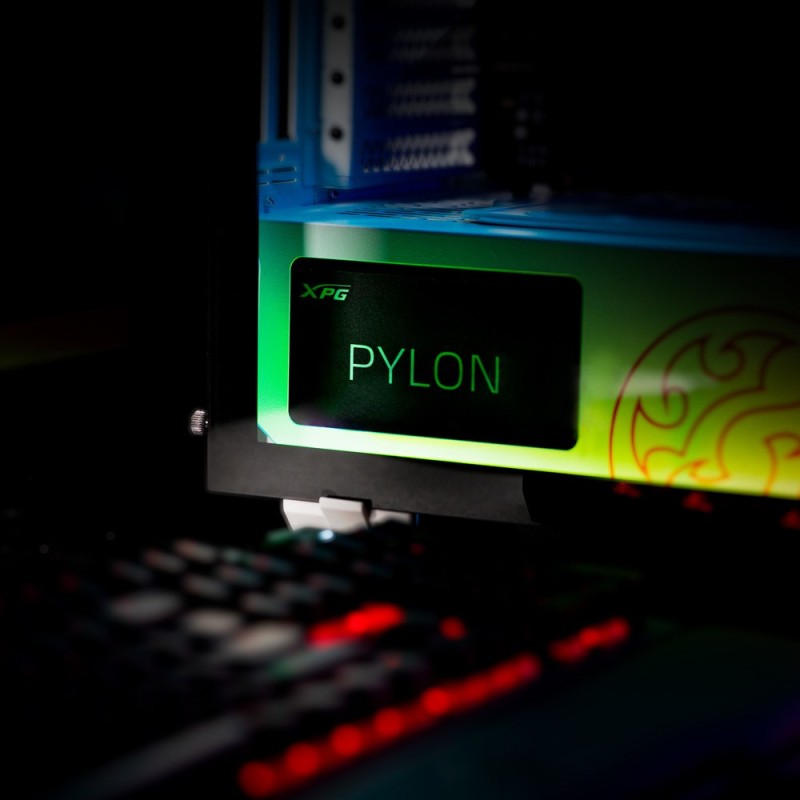

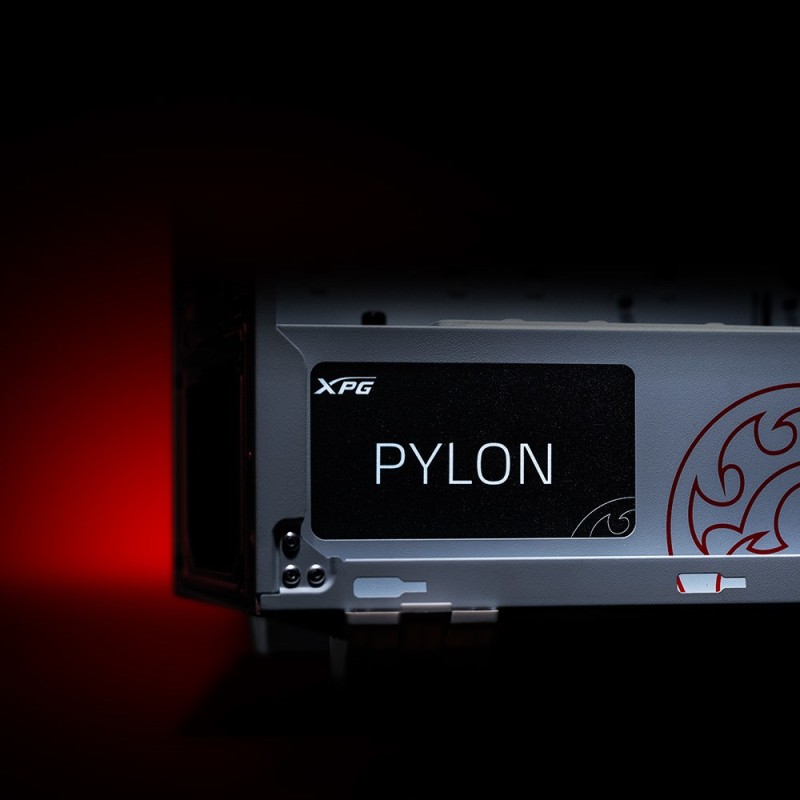

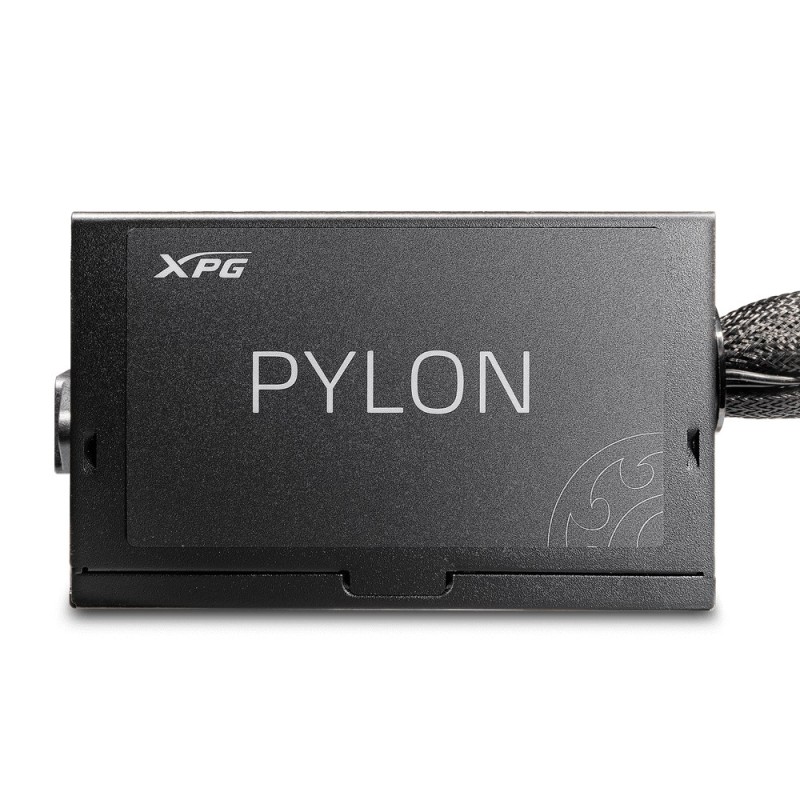

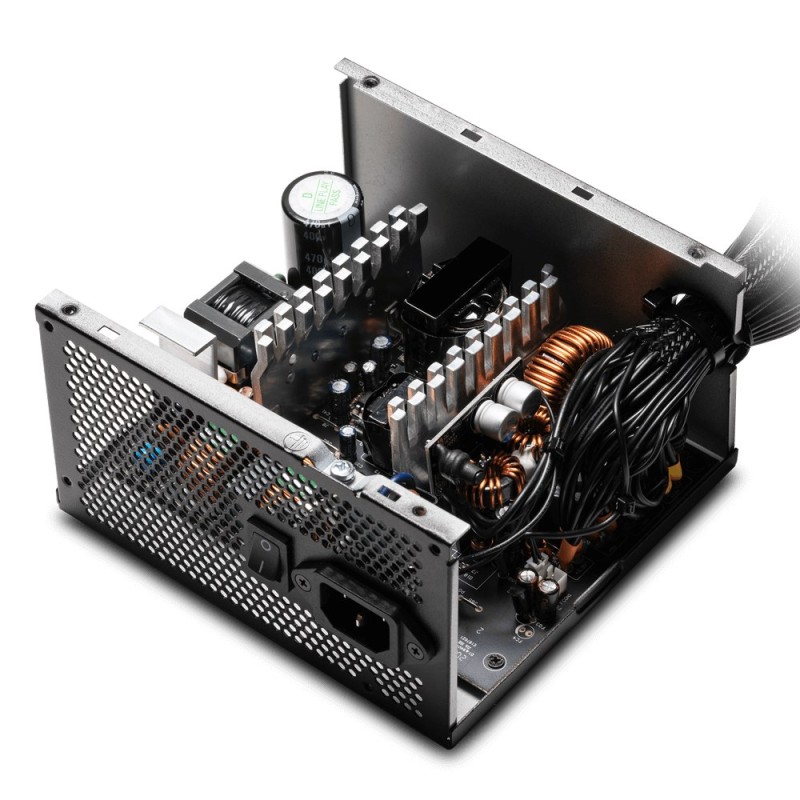

XPG PYLON 550W Power Supply

Περιγραφή

Technical details

Sustainability certificates: ErP

Sustainability compliance: Yes

Design

Cooling type: Active

Fan diameter: 12 cm

Number of fans: 1 fan(s)

Product colour: Black

Power

Combined power (+12V): 546 W

Total power: 550 W

Max output current (+5Vsb): 2.5 A

Max output current (+12V): 45.5 A

Combined power (+5V): 110 W

Power Factor Correction (PFC) type: Active

Max output current (-12V): 0.3 A

Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current

Combined power (-12V): 3.6 W

Max output current (+5V): 20 A

AC input voltage: 100 - 240 V

Combined power (+5Vsb): 12.5 W

AC input frequency: 50 - 60 Hz

Input current: 8/4 A

Max output current (+3.3V): 20 A

Power factor: 0.99

Combined power (+3.3V): 110 W

Weight & dimensions

Width: 140 mm

Depth: 150 mm

Height: 86 mm

Performance

Bearing technology: FDB

Power supply unit (PSU) form factor: ATX

ATX version: 2.4

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

Mean time between failures (MTBF): 100000 h

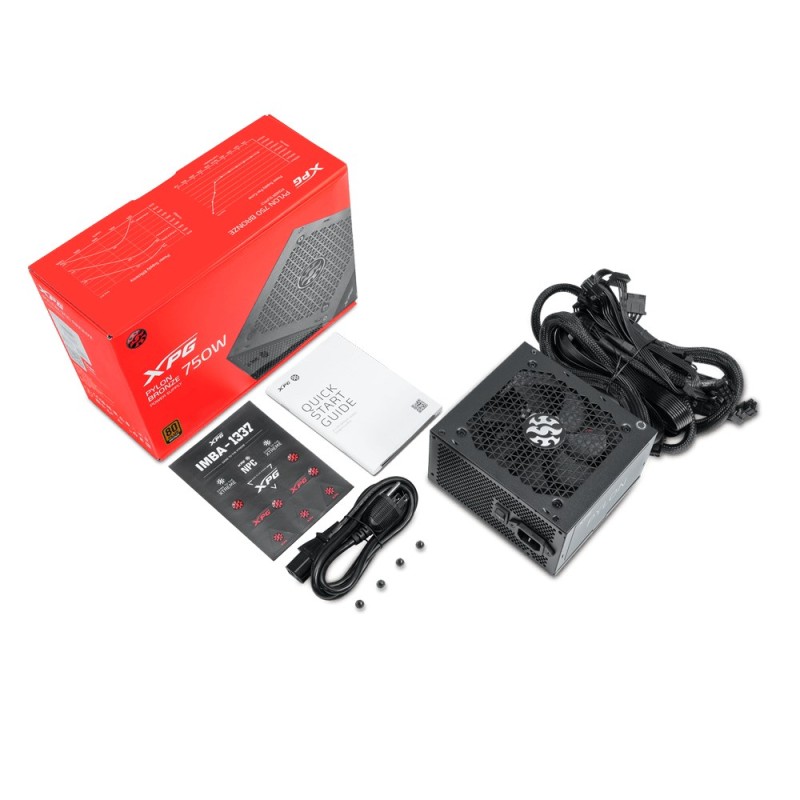

Packaging content

Cables included: AC

Certificates

Compliance certificates: RoHS

Ports & interfaces

EPS power connector (4+4 pin): Yes

Peripheral (Molex) power connectors (4-pin): 1

Cabling type: Non-Modular

Motherboard power connector: 24-pin ATX

Number of SATA power connectors: 5

PCI Express power connectors (6+2 pin): 2

ATX Power connector (24-pin): Yes

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Do not open the case - risk of electric shock.
