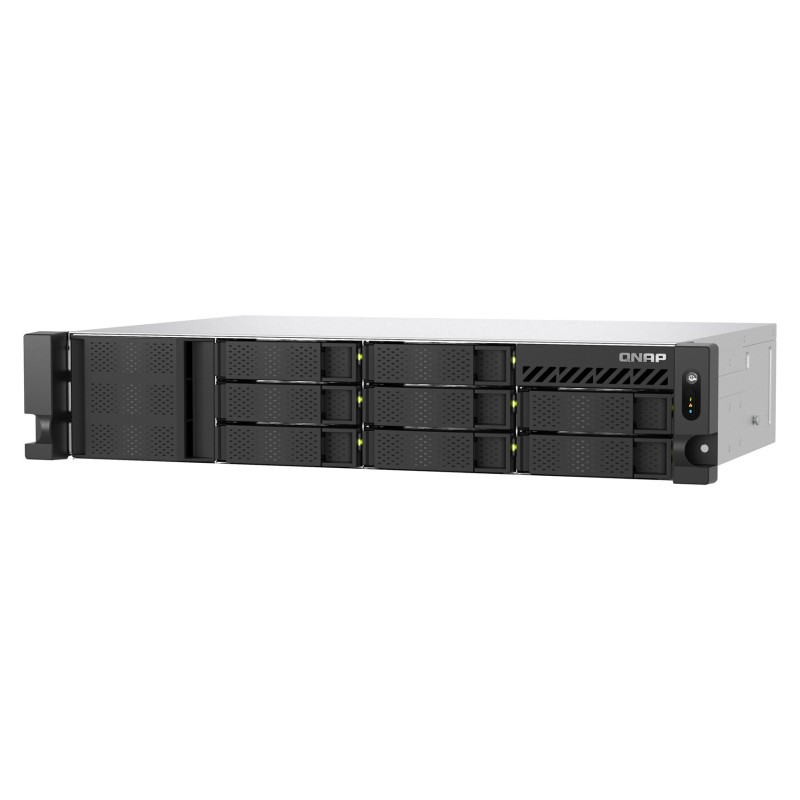

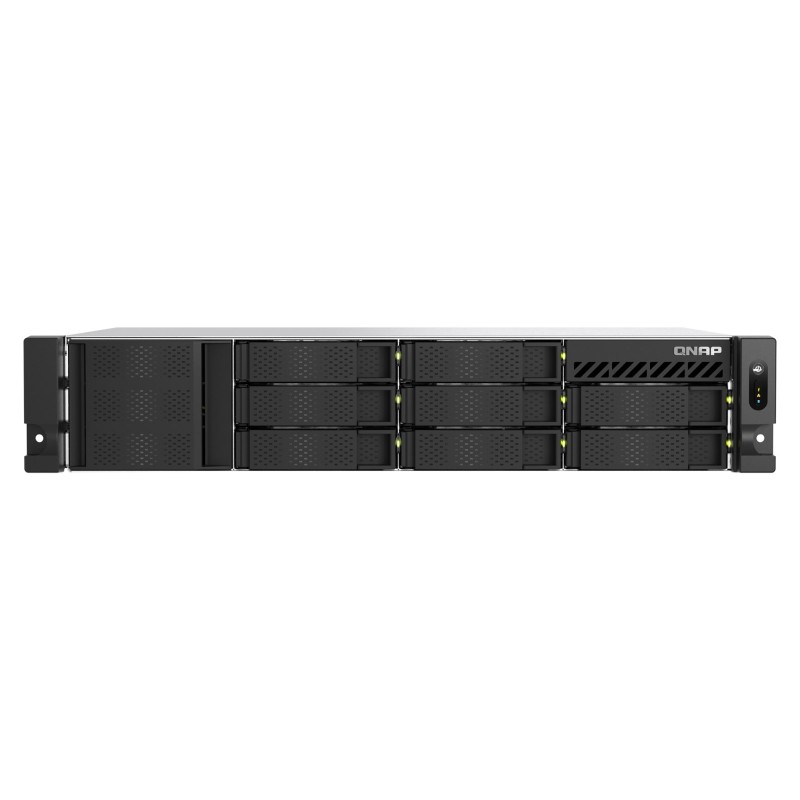

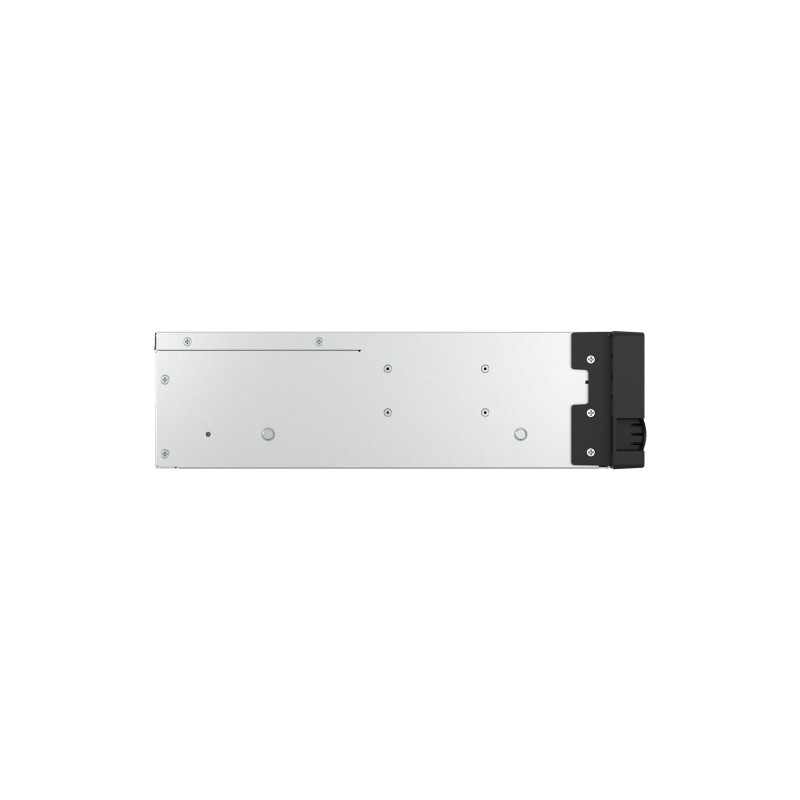

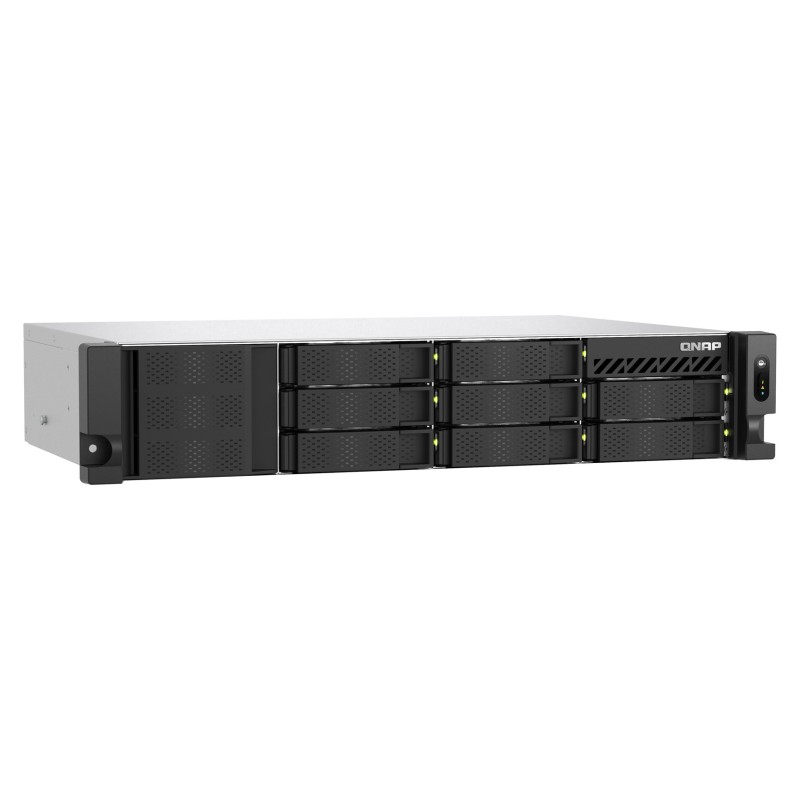

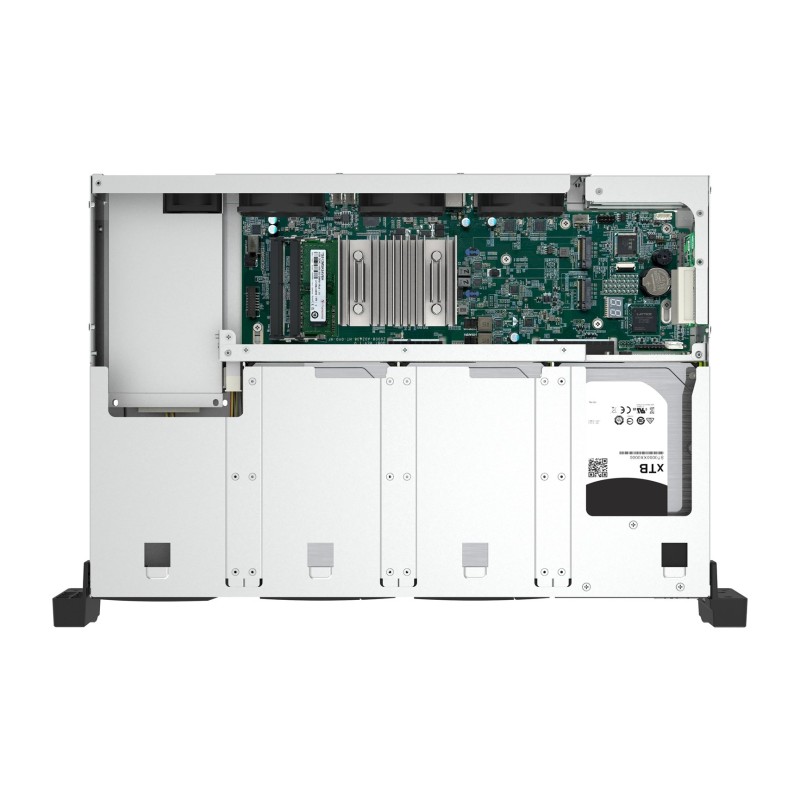

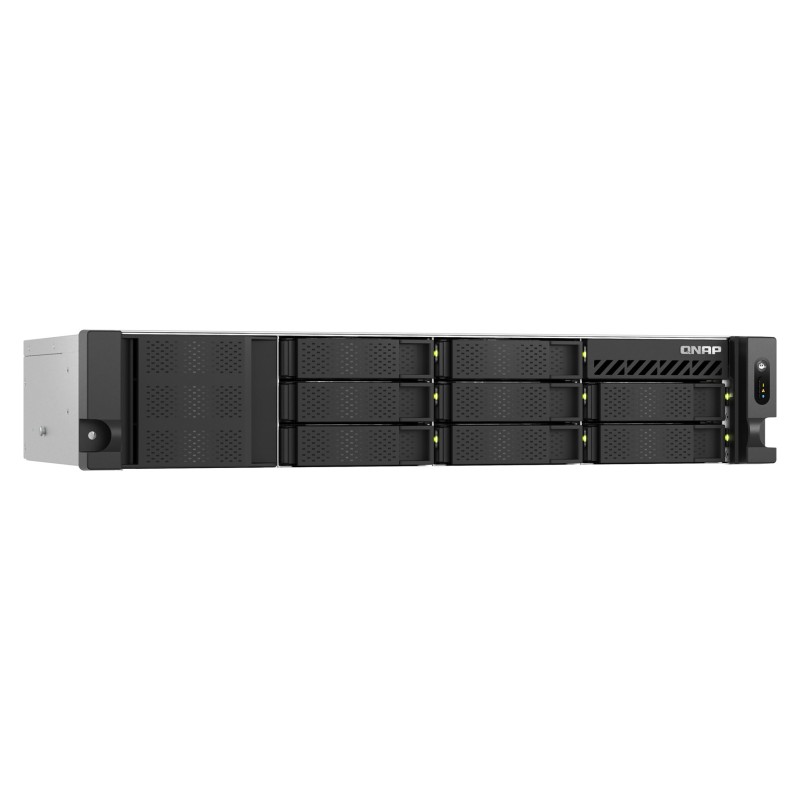

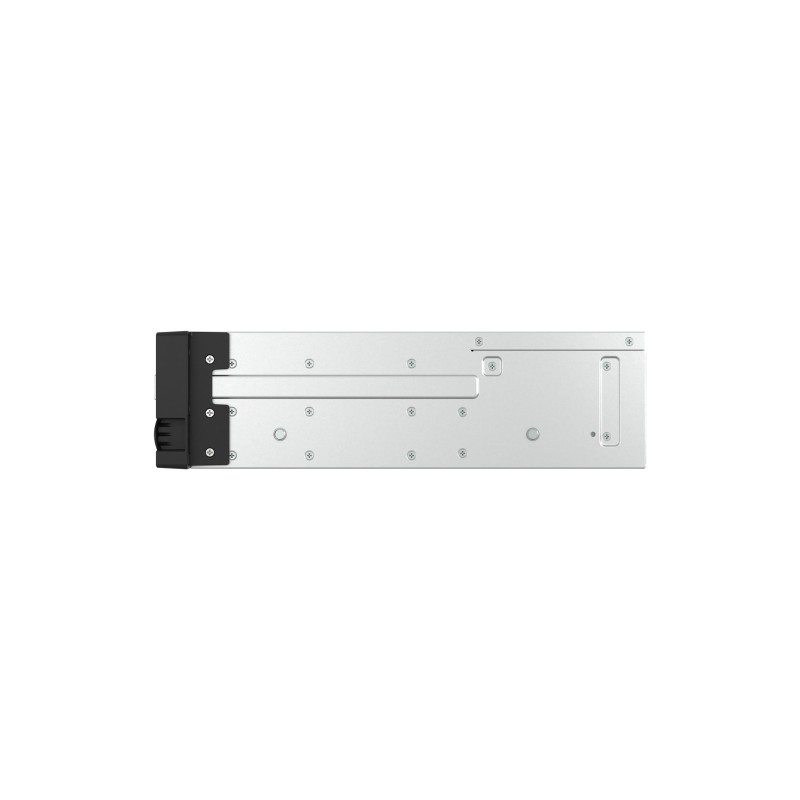

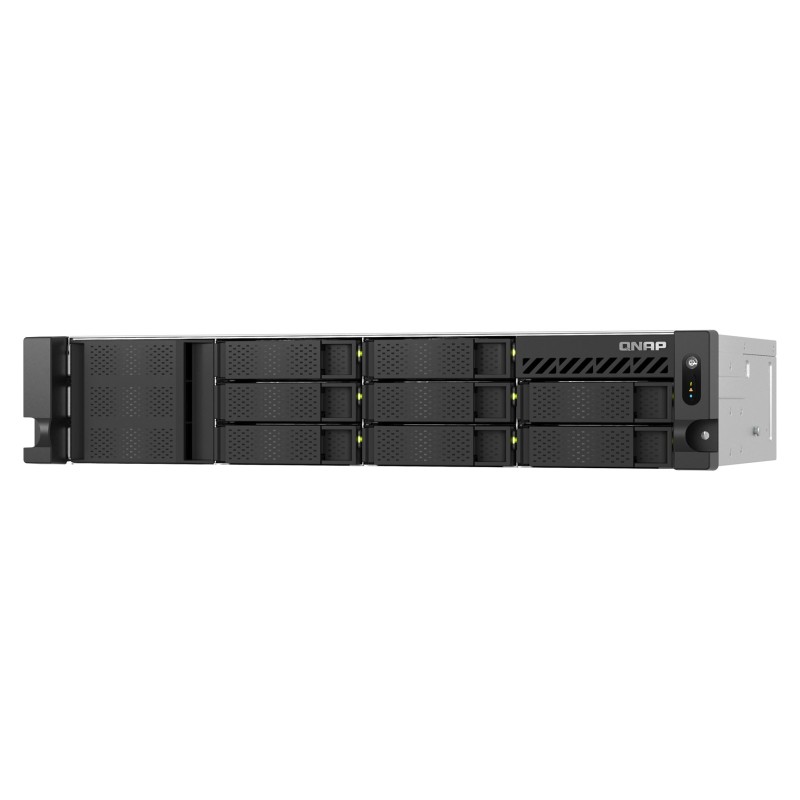

Qnap TS-855eU-8G, 2U, 8 x 2.5"/3.5" SATA, Intel Atom C5125 8C/8T, 8 GB SODIMM DDR4 (max. 64GB ), 2 x 2.5GbE, Single PSU

Περιγραφή

Processor

Processor family: Intel Atom®

Processor threads: 8

Thermal Design Power (TDP): 50 W

Processor model: C5125

Processor cores: 8

Processor cache: 9 MB

Processor manufacturer: Intel

Processor frequency: 2.8 GHz

Number of processors installed: 1

ECC supported by processor: Yes

Memory

Memory form factor: SO-DIMM

Internal memory type: DDR4

Internal memory: 8 GB

Memory slots: 2

Flash memory: 5000 MB

Maximum RAM supported: 64 GB

Design

Product colour: Black

LED indicators: Yes

Cooling type: Active

Chassis type: Rack (2U)

Fan diameter: 6 cm

Number of fans: 3 fan(s)

Power

AC input voltage: 100 - 240 V

Power consumption (typical): 79.113 W

Power consumption (sleep): 49.799 W

Power supply unit (PSU) capacity: 250 W

Number of power supply units: 1

Power supply location: Built-in

Fan voltage: 12 V

Operational conditions

Storage temperature (T-T): -20 - 70 °C

Operating relative humidity (H-H): 5 - 95%

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Weight: 7.61 kg

Depth: 297.4 mm

Height: 88.6 mm

Width: 432 mm

Network

Wake-on-LAN ready: Yes

Ethernet LAN data rates: 2500 Mbit/s, 10, 1000 Mbit/s, 100

DHCP server: Yes

Ethernet LAN: Yes

Jumbo frames support: Yes

Supported network protocols: IPv4, IPv6

Dynamic DNS (DDNS): Yes

iSCSI support: Yes

Performance

Security algorithms: SSH, AES, HTTPS, FIPS 140

Reset button: Yes

Type: NAS

Browser supported: Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version)

S.M.A.R.T. support: Yes

On/off switch: Yes

Backup function: Yes

Snapshot: Yes

Buzzer: Yes

Backup features: iSCSI LUN, USB drive

Management protocols: SNMP V2, V3

Device class: Small & Medium Business

Access Control List (ACL): Yes

Share folder: CIFS/SMB

USB copy function: Yes

System log: Yes

Hot spare: Yes

Built-in FTP server: Yes

Packaging content

Cables included: AC, LAN (RJ-45)

Quick installation guide: Yes

Number of screws: 56

Power cables quantity: 1

Software

Server operating systems supported: Windows Server 2012, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Linux operating systems supported: Ubuntu 14.04, Yes, CentOS 7.0

Other operating systems supported: IBM AIX 7.1, Solaris 10

Mac operating systems supported: Yes, Mac OS X 10.10 Yosemite

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 11

Operating system installed: QuTS hero

Operating system version: h5.0.1

Storage

Supported storage drive interfaces: Serial ATA III, Serial ATA II

Supported storage drive types: HDD & SSD

RAID support: Yes

Storage drive sizes supported: 3.5", 2.5

RAID levels: 1, 60, 5, 10, 50, 0, JBOD

Number of storage drives supported: 8

Installed storage drive type: No

Supported file systems: exFAT, ext4, ext3, NTFS, ZFS, FAT32, HFS+

Storage drive capacity: 0 GB

Total installed storage capacity: 0 TB

Hot-swap drive bays: Yes

Storage drives installed: No

Disk roaming: Yes

Number of M.2 (M & B) slots: 2

Online RAID expansion: Yes

Online RAID migration: Yes

RAID rebuild: Yes

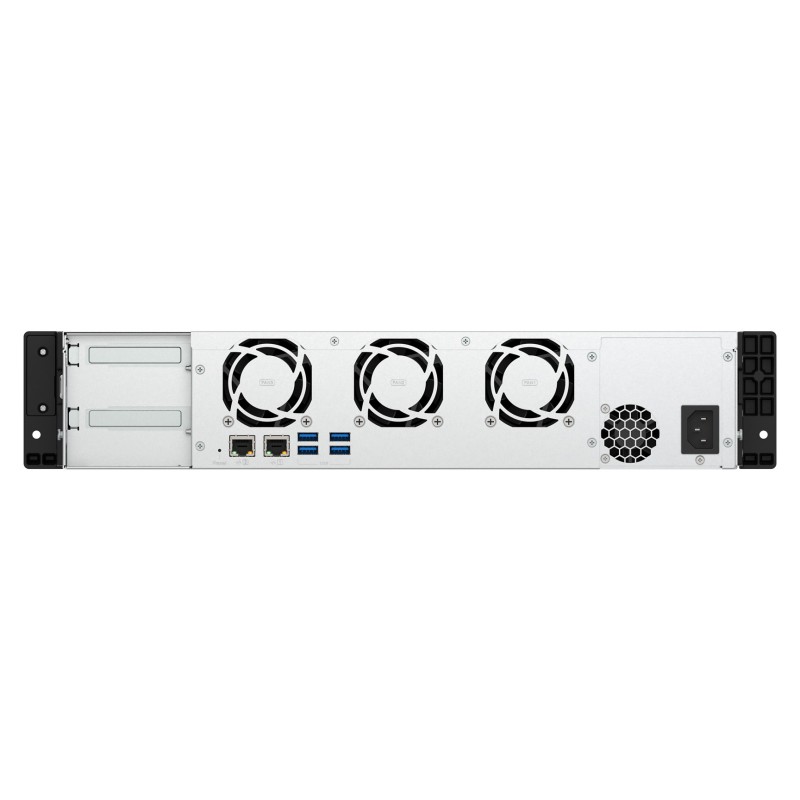

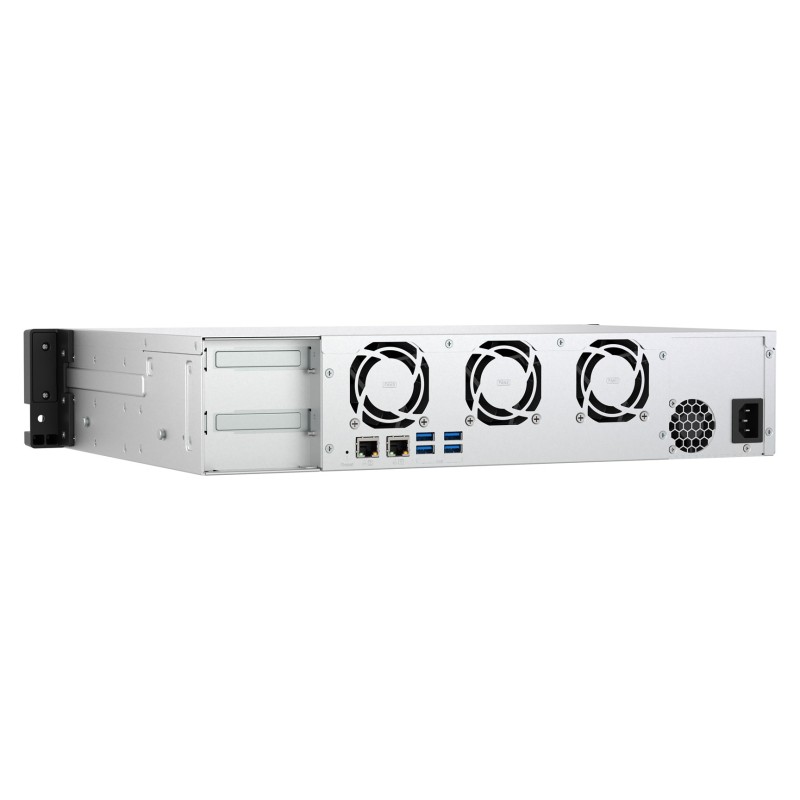

Ports & interfaces

USB port: Yes

Fiber optic connector: MTP

PCI Express x4 (Gen 3.x) slots: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 2

Other features

Fibre Channel: Yes

Safety warning

Warnings: Do not dismantle the appliance yourself., Do not dispose of the device in the regular rubbish bin. The product requires special disposal., Avoid contact with liquids.
