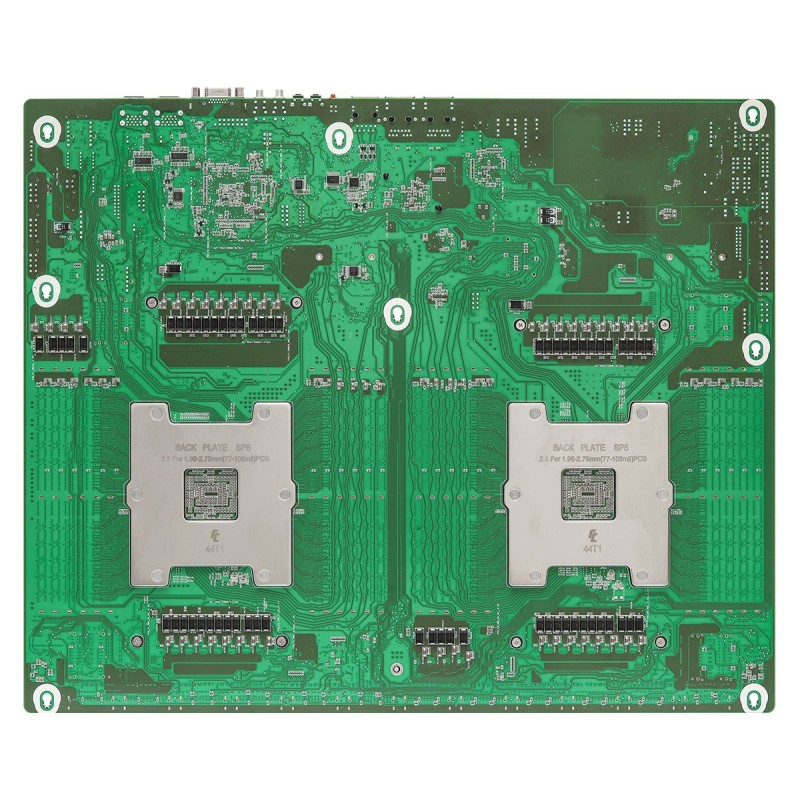

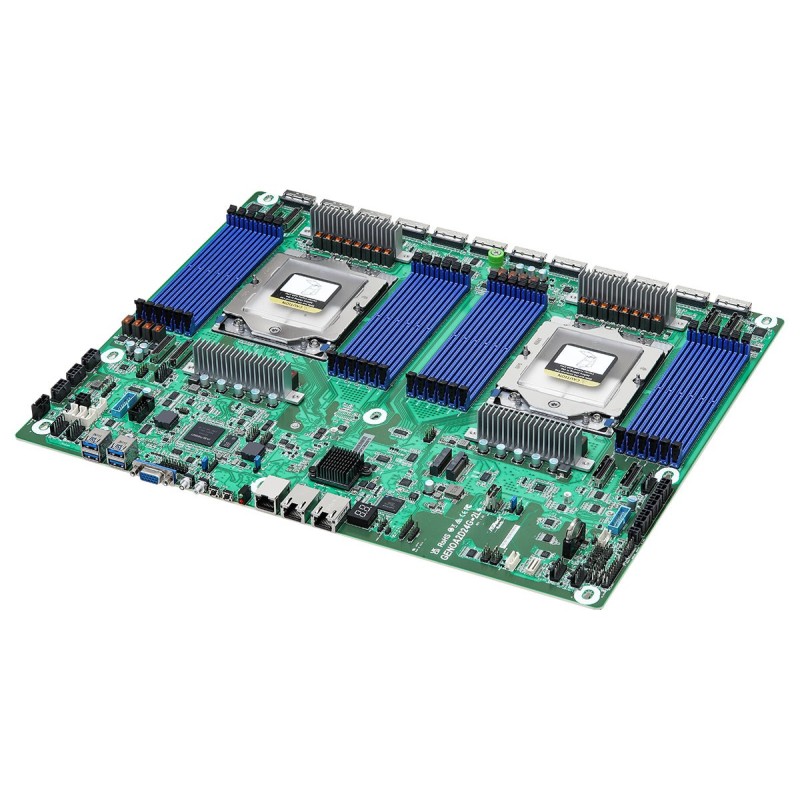

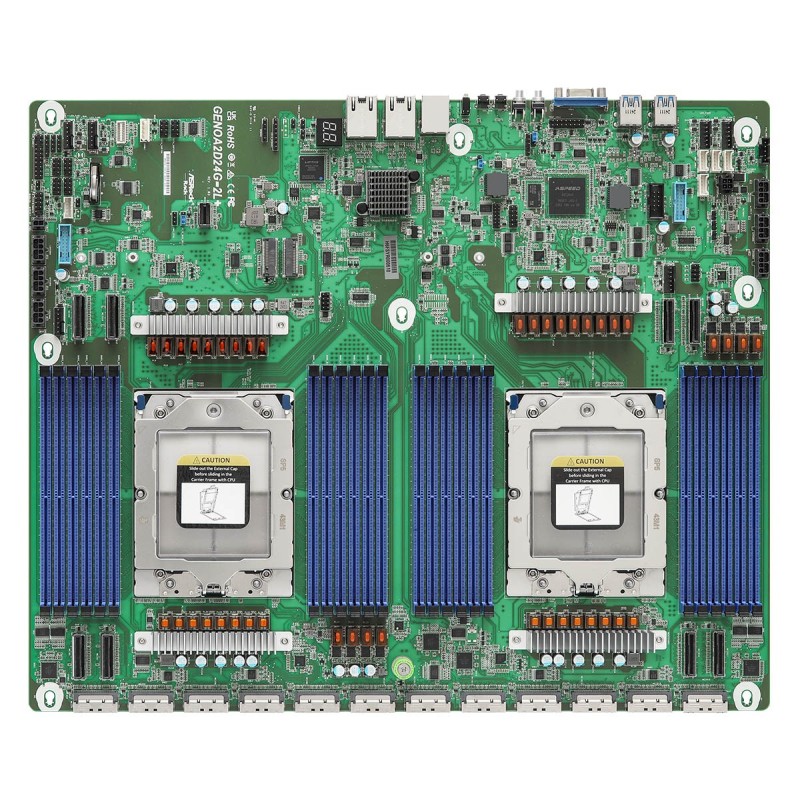

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5

Περιγραφή

Processor

Processor socket: Socket SP5

Maximum number of SMP processors: 2

Processor manufacturer: AMD

Compatible processor series: AMD EPYC

Graphics

On-board graphics card memory: 512 MB

On-board graphics card model: Aspeed AST2600

Parallel processing technology support: Not supported

Features

Component for: Server

PC health monitoring: Voltage, Fan, Temperature

Motherboard chipset: AMD SoC

Product colour: Grey, Green

Motherboard chipset family: AMD

Memory

Memory slots type: DIMM

Memory voltage: 1.1 V

Number of memory slots: 24

Supported memory types: DDR5-SDRAM

Maximum internal memory: 12.3 TB

Supported memory clock speeds: 4800

Memory slot pin count: 288

Operational conditions

Operating relative humidity (H-H): 20 - 90%

Operating temperature (T-T): -40 - 70 °C

Storage temperature (T-T): 10 - 35 °C

Weight & dimensions

Width: 430 mm

Depth: 350 mm

Network

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-Fi: No

LAN controller: Intel® I350

Internal I/O

Chassis intrusion connector: Yes

Number of chassis fan connectors: 6

Number of COM connectors: 1

Front panel connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

BIOS

BIOS type: UEFI AMI

ACPI version: 6.4

System Management BIOS (SMBIOS) version: 3.5

Clear CMOS button: Yes

Storage controllers

Number of HDDs supported: 32

Number of storage drives supported: 34

Supported storage drive interfaces: SATA III

Supported storage drive types: HDD & SSD

Rear panel I/O ports

IPMI LAN (RJ-45) port: Yes

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 2
