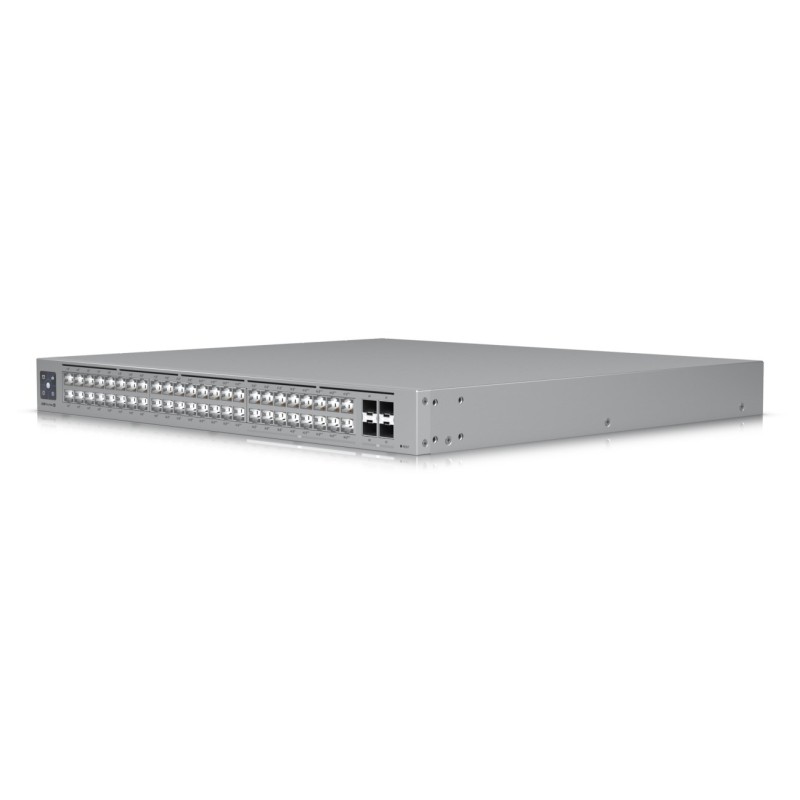

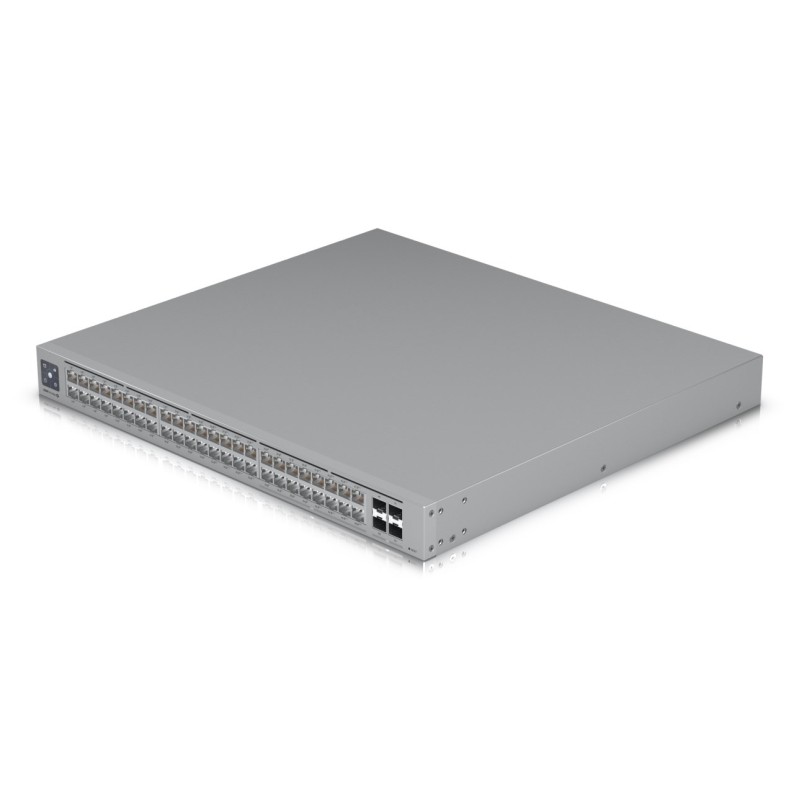

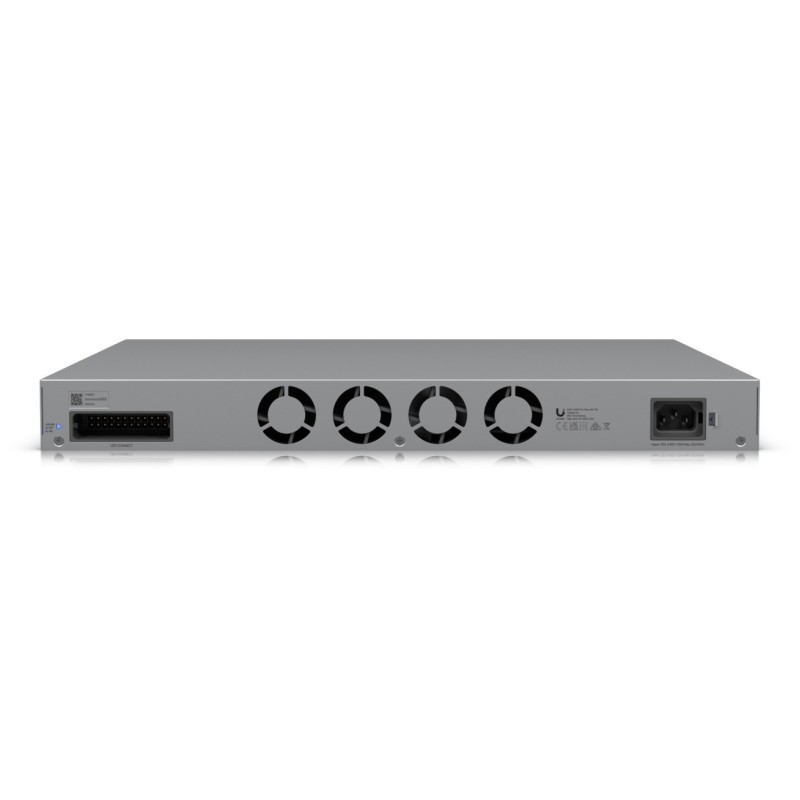

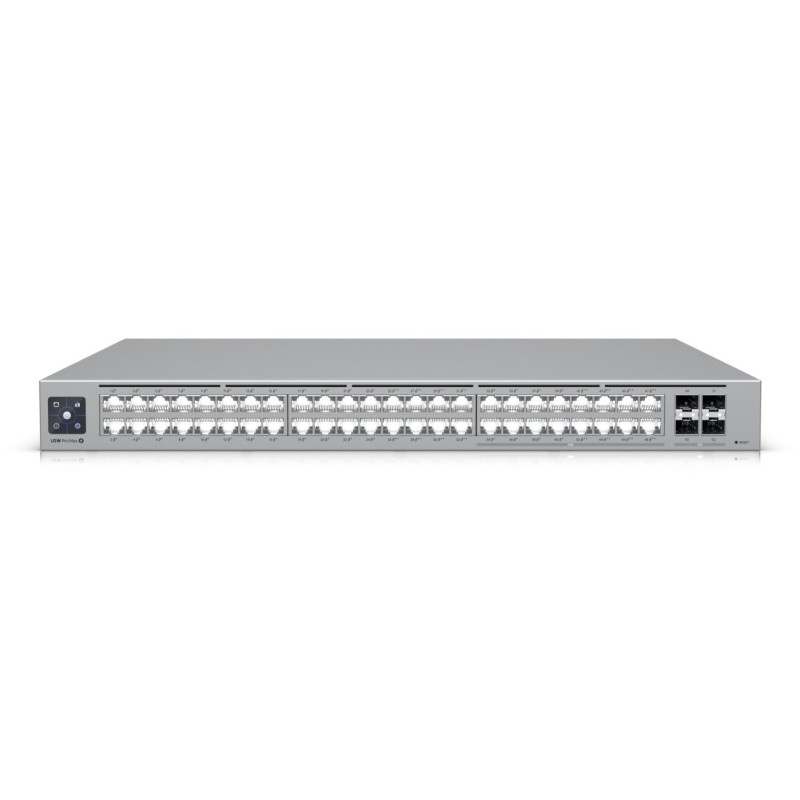

Ubiquiti USW-PRO-MAX-48-POE network switch L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

Περιγραφή

Design

Backlight display: Yes

Rack mounting: Yes

Display type: LCM

Form factor: 1U

Product colour: Grey

Housing material: SGCC

Reset button: Yes

LED indicators: System

Power

Power supply included: Yes

Power source: AC

Power consumption (max): 820 W

AC input frequency: 50/60 Hz

Redundant power supply (RPS) support: Yes

AC input voltage: 100 - 240 V

Security

IGMP snooping: Yes

Loop protection: Yes

DHCP features: DHCP guarding, DHCP server, DHCP relay, DHCPv6 snooping

Operational conditions

Heat dissipation: 341.2 BTU/h

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): -5 - 40 °C

Management features

Switch layer: L3

Switch type: Managed

Quality of Service (QoS) support: Yes

Weight & dimensions

Depth: 399.6 mm

Width: 442.4 mm

Weight: 6.2 kg

Height: 43.7 mm

Network

Number of VLANs: 1000

Port mirroring: Yes

Virtual LAN features: Voice VLAN

10G support: No

Rate limiting: Yes

VLAN support: Yes

IPv4 routes: 12000

Flow control support: Yes

Broadcast storm control: Yes

Networking standards: IEEE 802.1x

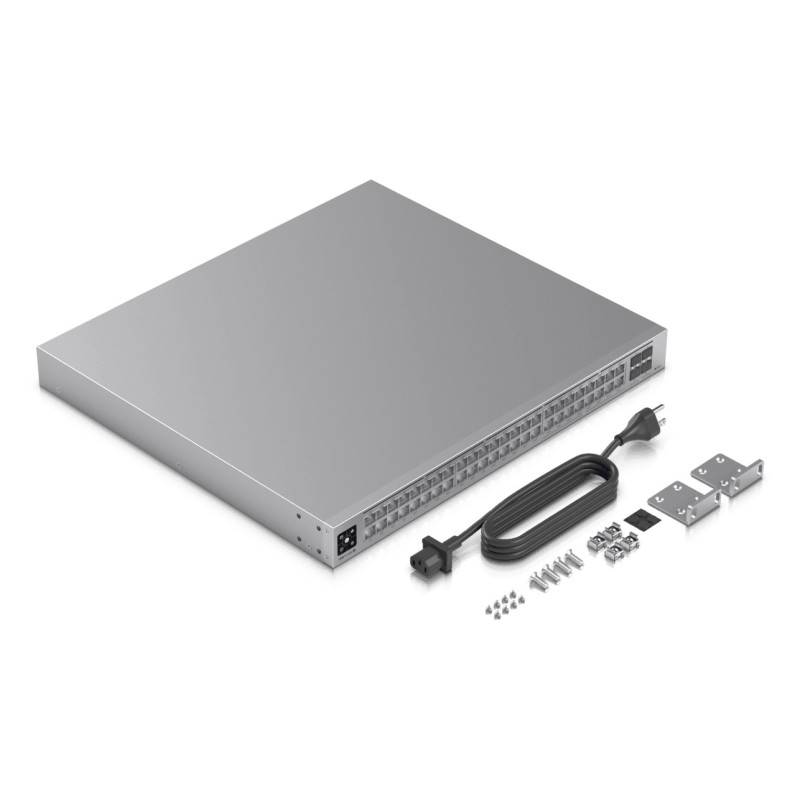

Packaging content

Rack mount kit: Yes

Cables included: Power

Manual: Yes

Certificates

Compliance certificates: National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC), Industry Canada (IC)

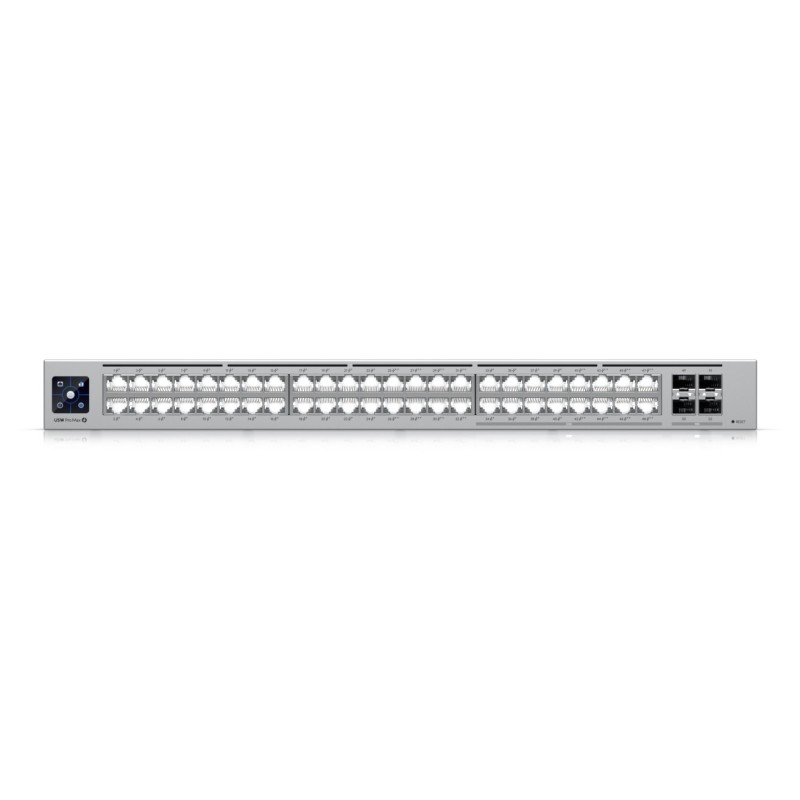

Ports & interfaces

SFP+ module slots quantity: 4

2.5G Ethernet (copper) ports quantity: 16

Gigabit Ethernet (copper) ports quantity: 32

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 48

Power connector: AC-in jack

Data transmission

Jumbo frames support: Yes

Forwarding rate: 167 Mpps

Packet buffer memory: 2 MB

Switching capacity: 224 Gbit/s

Throughput: 112 Gbit/s

MAC address table: 32000 entries

Static route: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)

Power over Ethernet plus (PoE+) ports quantity: 32

Power over Ethernet (PoE) voltage: 57 V

Power over Ethernet (PoE) power per port: 15.4 W

Power over Ethernet 4PPoE (PoE++) ports quantity: 16

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 720 W

Safety warning

Warnings: Avoid contact of the device with liquid., Follow the safety guidelines for electrical current., Make sure the ventilation of the equipment is not blocked.

Sustainability

Sustainability compliance: Yes
