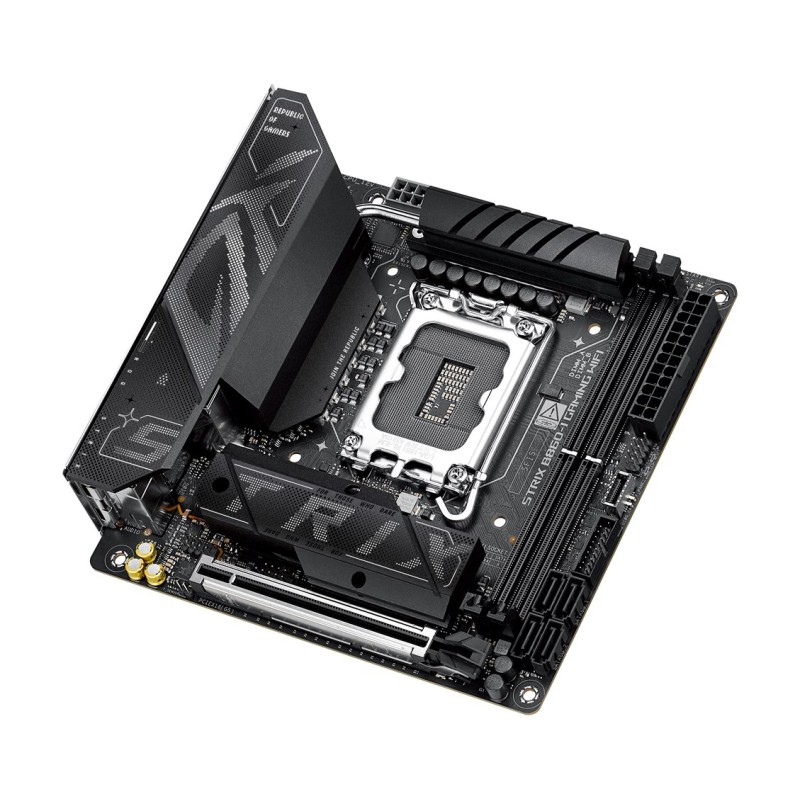

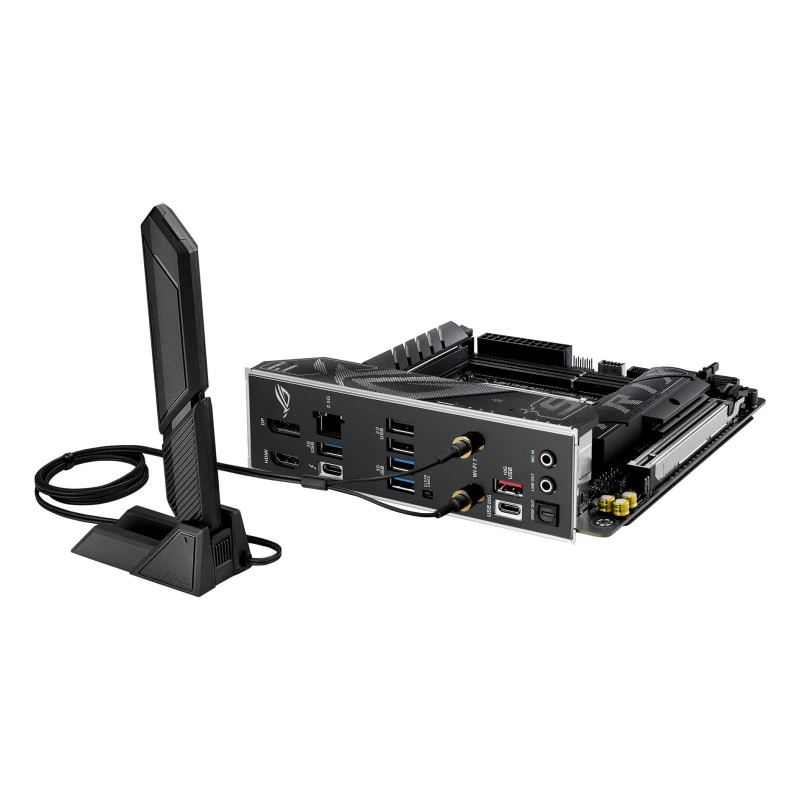

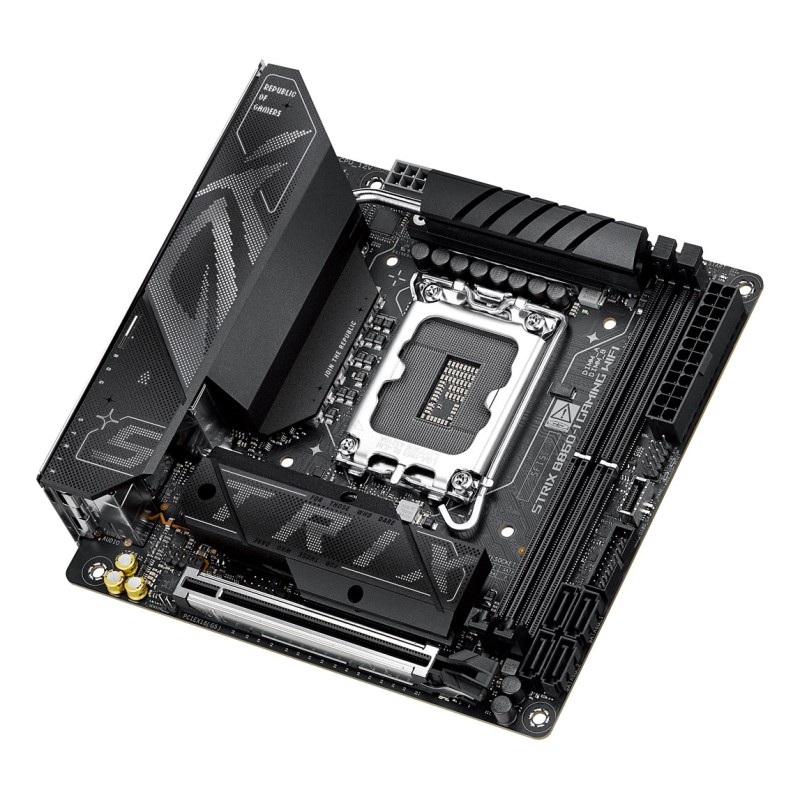

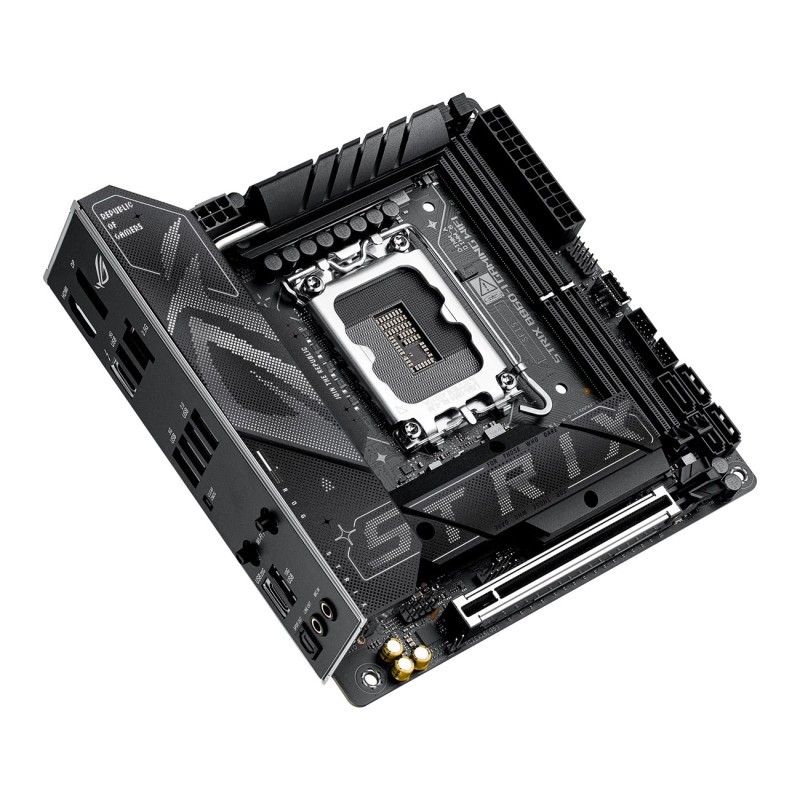

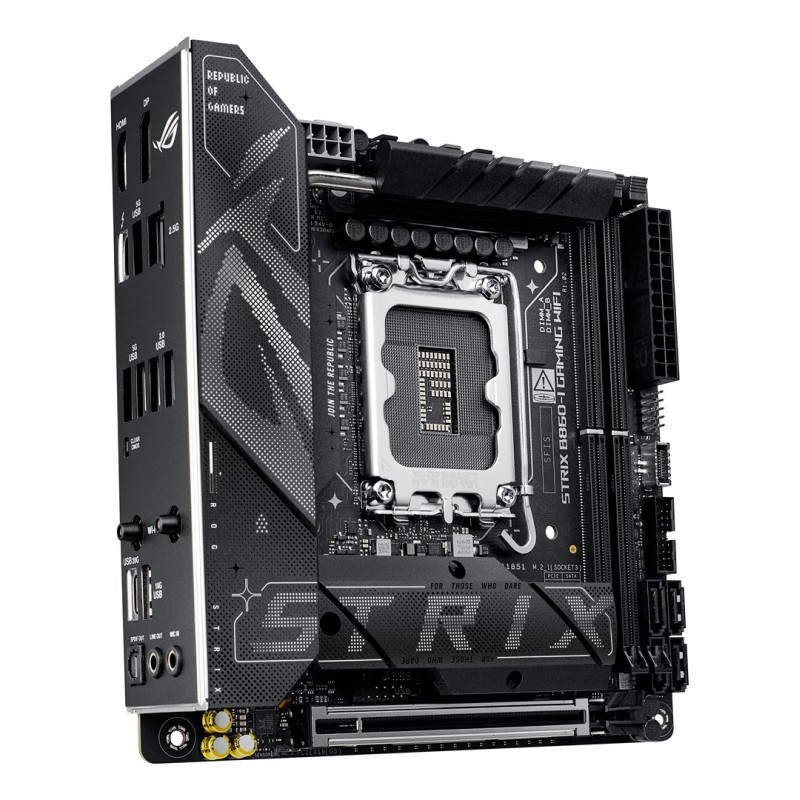

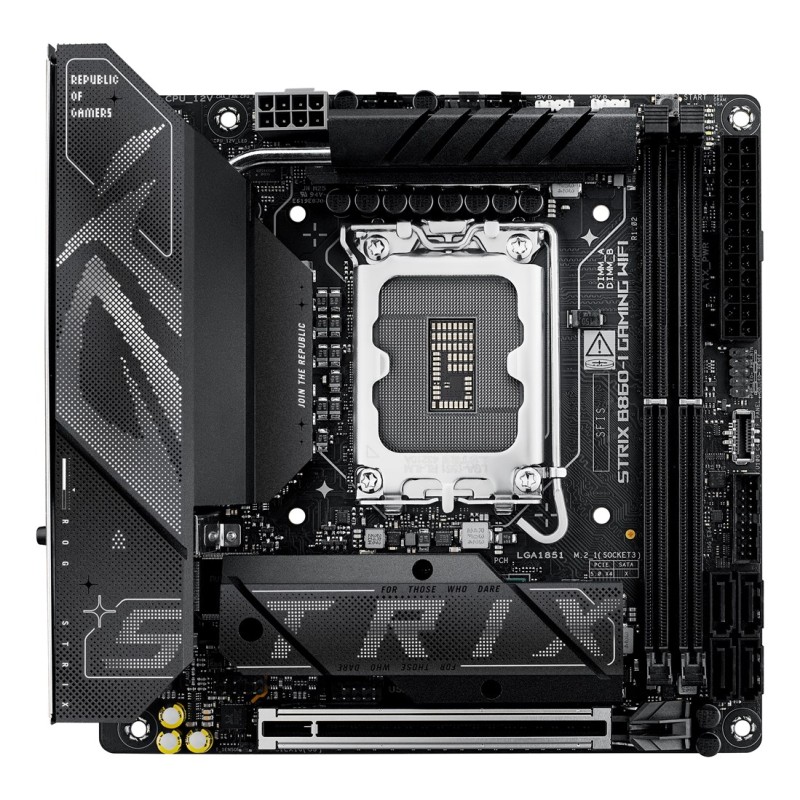

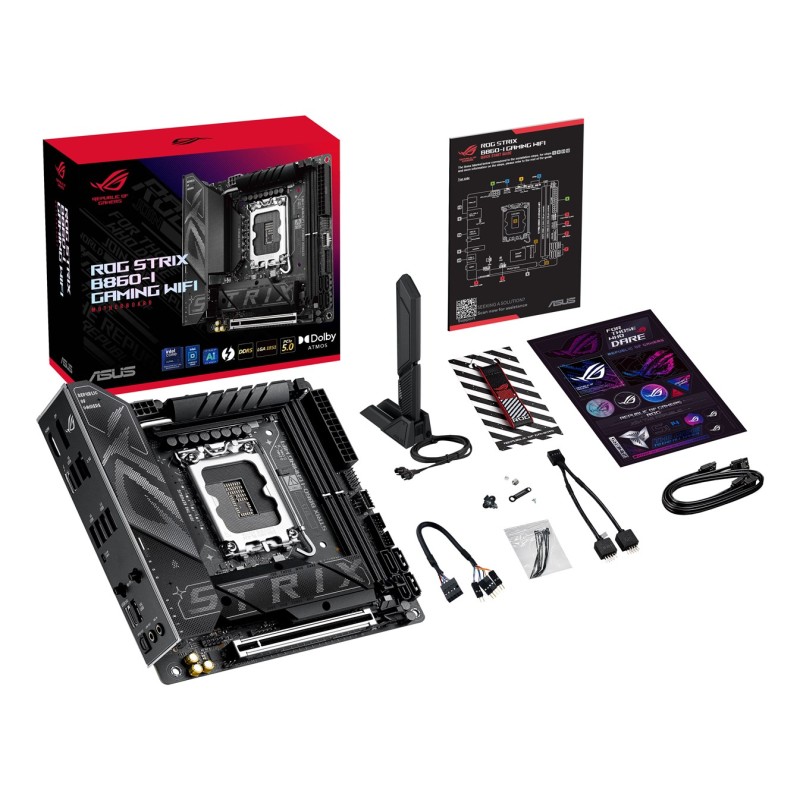

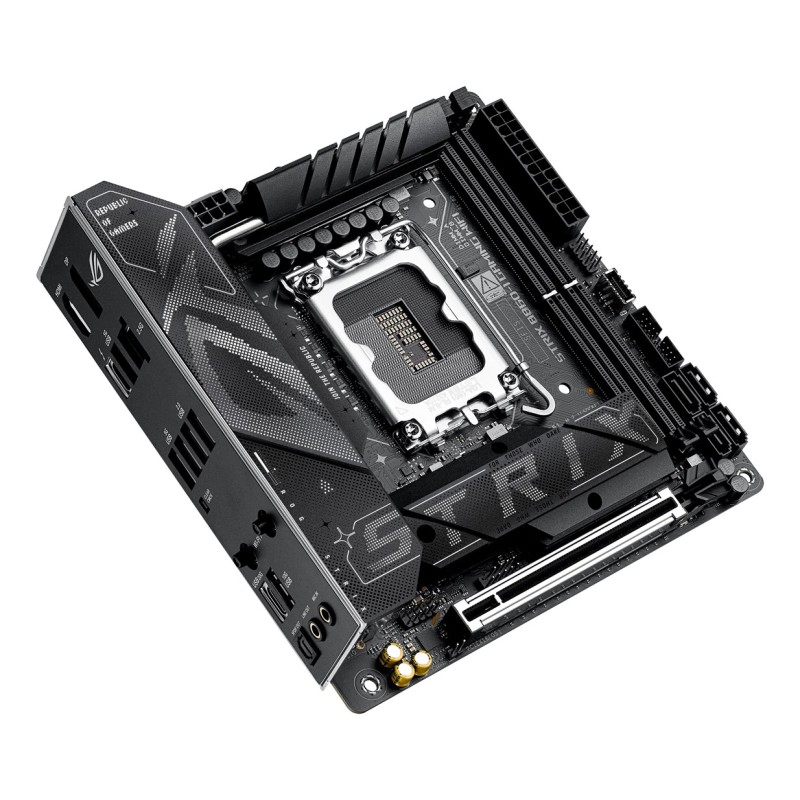

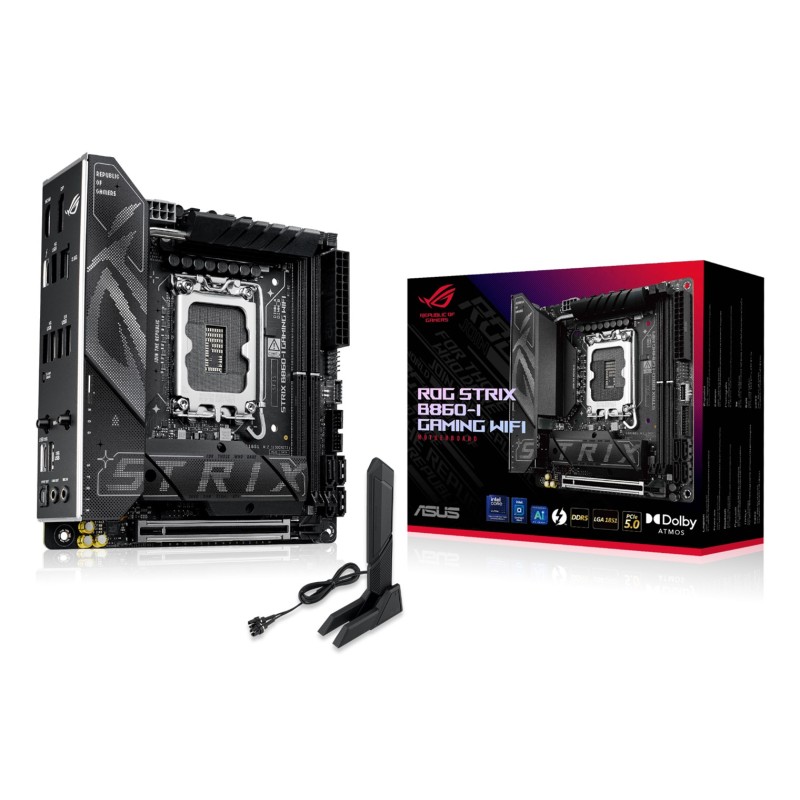

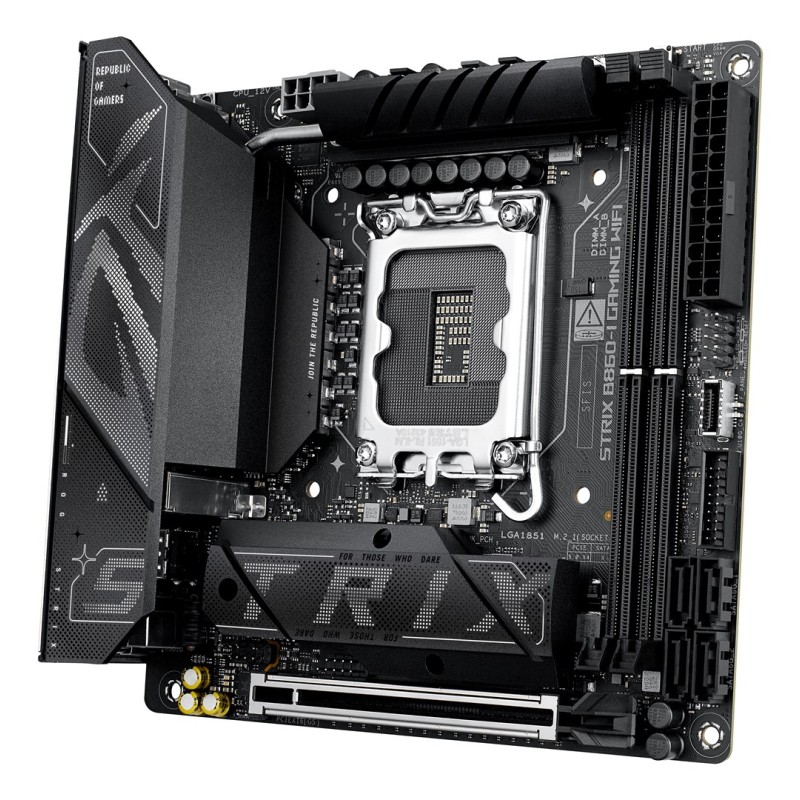

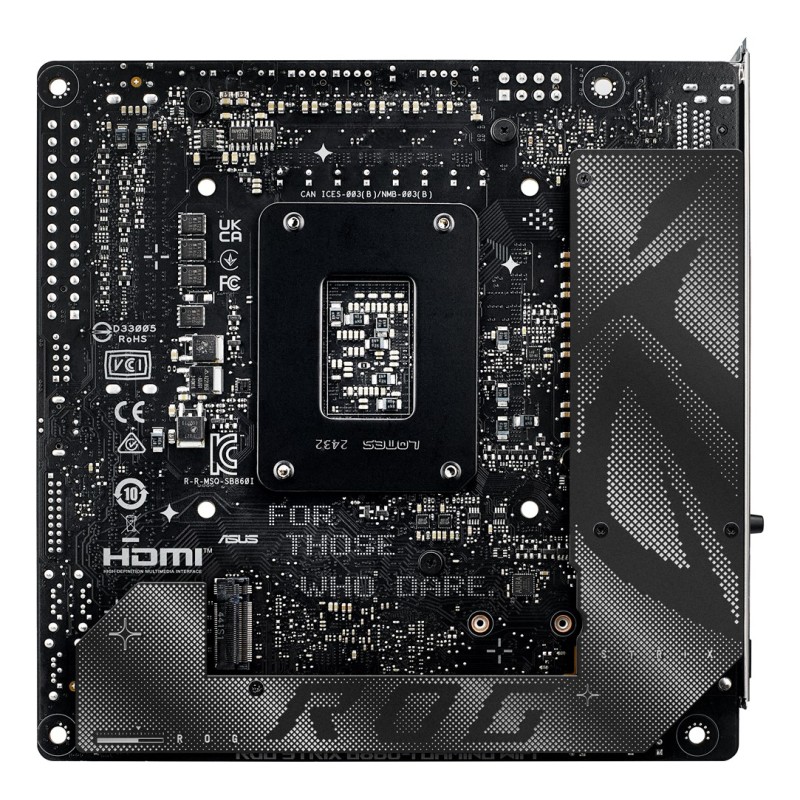

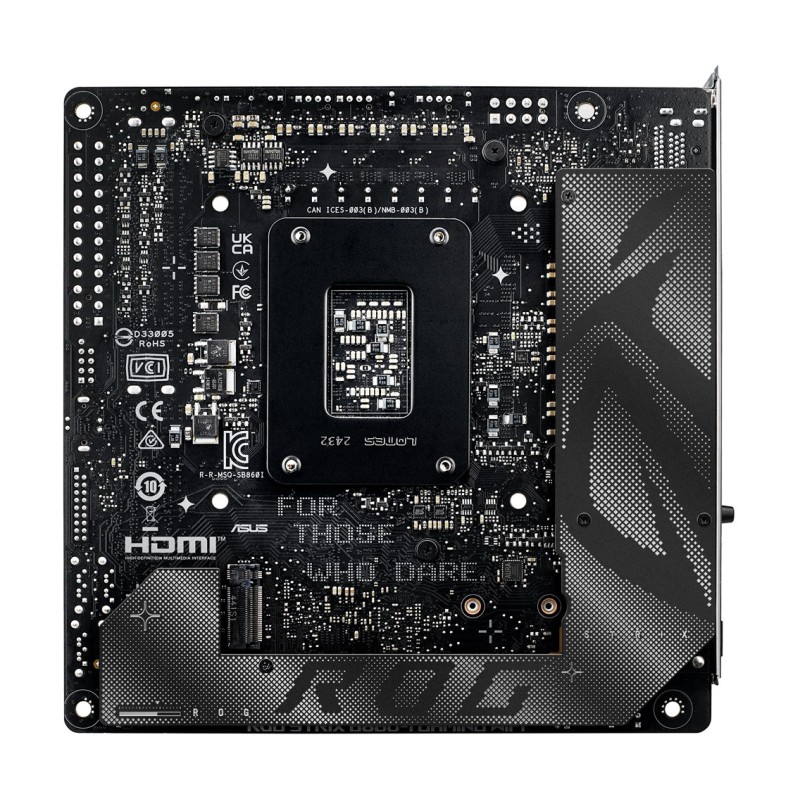

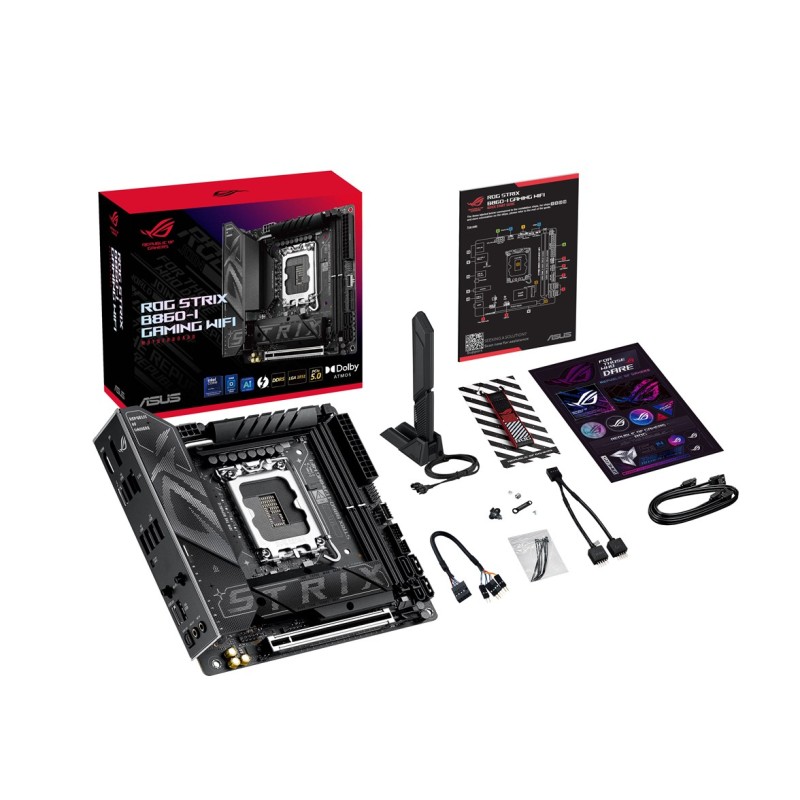

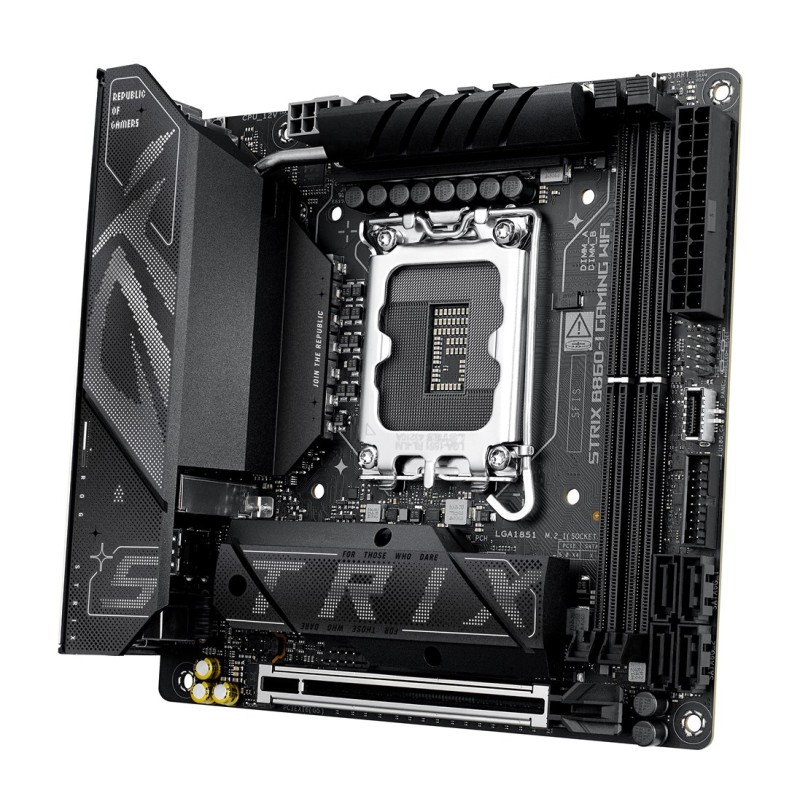

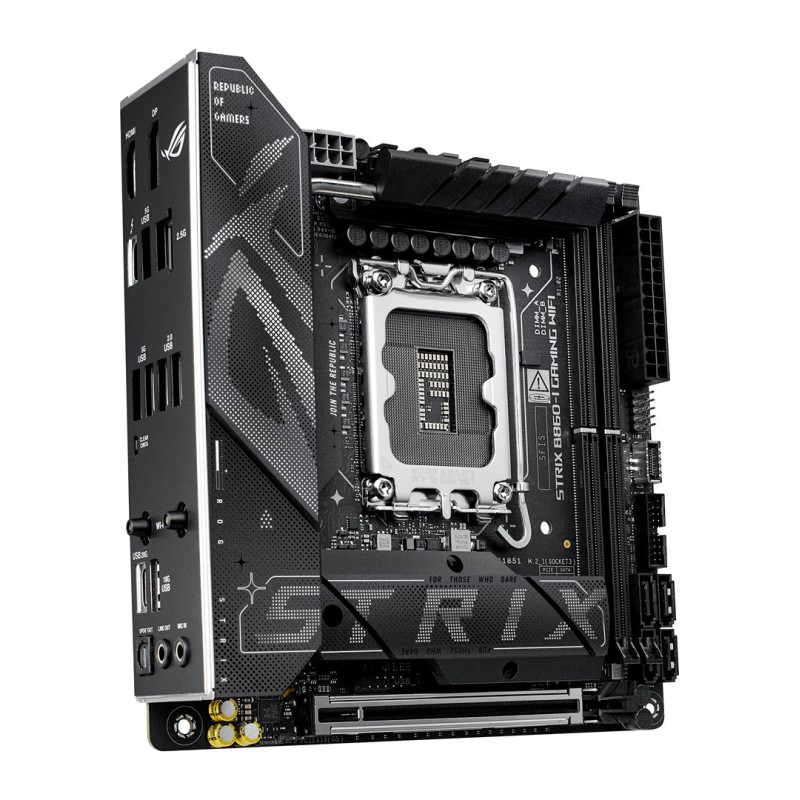

ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX

Περιγραφή

Processor

Processor socket: LGA 1851 (Socket V1)

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 11

Motherboard chipset: Intel B860

Audio chip: Realtek ALC1220P

Motherboard chipset family: Intel

Motherboard form factor: mini ITX

Audio output channels: 7.1 channels

Product colour: Multicolour

Memory

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Number of memory slots: 2

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 9066 MHz

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Weight & dimensions

Width: 170 mm

Depth: 170 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Wi-Fi: Yes

Bluetooth version: 5.4

Bluetooth: Yes

Internal I/O

Number of CPU fan connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

12V power connector: Yes

Number of chassis fan connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 1

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Packaging data

Package height: 96 mm

Package depth: 187 mm

Package weight: 1.47 kg

Package width: 228 mm

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 6

RAID levels: 10, 0, 5, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

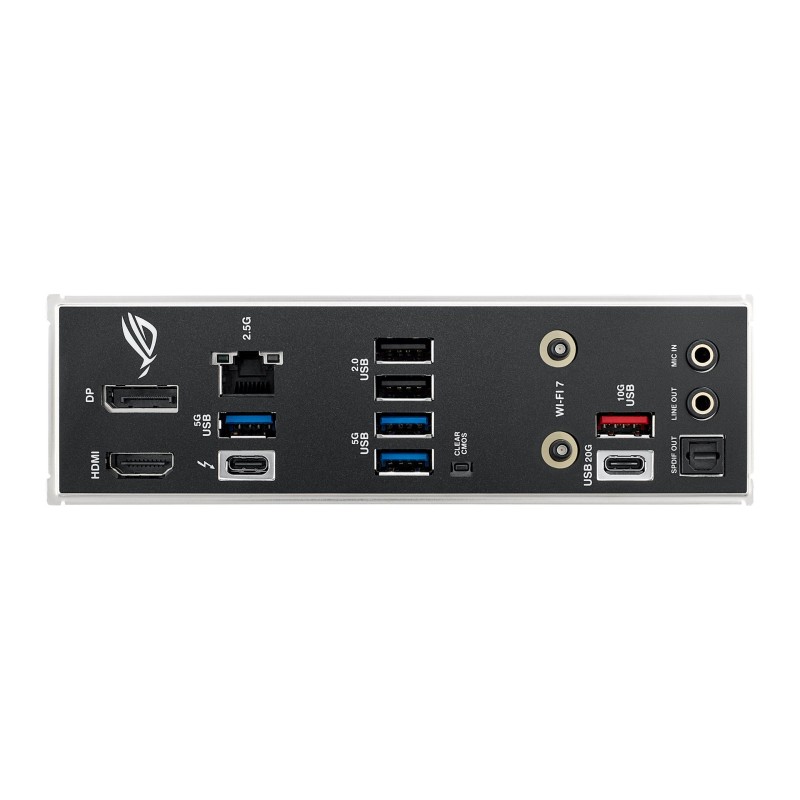

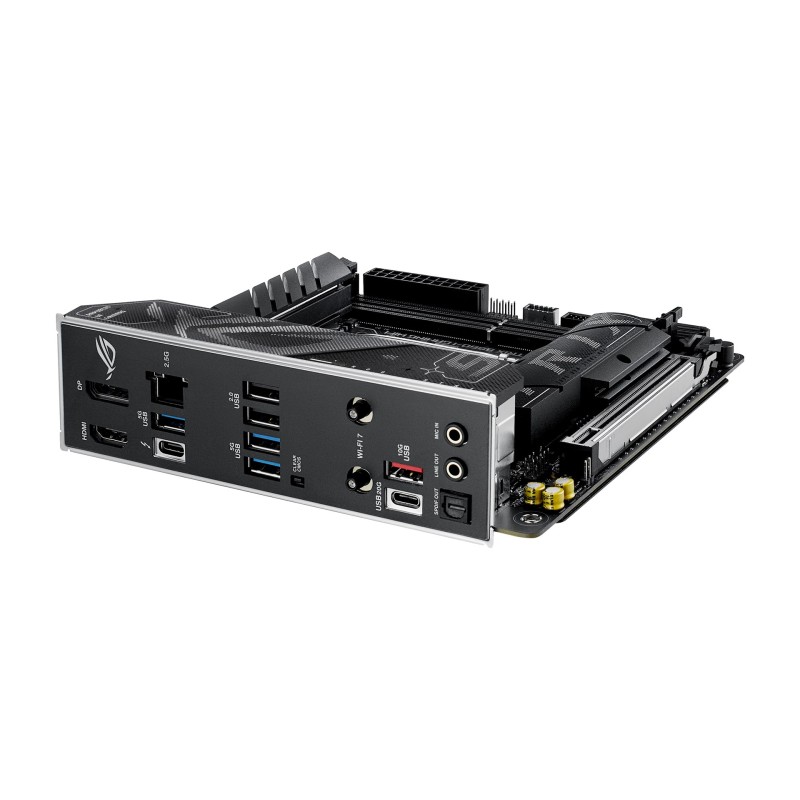

Rear panel I/O ports

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Microphone in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Thunderbolt ports quantity: 1

S/PDIF out port: Yes

DisplayPorts quantity: 1

USB 2.0 ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 812.6 g

Safety warning

Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
