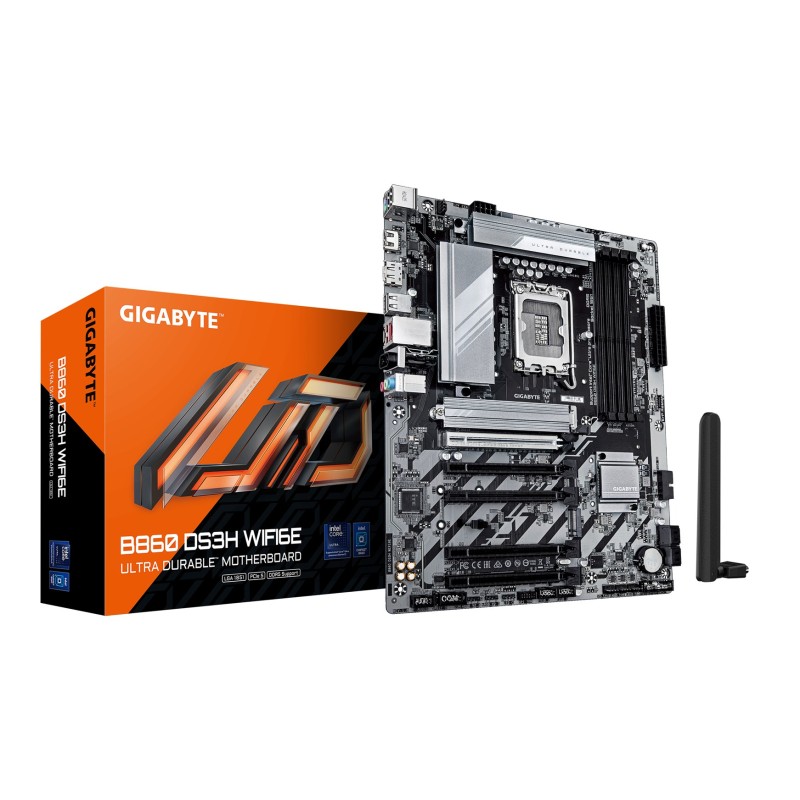

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor manufacturer: Intel

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Graphics

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

HDCP: Yes

Features

PC health monitoring: Water cooling, Fan, Voltage, Temperature

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Power source type: ATX

Audio chip: Realtek ALC897

Cooling type: Passive

Motherboard chipset: Intel B860

Product colour: Dark brown

Motherboard chipset family: Intel

Memory

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 64 GB

Supported memory clock speeds: 8000, 9066 MHz, 6800, 7000 MHz, 8200 MHz, 8400, 8266, 8800, 7600, 7800, 7400, 6400, 8600, 6600, 7950, 7900, 5600, 7200

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Supported memory clock speed (max): 9066 MHz

Weight & dimensions

Height: 35 mm

Width: 305 mm

Depth: 244 mm

Network

Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

LAN controller: Realtek RTL8125

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Ethernet LAN: Yes

WLAN controller model: Intel Wi-Fi 6E AX211

Internal I/O

Number of RGB LED pin headers: 4

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

Front panel audio connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 4

TPM connector: Yes

RGB LED pin header: Yes

Serial port headers: 1

Number of SATA III connectors: 4

USB 2.0 connectors: 2

S/PDIF out connector: Yes

Front panel connector: Yes

CPU fan connector: Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging data

Package height: 80 mm

Package width: 335 mm

Package depth: 270 mm

Packaging content

Batteries included: Yes

Antenna included: Yes

Screws included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 5, 1, 10, 0

Number of HDDs supported: 4

RAID support: Yes

Number of storage drives supported: 6

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 2.0 ports quantity: 4

Line-in: Yes

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Headphone outputs: 1

WiFi-AP antenna jack: 2

DisplayPorts quantity: 1

DisplayPort version: 2.1

Microphone in: Yes

HDMI version: 2.1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 4

PCI Express x16 (Gen 5.x) slots: 1

Battery

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Lithium weight per battery: 0.07 g

Other features

Weight: 2 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician.
