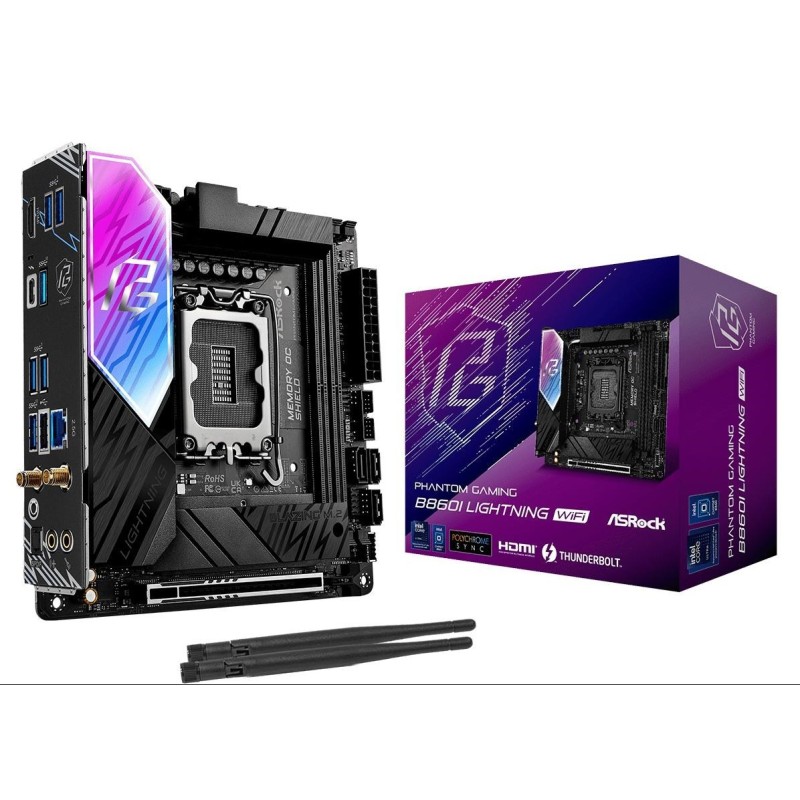

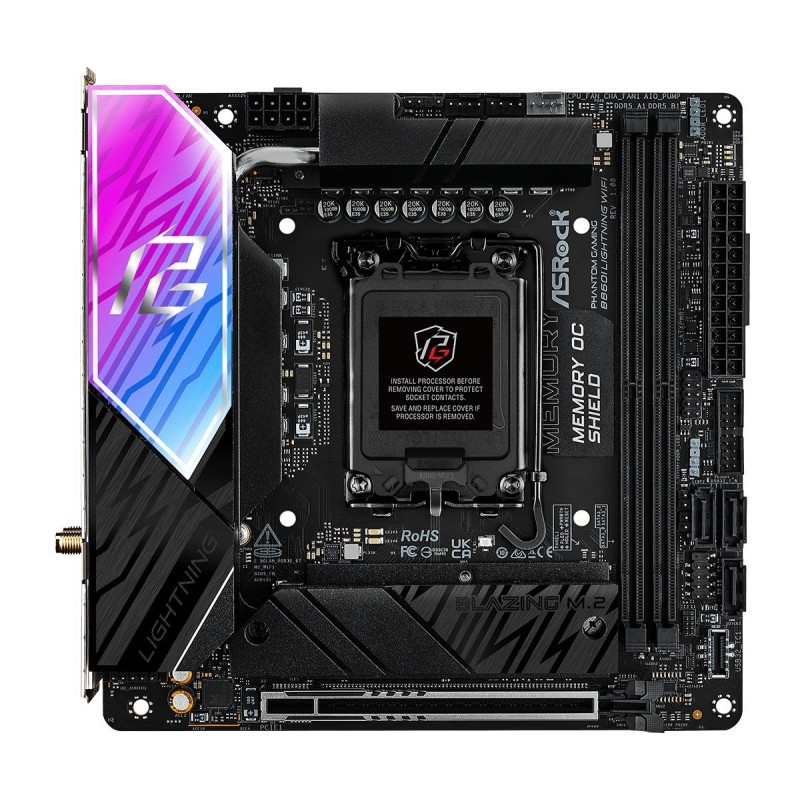

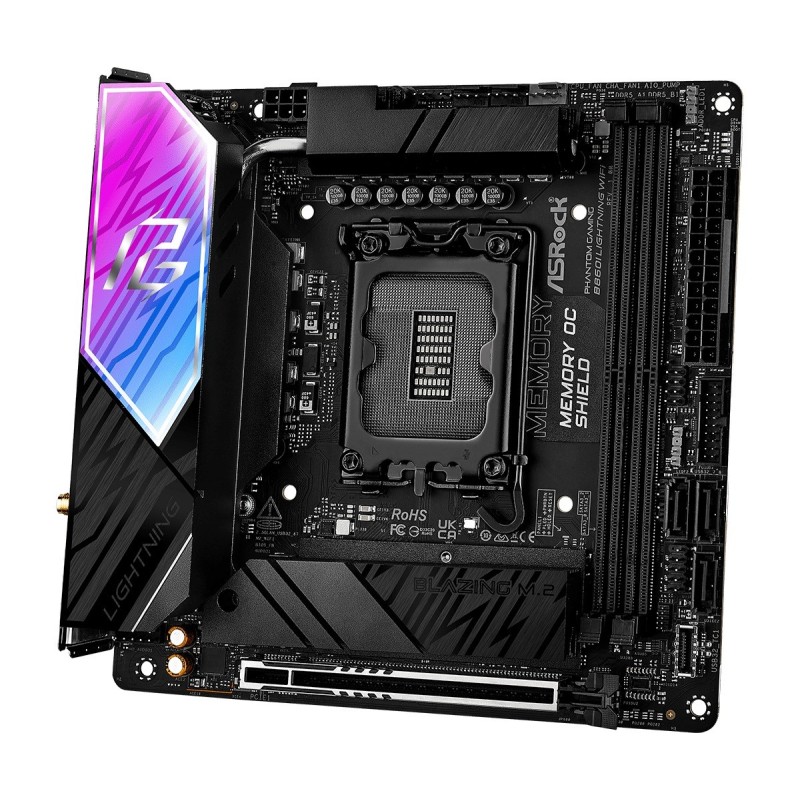

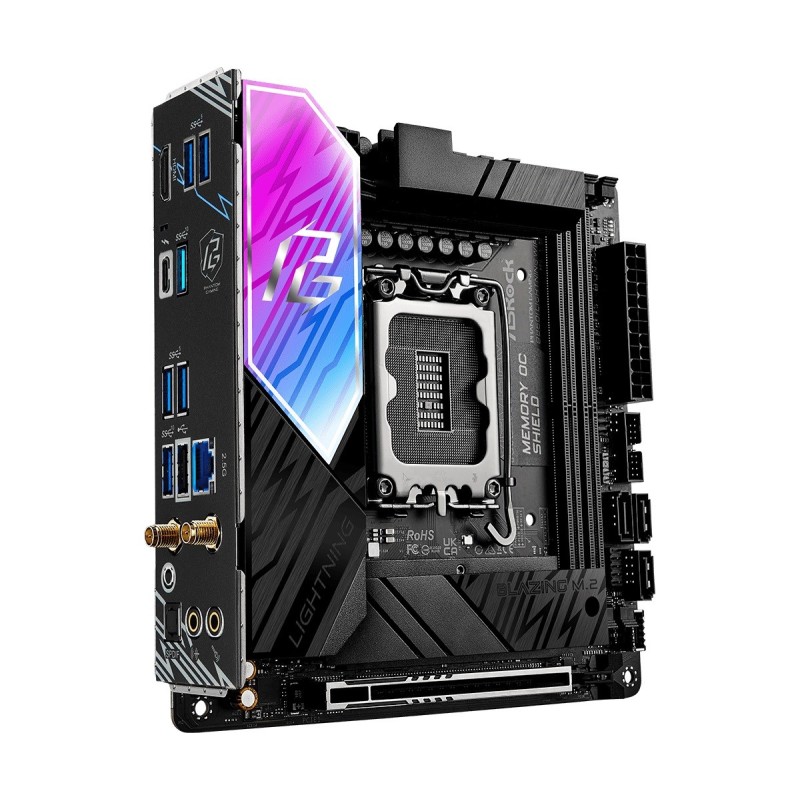

Płyta główna ASRock B860I Lightning WiFi

Περιγραφή

Processor

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Graphics

On-board graphics card family: Intel Iris Xe Graphics

Maximum resolution: 7680 x 4320 pixels

HDCP: Yes

Features

Audio chip: Realtek ALC1220

Motherboard form factor: Mini-ITX

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel B860

Product colour: White

Memory

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Memory slots type: DIMM

ECC сompatibility: Non-ECC

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Weight & dimensions

Depth: 170 mm

Width: 170 mm

Network

MU-MIMO: Yes

Bluetooth version: 5.3

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11axe)

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Internal I/O

12V power connector: Yes

Number of CPU fan connectors: 1

Number of USB 3.2 Gen 2 Type-C ports : 1

Number of water pump connectors: 1

USB 2.0 connectors: 2

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 1

Number of SATA III connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

BIOS

BIOS type: UEFI AMI

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

RAID levels: 1, 5, 0

Number of storage drives supported: 5

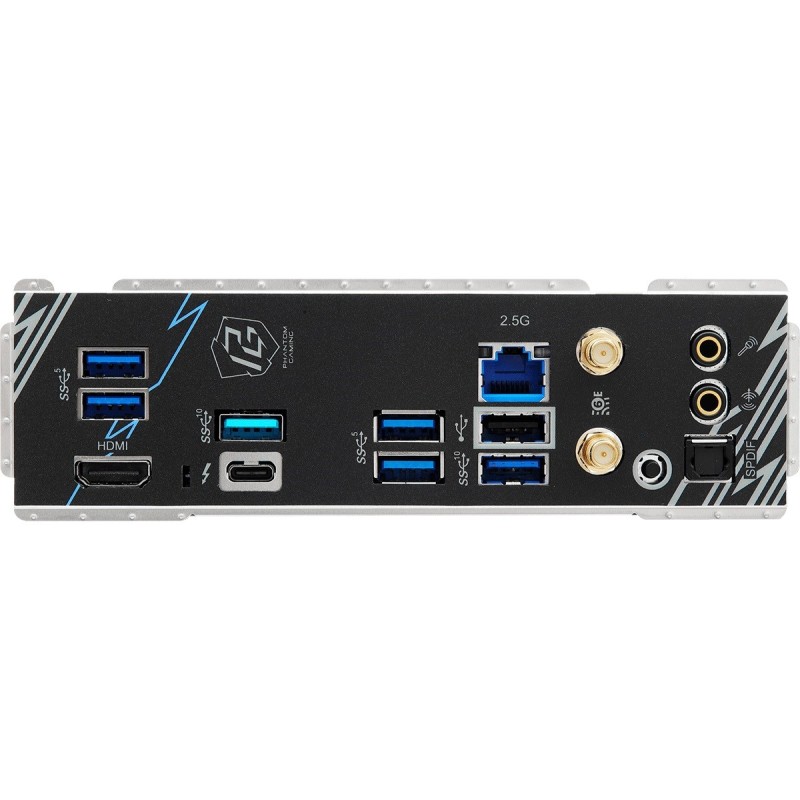

Rear panel I/O ports

Thunderbolt ports quantity: 1

MIC input: 1

Flashback BIOS button: Yes

Number of USB 3.2 Gen 1 ports: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

USB connector type: USB Type-C, USB Type-A

USB 2.0 ports quantity: 1

Antennas quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

Number of SATA III connectors: 3

Number of M.2 (M) slots: 4

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage.
