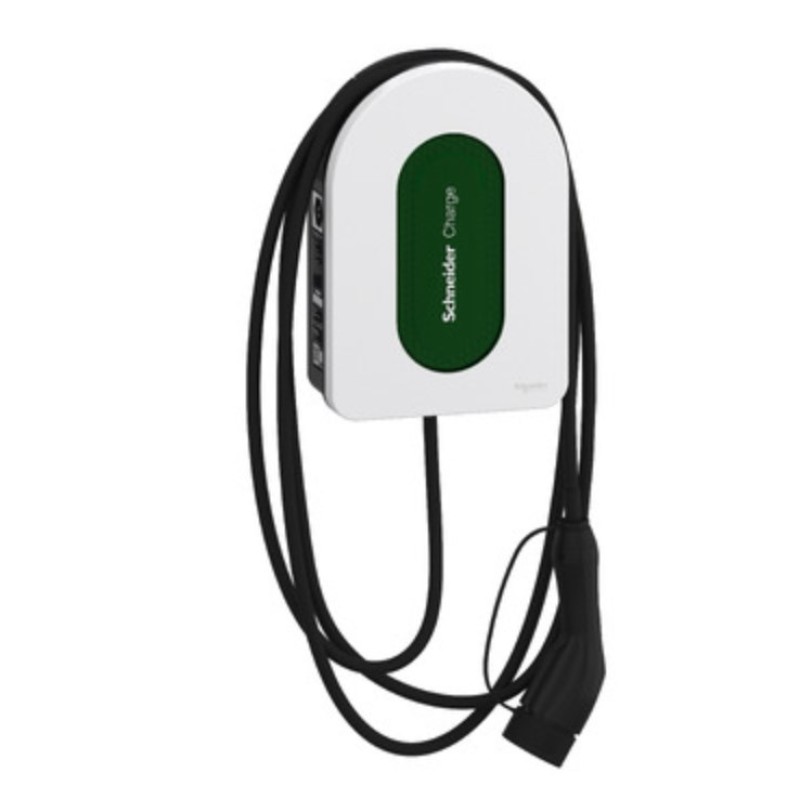

Schneider Electric EVH5A11N2C5 electric vehicle charging station Green, White Wall 1

Περιγραφή

Features

Mechanical impact protection code: IK10

International Protection (IP) code: IP55

Wi-Fi: Yes

Socket type: Type 2

Power source type: AC

Design

Product colour: Green

Built-in display: No

Cable colour: Black

Integrated charging cable: Yes

LED indicators: Yes

Mounting type: Wall

Power

Maximum operating power (single-phase): 11 kW

Single-phase output voltage supported: 400 V

Maximum charging power: 11000 W

Maximum operating current per phase: 16 A

Nominal frequency: 60 Hz

Number of phases: 1

Operational conditions

Operating relative humidity (H-H): 5 - 95%

Operating temperature (T-T): -30 - 55 °C

Operating altitude: 0 - 2000 m

Storage temperature (T-T): -40 - 85 °C

Weight & dimensions

Width: 244 mm

Depth: 117 mm

Package depth: 500 mm

Package weight: 6.18 kg

Height: 352 mm

Weight: 4.4 kg

Package height: 300 mm

Package width: 350 mm

Ports & interfaces

Ethernet LAN: Yes
