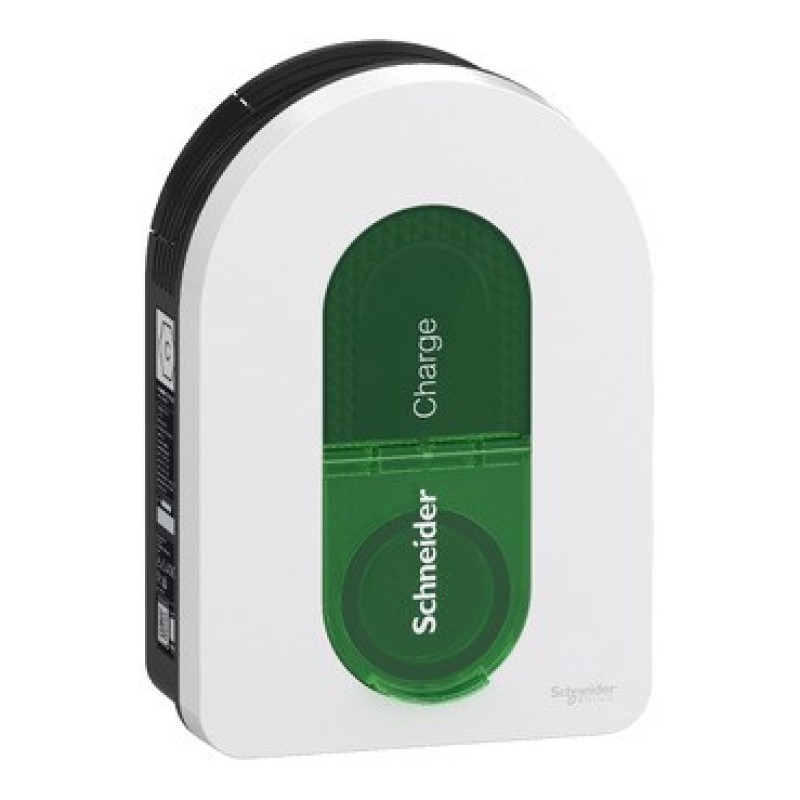

Schneider Electric EVH5A22N2S electric vehicle charging station Green, White Wall 1

Περιγραφή

Technical details

Warranty period: 1.5 year(s)

Compliance certificates: REACH, RoHS

Features

Mechanical impact protection code: IK10

Quantity per pack: 1 pc(s)

International Protection (IP) code: IP55

Wi-Fi: Yes

Socket type: Type 2

Power source type: AC

Design

Cable colour: Black

Integrated charging cable: Yes

LED indicators: Yes

Product colour: Green

Built-in display: No

Mounting type: Wall

Power

Single-phase output voltage supported: 240 V, 230 V, 400 V

Maximum operating current per phase: 32 A

Number of phases: 1

Minimum operating power (single-phase): 7.4 kW

Maximum operating power (single-phase): 22 kW

Nominal frequency: 60 Hz

Operational conditions

Operating relative humidity (H-H): 5 - 95%

Operating altitude: 0 - 2000 m

Storage temperature (T-T): -40 - 85 °C

Operating temperature (T-T): -30 - 45 °C

Weight & dimensions

Package height: 225 mm

Package width: 290 mm

Package weight: 4.71 kg

Height: 352 mm

Width: 244 mm

Weight: 3.2 kg

Depth: 117 mm

Package depth: 395 mm

Ports & interfaces

Ethernet LAN: Yes
