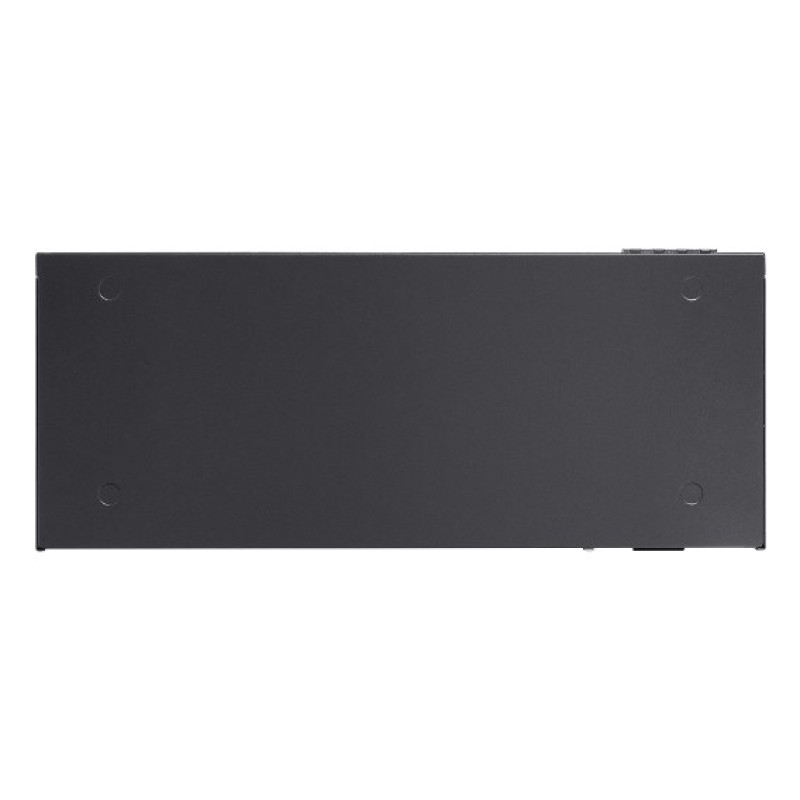

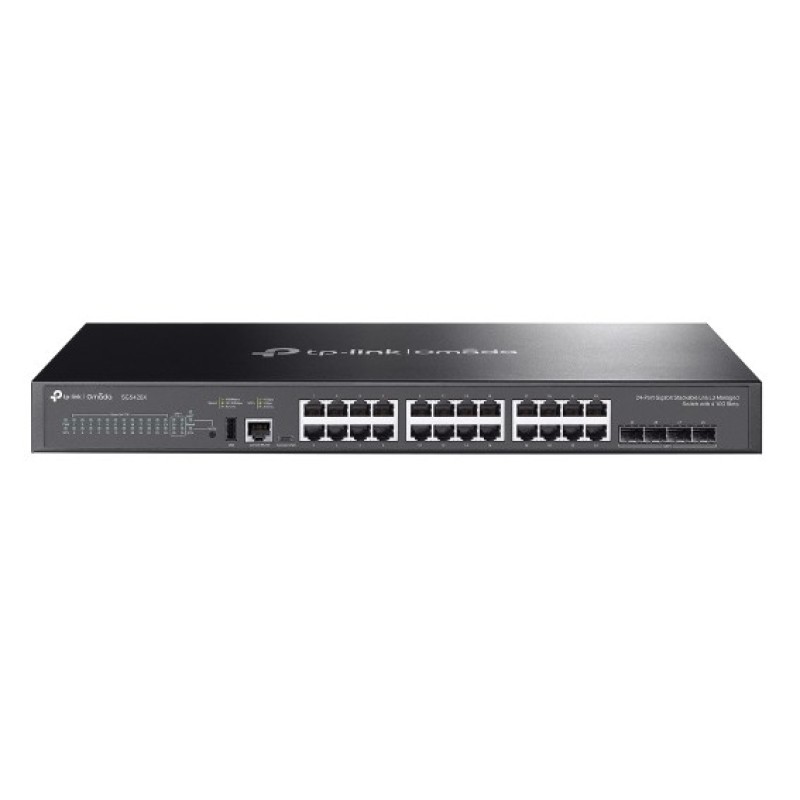

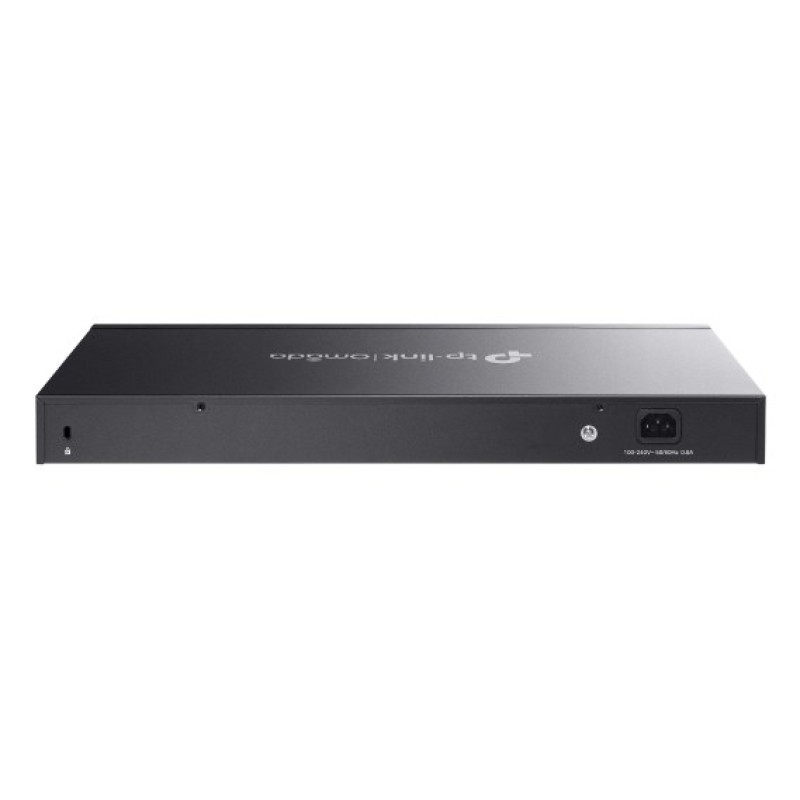

TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

Περιγραφή

Design

Product colour: Black

LED indicators: Yes

Rack mounting: Yes

Stackable: Yes

Power

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Power consumption (max): 19.6 W

Surge protection voltage: 6 kV

Power supply included: Yes

Surge protection: Yes

Power source: AC

Security

MAC address filtering: Yes

Security algorithms: SNMPv3, SNMP, SNMPv2

DHCP features: DHCP server, DHCP relay

SSH/SSL support: Yes

IGMP snooping: Yes

IP-MAC-Port binding: Yes

Static port security: Yes

Access Control List (ACL): Yes

Password protection: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): -5 - 45 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 66.87 BTU/h

Management features

Quality of Service (QoS) support: Yes

Web-based management: Yes

Switch layer: L3

Cloud-managed: Yes

Switch type: Managed

ARP inspection: Yes

Weight & dimensions

Depth: 180 mm

Width: 440 mm

Height: 44 mm

Network

Networking standards: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af

Virtual LAN features: Protocol-based VLAN, MAC address-based VLAN, Voice VLAN, Private VLAN

Number of VLANs: 4000

Port mirroring: Yes

10G support: Yes

Link aggregation: Yes

VLAN support: Yes

Broadcast storm control: Yes

Performance

Firmware upgradeable: Yes

Processor frequency: 1200 MHz

Telnet: Yes

Processor manufacturer: ARM

Mean time between failures (MTBF): 519.543 h

Memory type: DRAM

Internal memory: 2000 MB

Fanless: Yes

Built-in processor: Yes

Physical stacking (units): 4

Flash memory: 512 MB

Packaging content

Quick start guide: Yes

Rack mount kit: Yes

Cables included: AC

Certificates

Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Ports & interfaces

USB 2.0 ports quantity: 1

Console port: RJ-45

USB Type-C ports quantity: 1

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity: 4

Gigabit Ethernet (copper) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Other features

Management level: 4

Bandwidth: 64 Gbit/s

Data transmission

Forwarding rate: 95.23 Mpps

Packet buffer memory: 12 MB

Switching capacity: 128 Gbit/s

MAC address table: 16000 entries

Jumbo frames: 9000

Jumbo frames support: Yes

Store-and-forward: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Multicast features

Multicast support: Yes
