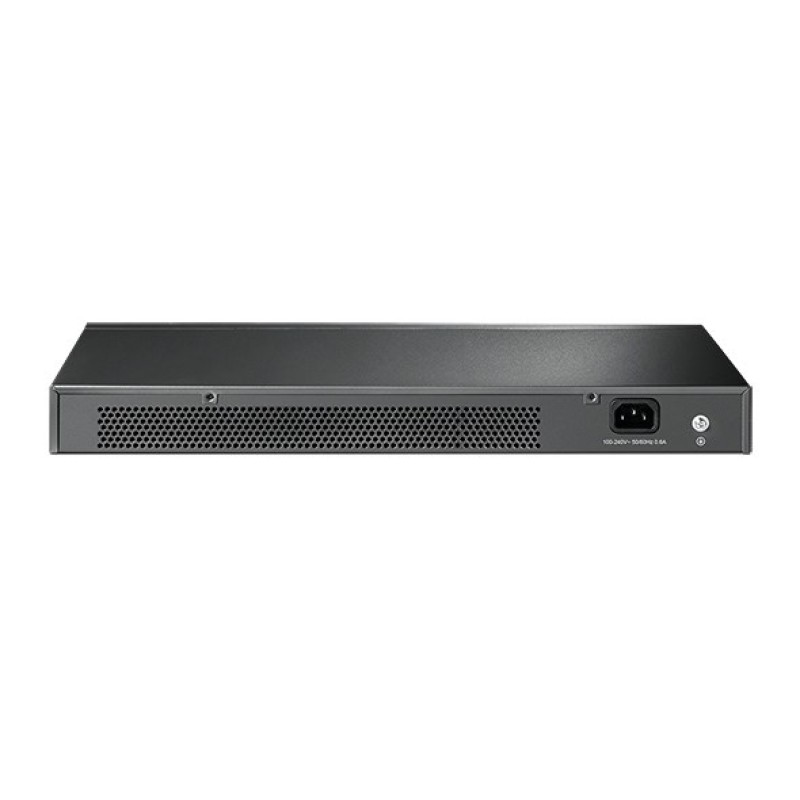

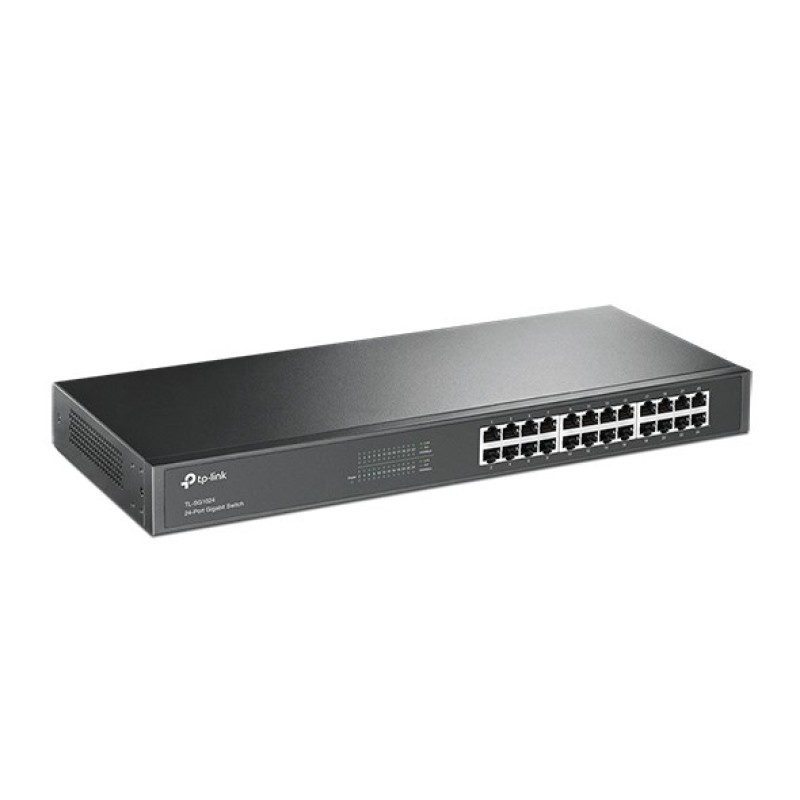

TP-Link 24-Port Gigabit Rackmount Network Switch

Περιγραφή

Design

Form factor: 1U

Product colour: Black

LED indicators: Yes

Rack mounting: Yes

Power

Power consumption (max): 13.62 W

AC input frequency: 50 - 60 Hz

Power source: AC

AC input voltage: 100 - 240 V

Power supply included: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Operating temperature (T-T): 0 - 40 °C, 32 - 104 °F

Storage temperature (T-T): -40 - 70 °C

Heat dissipation: 46.44 BTU/h

Management features

Quality of Service (QoS) support: Yes

Switch type: Unmanaged

Weight & dimensions

Height: 44 mm

Depth: 180 mm

Width: 440 mm

Network

Auto MDI/MDI-X: Yes

Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3i

Full duplex: Yes

Auto-negotiation: Yes

Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX

10G support: No

Flow control support: Yes

Half duplex: Yes

Packaging data

Package height: 80 mm

Cables included: AC

Package width: 250 mm

Package weight: 2.13 kg

Package depth: 528 mm

User guide: Yes

Rack mount kit: Yes

Protocols

Supported network protocols: CSMA/CD, TCP/IP

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Other features

Connectivity technology: Wired

Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")

Bandwidth: 48 Gbit/s

Connectivity LEDs: Y

Data transmission

MAC address table: 8000 entries

Supported data transfer rates: 10/100/1000 Mbps

Maximum data transfer rate: 1 Gbit/s

Jumbo frames: 10000

Switching capacity: 48 Gbit/s

Forwarding rate: 35.7 Mpps

Jumbo frames support: Yes

Store-and-forward: Yes
