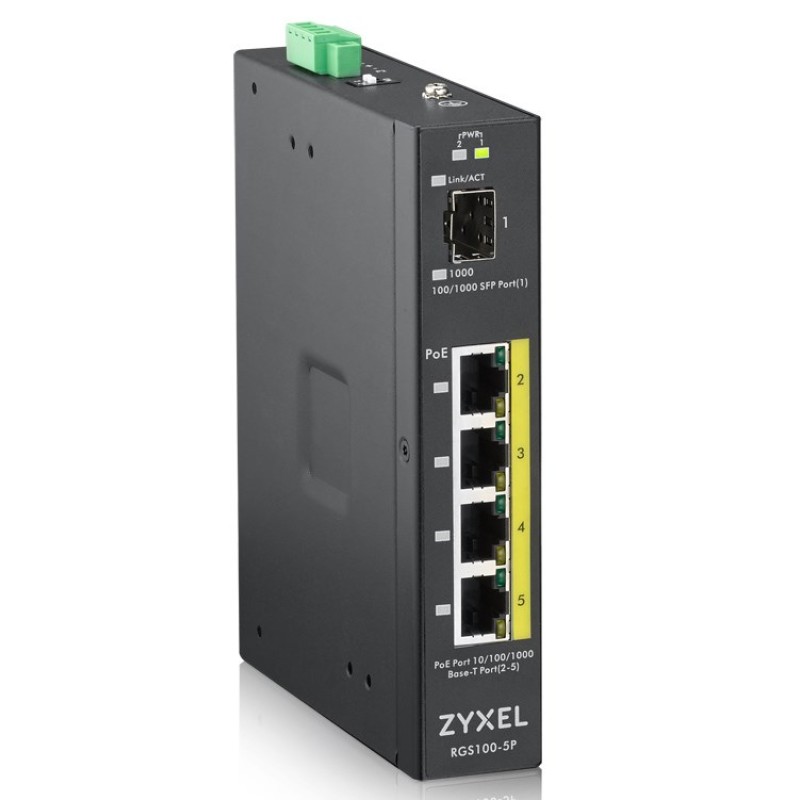

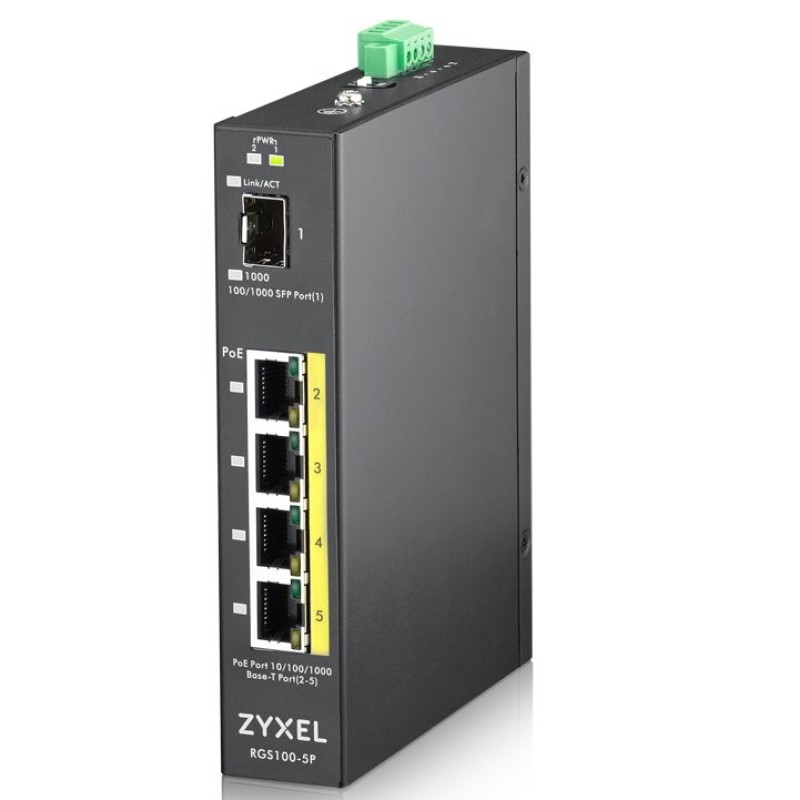

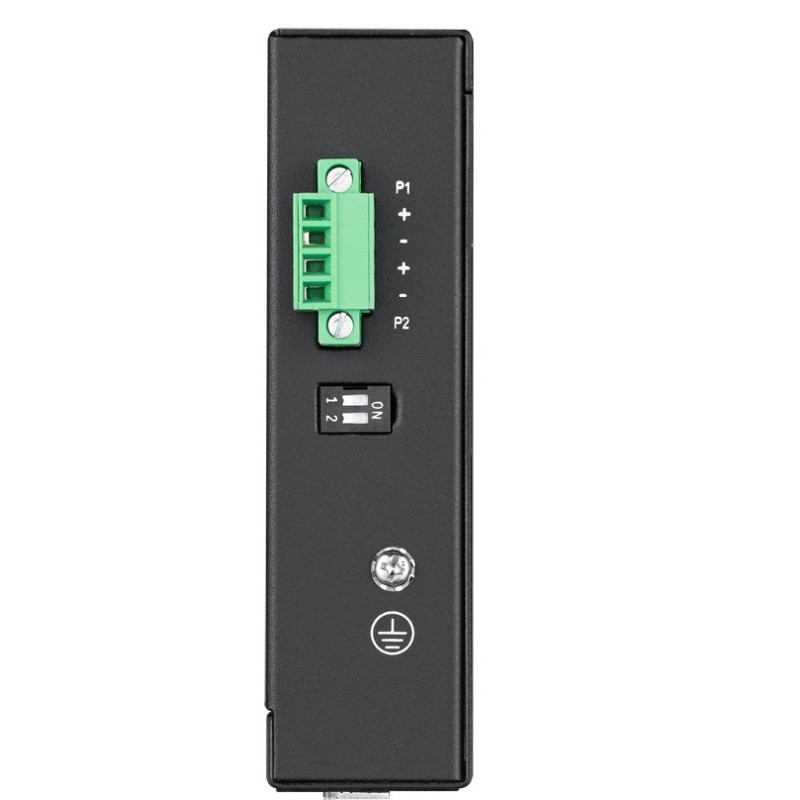

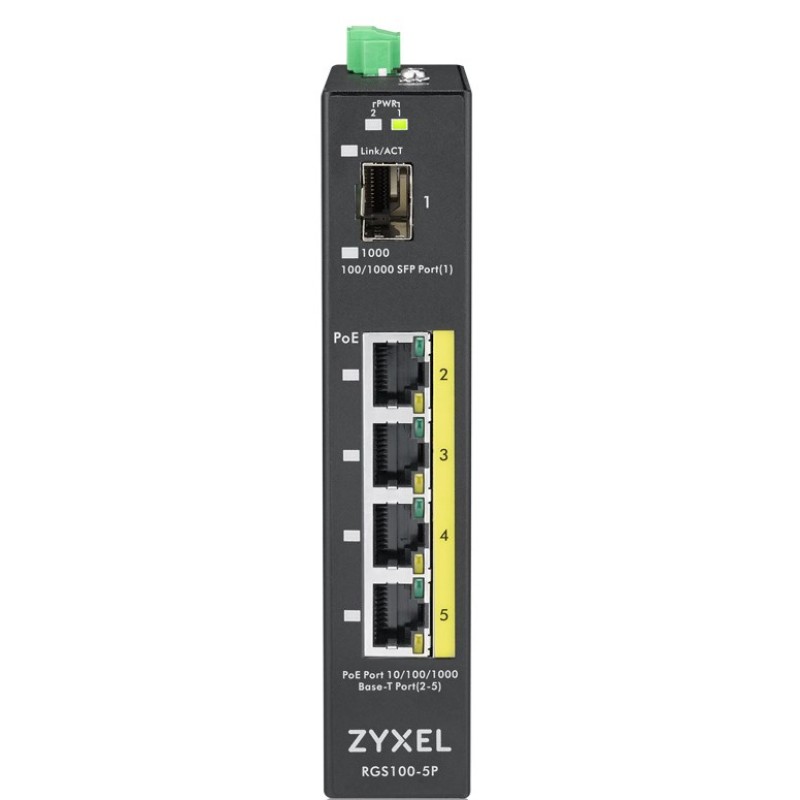

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Περιγραφή

Design

Wall mountable: Yes

Rack mounting: Yes

International Protection (IP) code: IP30

DIN rail mounting: Yes

Housing material: Metal

Product colour: Black

Power

Power protection features: Short circuit

DC input voltage: 12 - 58 V

Power consumption (max): 125 W

Input voltage: 12 - 58 V

Operational conditions

Heat dissipation: 42625 BTU/h

Operating temperature (T-T): -40 - 75 °C

Storage temperature (T-T): -40 - 85 °C

Operating relative humidity (H-H): 5 - 95%

Storage relative humidity (H-H): 5 - 90%

Management features

Switch layer: L2

Switch type: Unmanaged

Weight & dimensions

Height: 139 mm

Width: 29.1 mm

Depth: 107.3 mm

Weight: 500 g

Network

Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3z, IEEE 802.3at, IEEE 802.3u

Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX

Full duplex: Yes

MAC address auto-learning supported: Yes

Flow control support: Yes

Auto-negotiation: Yes

10G support: No

Auto MDI/MDI-X: Yes

Performance

Plug and Play: Yes

Mean time between failures (MTBF): 568430 h

Packaging data

Package weight: 700 g

Package height: 205 mm

Package depth: 177.8 mm

Package width: 70 mm

Wall mounting kit: Yes

Packaging content

Rack mount kit: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4

Fiber optic connector: SFP

SFP module slots quantity: 1

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data

Harmonized System (HS) code: 85176990

Data transmission

Switching capacity: 10 Gbit/s

Throughput: 7.44 Mpps

Packet buffer memory: 0.25 MB

Jumbo frames: 9000

MAC address table: 2000 entries

Store-and-forward: Yes

Jumbo frames support: Yes

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity: 4

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 120 W

Multicast features

Multicast support: Yes

Safety warning

Warnings: Do not open the housing of the unit due to the risk of electric shock., Do not use the device in damp conditions to avoid a short circuit.

Optical fiber

Transmission distance (max): 40 km

Fiber ethernet cabling technology: 1000BASE-X

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

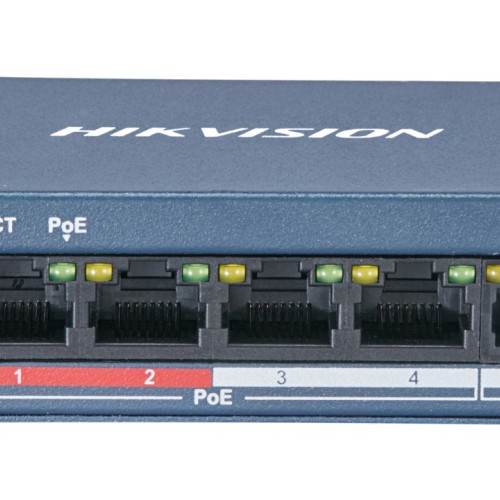

Hikvision DS-3E0105P-E/M(B) network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

DesignProduct colour: GreyLED indicators: Link, PoE, PowerHousing material: MetalPowerDC input voltage: 48 VPower consumption (max): 38 WInput current..

40,51€

Χωρίς ΦΠΑ:32,67€

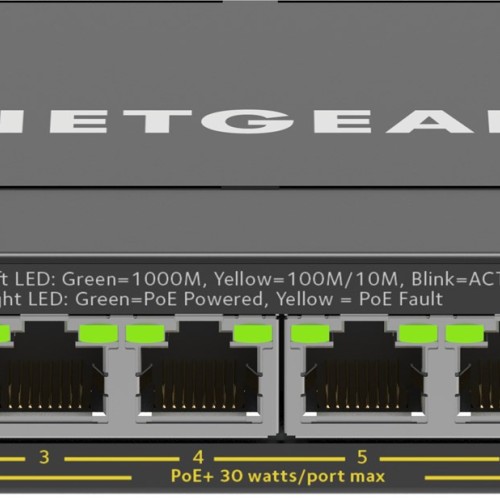

NETGEAR 8-Port Gigabit Ethernet High-Power PoE+ Plus Switch (GS308EPP) Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

DesignProduct colour: BlackLED indicators: YesPowerPower supply included: YesPower source: DCSecurityLoop protection: YesDHCP features: DHCP clientIGM..

153,56€

Χωρίς ΦΠΑ:123,84€

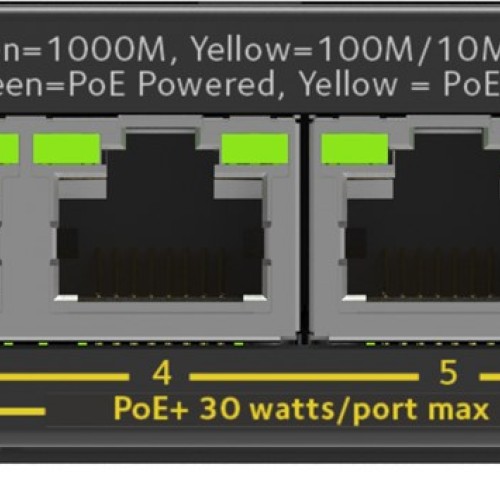

NETGEAR 8-Port Gigabit Ethernet PoE+ Plus Switch (GS308EP) Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

DesignLED indicators: YesProduct colour: BlackPowerPower supply included: YesPower source: DCSecurityIGMP snooping: YesDHCP features: DHCP clientLoop ..

109,67€

Χωρίς ΦΠΑ:88,45€

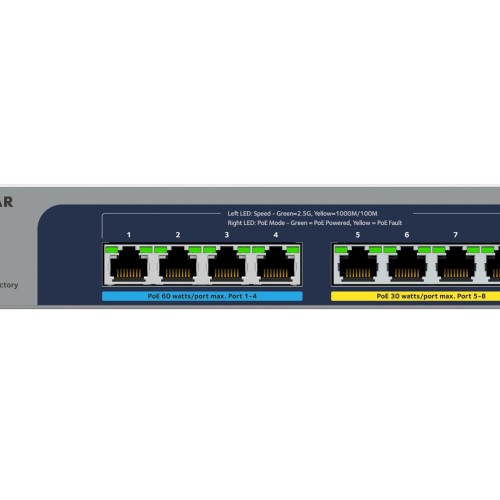

NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

DesignProduct colour: GreyStackable: NoHousing material: MetalLED indicators: YesRack mounting: NoPowerPower supply included: YesPower source: PoESecu..

326,73€

Χωρίς ΦΠΑ:263,49€

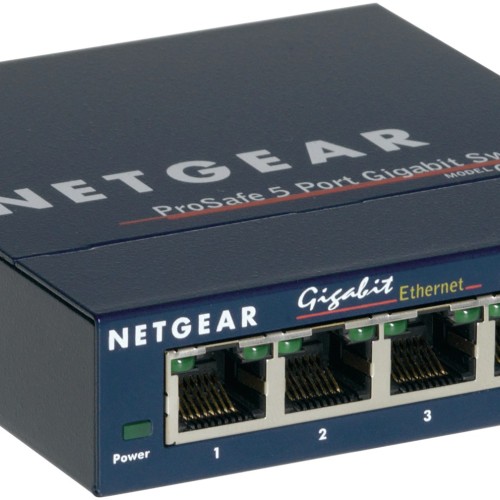

NETGEAR GS105 Unmanaged Gigabit Ethernet (10/100/1000) Blue

DesignProduct colour: BlueLED indicators: YesStackable: NoPowerPower supply included: YesPower consumption (typical): 3.5 WDC input voltage: 12 VInput..

23,55€

Χωρίς ΦΠΑ:19,00€

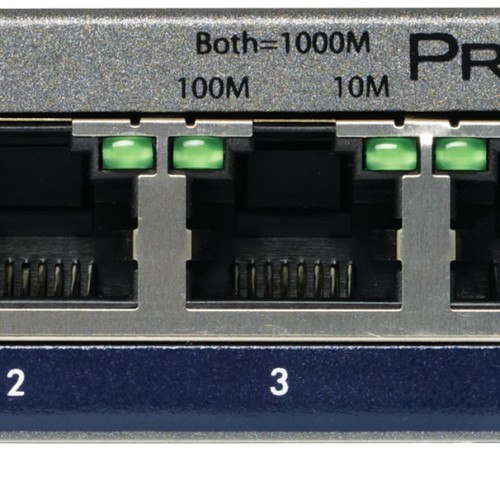

NETGEAR GS105E-200PES network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey

DesignLED indicators: YesStackable: NoProduct colour: GreySecurityIGMP snooping: YesDHCP features: DHCP clientOperational conditionsOperating temperat..

32,37€

Χωρίς ΦΠΑ:26,11€

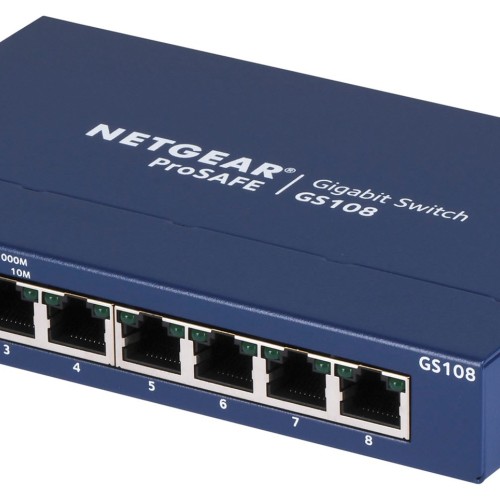

NETGEAR GS108GE network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue

DesignProduct colour: BlueStackable: NoSafety: UL (UL 1950), CUL, C-TickRack mounting: NoPowerPower supply included: YesPower source: DCPower consumpt..

29,43€

Χωρίς ΦΠΑ:23,73€

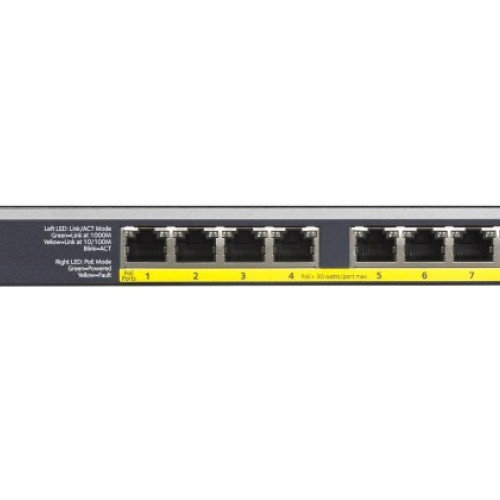

NETGEAR GS108LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey

DesignProduct colour: Grey, BlackWall mountable: YesRack mounting: YesForm factor: 1ULED indicators: YesNumber of fans: 0 fan(s)PowerPower consumption..

105,99€

Χωρίς ΦΠΑ:85,48€

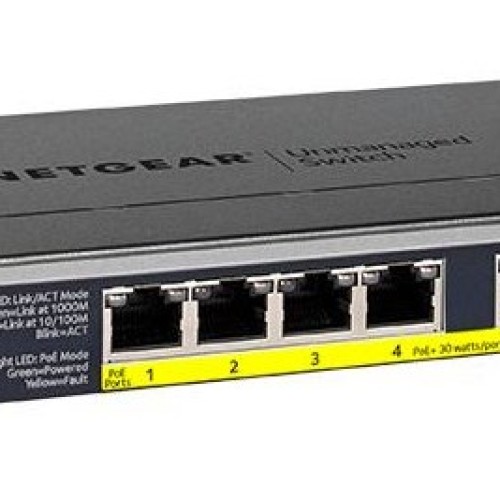

NETGEAR GS108PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

DesignProduct colour: BlackRack mounting: YesWall mountable: YesLED indicators: YesPowerOutput voltage: 2.4 VDC input voltage: 54 VPower consumption (..

127,58€

Χωρίς ΦΠΑ:102,88€

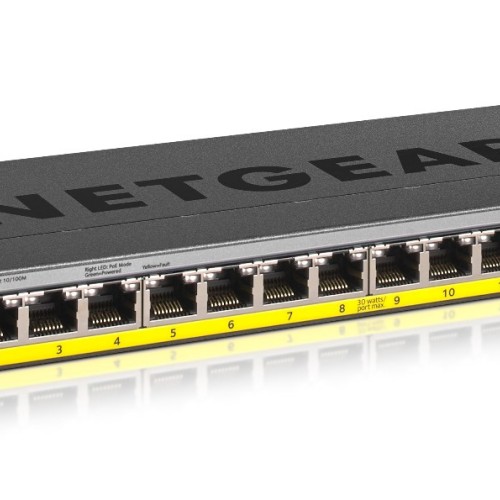

NETGEAR GS116PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

DesignRack mounting: YesLED indicators: YesProduct colour: BlackNumber of fans: 1 fan(s)PowerDC input voltage: 54 VInput current: 3.7 APower consumpti..

225,72€

Χωρίς ΦΠΑ:182,03€

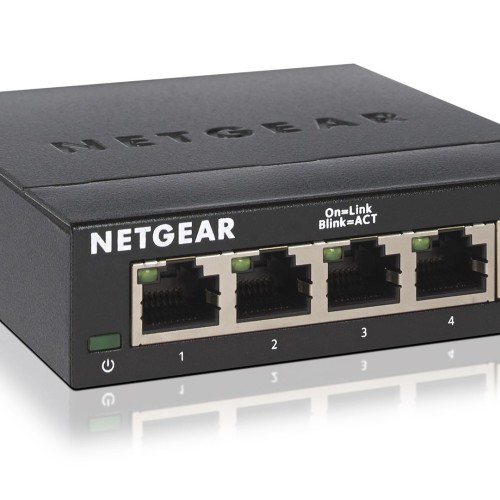

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

DesignProduct colour: BlackLED indicators: Power, Link, ActivityWall mountable: YesHousing material: MetalRack mounting: NoPowerPower consumption (max..

21,93€

Χωρίς ΦΠΑ:17,68€

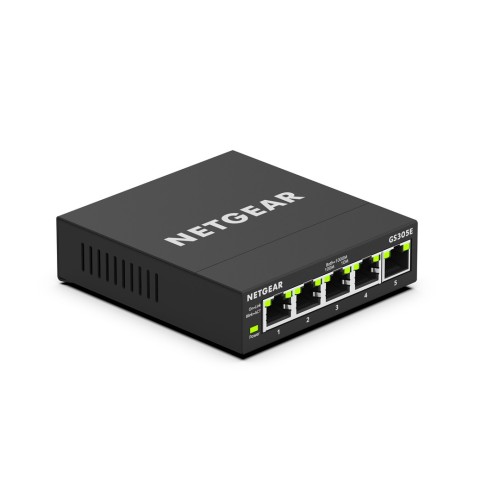

NETGEAR GS305E Managed Gigabit Ethernet (10/100/1000) Black
