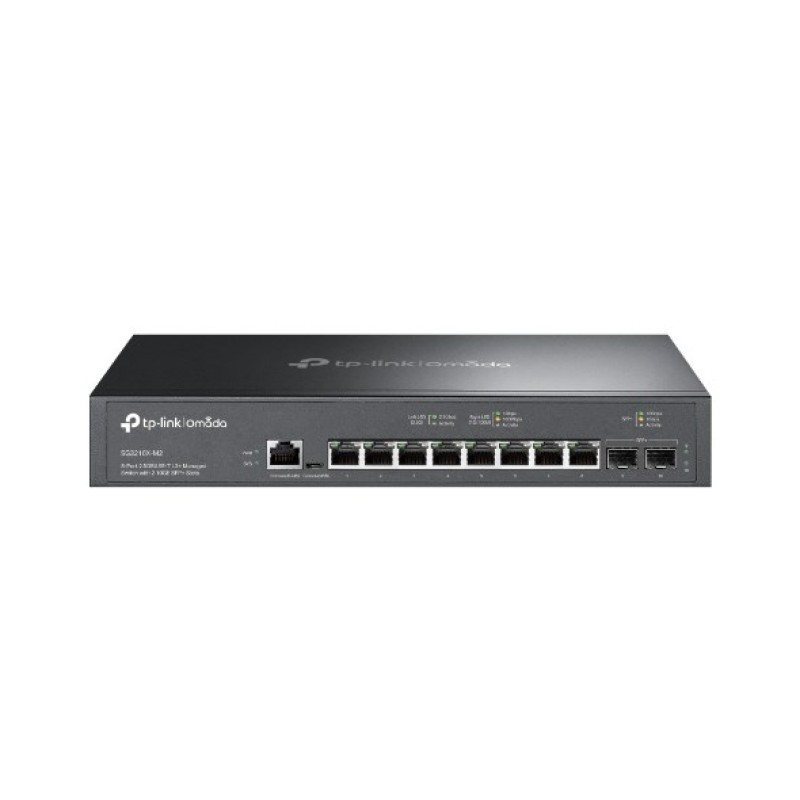

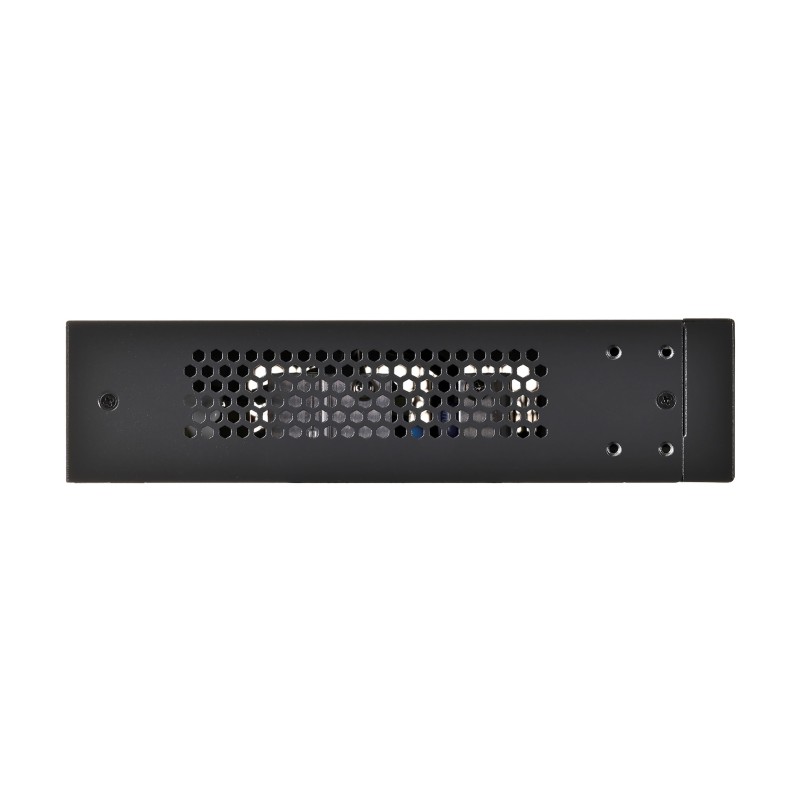

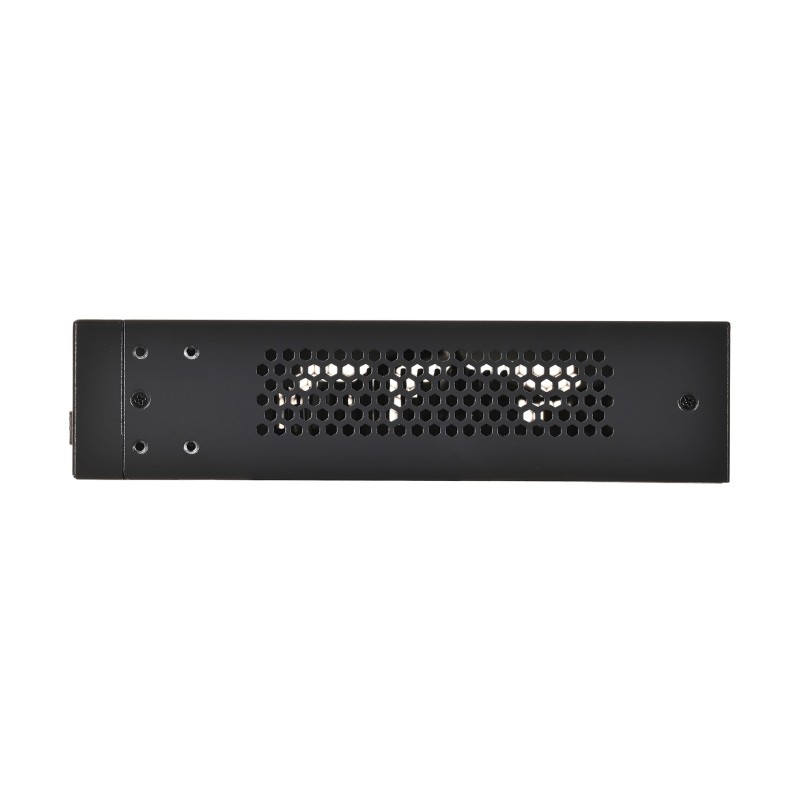

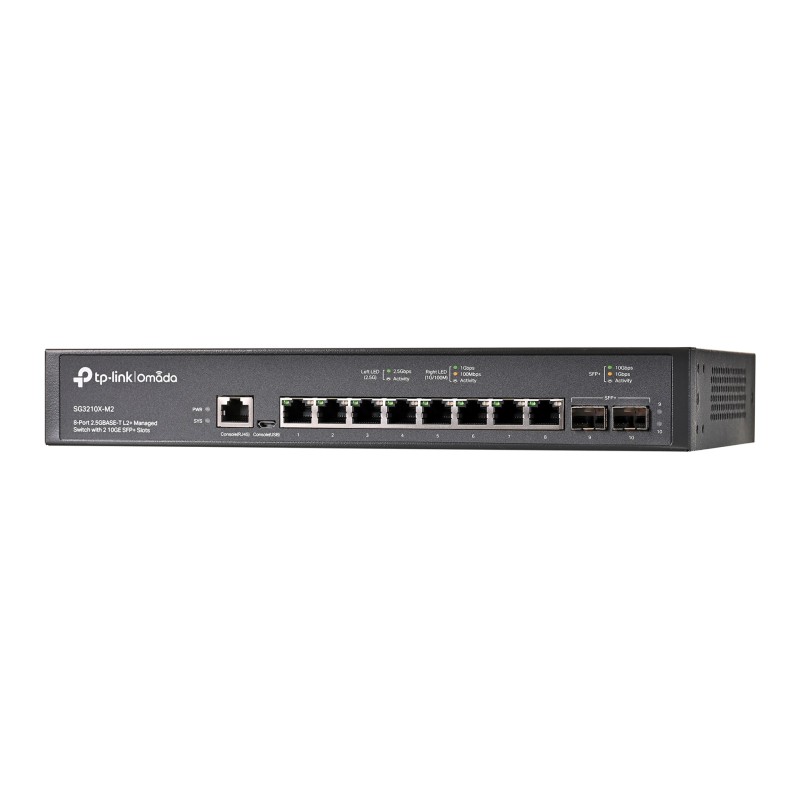

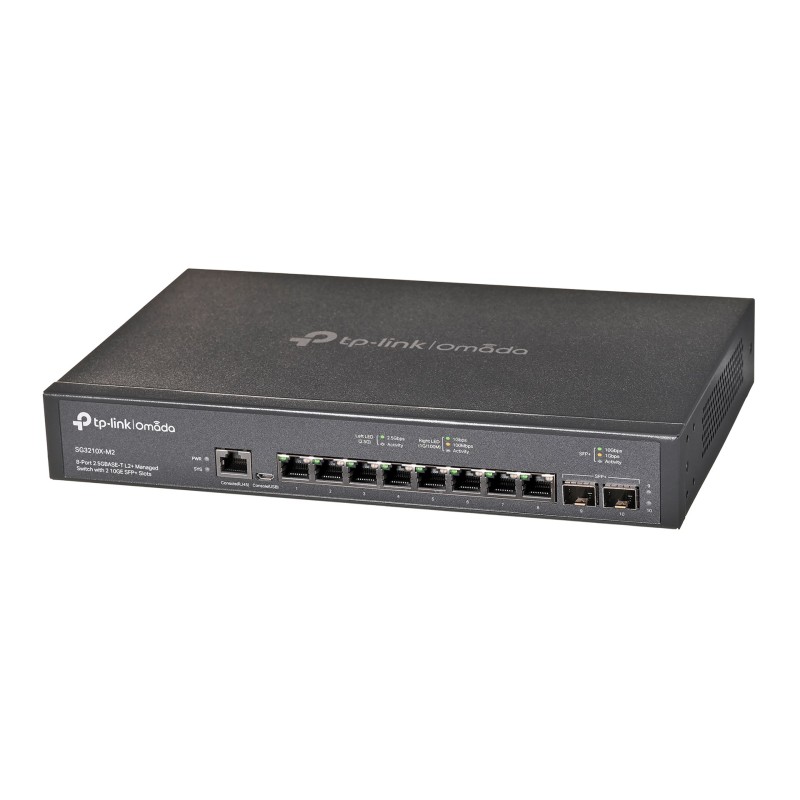

TP-Link Omada 8-Port 2.5G L2+ Managed Switch

Περιγραφή

Design

LED indicators: Yes

Product colour: Black

Form factor: 1U

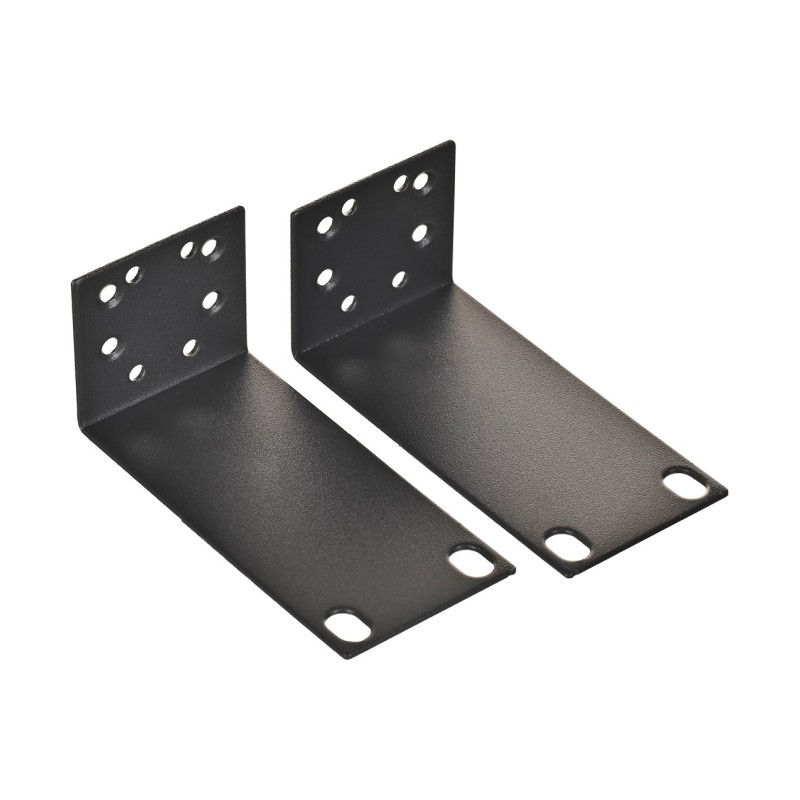

Rack mounting: Yes

Number of fans: 2 fan(s)

Power

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Power source: AC

Power supply included: Yes

Power consumption (typical): 15 W

Security

Security algorithms: SSH-2, SSL/TLS, SSH, HTTPS

MAC address filtering: Yes

Authentication type: AAA, TACACS+

BPDU filtering/protection: Yes

Queue scheduling algorithms: WRR+SP, Weighted Round Robin (WRR), SP

IP-MAC-Port binding: Yes

DHCP features: DHCPv6 snooping, DHCPv6 client, DHCP client, DHCP relay, DHCP server, DHCP snooping

Password protection: Yes

Access Control List (ACL): Yes

IGMP snooping: Yes

Loop protection: Yes

Authentication: MAC-based authentication, Port-based authentication

Static port security: Yes

SSH/SSL support: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Operating relative humidity (H-H): 10 - 90%

Heat dissipation: 51.18 BTU/h

Management features

Web-based management: Yes

Traffic classification: Yes

Cloud-managed: Yes

ARP inspection: Yes

Quality of Service (QoS) support: Yes

Configuring Location Settings (CLI): Yes

System event log: Yes

Switch type: Managed

MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Switch layer: L2+

Weight & dimensions

Height: 44 mm

Width: 294 mm

Depth: 180 mm

Network

Networking standards: IEEE 802.1s, IEEE 802.1w, IEEE 802.1D

Ethernet LAN data rates: 100,1000,2500 Mbit/s

Virtual LAN features: Protocol-based VLAN, Private VLAN, MAC address-based VLAN, Port-based VLAN, Voice VLAN, Tagged VLAN

Spanning tree protocol: Yes

Head-of-line (HOL) blocking: Yes

IP routing: Yes

10G support: Yes

Number of VLANs: 4000

VLAN support: Yes

Link aggregation: Yes

Broadcast storm control: Yes

Flow control support: Yes

Rate limiting: Yes

Port mirroring: Yes

Performance

Fanless: Yes

Packaging data

Package weight: 2.84 kg

Package type: Box

Package depth: 250 mm

Package height: 80 mm

Package width: 528 mm

Packaging content

Quick start guide: Yes

Cables included: AC

Protocols

GARP VLAN Registration Protocol (GVRP): Yes

Management protocols: SNMPv1/v2c/v3, SNTP

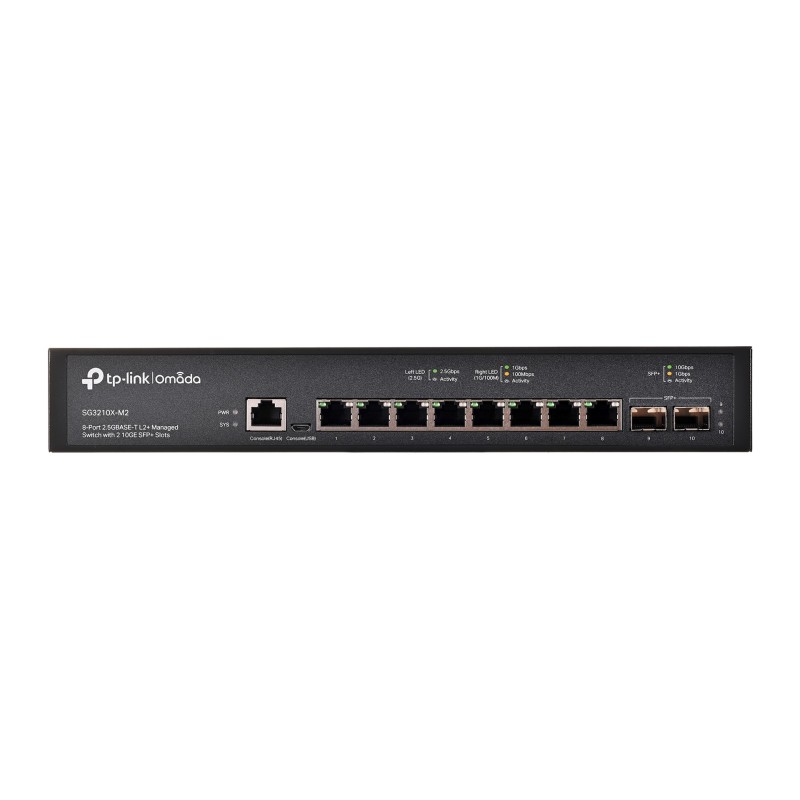

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

2.5G Ethernet (copper) ports quantity: 8

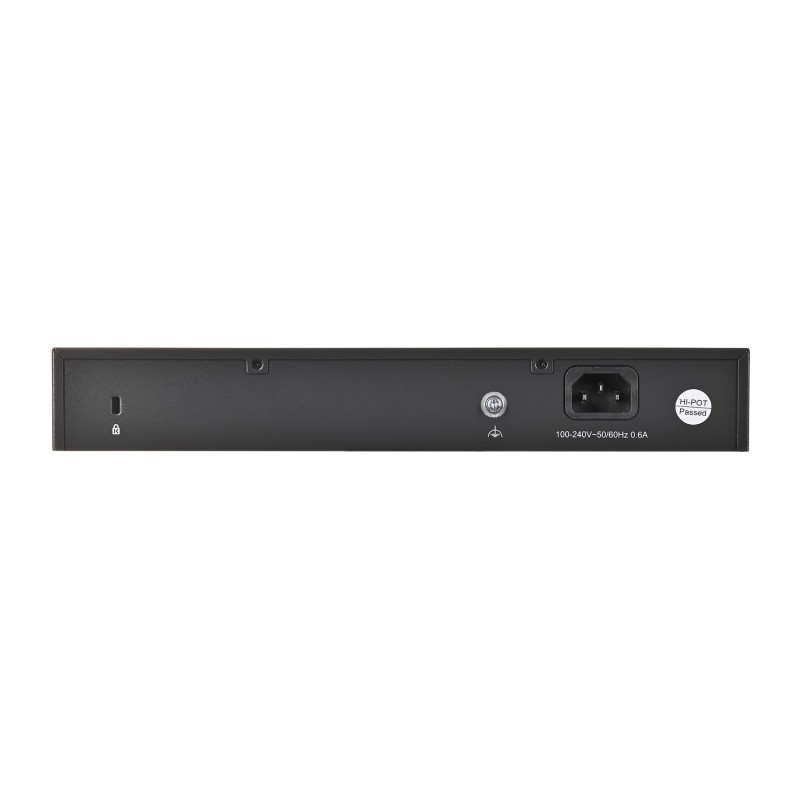

Power connector: AC-in jack

Basic switching RJ-45 Ethernet ports quantity: 8

SFP+ module slots quantity: 2

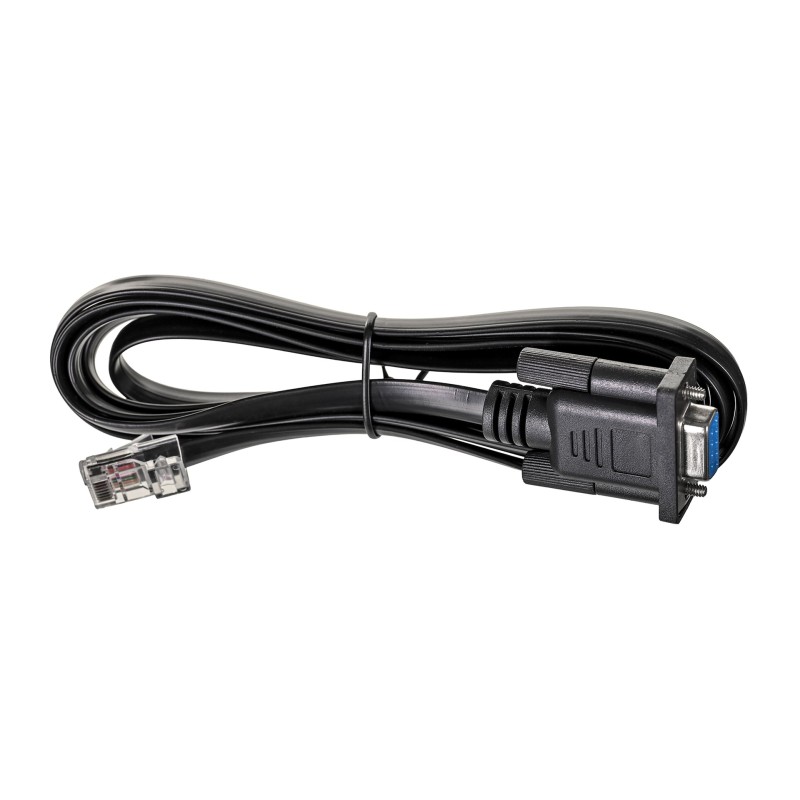

Console port: RJ-45/micro-USB

Logistics data

Harmonized System (HS) code: 85176990

Data transmission

Number of IP interfaces: 16

Static route: Yes

Jumbo frames: 9000

Number of static routes: 48

MAC address table: 16000 entries

Forwarding rate: 59.52 Mpps

Switching capacity: 80 Gbit/s

Packet buffer memory: 12 MB

Jumbo frames support: Yes

Multicast features

Multicast Listener Discovery (MLD) snooping: Y

Multicast support: Yes
