TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

Περιγραφή

Design

Form factor: 1U

Product colour: Black

Number of fans: 3 fan(s)

Rack mounting: Yes

Power

Power source: AC

AC input frequency: 50 - 60 Hz

Power supply included: Yes

AC input voltage: 100 - 240 V

Security

DHCP features: DHCP server, DHCP client, DHCP relay

IP-MAC-Port binding: Yes

BPDU filtering/protection: Yes

Access Control List (ACL): Yes

Authentication: Auto VLAN, Guest VLAN

SSH/SSL support: Yes

Static port security: Yes

IGMP snooping: Yes

MAC address filtering: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 2169.2 BTU/h

Management features

Switch layer: L2+

System event log: Yes

ARP inspection: Yes

Quality of Service (QoS) support: Yes

Cloud-managed: Yes

Switch type: Managed

Web-based management: Yes

Configuring Location Settings (CLI): Yes

Weight & dimensions

Depth: 330 mm

Height: 44 mm

Width: 440 mm

Network

Link aggregation: Yes

Broadcast storm control: Yes

Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3at, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1w

VLAN support: Yes

Rate limiting: Yes

Flow control support: Yes

10G support: Yes

Port mirroring: Yes

Spanning tree protocol: Yes

Head-of-line (HOL) blocking: Yes

Performance

Internal memory: 512 MB

Flash memory: 32 MB

Packaging data

Rack rails: Yes

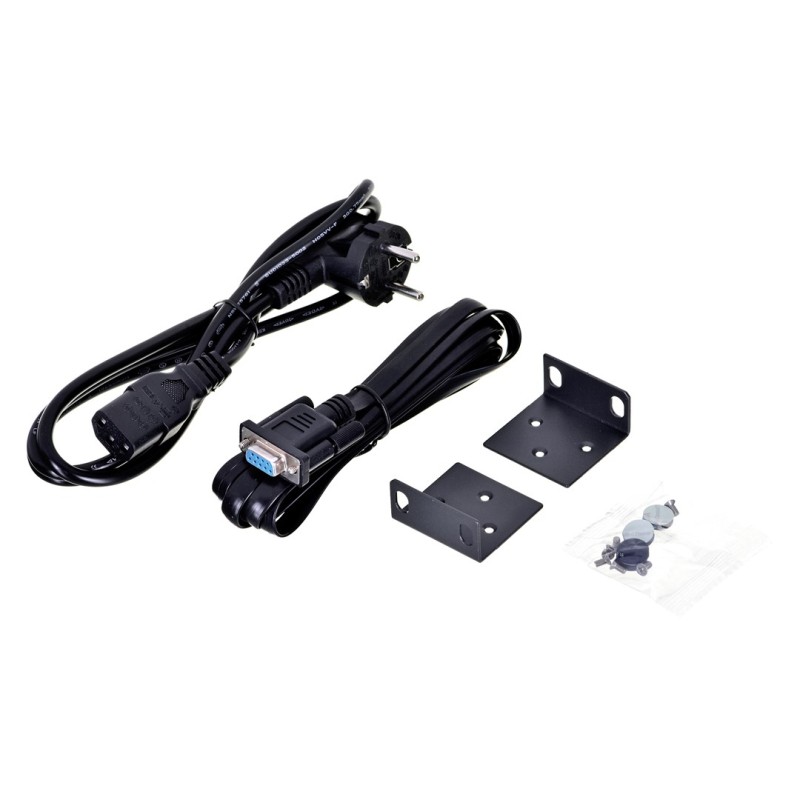

Quick start guide: Yes

Cables included: AC

Ports & interfaces

SFP+ module slots quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 48

Console port: RJ-45/micro-USB

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data

Harmonized System (HS) code: 85176990

Data transmission

Switching capacity: 176 Gbit/s

MAC address table: 16000 entries

Jumbo frames: 9216

Jumbo frames support: Yes

Forwarding rate: 130.9 Mpps

Store-and-forward: Yes

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget: 500 W

Power over Ethernet (PoE): Yes

Power over Ethernet (PoE) ports quantity: 48

Power over Ethernet (PoE) power per port: 30 W

Multicast features

Multicast support: Yes
