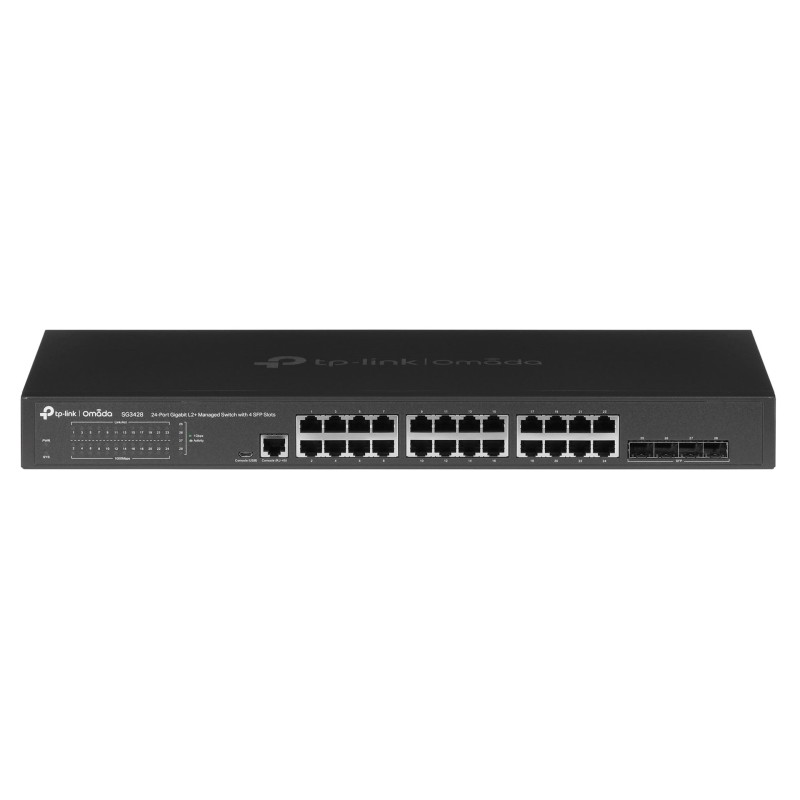

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Περιγραφή

Design

LED indicators: Yes

Product colour: Black

Rack mounting: Yes

Form factor: 1U

Power

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power source: AC

Power consumption (max): 20.6 W

Power supply included: No

Security

IP-MAC-Port binding: Yes

Authentication type: AAA, RADIUS, TACACS+

BPDU filtering/protection: Yes

MAC address filtering: Yes

Static port security: Yes

Access Control List (ACL): Yes

Loop protection: Yes

IGMP snooping: Yes

DHCP features: DHCPv6 snooping, DHCP server, DHCP client, DHCP relay, DHCPv6 client, DHCP snooping

Authentication: MAC-based authentication, Port-based authentication

SSH/SSL support: Yes

Operational conditions

Heat dissipation: 70.3 BTU/h

Storage relative humidity (H-H): 5 - 90%

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 45 °C

Storage temperature (T-T): -40 - 70 °C

Management features

ARP inspection: Yes

Cloud-managed: Yes

Configuring Location Settings (CLI): Yes

Web-based management: Yes

Switch type: Managed

Switch layer: L2/L3

MIB support: Yes

System event log: Yes

Quality of Service (QoS) support: Yes

Weight & dimensions

Width: 440 mm

Height: 44 mm

Depth: 180 mm

Network

Policy-based routing: Yes

Head-of-line (HOL) blocking: Yes

IPv6 routes: 48

IPv4 routes: 48

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3z, IEEE 802.3u

Ethernet LAN data rates: 10,100,1000 Mbit/s

Spanning tree protocol: Yes

Link aggregation: Yes

Port mirroring: Yes

VLAN support: Yes

Broadcast storm control: Yes

Rate limiting: Yes

Virtual LAN features: Tagged VLAN, Voice VLAN, Private VLAN, Protocol-based VLAN

IP routing: Yes

Flow control support: Yes

10G support: No

Number of VLANs: 4000

Packaging data

Quick start guide: Yes

Cables included: LAN (RJ-45)

Protocols

IPv4 & IPv6 features: IPv6 ping, IPv4/IPv6 access-control list (ACL), IPv6 tracert, IPv6 Telnet

GARP VLAN Registration Protocol (GVRP): Yes

Management protocols: SNMPv1/v2c/v3, SNTP

Ports & interfaces

Gigabit Ethernet (copper) ports quantity: 24

Console port: RJ-45/Micro-USB

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 24

Data transmission

Jumbo frames: 9000

Number of static routes: 48

Jumbo frames support: Yes

Packet buffer memory: 12 MB

Forwarding rate: 41.66 Mpps

Switching capacity: 56 Gbit/s

MAC address table: 16000 entries

Static route: Yes

Store-and-forward: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Multicast features

Multicast Listener Discovery (MLD) snooping: Y

Multicast support: Yes
