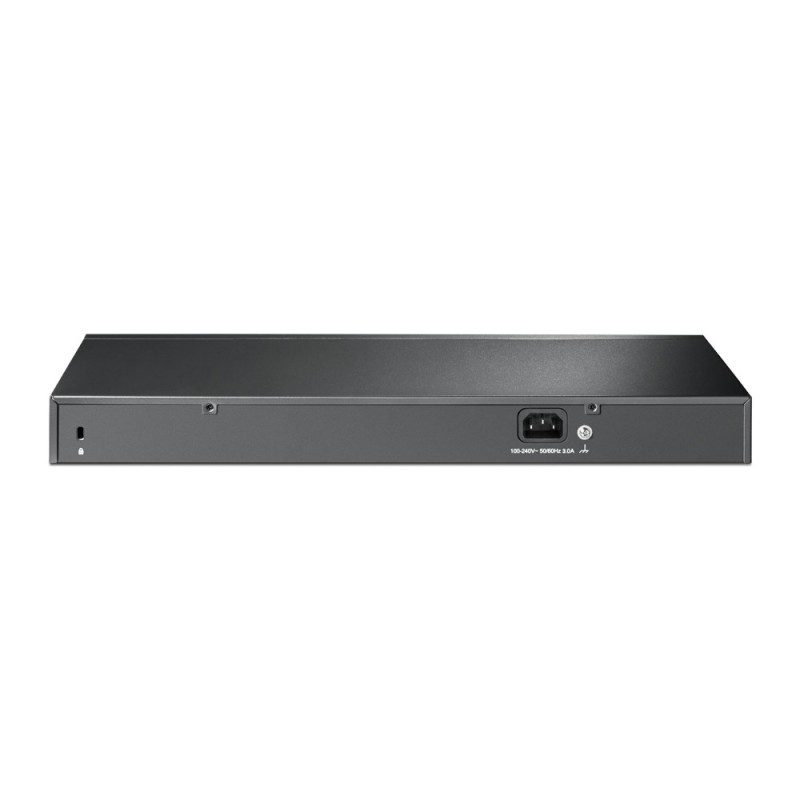

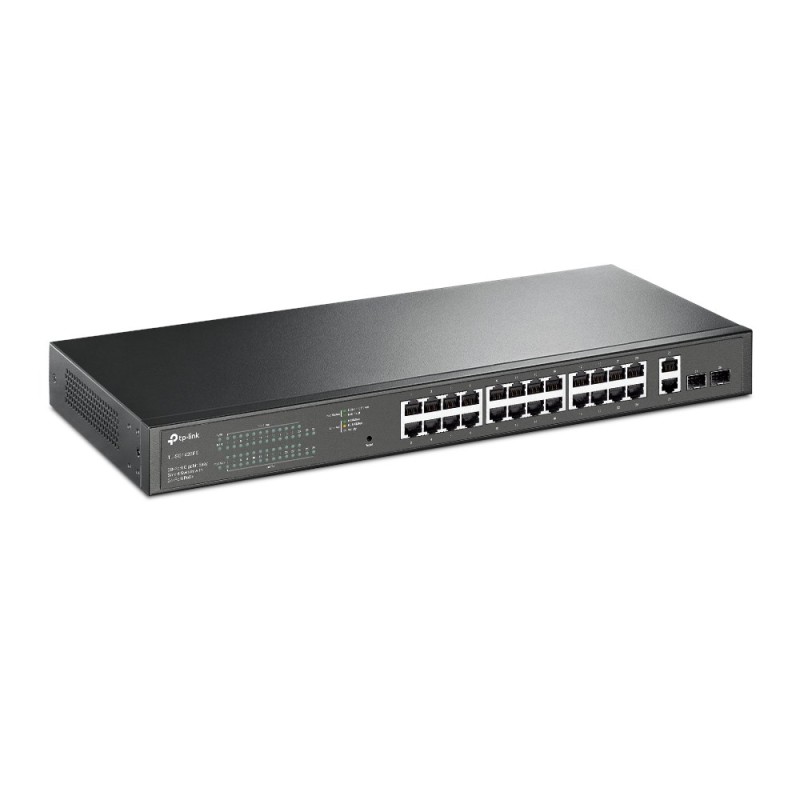

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Περιγραφή

Design

Form factor: 1U

Product colour: Black

Rack mounting: Yes

Number of fans: 2 fan(s)

Power

Power supply included: Yes

Power consumption (max): 1039.03 W

AC input frequency: 50 - 60 Hz

Power source: AC

AC input voltage: 100 - 240 V

Security

Security algorithms: SNMP, SNMPv2, SNMPv3

IGMP snooping: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 50 °C

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Management features

Web-based management: Yes

Quality of Service (QoS) support: Yes

Switch type: Managed

Switch layer: L2

Weight & dimensions

Width: 440 mm

Height: 44 mm

Depth: 220 mm

Network

Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3af

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX

VLAN support: Yes

Port mirroring: Yes

Link aggregation: Yes

Cable types supported: Cat5, Cat5e, Cat3, Cat4, Cat6

Auto-negotiation: Yes

Broadcast storm control: Yes

Rate limiting: Yes

Virtual LAN features: Tagged VLAN, Port-based VLAN

Number of VLANs: 32

Flow control support: Yes

10G support: No

Packaging data

Package height: 100 mm

Package depth: 528 mm

Package weight: 3.94 kg

Package width: 336 mm

Packaging content

User guide: Yes

Cables included: AC

Rack mount kit: Yes

Ports & interfaces

SFP module slots quantity: 2

Basic switching RJ-45 Ethernet ports quantity: 26

Gigabit Ethernet (copper) ports quantity: 26

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data

Harmonized System (HS) code: 85176990

Data transmission

Switching capacity: 56 Gbit/s

Jumbo frames support: Yes

Packet buffer memory: 4.1 MB

Jumbo frames: 10000

MAC address table: 8000 entries

Forwarding rate: 41.7 Mpps

Number of queues: 4

Store-and-forward: Yes

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget: 250 W

Power over Ethernet (PoE): Yes

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet plus (PoE+) ports quantity: 24

Multicast features

Multicast support: Yes

Safety warning

Warnings: Do not open the case or try to repair it yourself.

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X
