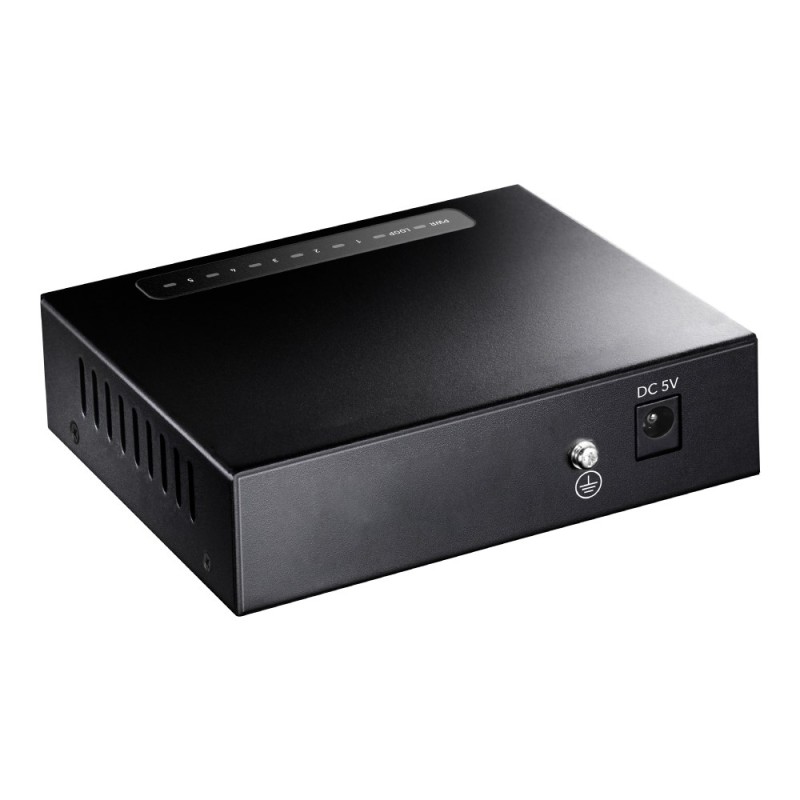

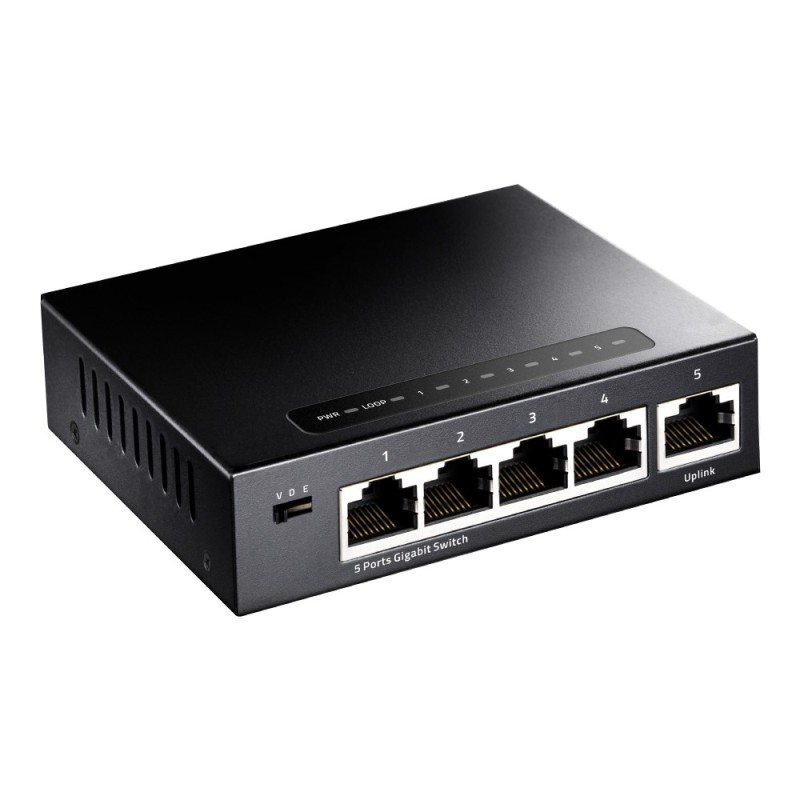

Cudy GS105 network switch Gigabit Ethernet (10/100/1000) Black

Περιγραφή

Design

Product colour: Black

LED indicators: Loop, Link, Power

Rack mounting: No

Power

DC input voltage: 5 V

AC input voltage: 100 - 240 V

Power supply included: Yes

Power source: AC/DC

Operational conditions

Storage temperature (T-T): -40 - 70 °C

Operating altitude: 0 - 3048 m

Storage relative humidity (H-H): 5 - 90%

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): -10 - 50 °C

Weight & dimensions

Width: 100 mm

Weight: 200 g

Height: 26 mm

Depth: 70 mm

Network

Cable types supported: Cat8, Cat4, Cat6a, Cat6e, Cat7e, Cat3, Cat6, Cat8.1, Cat5, Cat5e, Cat6+, Cat7

Full duplex: Yes

Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab

Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX, 10BASE-T

Auto MDI/MDI-X: Yes

MAC address auto-aging supported: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

VLAN support: Yes

Flow control support: Yes

Auto-negotiation: Yes

MAC address auto-learning supported: Yes

Half duplex: Yes

Performance

Mean time between failures (MTBF): 100000 h

Packaging data

Package depth: 120 mm

Package width: 175 mm

Package type: Box

Package weight: 400 g

Package height: 63 mm

Packaging content

Cables included: DC

Manual: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 5

Logistics data

Master (outer) case gross weight: 17 kg

Master (outer) case height: 400 mm

Master (outer) case width: 505 mm

Products per master (outer) case: 40 pc(s)

Master (outer) case length: 320 mm

Data transmission

Switching capacity: 10 Gbit/s

Throughput: 7.44 Mpps

Jumbo frames support: Yes

MAC address table: 1000 entries

Packet buffer memory: 1 MB

Jumbo frames: 2000

Store-and-forward: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Safety warning

Warnings: Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
