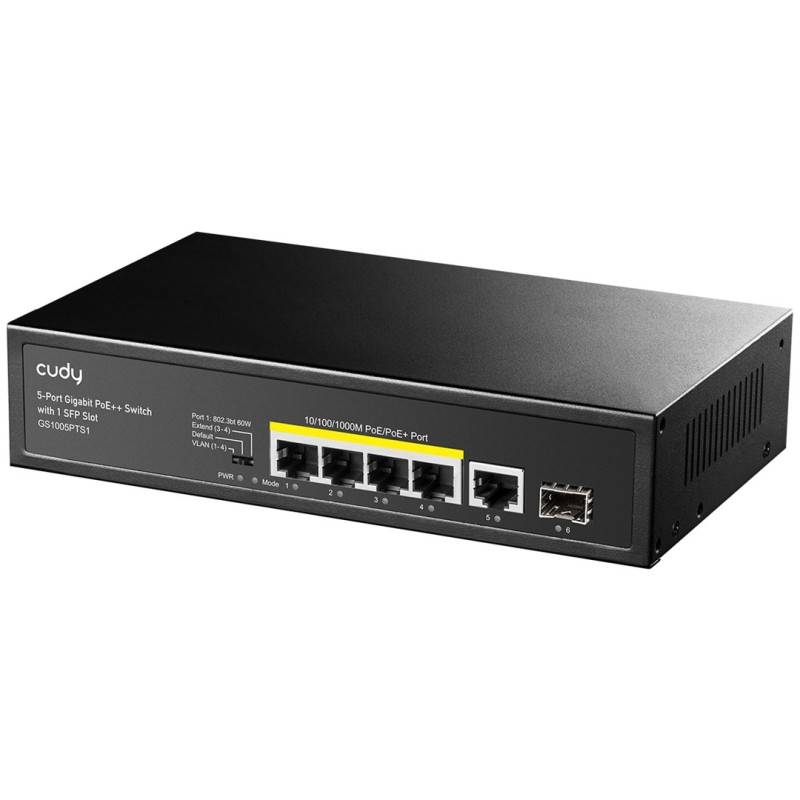

Cudy GS1005PTS1 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Περιγραφή

Design

Housing material: Metal

Wall mountable: Yes

Rack mounting: Yes

Product colour: Black

LED indicators: Power, Activity, Link

Power

Output voltage: 52 V

Power supply included: Yes

Power source: AC

Output current: 1.25 A

AC input voltage: 100 - 240 V

Input current: 1.25 A

Operational conditions

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 85 °C

Storage relative humidity (H-H): 5 - 90%

Operating altitude: 0 - 3048 m

Operating temperature (T-T): -20 - 50 °C

Weight & dimensions

Depth: 118 mm

Height: 44 mm

Width: 200 mm

Weight: 600 g

Network

Full duplex: Yes

Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX, 10BASE-T

VLAN support: Yes

Half duplex: Yes

Cable types supported: Cat4, Cat6+, Cat3, Cat7, Cat6e, Cat7e, Cat6a, Cat5, Cat5e, Cat8, Cat6, Cat8.1

Flow control support: Yes

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af

Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Mean time between failures (MTBF): 100000 h

Plug and Play: Yes

Fanless: Yes

Packaging data

Package height: 60 mm

Package depth: 190 mm

Package weight: 900 g

Package type: Box

Package width: 245 mm

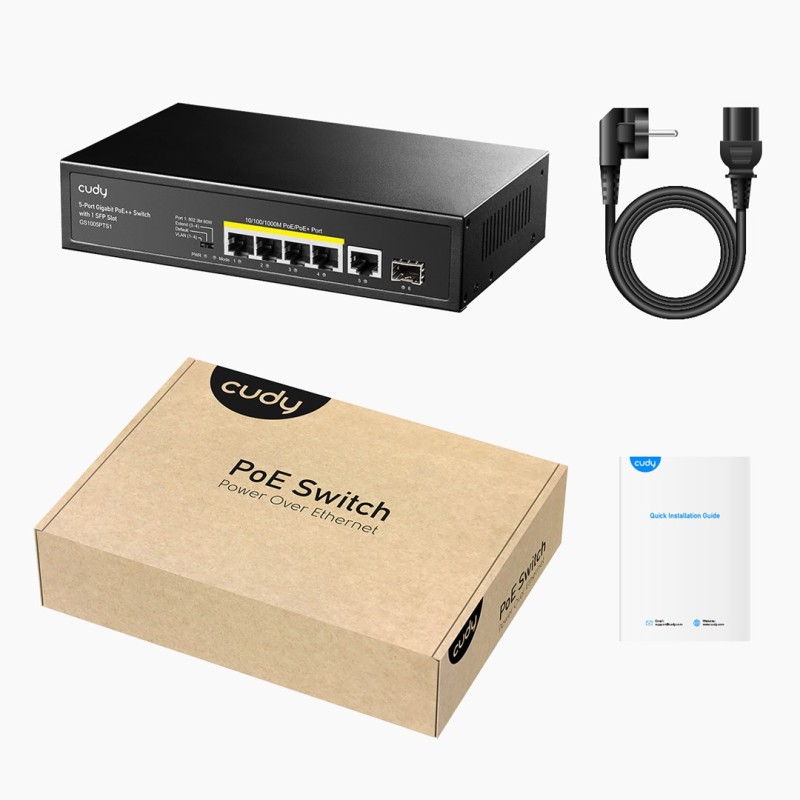

Packaging content

Cables included: AC

Manual: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 5

Power connector: AC-in jack

Uplink ports quantity: 1

Combo SFP ports quantity: 1

Installed SFP modules quantity: 1

Logistics data

Products per master (outer) case: 20 pc(s)

Master (outer) case width: 505 mm

Master (outer) case length: 320 mm

Master (outer) case net weight: 19 kg

Master (outer) case height: 402 mm

Data transmission

Jumbo frames support: Yes

Switching capacity: 12 Gbit/s

MAC address table: 2000 entries

Packet buffer memory: 1 MB

Jumbo frames: 9216

Store-and-forward: Yes

Throughput: 8.928 Mpps

Power over Ethernet (PoE)

Power over Ethernet (PoE) power per port: 30 W

Power over Ethernet (PoE) ports quantity: 4

Total Power over Ethernet (PoE) budget: 120 W

Power over Ethernet plus (PoE+) ports quantity: 1

Power over Ethernet (PoE): Yes

Safety warning

Warnings: The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.

Optical fiber

Switching optical modules type: Gigabit Ethernet

Fiber type: Multi-mode
